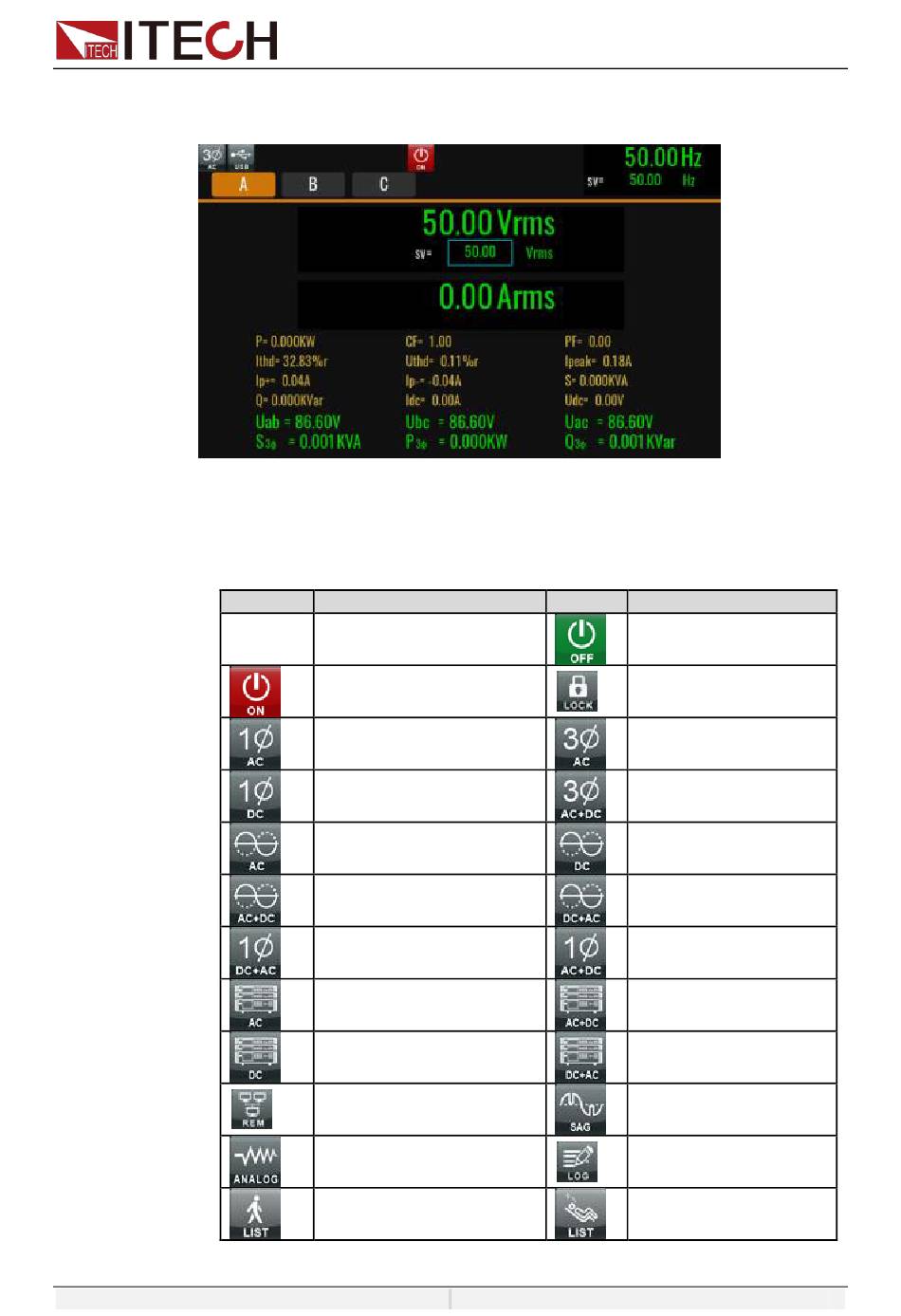

The meter interface of phase A is shown as follow, the display parameters are
the same as single mode. You can click the A, B or C to switch the phase
interface.
Introduction to Interface Symbols
The interface of IT7900P power supply will display the following symbols. All the
symbols and description are listed in the table below.
Char Function description
Shift Compound key
Output is on
Single phase AC mode
Single phase DC mode
Split phase AC mode
Split phase AC+DC mode
Single phase DC+AC
mode
Multi-channel AC mode
Multi-channel DC mode
The AC source is in
remote mode
External Simulation Test
Function
LIST is running
Copyright ©ITECH Electronic Co., Ltd.
Char Function description
Output is off
Key operation is
locked
Three phase AC mode
Three phase AC+DC
mode
Split phase AC mode
Split phase DC+AC
mode
Single phase AC+DC
mode
Multi-channel AC+DC
mode
Multi-channel DC+AC
mode
Surge&Sag
indicator
Record log
LIST is finished
Getting Started
