Chapter7 System-Related Functions

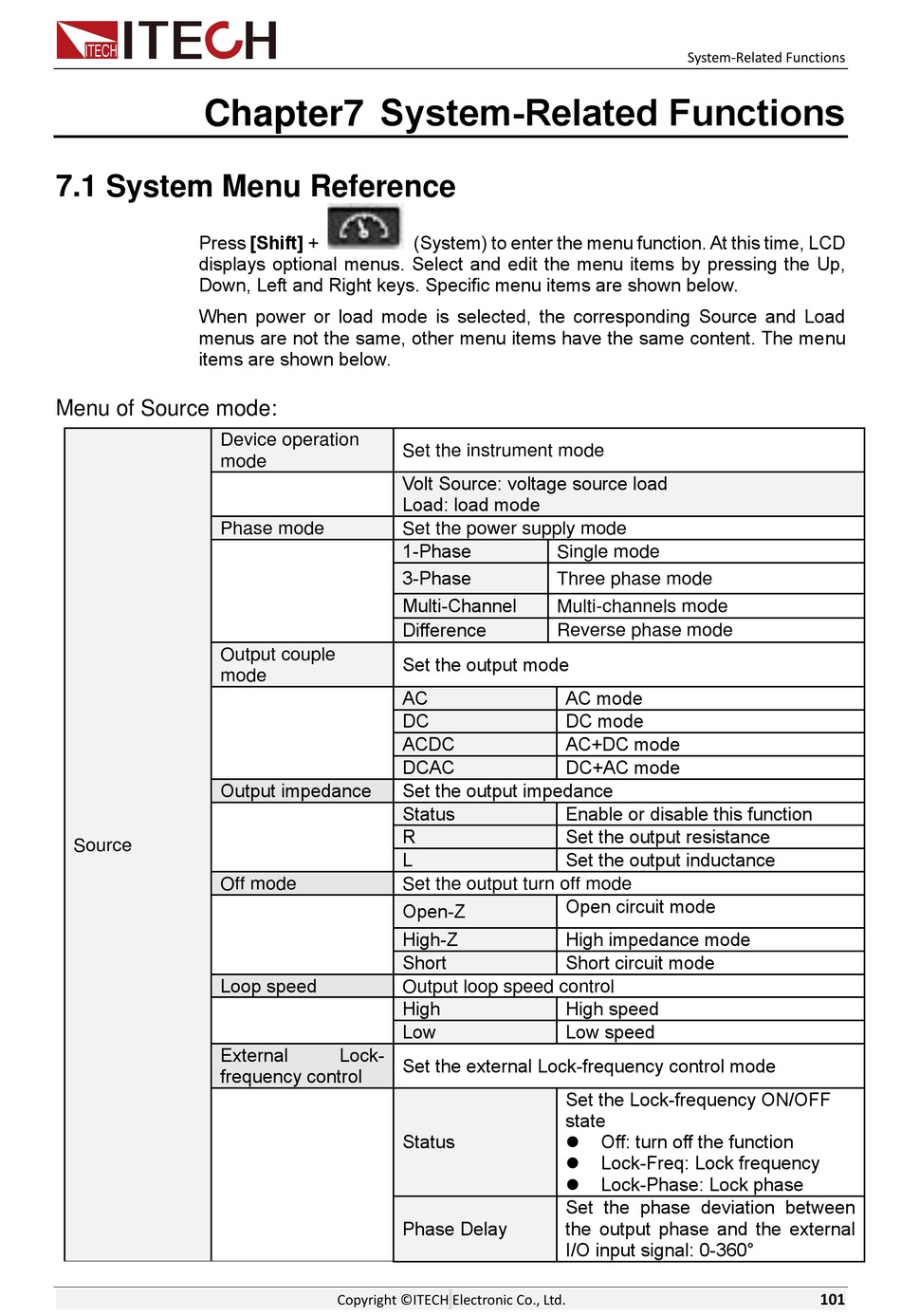

7.1 System Menu Reference

Press [Shift] +
displays optional menus. Select and edit the menu items by pressing the Up,
Down, Left and Right keys. Specific menu items are shown below.
When power or load mode is selected, the corresponding Source and Load
menus are not the same, other menu items have the same content. The menu
items are shown below.
Menu of Source mode:
Device operation
mode
Phase mode
Output couple
mode
Output impedance
Source
Off mode
Loop speed
External
frequency control
(System) to enter the menu function. At this time, LCD
Set the instrument mode
Volt Source: voltage source load
Load: load mode
Set the power supply mode
1-Phase
3-Phase
Multi-Channel
Difference
Set the output mode
AC
DC
ACDC
DCAC
Set the output impedance
Status
R
L
Set the output turn off mode
Open-Z
High-Z
Short
Output loop speed control
High
Low
Lock-
Set the external Lock-frequency control mode
Status
Phase Delay
Copyright ©ITECH Electronic Co., Ltd.
System-Related Functions
Single mode
Three phase mode
Multi-channels mode
Reverse phase mode
AC mode
DC mode
AC+DC mode
DC+AC mode
Enable or disable this function
Set the output resistance
Set the output inductance
Open circuit mode
High impedance mode
Short circuit mode
High speed
Low speed
Set the Lock-frequency ON/OFF
state
⚫ Off: turn off the function
⚫ Lock-Freq: Lock frequency
⚫ Lock-Phase: Lock phase
Set the phase deviation between
the output phase and the external
I/O input signal: 0-360°
