Related Manuals for ITech IT7900 Series
Summary of Contents for ITech IT7900 Series

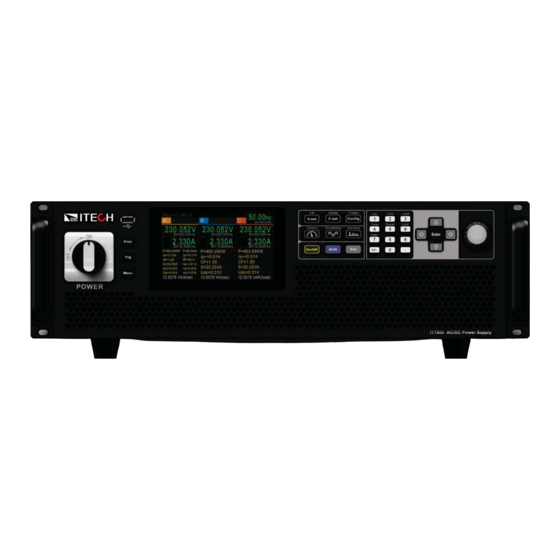

- Page 1 Programmable AC/DC Power Supply IT7900 Series Programming Guide Model:IT7900 Version:V1.0...
- Page 2 CAUTION sign until and fitness for a particular purpose. Revision the indicated conditions are fully ITECH shall not be held liable for understood and met. errors or for incidental or indirect First Edition: Nov. 08, 2021 damages in connection with the Itech Electronic, Co., Ltd.
-
Page 3: Warranty
PREPAID. And ITECH will pay for return of the product to customer. ⚫ If the product is returned to ITECH for warranty service from overseas, all the freights, duties and other taxes shall be on the account of customer. Limitation of Warranty This Warranty will be rendered invalid in case of the following: ⚫... -
Page 4: Environmental Conditions
Failure to comply with these precautions or specific warnings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no liability for the customer’s failure to comply with these precautions. -
Page 5: Regulatory Markings
The expected service life of the product is 10 years. The product can be used safely during the 10-year Environment Friendly Use Period (EFUP). Upon expiration of EFUP, product must immediately recycled. Copyright © ITECH Electronic Co., Ltd. -
Page 6: Compliance Information
Connection of the instrument to a test object may produce radiations beyond the specified limit. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010/ EN 61010-1:2010 Copyright © ITECH Electronic Co., Ltd. -
Page 7: Table Of Contents
[SOURce:]PFREquency[:IMMediate] <phase>,<NRf+> ....................40 [SOURce:]FREQuency:SLOPe[:IMMediate] <NRf+>[,NRf+][,NRf+] ................40 [SOURce:]PFREquency:SLOPe[:IMMediate] <phase>,<NRf+> ..................41 [SOURce:]POWer:LIMit:HIGH <NRf+> [,CH1|CH2|CH3] ....................41 [SOURce:]POWer:LIMit:LOW <NRf+> [,CH1|CH2|CH3] ....................41 [SOURce:] POWer:LIMit:DELay <NRf+> [,CH1|CH2|CH3] .................... 42 [SOURce:]ANGLe:STARt[:IMMediate] <NRf+> ......................42 [SOURce:]ANGLe:STOP[:IMMediate] <NRf+>....................... 43 Copyright © ITECH Electronic Co., Ltd. - Page 8 FETCh[:SCALar]:CURRent:CFACtor? ..........................61 MEASure [:SCALar]:CURRent:CFACtor? ........................61 FETCh[:SCALar]:FREQuency? ............................62 MEASure[:SCALar]:FREQuency? ........................... 62 FETCh[:SCALar]:POWer[:REAL]? ........................... 62 MEASure[:SCALar]:POWer[:REAL]? ..........................62 FETCh[:SCALar]:POWer:APParent? ..........................62 MEASure[:SCALar]:POWer:APParent? .......................... 62 FETCh[:SCALar]:POWer:REACtive? ..........................63 MEASure[:SCALar]:POWer:REACtive? .......................... 63 FETCh[:SCALar]:POWer:PFACtor? ..........................63 Copyright © ITECH Electronic Co., Ltd. viii...
- Page 9 MEASure[:SCALar]:ARRay:CURRent:HARMonic:DISTort? <[A|B|C|CH1|CH2|CH3]>,<NR1> ........75 VETCor:OEDer <NR1> ..............................75 VETCor:DATA? ................................76 VETCor:TYPE <CPD> ..............................76 Chapter8 ABORt Subsystem ..........................77 ABORt:ACQuire ................................77 ABORt:LIST ................................... 77 ABORt:SWEep ................................77 ABORt:SURGesag ................................. 77 Chapter9 INITiate Subsystem ........................... 78 Copyright © ITECH Electronic Co., Ltd.
- Page 10 SWEep:VOLTage:STOP <NRf+>[,<NRf+>,<NRf+>] ......................96 SWEep:VOLTage:STEP <NRf+>[,<NRf+>,<NRf+>] ......................97 SWEep:FREQ:STARt <NRf+>[,<NRf+>,<NRf+>] ......................98 SWEep:FREQ:STOP <NRf+>[,<NRf+>,<NRf+>] ......................98 SWEep:FREQ:STEP <NRf+>[,<NRf+>,<NRf+>] ....................... 99 SWEep:TIMe:STEP <NRf+>[,<NRf+>,<NRf+>] ....................... 99 SWEep:MODe <mode> .............................. 100 SWEep:PRIority<priority> ............................101 SWEep:WAVeform <type> ............................101 Copyright © ITECH Electronic Co., Ltd.
- Page 11 WAVEform[:IMMediate] <WAVEform>,[WAVEform],[WAVEform] ................123 PWAVeform[:IMMediate] <phase/chan>,<WAVEform> ..................... 123 WAVEform:EDIT:PARameter <phase/chan>,<percent1> .................... 124 WAVEform:EDIT:THD:CLEar ............................124 WAVEform:EDIT:THD:IMPort <filename> ........................125 WAVEform:EDIT:THD:FORMula <formula>......................... 125 WAVEform:EDIT:THD:DATA <order>,<string> ......................126 WAVEform:EDIT:THD:SAVE:LOCal <filename> ......................126 WAVEform:EDIT:THD:SAVE:UDISk <filename> ......................126 Copyright © ITECH Electronic Co., Ltd.
- Page 12 *CLS .................................... 139 *ESE .................................... 139 *ESE? ..................................140 *ESR? ..................................140 *IDN?..................................140 *OPC ................................... 141 *RST.................................... 141 *SRE <NR1> ................................141 *STB? ..................................142 *PSC ................................... 142 *SAV ................................... 143 *RCL ................................... 143 Copyright © ITECH Electronic Co., Ltd.
-
Page 13: Chapter1 Scpi Introduction
Multiple SCPI commands can be combined and sent as a single message with one message terminator. There are two important considerations when sending several commands within a single message: ⚫ Use a semicolon to separate commands within a message. Copyright © ITECH Electronic Co., Ltd. - Page 14 VOLTage:TRIGgered 17.5;:INITialize;*TRG OUTPut OFF;*RCL 2;OUTPut ON Case Sensitivity Common commands and SCPI commands are not case sensitive. You can use upper or lower for example: *RST = *rst Copyright © ITECH Electronic Co., Ltd.
-
Page 15: 1.3 Message Type Of Scpi
Response message: A response message consists of data in a specific SCPI format sent from the instrument to the controller. The instrument sends the message only when commanded by a program message called a "query." The next figure illustrates SCPI message structure: Copyright © ITECH Electronic Co., Ltd. - Page 16 An invalid command generates an error and, of course, is not executed. ⚫ Valid commands that precede an invalid command in a multiple command program message are executed. ⚫ Valid commands that follow an invalid command in a multiple command program message are ignored. Copyright © ITECH Electronic Co., Ltd.
-
Page 17: 1.4 Response Data Type
Rule 2: The complete response message must be received by the computer before another program message can be sent to the instrument. 1.5 Command Format Formats for command display are as follows: [SOURce[1|2]:]VOLTage:UNIT {VPP|VRMS|DBM} Copyright © ITECH Electronic Co., Ltd. - Page 18 It is used to separate several commands in the same subsystem and can also minimize typing. For example, to send the following command string: TRIG:SOUR EXT; COUNT 10 has the same effect as sending the following two commands: TRIG:SOUR EXT TRIG:COUNT 10 Copyright © ITECH Electronic Co., Ltd.
-
Page 19: 1.6 Data Type
<NL> in response before another command is sent to the instrument, otherwise errors will be caused. 1.6 Data Type SCPI language defines several data types used for program message and response messages. ⚫ Numerical parameter Copyright © ITECH Electronic Co., Ltd. -
Page 20: 1.7 Remote Interface Connection
– <CPD>: character program data. 1.7 Remote Interface Connection IT7900 series power supplies are equipped with three communication interfaces as standard: USB, LAN and CAN, and two optional interfaces: RS232 and GPIB. Users can choose any one to realize communication with the computer. For detailed introduction of remote interface connection, please refer to the content in Copyright ©... - Page 21 SCPI Introduction the user manual. Copyright © ITECH Electronic Co., Ltd.
-
Page 22: Chapter2 Scpi Status Register
8 ACQ h as been triggered and is being executed ARB-Active 16 ARB h as been triggered and is being executed DLOG-Active 32 DLOG h as been triggered and is being executed 64 The status of the instrument is off. Copyright © ITECH Electronic Co., Ltd. - Page 23 8 This bit is set to 1 when any one status of enabled query status register changes. 16 Output buffer available. 32 Bit ESB is set to 1 when the status of an enabled standard event status. RQS/MSS 64 Register changes. Copyright © ITECH Electronic Co., Ltd.
- Page 24 SCPI status register Bit name Decimal Definition value OPER If the status of enabled operation register changes, then this bit is set to1. Copyright © ITECH Electronic Co., Ltd.
-
Page 25: Chapter3 System Commands
Example - > SYST:ERR? 0,"NO_ERR" < - Note “ - >” indicates the commands that you send to instrument. “< -” indicates the response from instrument. Returns Error Code Description No error Copyright © ITECH Electronic Co., Ltd. - Page 26 Invalid block data [e.g., END received before length satisfied] -168 Block data not allowed -170 Expression error -171 Invalid expression -178 Expression data not allowed -200 Execution error [generic] -221 Settings conflict [check current device state] Copyright © ITECH Electronic Co., Ltd.
- Page 27 Query DEADLOCKED [too many queries in command string] -440 Query UNTERMINATED [after indefinite response] Module Initialization Lost Mainframe Initialization Lost Module Calibration Lost Non-volatile RAM STATE section checksum failed Non-volatile RAM RST section checksum failed Error Code Description RAM selftest Copyright © ITECH Electronic Co., Ltd.
- Page 28 Front Cmd Error Error Code Description CAL switch prevents calibration CAL password is incorrect CAL not enabled Computed readback cal constants are incorrect Computed programming cal constants are incorrect Incorrect sequence of calibration commands Copyright © ITECH Electronic Co., Ltd.
-
Page 29: System:preset
• LAST_OFF: Indicates when powered on, the instrument will remain the same settings as last time you turned off the instrument, but the output state is Off. Syntax SYSTem:POSetup <CPD> Copyright © ITECH Electronic Co., Ltd. -
Page 30: System:clear
This command takes the instrument out of front-panel control mode and switches it to remote control mode. Syntax SYSTem:REMote Example SYST:REM SYSTem:LOCal This command is used to switch the power supply into the control from the front panel. Syntax SYSTem:LOCal Copyright © ITECH Electronic Co., Ltd. - Page 31 This command tests the beeper function of the power supply. If it passes the test, a beep is issued. Syntax SYSTem:BEEPer:IMMediate Arguments None Reset value Not applicable Example SYST:BEEP:IMM SYSTem:BEEPer[:STATe] <CPD> This command enables or disables the beeper function of the power supply. Syntax SYSTem:BEEPer[:STATe] <CPD> Arguments OFF|ON Copyright © ITECH Electronic Co., Ltd.
- Page 32 SYSTem:BEEPer[:STATe]? SYSTem:COMMunicate:USB:TYPE <CPD> This command is used to set and query the USB interface type. IT7900 series power supply USB can be set as the host or device type, used to set the USB interface for communication or as a storage disk. When set as host type, it is used as a storage disk, and when set as device type, it is used as a communication interface.
- Page 33 This command sets and queries the GPIB address of the power supply. Syntax SYSTem:COMMunicate:GPIB:ADDRess <NR1> Arguments <NR1> Settable range :1~30 Default value Returns <NR1> Example SYST:COMM:GPIB:ADDR 2 Query syntax SYSTem:COMMunicate:GPIB:ADDRess? SYSTem:COMMunicate:SERial:BAUDrate <CPD> This command sets and queries the baud rate of the serial port. Copyright © ITECH Electronic Co., Ltd.
- Page 34 Returns <SPD> Example SYST:COMM:LAN:IP "192.168.0.11" Query syntax SYSTem:COMMunicate:LAN:IP[:CONFiguration]? SYSTem:COMMunicate:LAN:IP[:CONFiguration]:MODE <CPD> This command is used to set and query the IP mode of the LAN port. ⚫ MANual: the user manually sets the IP-related parameters. Copyright © ITECH Electronic Co., Ltd.
- Page 35 This command is used to set and query the subnet mask of the LAN. Syntax SYSTem:COMMunicate:LAN:SMASk <SPD> Arguments <SPD> Default value "255.255.255.0" Returns <SPD> Example SYST:COMM:LAN:SMAS "255.255.255.1" //This command is used to set the subnet mask of the LAN. Query syntax SYSTem:COMMunicate:LAN:SMASk? Copyright © ITECH Electronic Co., Ltd.
- Page 36 //Set the socket port to 30001 Query syntax SYSTem:COMMunicate:LAN:RAWSocketport? //Query the socket port of LAN interface. SYSTem:FUNCtion <CPD> This command is used to set and query the present power supply mode, including single-phase/three-phase/reverse/multi-channel. Syntax SYSTem:FUNCtion <device> Copyright © ITECH Electronic Co., Ltd.
- Page 37 This command is used to set and query the touch screen status of the screen, 0|OFF means the touch screen is turned off, 1|ON means the touch screen is turned on. Syntax SYSTem:TOUCh[:STATe] <CPD> Copyright © ITECH Electronic Co., Ltd.
- Page 38 Query syntax SYSTem:LANGuage? SYSTem:SOFT:KEYBoard[:STATe] <CPD> This command is used to set and query the UI soft keyboard switch of the present power supply. Syntax SYSTem:SOFT:KEYBoard[:STATe] <CPD> Arguments 0|OFF|1|ON Example SYST:SOFT:KEYB 1 Query syntax SYSTem:SOFT:KEYBoard[:STATe]? Copyright © ITECH Electronic Co., Ltd.
- Page 39 SYSTem:KNOB:IMMediate:EFFective <CPD> This command is used to set and query whether the parameters adjusted by the knob take effect immediately. Syntax SYSTem:KNOB:IMMediate:EFFective <CPD> Arguments 0|OFF|1|ON Default value Returns 0|1| Example SYST:KNOB:IMM:EFF 1 Query syntax SYSTem:KNOB:IMMediate:EFFective? Copyright © ITECH Electronic Co., Ltd.
-
Page 40: Chapter4 Source Commands
//Set the CH1 to AC mode in multi-channel mode. FUNC? CH1 //Query the channel 1 work mode [SOURce:]FUNCtion:MODE <CPD> This command is used to set and query the functional mode of the power supply. Syntax: FUNCtion:MODE <mode> Arguments: NORMal|LIST|SWEep Query syntax: FUNCtion:MODE? Copyright © ITECH Electronic Co., Ltd. -
Page 41: [Source:]Current:protection:rms
//Query the RMS protection level CURR:PROT:RMS? 1 //Query the CH1 RMS protection level [SOURce:]CURRent:PROTection:DELay <NRf+> [,CH1|CH2|CH3] Set the RMS current protection delay time, the unit is: s Syntax: CURRent:PROTection:DELay <NRf+> [,CH1|CH2|CH3] Arguments: MAXimum|MINimum|DEFault Query syntax: CURRent:PROTection:DELay? [CH1|CH2|CH3],[MAXimum|MINimum|DEFault] Copyright © ITECH Electronic Co., Ltd. -
Page 42: [Source:]Current:protection:delay? [Ch1|Ch2|Ch3],[Maximum|Minimum|Default]
LIMit: In the same way, when the protection is generated, the machine will still output with the Limit value. Syntax: CURRent:PROTection:MODE <CPD> [,CH1|CH2|CH3] Arguments: LIMit|SHUTup Query syntax: CURRent:PROTection:MODE? [CH1|CH2|CH3] Copyright © ITECH Electronic Co., Ltd. -
Page 43: [Source:]Current:protection:peak
This command is used to query the peak current protection value of the power supply. Note: both parameters of this query command are optional. Syntax: CURRent:PROTection:PEAK? [CH1|CH2|CH3],[MAXimum|MINimum|DEFault] Arguments: MAXimum|MINimum|DEFault Returns: MAXimum|MINimum|DEFault Example CURR:PROT:PEAK? CURR:PROT:PEAK? MAX|MIN CURR:PROT:PEAK? 1,MAX|MIN Copyright © ITECH Electronic Co., Ltd. -
Page 44: [Source:]Current:protection:peak:delay
[SOURce:]CURRent:PROTection:PEAK:DELay? [CH1|CH2|CH3],[MAXimum|MINimum|DEFault] This command queries the peak current protection delay time. Note: both parameters of this query command are optional. Syntax: [SOURce]CURRent:PROTection:PEAK:DELay? [CH1|CH2|CH3],[MAXimum|MINimum|DEFault] Arguments: MAXimum|MINimum|DEFault Returns: MAXimum|MINimum|DEFault Example CURRent:PROTection:PEAK:DELay? CURRent:PROTection:PEAK:DELay? MAX|MIN CURRent:PROTection:PEAK:DELay? 1, MAX|MIN Copyright © ITECH Electronic Co., Ltd. -
Page 45: [Source:]Current:limit:high
CURRent:LIMit:LOW <NRf+> [,CH1|CH2|CH3] Arguments: MAXimum|MINimum|DEFault Query syntax: CURRent:LIMit:LOW? [CH1|CH2|CH3],[MAXimum|MINimum|DEFault] Returns: MAXimum|MINimum|DEFault Example: CURR:LIMit:LOW 1 //Set the current lower limit to 1A CURR:LIMit:LOW 1 ,1 //Under multi-channel mode, set the current lower limit to 1A Copyright © ITECH Electronic Co., Ltd. -
Page 46: [Source:]Current[:Level][:Immediate][:Amplitude][:Ac]
//Under multi-channel or 3-three phase mode, set the current RMS to 30A,20A,10A [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]:D C <NRf+>,[NRf+],[NRf+] DC current limit value setting command in normal mode. <NRf+>: DC current setting value. Syntax: CURRent[:LEVel][:IMMediate][:AMPLitude]:DC <NRf+>,[NRf+],[NRf+] Query syntax: CURRent[:LEVel][:IMMediate][:AMPLitude]:DC? Returns <NRf+> Example: CURRent:DC 30 Copyright © ITECH Electronic Co., Ltd. -
Page 47: [Source:]Voltage[:Level][:Immediate][:Amplitude][:Ac]
VOLTage:LIMit:HIGH <NRf+> [,CH1|CH2|CH3] Arguments: MAXimum|MINimum|DEFault Query syntax: VOLTage:LIMit:HIGH? [CH1|CH2|CH3],[MAXimum|MINimum|DEFault] Returns: MAXimum|MINimum|DEFault Example: VOLTage:LIMit:HIGH 300 //Set the voltage upper limit to 300V VOLTage:LIMit:HIGH 300,1 //Set the voltage upper limit of CH1 or A phase to Copyright © ITECH Electronic Co., Ltd. -
Page 48: [Source:]Voltage:limit:low
It is used to set and query the AC voltage of a certain phase in normal mode. phase: phase identification. NRf+: AC voltage setting value. Syntax: PVOLtage[:LEVel][:IMMediate][:AMPLitude][:AC] <phase>,<NRf+> Arguments: A|B|C Query syntax: PVOLtage[:LEVel][:IMMediate][:AMPLitude][:AC]? <phase>, [MAXimum| MINimum|DEFault] Returns: A|B|C,<NRf+> Copyright © ITECH Electronic Co., Ltd. -
Page 49: [Source:]Voltage[:Level][:Immediate][:Amplitude]:Dc
In normal mode, set and query the DC voltage value of a phase. phase: phase identification. NRf+: DC voltage setting value. Syntax: PVOLtage [:LEVel][:IMMediate][:AMPLitude]:DC <phase>,<NRf+> Query syntax: PVOLtage[:LEVel][:IMMediate][:AMPLitude]:DC? <phase>, [MAXimum| MINimum|DEFault] Example PVOLTage:DC C,30.0 PVOLTage:DC? B PVOLT:DC? B,MIN Copyright © ITECH Electronic Co., Ltd. -
Page 50: [Source:]Voltage:slope[:Ac][:Immediate]
PVOLtage:SLOPe[:AC][:IMMediate]? <phase>,[MAXimum|MINimum|DEFault] Example PVOLT:SLOP C,300.0 PVOLT:SLOP? PVOLT:SLOP? C,MAX [SOURce:]VOLTage:SLOPe[:IMMediate]:DC <NRf+>,[NRf+],[NRf+] This command is used to set and query the DC voltage slope in normal mode. <NRf+>: DC voltage slope setting value Syntax: [SOURce]VOLTage:SLOPe[:IMMediate]:DC <NRf+>,[NRf+],[NRf+] Copyright © ITECH Electronic Co., Ltd. -
Page 51: [Source:]Pvoltage:slope[:Immediate]:Dc
This command is used to set and query the frequency value in normal mode. <NRf+>: frequency setting value. Note: in multi-channel, this command must carry three parameters to set at the same time, or use PFREquency to set a separate frequency. Syntax: FREQuency[:IMMediate] <NRf+>[,NRf+][,NRf+] Arguments: MAXimum|MINimum|DEFault Copyright © ITECH Electronic Co., Ltd., -
Page 52: [Source:]Pfrequency[:Immediate]
[SOURce:]FREQuency:SLOPe[:IMMediate] <NRf+>[,NRf+][,NRf+] This command is used to set and query the slope of the frequency in normal mode. <NRf+>: frequency setting value. Syntax: FREQuency:SLOPe[:IMMediate] <NRf+>[,NRf+][,NRf+] Query syntax: FREQuency:SLOPe[:IMMediate]? <phase> *RST: 1000Hz/s Example FREQuency:SLOPe 300.0 Copyright © ITECH Electronic Co., Ltd., -
Page 53: [Source:]Pfrequency:slope[:Immediate]
//Set the upper power limit of channel 2 to 20VA. POWer:LIMit:HIGH? 1 //Query the power upper limit of channel 1. [SOURce:]POWer:LIMit:LOW <NRf+> [,CH1|CH2|CH3] This command sets and queries the lower limit of power protection. Copyright © ITECH Electronic Co., Ltd., -
Page 54: [Source:] Power:limit:delay
<NRf+>: starting angle setting value Note: the starting angle is only meaningful for phase A in the three-phase mode, and the angle of phase B/C is set by the angle difference. Syntax: ANGLe:STARt[:IMMediate] <NRf+> Copyright © ITECH Electronic Co., Ltd. -
Page 55: [Source:]Angle:stop[:Immediate]
Note: meaningful in three-phase unbalanced mode. Syntax: ANGLe:DIFFerence[:IMMediate] <type>,<NRf+> Query syntax: ANGLe:DIFFerence[:IMMediate]? <type>, [MAXimum|MINimum|DEFault] Example ANGL:DIFFerence BA,300.0 //Set the angle difference between B and A to 300.0° . ANGL:DIFFerence? CA //Query the angle difference between C and A. Copyright © ITECH Electronic Co., Ltd. -
Page 56: [Source:]Wave[:Immediate]
<wave>: waveform index value. ⚫ Sine ⚫ Square ⚫ ⚫ Triangle ⚫ Trapezoid ⚫ Clipped-sine Syntax: PWAVe[:IMMediate] <phase>,<wave> Query syntax: PWAVe? <phase>] *RST: 0-Sine Example PWAV C,"Sine" //Set the waveform of phase C to Sine. Copyright © ITECH Electronic Co., Ltd.,[Wave],[Wave] -
Page 57: [Source:]Dimming[:State]
This command is used to set and query the dimming edge. Syntax: DIMMing:EDGE <CPD>[,CH1|CH2|CH3] Arguments: FRONt|BACK Query syntax: DIMMing:EDGE? [CH1|CH2|CH3] Returns: FRONt|BACK [SOURce:]DIMMing:PHASe <NRf>[,CH1|CH2|CH3] This command is used to set and query the dimming phase. Syntax: DIMMing:PHASe <NRf>[,CH1|CH2|CH3] Arguments: MAXimum|MINimum|DEFault Copyright © ITECH Electronic Co., Ltd.[,Ch1|Ch2|Ch3] -
Page 58: [Source:]Extern:program[:State]
This command is used to set and query the calculation formula of harmonic distortion. Whether to use the fundamental wave (1st order) component data as the denominator f% or all the harmonic measurement data as the denominator Syntax: CONFigure:HARMonic:THD:FORMula <CPD> Copyright © ITECH Electronic Co., Ltd. -
Page 59: [Source:]Configure:harmonic:table:type
This command is used to set and query the data type of the harmonic distortion list, whether it is voltage harmonic or current harmonic. Syntax: CONFigure:HARMonic:TABLe:SELect <CPD> Arguments: <U|I> Query syntax: CONFigure:HARMonic:TABLe:SELect? Example CONF:HARM:TABL:SEL U //Select to display voltage harmonic data. Copyright © ITECH Electronic Co., Ltd. -
Page 60: Chapter5 Output Commands
//Turn on the power output. OUTPut:PROTection:CLEar This command is used to clear the protection status. Syntax: OUTPut:PROTection:CLEar Example OUTP:PROT:CLE OUTPut:PROTection:WDOG[:STATe] <CPD> This command enables or disables the state of the communication watchdog. Syntax: OUTPut:PROTection:WDOG[:STATe] <CPD> Arguments: 0|OFF|1|ON Returns: Copyright © ITECH Electronic Co., Ltd. -
Page 61: Output:protection:wdog:delay
A|B|C|CH1|CH2|CH3 means to specify a phase or a channel in three-phase mode or multi-channel mode. Syntax: OUTPut:IMPedance[:STATe] <CPD>[,A|B|C|CH1|CH2|CH3] Arguments: 0|OFF|1|ON Query syntax: OUTPut:IMPedance[:STATe]? [A|B|C|CH1|CH2|CH3] Returns: 0|OFF|1|ON Example OUTP:IMP ON //Turn on the output impedance. OUTP:IMP OFF,A //Turn off the output impedance function of phase A. Copyright © ITECH Electronic Co., Ltd. -
Page 62: Output:impedance:resistance:level
OUTP:IMP:RES:LEV 10 OUTP:IMP:RES:LEV 100,A OUTPut:IMPedance:INDuctance:LEVel <NRf>[,A|B|C|CH1|CH2|CH3] This command is used to set and query the output inductance value. Syntax: OUTPut:IMPedance:INDuctance:LEVel <NRf>[,A|B|C|CH1|CH2|CH3] Arguments: MINimum|MAXimum|DEFault Query syntax: OUTPut:IMPedance:INDuctance:LEVel? [A|B|C|CH1|CH2|CH3] Returns: MINimum|MAXimum|DEFault Example OUTP:IMP:IND:LEV 10 OUTP:IMP:IND:LEV 5,A Copyright © ITECH Electronic Co., Ltd. -
Page 63: Output:off:mode
Syntax: OUTPut:ON:PHASe:MODE <CPD> Argument: PHASe|IMMediate Query syntax: OUTPut:ON:PHASe:MODE? Returns: PHASe|IMMediate Example OUTP:ON:PHAS:MODE IMM OUTPut:ON:PHASe:LEVel <NRf+> This command is used to set and query the starting phase angle when the power output is turned on. Copyright © ITECH Electronic Co., Ltd. -
Page 64: Output:off:phase:mode
OUTPut:OFF:PHASe:MODE <CPD> Arguments: PHASe|IMMediate Query syntax: OUTPut:OFF:PHASe:MODE? Returns: PHASe|IMMediate Example OUTP:OFF:PHAS:MODE PHAS OUTPut:OFF:PHASe:LEVel <NRf+> This command is used to set and query the phase angle when the power output is turned off. Syntax: OUTPut:OFF:PHASe:LEVel <NRf+> Copyright © ITECH Electronic Co., Ltd. -
Page 65: Output:balance[:State]
OUTP:OFF:PHAS:LEV 45 OUTPut:BALance[:STATe] <CPD> In the three-phase mode, it is used to set and query the state of the output balance mode. Syntax: OUTPut:BALance[:STATe] <CPD> Arguments: 0|OFF|1|ON Query syntax: OUTPut:BALance[:STATe]? Returns: 0|OFF|1|ON Example OUTP:BAL ON Copyright © ITECH Electronic Co., Ltd. -
Page 66: Chapter6 Sense Commands
Query syntax: SENSe[:REMote][:STATe]? Returns: <OFF|ON|0|1> Example SENS ON SENSe:FILTer[:STATe] <CPD> This command sets and queries the state of meter filter switch. Syntax: SENSe:FILTer[:STATe] <CPD> Arguments: 0|OFF|1|ON Query syntax: SENSe:FILTer[:STATe]? Returns: 0|OFF|1|ON Example SENSe:FILT OFF Copyright © ITECH Electronic Co., Ltd. -
Page 67: Sense:filter:level
Returns: HIGH|LOW Example SENS:LOOP:SPE LOW SENSe:EXTernal:FREQuency <CPD> [CH1, CH2, CH3] This command is used to set and query the external frequency lock function. the second parameter is optional and only valid in multi-channel mode. Copyright © ITECH Electronic Co., Ltd. -
Page 68: Sense:external:frequency:offset:high
Set and query the frequency lower limit value of the external frequency lock function. the second parameter is optional and only valid in multi-channel mode. Meaning: when the external frequency lock function is turned on, and the external Copyright © ITECH Electronic Co., Ltd.,[Ch1, Ch2, Ch3] -
Page 69: Sense:external:frequency:phase
Meaning: when the external frequency lock function is turned on, the output phase of the machine maintains a fixed angular difference with the external frequency. Syntax: SENSe:EXTernal:FREQuency:PHASe <NRf>,[CH1, CH2, CH3] Arguments: MAXimum|MINimum|DEFault Query syntax: SENSe:EXTernal:FREQuency:PHASe? [CH1, CH2, CH3] Returns: <NRf> Example: SENS:EXT:FREQ:PHAS 1 Copyright © ITECH Electronic Co., Ltd.,[Ch1, Ch2, Ch3] -
Page 70: Sense:external:frequency:exception
STOP: turn off the output. SETFrequence: output at the frequency set by the user. Syntax: SENSe:EXTernal:FREQuency:EXCeption <CPD>,[CH1, CH2, CH3] Arguments: STOP|SETFrequence Query syntax: SENSe:EXTernal:FREQuency:EXCeption? Returns: STOP|SETFrequence Example: SENS:EXT:FREQ:EXC STOP Copyright © ITECH Electronic Co., Ltd.,[Ch1, Ch2, Ch3] -
Page 71: Chapter7 Fetch & Measure Commands
This command is used to read the DC component of single-phase current. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]:CURRent? [A|B|C|CH1|CH2|CH3] Arguments: [A|B|C|CH1|CH2|CH3] Returns: <NRf>… Example: FETC:CURR:DC? Copyright © ITECH Electronic Co., Ltd. -
Page 72: Fetch[:Scalar]:Current:amplitude:maximum:positive
This command is used to read the negative peak value of single-phase current. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]:CURRent:AMPlitude:MAXimum:NEGative? [A|B|C|CH1|CH2|CH3] Arguments: [A|B|C|CH1|CH2|CH3] Returns: <NRf>… Example: FETC:CURR:AMP:MAX:NEG? Copyright © ITECH Electronic Co., Ltd. -
Page 73: Fetch[:Scalar]:Current:amplitude:maximum
This command is used to read the current crest factor values of A, B, C three-phase. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]:CURRent:CFACtor? [A|B|C|CH1|CH2|CH3] Arguments: [A|B|C|CH1|CH2|CH3] Returns: <NRf>… Example: FETC:CURR:CFAC? Copyright © ITECH Electronic Co., Ltd. -
Page 74: Fetch[:Scalar]:Frequency
Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]:POWer [:REAL]? [A|B|C|CH1|CH2|CH3] Arguments: [A|B|C|CH1|CH2|CH3] Returns: <NRf>… Example: FETC:POWer? FETCh[:SCALar]:POWer:APParent? MEASure[:SCALar]:POWer:APParent? This command is used to read the single-phase apparent power value. Copyright © ITECH Electronic Co., Ltd. -
Page 75: Fetch[:Scalar]:Power:reactive
This command is used to read the single-phase power factor value. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Copyright © ITECH Electronic Co., Ltd. -
Page 76: Fetch[:Scalar]:Voltage[:Ac]
This command is used to read the DC component of single-phase voltage. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]:VOLTage:DC? [A|B|C|CH1|CH2|CH3] Copyright © ITECH Electronic Co., Ltd. -
Page 77: Fetch[:Scalar]:Voltage:amplitude:maximum
This command is used to read the positive peak value of single-phase voltage. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]:VOLTage:AMPlitude:MAXimum:POSitive? [A|B|C|CH1|CH2|CH3] Arguments: [A|B|C|CH1|CH2|CH3] Copyright © ITECH Electronic Co., Ltd. -
Page 78: Fetch[:Scalar]:Voltage:amplitude:maximum:negative
This command is used to get all METER data of single phase. Note: this command parameter is optional. If there is no parameter, it will return the value of A, B, C three-phase by default. Syntax: FETCh[:SCALar]? [A|B|C|CH1|CH2|CH3] Arguments: [A|B|C|CH1|CH2|CH3] Returns: <NRf> … Copyright © ITECH Electronic Co., Ltd. -
Page 79: Fetch[:Scalar]:Power[:Real]:Total
This command is used to read the total power value. Syntax: FETCh[:SCALar]:POWer [:REAL]? Arguments: None Returns: <NRf> Example: FETC:POW? FETCh[:SCALar]:POWer:APParent:TOTal? MEASure[:SCALar]:POWer:APParent:TOTal? This command is used to read the total apparent power value. Syntax: FETCh[:SCALar]:POWer:APParent? Arguments: None Returns: <NRf> Example: FETC:POW:APP:TOT? Copyright © ITECH Electronic Co., Ltd. -
Page 80: Fetch[:Scalar]:Power:reactive:total
C and A, or between C and B. Syntax: FETCh[:SCALar]:LTLVoltage? <BA|CA|CB> Arguments: <BA|CA|CB> Returns: <NRf> Example: FETC:LTLV? CB FETCh[:SCALar]:VOLTage:HARMonic[:AMPLitude]? <[A|B|C|CH1|CH2|CH3]>,<NR1> MEASure[:SCALar]:VOLTage:HARMonic[:AMPLitude]? <[A|B|C|CH1|CH2|CH3]>,<NR1> This command is used to measure the amplitude of voltage harmonics. Copyright © ITECH Electronic Co., Ltd. -
Page 81: Fetch[:Scalar]:Current:harmonic[:Amplitude]? <[A|B|C|Ch1|Ch2|Ch3]>,
This command is used to measure the amplitude of current harmonics. Syntax: FETCh[:SCALar]:CURRent:HARMonic[:AMPLitude]? <[A|B|C|CH1|CH2|CH3]>,<NR1> Arguments: <[A|B|C|CH1|CH2|CH3]>,<NR1> NR1: 0-50 Returns: <NRf> Example: FETC:CURR:HARM? A,5 FETCh[:SCALar]:VOLTage:HARMonic:DISTort? <[A|B|C|CH1|CH2|CH3]>,<NR1> MEASure[:SCALar]:VOLTage:HARMonic:DISTort? <[A|B|C|CH1|CH2|CH3]>,<NR1> This command is used to measure voltage harmonic components. Copyright © ITECH Electronic Co., Ltd. -
Page 82: Fetch[:Scalar]:Current:harmonic:distort? <[A|B|C|Ch1|Ch2|Ch3]>,
This command is used to measure current harmonic components. Syntax: FETCh[:SCALar]:CURRent:HARMonic:DISTort? <[A|B|C|CH1|CH2|CH3]>,<NR1> Arguments: <[A|B|C|CH1|CH2|CH3]>,<NR1> NR1: 0-50 Returns: <NRf> Example: FETC:CURR:HARM:DIST? 3,10 FETCh[:SCALar]:VOLTage:HARMonic:PHASe? <[A|B|C|CH1|CH2|CH3]>,<NR1> MEASure[:SCALar]:VOLTage:HARMonic:PHASe? <[A|B|C|CH1|CH2|CH3]>,<NR1> This command is used to measure the phase of voltage harmonics. Copyright © ITECH Electronic Co., Ltd. -
Page 83: Fetch[:Scalar]:Current:harmonic:phase? <[A|B|C|Ch1|Ch2|Ch3]>,
This command is used to measure the phase of current harmonics. Syntax: FETCh[:SCALar]:CURRent:HARMonic:PHASe? <[A|B|C|CH1|CH2|CH3]>,<NR1> Arguments: <[A|B|C|CH1|CH2|CH3]>,<NR1> NR1: 0-50 Returns: <NRf> Example: FETC:CURR:HARM:PHAS? 2,10 FETCh[:SCALar]:VOLTage:HARMonic:THD? <[A|B|C|CH1|CH2|CH3]> MEASure[:SCALar]:VOLTage:HARMonic:THD? <[A|B|C|CH1|CH2|CH3]> This command is used to measure the total harmonic distortion of the voltage. Copyright © ITECH Electronic Co., Ltd. -
Page 84: Fetch[:Scalar]:Current:harmonic:thd? <[A|B|C|Ch1|Ch2|Ch3]
1st order represents the fundamental wave, and the 2nd to 50th order the harmonic components. In this command, if NR1 is assigned a value of 10, the result will list the harmonic amplitude of the voltage from 0 to 10th. Copyright © ITECH Electronic Co., Ltd. -
Page 85: Fetch[:Scalar]:Array:current:harmonic[:Amplitude]? <[A|B|C|Ch1|Ch2|Ch3]>,
This command is used to measure each harmonic amplitude of the current. Syntax: FETCh[:SCALar]:ARRay:CURRent:HARMonic[:AMPLitude]? <[A|B|C|CH1|CH2|CH3]>,<NR1> Arguments: <[A|B|C|CH1|CH2|CH3]>,<NR1> NR1: 0-50 Returns: <NRf> Example: FETC:ARR:CURR:HARM? A,6 FETCh[:SCALar]:ARRay:VOLTage:HARMonic:PHASe? <[A|B|C|CH1|CH2|CH3]>,<NR1> MEASure[:SCALar]:ARRay:VOLTage:HARMonic:PHASe? <[A|B|C|CH1|CH2|CH3]>,<NR1> This command is used to measure each harmonic phase of the voltage. Copyright © ITECH Electronic Co., Ltd. -
Page 86: Fetch[:Scalar]:Array:current:harmonic:phase? <[A|B|C|Ch1|Ch2|Ch3]>,
This command is used to measure each harmonic phase of the current. Syntax: FETCh[:SCALar]:ARRay:CURRent:HARMonic:PHASe? <[A|B|C|CH1|CH2|CH3]>,<NR1> Arguments: <[A|B|C|CH1|CH2|CH3]>,<NR1> NR1: 0-50 Returns: <NRf> Example: FETC:ARR:CURR:HARM:PHAS? 4 FETCh[:SCALar]:ARRay:VOLTage:HARMonic:DISTort? <[A|B|C|CH1|CH2|CH3]>,<NR1> MEASure[:SCALar]:ARRay:VOLTage:HARMonic:DISTor t? <[A|B|C|CH1|CH2|CH3]>,<NR1> This command is used to measure each harmonic distortion of the voltage. Copyright © ITECH Electronic Co., Ltd. -
Page 87: Fetch[:Scalar]:Array:current:harmonic:distort? <[A|B|C|Ch1|Ch2|Ch3]>,
This command is used to measure each harmonic distortion of the current. Syntax: FETCh[:SCALar]:ARRay:CURRent:HARMonic:DISTort? <[A|B|C|CH1|CH2|CH3]>,<NR1> Arguments: <[A|B|C|CH1|CH2|CH3]>,<NR1> NR1: 0-50 Returns: <NRf> Example: FETC:ARR:CURR:HARM:DIST? 6 VETCor:OEDer <NR1> This command is used to set and query the order of the vector diagram. Syntax: VETCor:OEDer Arguments: <NR1> Copyright © ITECH Electronic Co., Ltd. -
Page 88: Vetcor:data
Syntax: VETCor:DATA? Arguments: None Returns: <NRf>,<NRf>,<NRf>,<NRf>,<NRf>,<NRf> Example: VETCor:DATA? VETCor:TYPE <CPD> This command is used to set and query the vector type. Syntax: VETCor:TYPE <CPD> Arguments: <U|I|ALL> Returns: U|I|ALL Query syntax VETCor:TYPE?? Example: VETC:TYPE I Copyright © ITECH Electronic Co., Ltd. -
Page 89: Chapter8 Abort Subsystem
This command is used to discard the present measurement. Syntax ABORt:LIST Example ABOR:LIST ABORt:SWEep This command is used to stop the sweep function. Syntax ABORt:SWEep Example ABOR:SWE ABORt:SURGesag This command is used to stop the surge/trap wave function. Syntax ABORt:SURGesag Example ABORt:SURGesag Copyright © ITECH Electronic Co., Ltd. -
Page 90: Chapter9 Initiate Subsystem
This command is used to start up the LIST function. Syntax INITiate[:IMMediate]:LIST Example INIT:LIST INITiate[:IMMediate]:SWEep This command is used to initialize the sweep function. Syntax INITiate[:IMMediate]:SWEep Example INIT:SWE INITiate[:IMMediate]:SURGesag This command is used to initialize the surge/trap wave function. Syntax INITiate[:IMMediate]:SURGesag Example INIT:SURG Copyright © ITECH Electronic Co., Ltd. -
Page 91: Chapter10 Parallel Subsystem
//Query the parallel role of the present instrument. PARallel:NUMBer <number> This command sets and queries the total instrument number in the parallel operation, and the setting range is 2-16. Syntax PARallel:NUMBer <number> Argument <NR1> Query syntax PARallel:NUMBer? Returns <NR1> Copyright © ITECH Electronic Co., Ltd. -
Page 92: Parallel:node:number
//Set the total number of parallel machines to 3. PAR:NUMB? //Query the total number of parallel machines. PARallel:NODE:NUMBer? This command is used to obtain the total number of nodes after the optical fiber is paralleled. Syntax PARallel:NODE:NUMBer? Argument <NR1> 1~64 Example PAR:NODE:NUMB? Copyright © ITECH Electronic Co., Ltd. -
Page 93: Chapter11 Trigger Subsystem
TRIGger:SWEep:SOURce <CPD> This command is used to set and query the trigger source of SWEEP function. Syntax TRIGger:SWEep:SOURce <CPD> Argument <CPD> IMMediate|MANual|BUS|TRIG1|TRIG2 Query syntax TRIGger:SWEep:SOURce? Returns IMMediate|MANual|BUS|TRIG1|TRIG2 Example TRIG:SWE:SOUR MAN Copyright © ITECH Electronic Co., Ltd. -
Page 94: Trigger:surgesag:source
This command is used to set and query the trigger source of the oscilloscope function. Syntax TRIGger:SCOPe:SOURce <CPD> Argument <CPD> <1-6>|TRIG1|TRIG2 Query syntax TRIGger:SCOPe:SOURce? Example TRIG:SCOP:SOUR TRIG1 TRIGger:SCOPe:MODE <CPD> This command is used to set and query the mode of the oscilloscope function. Syntax TRIGger:SCOPe:MODE <CPD> Copyright © ITECH Electronic Co., Ltd. -
Page 95: Trigger:scope:slope
This command is used to set and query the slope of the oscilloscope function. Syntax TRIGger:SCOPe:SLOPe <CPD1> Argument: <CPD> RISE|FALL|BOTH Query syntax TRIGger:SCOPe:SLOPe? Returns RISE|FALL|BOTH Example TRIG:SCOP:SLOP BOTH TRIGger:FORCe This command is used to trigger. Syntax TRIGger:FORCe Example TRIGger:FORCe Copyright © ITECH Electronic Co., Ltd. -
Page 96: Chapter12 Arb Subsystem
NORMal: after the list runs, it will automatically return to normal. LAST: keep the output of the last step after the list runs. OFF: turn off the output after the list operation is over and still in the list mode. Syntax [ARB:]LIST:TERMinate <CPD> Copyright © ITECH Electronic Co., Ltd. -
Page 97: [Arb:]List:run
Return value: <NR1>,<NR1> The first is the number of cycles presently running, and the second is the position of the present running step. Syntax [ARB:]LIST:RUNTime:STATe? Copyright © ITECH Electronic Co., Ltd. -
Page 98: [Arb:]List:rcl
This command is used to set and query the total number of steps in the list. Syntax [ARB:]LIST:STEP:COUNt <NR1> Argument <NR1>|MINimum|MAXimum|DEFault Query syntax [ARB:]LIST:STEP:COUNt? Returns <NR1> *RST Example LIST:STEP:COUN 10 [ARB:]LIST:CLEar This command is used to clear the list configuration. Copyright © ITECH Electronic Co., Ltd. -
Page 99: [Arb:]List:step
TRIGger, this parameter is IMMe or PHASe. And if para1 is set to PHASe, this parameter is angle value. Step Jump para3: if para1 is set to TRIGger and para2 is set to PHASe, this Copyright © ITECH Electronic Co., Ltd., -
Page 100: [Arb:]List:step:item
Note: The following are all the parameter IDs of the three-phase mode, those marked with "single-phase" indicate that they can be used to set and query the corresponding parameter values in the single-phase mode. Copyright © ITECH Electronic Co., Ltd., , - Page 101 32 (single-phase)( This parameter is meaningful only when jump Step jump 1 ID is TRIGger and Step jump 2 ID is PHASe, which is the angle value) <string>: This parameter is the corresponding parameter value for the ID specified by NR2. Copyright © ITECH Electronic Co., Ltd.
-
Page 102: [Arb:]List:step:item?
This command is used to save the file to the /mnt/emm_user/user_data/sys/list/ directory. If the file name already exists, the present file will be overwritten, if it does not exist, it will be saved as a new file. Syntax [ARB:]LIST:SAVe <filename> Copyright © ITECH Electronic Co., Ltd., -
Page 103: [Arb:]List:configure
Syntax [ARB:]LIST:ABORt Example LIST:ABOR [ARB:]LIST:CREate This command is used to create a list. Syntax [ARB:]LIST:CREate Example LIST:CRE [ARB:]LIST:FILE:NUMBer? This command is used to query the number of list files under the present device type. Copyright © ITECH Electronic Co., Ltd. -
Page 104: [Arb:]List:file:name?
This command is used to query the name of a list file according to the index. Syntax [ARB:]LIST:FILE:NAME? <index> Argument: <NR1> Example LIST:FILE:NAME? 1 [ARB:]LIST:FILE:DELete <filename> This command is used to delete the list file. Syntax [ARB:]LIST:FILE:DELete <filename> Argument <CPD> Example LIST:FILE:DEL "123" Copyright © ITECH Electronic Co., Ltd. -
Page 105: Chapter13 Configurate Io Subsystem
This command is used to set and query whether the IO port signal is reversed. The first parameter is the IO number, and the second parameter is the reverse state. Syntax [CONFigurable:]IO:REVErse <NR1>,<CPD> Argument <NR1>,<CPD> [1,7],0|OFF|1|ON Query syntax [CONFigurable:]IO:REVErse? <NR1> Returns Example IO:REVE 7,0 Copyright © ITECH Electronic Co., Ltd. -
Page 106: [Configurable:]Io:type
Note: this command should be used in conjunction with IO:SELect, that is, select IO-6 or IO-7, and then set the trigger source. Syntax [CONFigurable:]IO:TRIGout:SOURce <CPD1>,<CPD2> Argument CPD1:AC|DC|FREQuency|LIST CPD2:0|OFF|1|ON Copyright © ITECH Electronic Co., Ltd., -
Page 107: [Configurable:]Io:state
When IO is set to output mode, it can output high level (False) or low level (True). This command is used to set and query the output level status, 0 means FALSE, 1 means True. Syntax [CONFigurable:]IO:STATe <NR1>,<CPD> Argument NR1:[1,7] CPD:0|OFF|1|ON Query syntax [CONFigurable:]IO:STATe? Example IO:STATe 1,ON Copyright © ITECH Electronic Co., Ltd., -
Page 108: Chapter14 Sweep Subsystem
<NRf+>: stop voltage setting value, or stop voltage MINimum or MAXimum or DEFault setting. Note: In single-phase (including AC, ACDC, DC, DCAC), there is only one parameter; in three-phase, three parameters must be taken. Syntax SWEep:VOLTage:STOP <NRf+>[,<NRf+>,<NRf+>] Copyright © ITECH Electronic Co., Ltd. -
Page 109: Sweep:voltage:step
SWEep:VOLTage:STEP? [A|B|C][MAXimum|MINimum|DEFault] Returns <NR2> Example SWEep:VOLTage:STEP 1 // Set the step voltage of sweep to 1V. SWEep:VOLTage:STEP? // Query the presently set step voltage. SWEep:VOLTage:STEP? MAX // Query the maximum value of step voltage. Copyright © ITECH Electronic Co., Ltd. -
Page 110: Sweep:freq:start
<NRf+>: stop frequency setting value, or stop frequency MINimum or MAXimum or DEFault setting. Note: In single-phase (including AC, ACDC, DC, DCAC), there is only one parameter; in three-phase, three parameters must be taken. Syntax SWEep:FREQ:STOP <NRf+>[,<NRf+>,<NRf+>] Argument <NRf+>[,<NRf+>,<NRf+>] *RST Copyright © ITECH Electronic Co., Ltd. -
Page 111: Sweep:freq:step
This command is used to set and query the single-step execution time of sweep. It is valid when the mode is TIMe. <NRf+>: step time setting value, or step time MINimum or MAXimum or DEFault Copyright © ITECH Electronic Co., Ltd. -
Page 112: Sweep:mode
This command is used to set and query the switching mode between the single steps of the sweep function, and it can be set to TIMe or TRIG mode. Syntax SWEep:MODe <mode> Argument TIMe|TRIG *RST TIMe Query syntax SWEep:MODe? Returns TIMe|TRIG Copyright © ITECH Electronic Co., Ltd. -
Page 113: Sweep:priority
//Set the priority of sweep to VOLT. SWEep:PRIority? SWEep:WAVeform <type> This command is used to set and query the sweep waveform. <type> : sweep wave type SINe|SQUAre|SAW|Triangle Syntax SWEep:WAVeform <type> Argument SINe|SQUAre|SAW|Triangle *RST SINe Query syntax SWEep:WAVeform? Copyright © ITECH Electronic Co., Ltd. -
Page 114: Sweep:finish
//Set the end state of sweep to NORMal. SWEep:FINish? //Query the end status of sweep. SWEep:TRIG:SOURce <mode> This command is used to set the trigger source of Sweep function. Syntax SWEep:TRIG:SOURce <mode> Argument MANual|BUS|TRIG1|TRIG2 *RST MANual Copyright © ITECH Electronic Co., Ltd. -
Page 115: Sweep:step:repeat
Set the number of sweep repetitions, set 0 for infinite loop. Syntax SWEep:STEP:REPeat <NR1> Argument 1-65535 Query syntax SWEep:STEP:REPeat? [MAXimum|MINimum] Example SWEep:STEP:REPeat <NR1> SWEep:STATe? This command is used to query the running status of sweep. Syntax SWEep:STATe? Example SWE:STAT? Copyright © ITECH Electronic Co., Ltd. -
Page 116: Chapter15 Surgesag Subsystem
This command is used to set and query the initial phase of the surge/trap wave. <NRf+>: start phase setting value, or start phase MINimum or MAXimum or DEFault setting. Syntax SURGesag:PHASe:STARt <NRf+> Argument <NRf+> Unit Degree (° ) *RST Copyright © ITECH Electronic Co., Ltd. -
Page 117: Surgesag:phase:width
//Query the set value of angle width. SURGesag:PHASe:WIDTh? MIN // Query the minimum value of the angle width. SURGesag:ACTion <action> This command is used to set and query the trigger action of the surge/trap wave. Copyright © ITECH Electronic Co., Ltd. -
Page 118: Surgesag:symmetry
0 | OFF | 1 | ON *RST Query syntax SURGesag:SYMMetry? Returns 0 | OFF | 1 | ON Example SURGesag:SYMMetry 1 //Turn on symmetry mode. SURGesag:SYMMetry? //Query the switch status of symmetric mode. Copyright © ITECH Electronic Co., Ltd. -
Page 119: Surgesag:repeat:count
This command is used to set and query the period interval of the surge/trap wave occurrence. <NR1+>: the period interval setting value of the surge/trap wave occurrence. Syntax SURGesag:PERiod:COUNt <NR1> Argument <NR1> *RST Query syntax SURGesag:PERiod:COUNt? Returns <NR1> Copyright © ITECH Electronic Co., Ltd. -
Page 120: Surgesag:value:select
SURGesag:VALue:SELect PERcent //Set the mode of the drop value to percent SURGesag:VALue:SELect? SURGesag:VALue:PERCent <NRf+> This command is used to set and query the percentage of the drop value of the surge/trap wave. <NRf+>: dropping percentage setting value. Syntax SURGesag:VALue:PERCent <NRf+> Argument <NRf+> *RST Copyright © ITECH Electronic Co., Ltd. -
Page 121: Surgesag:value
SURGesag:VALue? MAX //Query the maximum value of the drop set value. SURGesag:PHASe:ENABle <A|B|C|AB|AC|BC|ABC> This command is used to set and query the phase of surge/sag, available only in three-phase mode. Syntax SURGesag:PHASe:ENABle <A|B|C|AB|AC|BC|ABC> Argument <A|B|C|AB|AC|BC|ABC> Copyright © ITECH Electronic Co., Ltd. -
Page 122: Surgesag:angle:enable
Query syntax SURGesag:ANGLe:ENABle? Returns <NRf+> Example SURGesag:ANGLe:ENABle SYNC SURGesag:STATe? This command is used to query the running status of the surge/trap wave. Syntax SURGesag:STATe? Example SURGesag:STATe? //Query the running status of the surge/trap wave. Copyright © ITECH Electronic Co., Ltd. -
Page 123: Chapter16 Scope Subsystem
Example SCOPe:SINGle SCOPe:STOP This is a stop command of the oscilloscope. Syntax SCOPe:STOP Example SCOPe:STOP SCOPe:TIMebase:SCALe <NRf> This command is used to set and query the time scale of the oscilloscope, unit: s. <0.001-1.0> Copyright © ITECH Electronic Co., Ltd. -
Page 124: Scope:voltage:scale
SCOPe:VOLTage:SCALe <NRf> Argument [MINimum|MAXimum] Query syntax SCOPe:VOLTage:SCALe? Returns <NRf> Example SCOPe:VOLTage:SCALe 10 SCOPe:CURRent:SCALe <NRf> This command is used to set and query the current scale of the oscilloscope, unit: Syntax SCOPe:CURRent:SCALe <NRf> Argument [MINimum|MAXimum] Copyright © ITECH Electronic Co., Ltd. -
Page 125: Scope:timebase:delay
Query syntax SCOPe:TIMebase:DELay? Returns <NRf> Example SCOPe:TIMebase:DELay 3 SCOPe:TRIGger:LEVel <NRf> This command is used to set and query the trigger level of the oscilloscope. Syntax SCOPe:TRIGger:LEVel <NRf> Argument [MINimum|MAXimum] Query syntax SCOPe:TRIGger:LEVel? Returns <NRf> Copyright © ITECH Electronic Co., Ltd. -
Page 126: Scope:trigger:slope
SCOPe:TRIGger:MODE <CPD> Argument <AUTO|NORMal> Query syntax SCOPe:TRIGger:MODE? Returns <AUTO|NORMal> Example SCOPe:TRIGger:MODE AUTO SCOPe:LINE:SELection <NR1>,<BOOL> This command is used to set and query the curve displayed by the oscilloscope, up to 6 curves can be displayed. Copyright © ITECH Electronic Co., Ltd. -
Page 127: Scope:status
Returns "Stop"|“Ready”| “Roll”|“Auto”|“Trig'd” Example SCOPe:STATus? SCOPe:RSTate? Query the running status of the oscilloscope. Syntax SCOPe:RSTate? Returns “RUN”|“STOP”| “SINGle” Example SCOPe:RSTate? SCOPe:WAVeform:DATA? This command is used to get the data of the oscilloscope. Syntax SCOPe:WAVeform:DATA? Copyright © ITECH Electronic Co., Ltd. - Page 128 SCOPe Subsystem Example SCOPe:WAVeform:DATA? Copyright © ITECH Electronic Co., Ltd.
-
Page 129: Chapter17 Status Commands
1 or 0, and will not be latched. After the command is executed, the value of the query condition register will not be cleared. Query syntax STATus:QUEStionable:CONDition? Arguments None Returns <NR1> This is a decimal value with a binary weighted sum. Copyright © ITECH Electronic Co., Ltd. -
Page 130: Status:questionable:enable
Questionable Condition register can set the corresponding bit in the Questionable Event register. • The value returned is the binary-weighted sum of all enabled bits in the register. Syntax STATus:QUEStionable:NTRansition <NR1> Copyright © ITECH Electronic Co., Ltd. -
Page 131: Status:questionable:ptransition
Query syntax STATus:QUEStionable:PTRansition? Returns <NR1> This is a decimal value with a binary weighted sum. STATus:OPERation[:EVENt]? This command can read the parameter from operation event register. After executing this order, operation event register is reset. Copyright © ITECH Electronic Co., Ltd. -
Page 132: Status:operation:condition
OPER (operation summary) bit of the Status Byte register. STATus:PRESet clears all bits in the enable register. *CLS does not clear the enable register, but does clear the event register. Syntax STATus:OPERation:ENABle <NR1> Copyright © ITECH Electronic Co., Ltd. -
Page 133: Status:operation:ntransition
Operation Condition register can set the corresponding bit in the Operation Event register. • The value returned is the binary-weighted sum of all enabled bits in the register. Syntax STATus:OPERation:NTRansition <NR1> Arguments 0-0x7fffffff Default value Example STATus:OPERation:NTRansition 128 Query syntax STATus:OPERation:NTRansition? Copyright © ITECH Electronic Co., Ltd. -
Page 134: Status:operation:ptransition
NTR registers. Syntax STATus:OPERation:PTRansition <NR1> Arguments 0-0x7fffffff Default value Example STATus:OPERation:PTRansition 128 Query syntax STATus:OPERation:PTRansition? Returns <NR1> STATus:PRESet This command is used to preset the value of the status register. Syntax STATus:PRESet Example STAT: PRES Copyright © ITECH Electronic Co., Ltd. -
Page 135: Chapter18 Waveform Subsystem
PWAVeform[:IMMediate] <phase/chan>,<WAVEform> This command is used to set and query the waveform of a phase/channel in Normal mode. For waveforms with parameters, the parameters are set to default values. Syntax PWAVeform[:IMMediate] <phase/chan>,<WAVEform> Arguments <A|B|C|CH1|CH2|CH3>, <"Sine"|"Square"|"Triangle"|"Saw"|"Trapezoid"|"Clipped-sine"|"DST-01(30)"|"filen Copyright © ITECH Electronic Co., Ltd. -
Page 136: Waveform:edit:parameter
WAVE:EDIT:PAR? A //Query the waveform parameters of phase A. WAVE:EDIT:PAR? CH1 // Query the waveform parameters of channel 1. WAVEform:EDIT:THD:CLEar This command is used to clear the edited memory data of the THD wave. Copyright © ITECH Electronic Co., Ltd., -
Page 137: Waveform:edit:thd:import
WAVE:EDIT:THD:IMP? WAVEform:EDIT:THD:FORMula <formula> This command is used to set and query the distortion factor calculation method of the edited THD wave. Syntax WAVEform:EDIT:THD:FORMula <formula> Arguments <%F|%R> Query syntax WAVEform:EDIT:THD:FORMula? Returns <CPD> Example WAVE:EDIT:THD:FORM %F Copyright © ITECH Electronic Co., Ltd. -
Page 138: Waveform:edit:thd:data
(if the file name is the same, it is regarded as modifying the current waveform, if the file name does not exist, it is regarded as creating a new file) Syntax WAVEform:EDIT:THD:SAVE:UDISk <filename> Copyright © ITECH Electronic Co., Ltd., -
Page 139: Waveform:edit:userdefine:clear
ASYM: The user can only edit the first 512 points, not symmetrical about the origin; SYMM: The user can only edit the first 512 points, which are symmetrical about the origin; FULL: users can customize and edit 1024 points in the entire cycle. Copyright © ITECH Electronic Co., Ltd. -
Page 140: Waveform:edit:userdefine:data
(if the file name is the same, it is regarded as modifying the current waveform, if the file name does not exist, it is regarded as creating a new file) Syntax WAVEform:EDIT:USERdefine:SAVE:LOCal <filename> Copyright © ITECH Electronic Co., Ltd., -
Page 141: Waveform:edit:userdefine:save:udisk
Example WAVE:EDIT:USER:EXT WAVEform:EDIT:USERdefine:EXTend:DATA <index>,<normalization> This command is used to edit the extended user-defined waveform, the waveform will directly send 1024 normalized points to the FPGA. Syntax WAVEform:EDIT:USERdefine:EXTend:DATA <index>,<normalization> Arguments <NR1>,<NR2> <0-1023>,<0.0-1.0> Example WAVE:EDIT:USER:EXT:DATA 200,0.6 Copyright © ITECH Electronic Co., Ltd. -
Page 142: Chapter19 Island Subsystem
This command is used to query the duration of island simulation state. Syntax ISLand:TIME? Arguments None Returns <NRF> Example ISLand:TIME? ISLand:KEY1[:STATe] <CPD> This command is used to set the state of K1 key. Syntax ISLand:KEY1[:STATe] <CPD> Arguments None Copyright © ITECH Electronic Co., Ltd. -
Page 143: Island:key2:State]
Query syntax ISLand:KEY2[:STATe]? Returns 0|OFF|1|ON Example ISLand:KEY2 1 ISLand:KEY2? ISLand:RESistance:LEVel <NRf+>[,A|B|C] This command is used to set the resistance R value of RLC load. Syntax ISLand:RESistance:LEVel <NRf+>[,A|B|C] Arguments <NRf+> Query syntax ISLand:RESistancel:LEVel? [A|B|C] Returns MINimum|MAXimum|DEFault Copyright © ITECH Electronic Co., Ltd. -
Page 144: Island:inducatance:level
This command is used to set the island simulation start phase Angle. Syntax ISLand:PHASe:LEVel <NRf+>[,A|B|C] Arguments <NRf+> Query syntax ISLand:PHASe:LEVel? [A|B|C] Returns MINimum|MAXimum|DEFault Example ISLand:PHASe:LEVel 90 //start at 90 degree ISLand:PHASe:LEVel? ISLand:CAP:LEVel <NRf+>[,A|B|C] This command is used to set the capacitance value for island simulation. Copyright © ITECH Electronic Co., Ltd. -
Page 145: Island:power:level
<NRf+> Query syntax ISLand:POWer:LEVel? [A|B|C] Returns MINimum|MAXimum|DEFault Example ISLand:POWer:LEVel 90 ISLand:POWer:LEVel? ISLand:QL:LEVel <NRf+>[,A|B|C] This command is used to set the active power value of inductance load for island simulation. Syntax ISLand:QL:LEVel <NRf+>[,A|B|C] Arguments <NRf+> Copyright © ITECH Electronic Co., Ltd. -
Page 146: Island:qc:level
<NRf+> Query syntax ISLand:QC:LEVel? [A|B|C] Returns MINimum|MAXimum|DEFault Example ISLand:QC:LEVel 90 ISLand:QC:LEVel? ISLand:MODE <CPD>[,CH1|CH2|CH3] This command is used to set the island simulation mode. Syntax ISLand:MODE <CPD>[,CH1|CH2|CH3] Arguments <RLC|P-Q> Query syntax ISLand:MODE? [CH1|CH2|CH3] Returns <RLC|P-Q> Copyright © ITECH Electronic Co., Ltd. -
Page 147: Island:inhibit[:State]
ISLand:INHibit? ISLand:VOLTage:CONTrol[:STATe] <CPD>[,CH1|CH2|CH3] This command is used to set the function of detecting the input voltage status during island simulation. Syntax ISLand:VOLTage:CONTrol[:STATe] <CPD>[,CH1|CH2|CH3] Arguments 0|OFF|1|ON Query syntax ISLand:VOLTage:CONTrol[:STATe]? [CH1|CH2|CH3] Returns Example ISLand:VOLTage:CONTrol 0,CH1 ISLand:VOLTage:CONTrol? Copyright © ITECH Electronic Co., Ltd. -
Page 148: Island:voltage:control:level
Syntax ISLand:CURRent:CONTrol[:STATe] <CPD>[,CH1|CH2|CH3] Arguments 0|OFF|1|ON Query syntax ISLand:CURRent:CONTrol[:STATe]? [CH1|CH2|CH3] Returns Example ISLand:CURRent:CONTrol 0,CH2 ISLand:CURRent:CONTrol? ISLand:CURRent:CONTrol:LEVel <NRf+>[,A|B|C|CH1|CH2|CH3] This command is usedt to set the current threshold to detect the input current during island simulation. Copyright © ITECH Electronic Co., Ltd. -
Page 149: Island:power:control[:State]
ISLand:POWer:CONTrol[:STATe] <CPD>[,CH1|CH2|CH3] Arguments 0|OFF|1|ON Query syntax ISLand:POWer:CONTrol[:STATe]? [CH1|CH2|CH3] Returns Example ISLand:POWer:CONTrol 0,CH2 ISLand:CURRent:CONTrol? ISLand:POWer:CONTrol:LEVel <NRf+>[,A|B|C|CH1|CH2|CH3] This command is usedt to set the power threshold to detect the input power during island simulation. Syntax ISLand:POWer:CONTrol:LEVel <NRf+>[,A|B|C|CH1|CH2|CH3] Copyright © ITECH Electronic Co., Ltd.[,Ch1|Ch2|Ch3] - Page 150 ISLand Subsystem Arguments <NRf+> Query syntax ISLand:POWer:CONTrol:LEVel? [A|B|C|CH1|CH2|CH3] Returns MINimum|MAXimum|DEFault Example ISLand:POWer:CONTrol:LEVel 1000 ISLand:POWer:CONTrol:LEVel? Copyright © ITECH Electronic Co., Ltd.
-
Page 151: Chapter20 Ieee-488 Common Commands
Register (SESR) will set the Event Summary Bit (ESB) in the Status Byte Register (SBR). Syntax *ESE <NR1> Arguments 0～255 Default value Example *ESE 128 Query syntax *ESE? Returns <NR1> Related syntax *ESR? *PSC *STB? Bit definition of standard event enable register: Copyright © ITECH Electronic Co., Ltd. -
Page 152: Ese
<NR1> This is a decimal value with a binary weighted sum. Related syntax *CLS *ESE *ESE? *OPC *IDN? This command reads information that identifies the power supply. It returns a parameter that contains four segments divided by a comma. Example: ITECH Ltd., IT3400, 60234567890123456, 1.01-1.02-1.03. Query syntax *IDN? Arguments None Copyright ©... -
Page 153: Opc
1. The byte sets the RQS bit of the Status Byte Register to 1. The bit definition of the Status Byte Enable Register is as the same as the Status Byte Register. Syntax *SRE <NR1> Arguments 0～255 Copyright © ITECH Electronic Co., Ltd. -
Page 154: Stb
*PSC This instruction is used to control whether the status register is cleared when the instrument is powered-on. This instruction affects the value of the status register at the next powered-on. Syntax *PSC <ON|1|OFF|0> Copyright © ITECH Electronic Co., Ltd. -
Page 155: Sav
This command saves the present setting values of the power supply into specified memory. Syntax *SAV <NR1> Arguments *RCL This command recalls the setups you saved in the specified memory location. Syntax *RCL <NR1> Arguments 0～9 Copyright © ITECH Electronic Co., Ltd. - Page 156 Contact US Thank you for purchasing ITECH products. If you have any doubt about this product, please contact us as follow. 1. Visit ITECH website www.itechate.com 2. Select the most convenient contact for further consultation.
