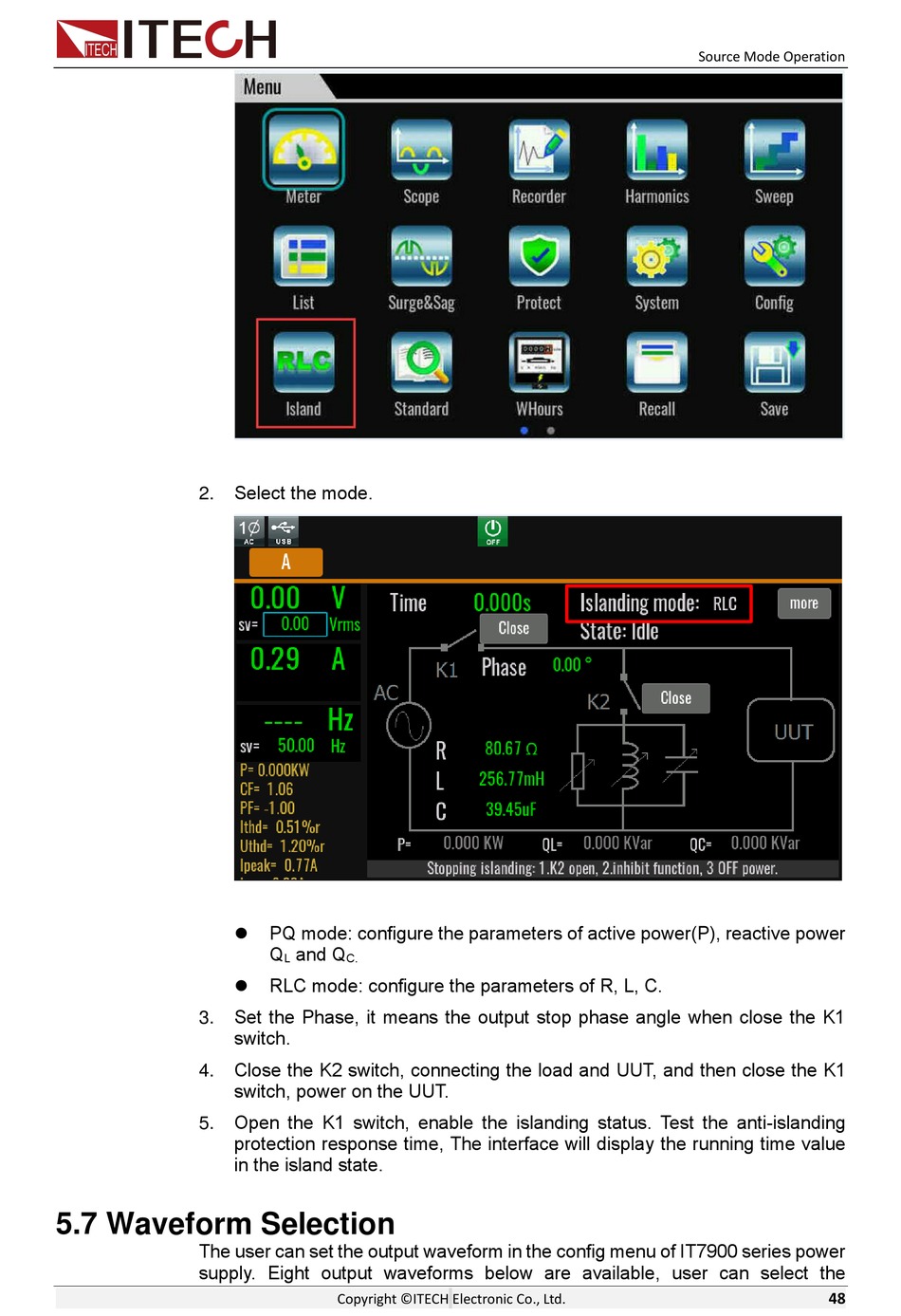

5.7 Waveform Selection

The user can set the output waveform in the config menu of IT7900 series power
supply. Eight output waveforms below are available, user can select the
Select the mode.
⚫ PQ mode: configure the parameters of active power(P), reactive power
Q and Q
L C.
⚫ RLC mode: configure the parameters of R, L, C.
Set the Phase, it means the output stop phase angle when close the K1
switch.
Close the K2 switch, connecting the load and UUT, and then close the K1
switch, power on the UUT.
Open the K1 switch, enable the islanding status. Test the anti-islanding
protection response time, The interface will display the running time value
in the island state.
