optional red and black test cables for individual sales based on the maximum
current value. For specifications of test cables and maximum current values,
refer to

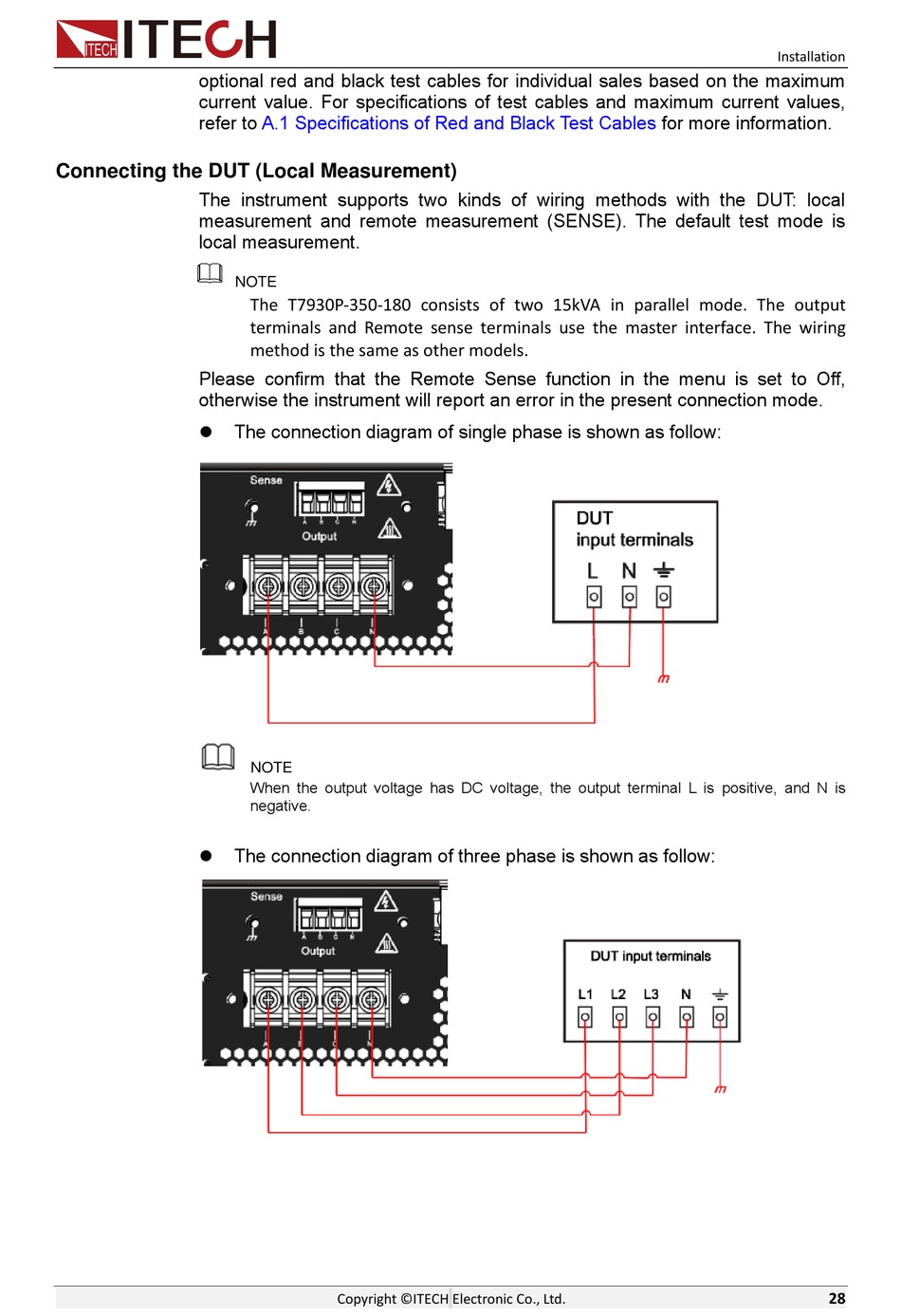

Connecting the DUT (Local Measurement)
The instrument supports two kinds of wiring methods with the DUT: local
measurement and remote measurement (SENSE). The default test mode is
local measurement.
Please confirm that the Remote Sense function in the menu is set to Off,
otherwise the instrument will report an error in the present connection mode.
⚫
⚫
A.1 Specifications of Red and Black Test Cables
NOTE
The T7930P-350-180 consists of two 15kVA in parallel mode. The output
terminals and Remote sense terminals use the master interface. The wiring
method is the same as other models.
The connection diagram of single phase is shown as follow:
NOTE
When the output voltage has DC voltage, the output terminal L is positive, and N is
negative.
The connection diagram of three phase is shown as follow:
Copyright ©ITECH Electronic Co., Ltd.
Installation
for more information.
