5. (Optional) According to the actual situation of DUT, connect the grounding
6. Connect the other end of the remote sense cables to the DUT.
7. Connect the other end of the red and black cables to the DUT. The positive
8. Power on the instrument and turn on the Sense function of the instrument.

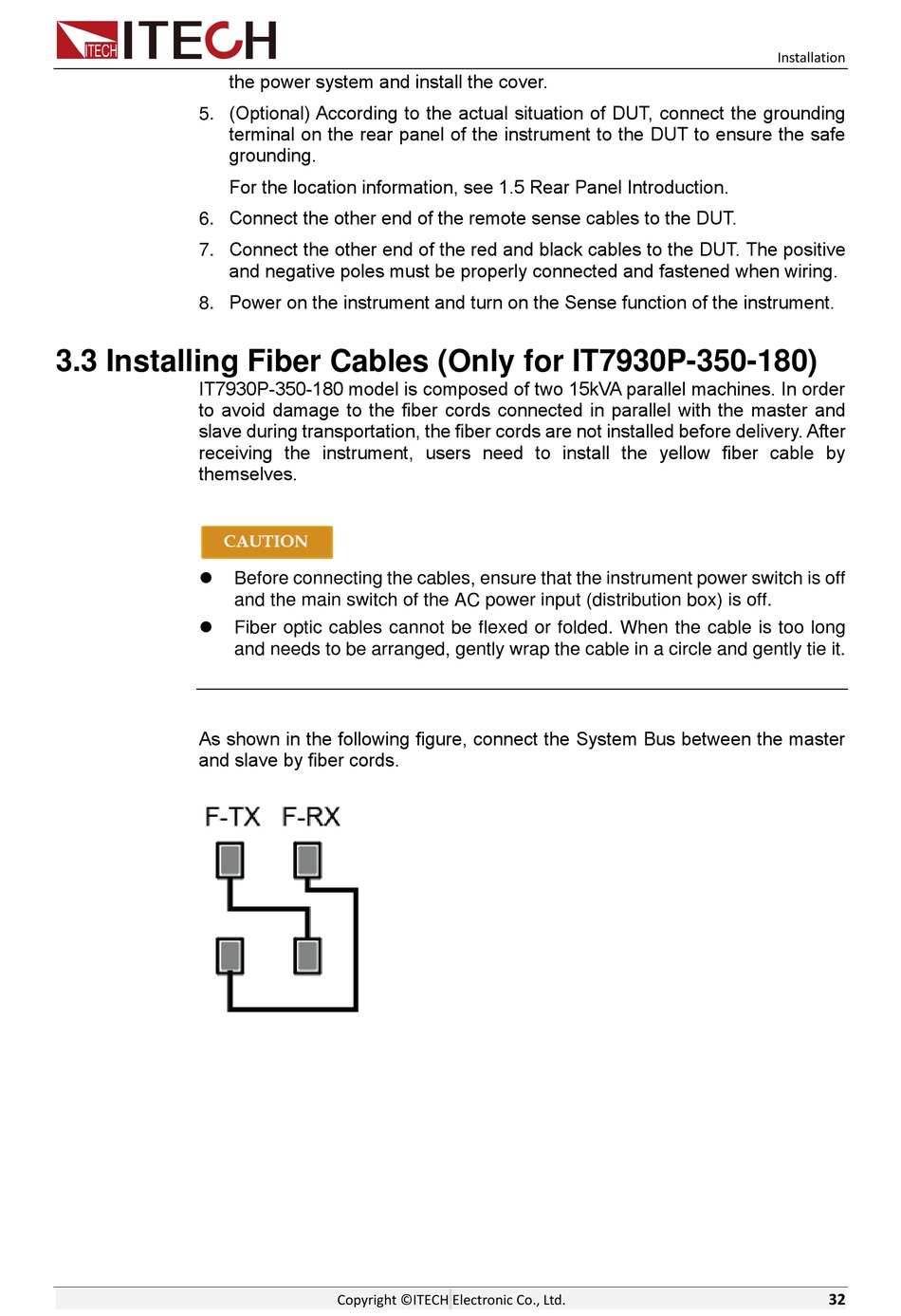

3.3 Installing Fiber Cables (Only for IT7930P-350-180)

IT7930P-350-180 model is composed of two 15kVA parallel machines. In order
to avoid damage to the fiber cords connected in parallel with the master and
slave during transportation, the fiber cords are not installed before delivery. After
receiving the instrument, users need to install the yellow fiber cable by
themselves.
⚫
⚫
As shown in the following figure, connect the System Bus between the master
and slave by fiber cords.
the power system and install the cover.
terminal on the rear panel of the instrument to the DUT to ensure the safe
grounding.
For the location information, see 1.5 Rear Panel Introduction.
and negative poles must be properly connected and fastened when wiring.
Before connecting the cables, ensure that the instrument power switch is off
and the main switch of the AC power input (distribution box) is off.
Fiber optic cables cannot be flexed or folded. When the cable is too long
and needs to be arranged, gently wrap the cable in a circle and gently tie it.
