- Page 1 USER’S GUIDE Digital Control Power Supply Model IT6720 Copyright 2010 All Rights Reserved Ver2.0/Jan, 2010/ IT6720...
- Page 2 This hardware product is warranted against defects in material and workmanship for a period of ONE year from date of delivery. IT6720 power supply for use with a hardware product and when properly installed on that hardware product, are warranted not to fail to execute their programming instructions due to defects in material and workmanship for a period of 90 days from date of delivery.
- Page 3 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) The ITECH product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical...
- Page 4 100W/30V=3.2A. Calculate according to the above way when the output voltage is 20V, the output current should be 5A, but as the max rating current of IT6720 is 8A, so the final max output current is 5A. IT6720 output curve Function •...
-
Page 5: Panel Layout

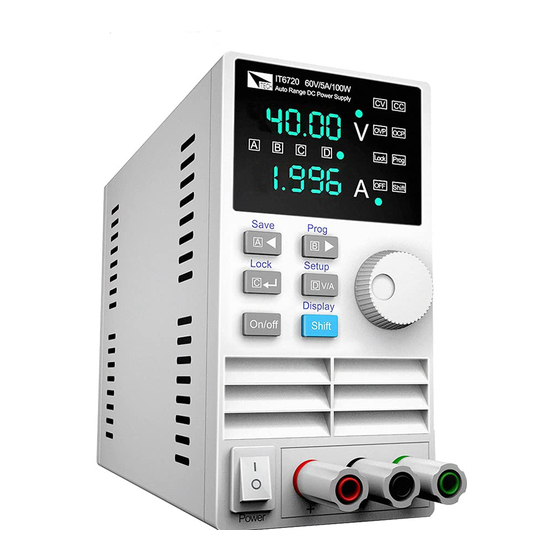

Panel Layout Panel Layout Voltage setup Indicator Voltage setup Indicator CC mode Indicator CC mode Indicator Voltage Value Voltage Value CV mode Indicator CV mode Indicator Step B + Memory B Step B + Memory B OCP Indicator OCP Indicator Step A + Memory A Step A + Memory A OVP Indicator... -
Page 6: Quick Start
Confirm whether the power supply has been destroyed in transportation, if there is any flaw, please contact the vender. Confirm whether the AC input voltage of IT6720 comply with the standards of your country or region. Note: If switching input voltage, operate through the back panel switch (110V/220V). -
Page 7: Enable Output
Quick Start Enable output Press to enable the IT6720 output. On/Off IT6720 60V/5A/100W ITECH Voltage and current settings will be Auto Range DC Power Supply wink for three seconds, and after that , the display value of numerical display will change from the set value to actual measured voltage and current value. - Page 8 Prog Shift Shift Shift OCP current value Note: If the OVP and OCP settings are lower than the actual voltage/current value, the output of power supply will be turned off. The default settings of IT6720 are OVP=61V, OCP=5.1A. USER’S GUIDE...
- Page 9 Auto Range DC Power Supply Auto Range DC Power Supply Press to enter into GRP interface after setting the OCP value, use to select store group. IT6720 allows customers to store 100 groups with A/B/C/D four set value for Lock Lock Lock Prog...
- Page 10 Recall operation Prog Prog Press , the indicator will be lit on, which means that IT6720 working in the Shift B B B shortcuts mode. Press any key in , recall the preset voltage/current value B B B B B...
-
Page 11: Specifications
OVP OCP OVP/OCP/OCP means. If the keypad is disabled, check whether the indicator lock is lit on, if so, unlock the keypads as the above means. Specifications Specs Specs Specifications IT6720 Output Rating Voltage 0~60V Current 0~5A Power 100W Load Regulation Voltage <0.01%+3mV... - Page 12 Memo 12 USER’S GUIDE...
