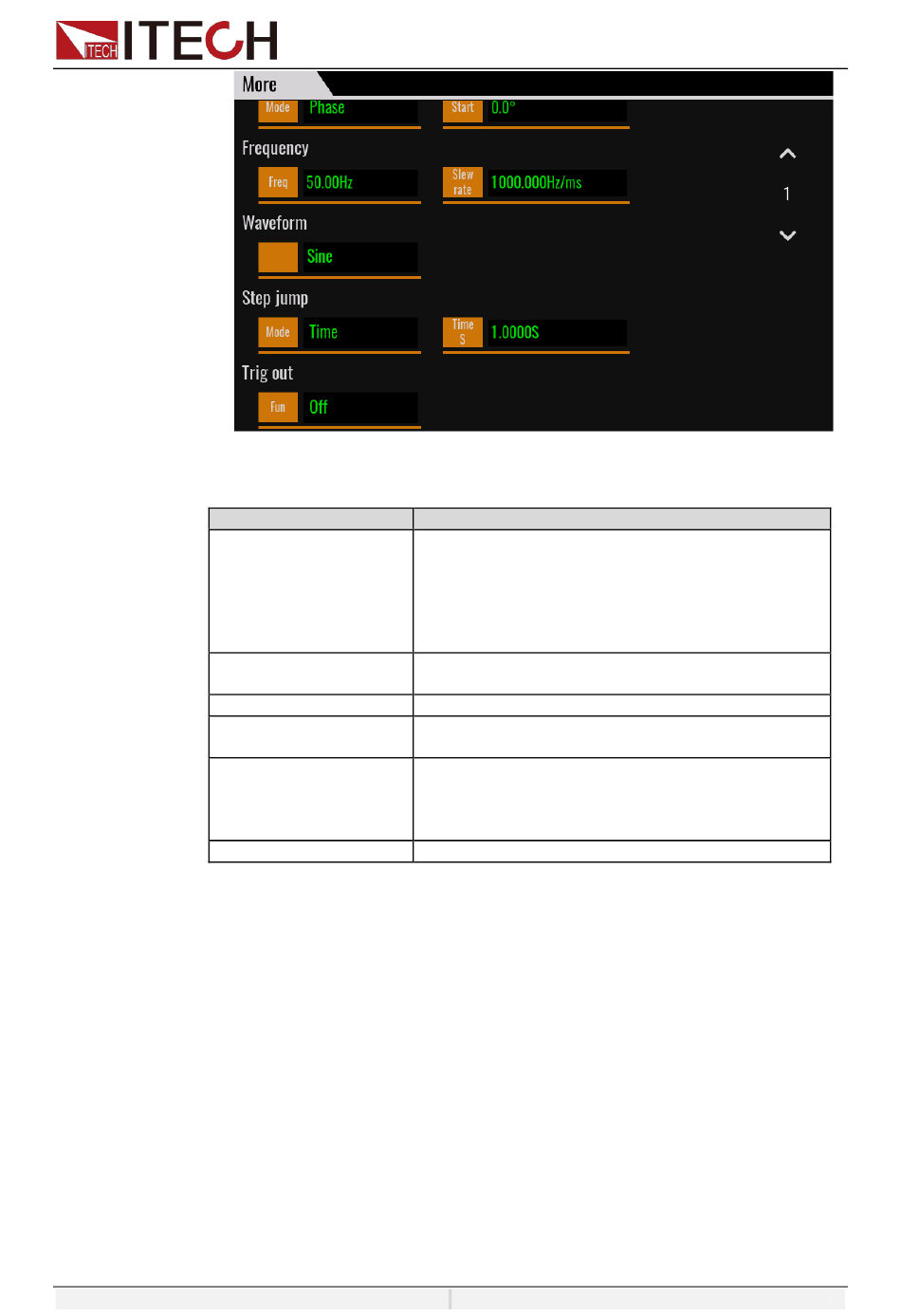

List parameters description:
Voltage AC
Start Phase
Phase Difference
Frequency
Waveform
Step jump
Trig out
4.
5.
5.12.2 Select/Run List File
If several List files are edited, press Recall to recall the List file to be tested.
Detailed operation steps are as below:
1.
2.
3.
4.
Press [Esc] to return Edit interface, Press [Save].
At list Edit interface, click the step number, the [Insert]/[Paste]/[Cut]/[Copy]
/[Delete] will display, click the key to edit.
Press [Esc] to return.
Press [Shift]+[V-set](list) on the front panel to enter the List function
configuration interface.
Press [Open], select the saved List01 csv file, and press [Enter] to enter
the file.
Press [On/Off] on the front panel, turn on the output.
Press [Run] in the list function interface.
Copyright ©ITECH Electronic Co., Ltd.
Voltage value and slope.
Start phase setting, displayed in AC mode.
By default, the program automatically calculates
this value (which is guaranteed to be continuous
with the previous step). If the user modifies this
parameter, the user set value is used without
guarantee of continuity.
Phase difference between ABC, only displays in AC
3-phase mode.
Frequency and slope, displayed in AC mode.
Waveform type, every basic waveform can be
selected, displayed in AC mode.
Method of step jumps to next step.
Time: when the time is out, jumps to next step
Trig: receive a trigger signal, jumps to next step.
Phase: jumps to next step at this phase.
Whether outputs a signal when this step is ending.
