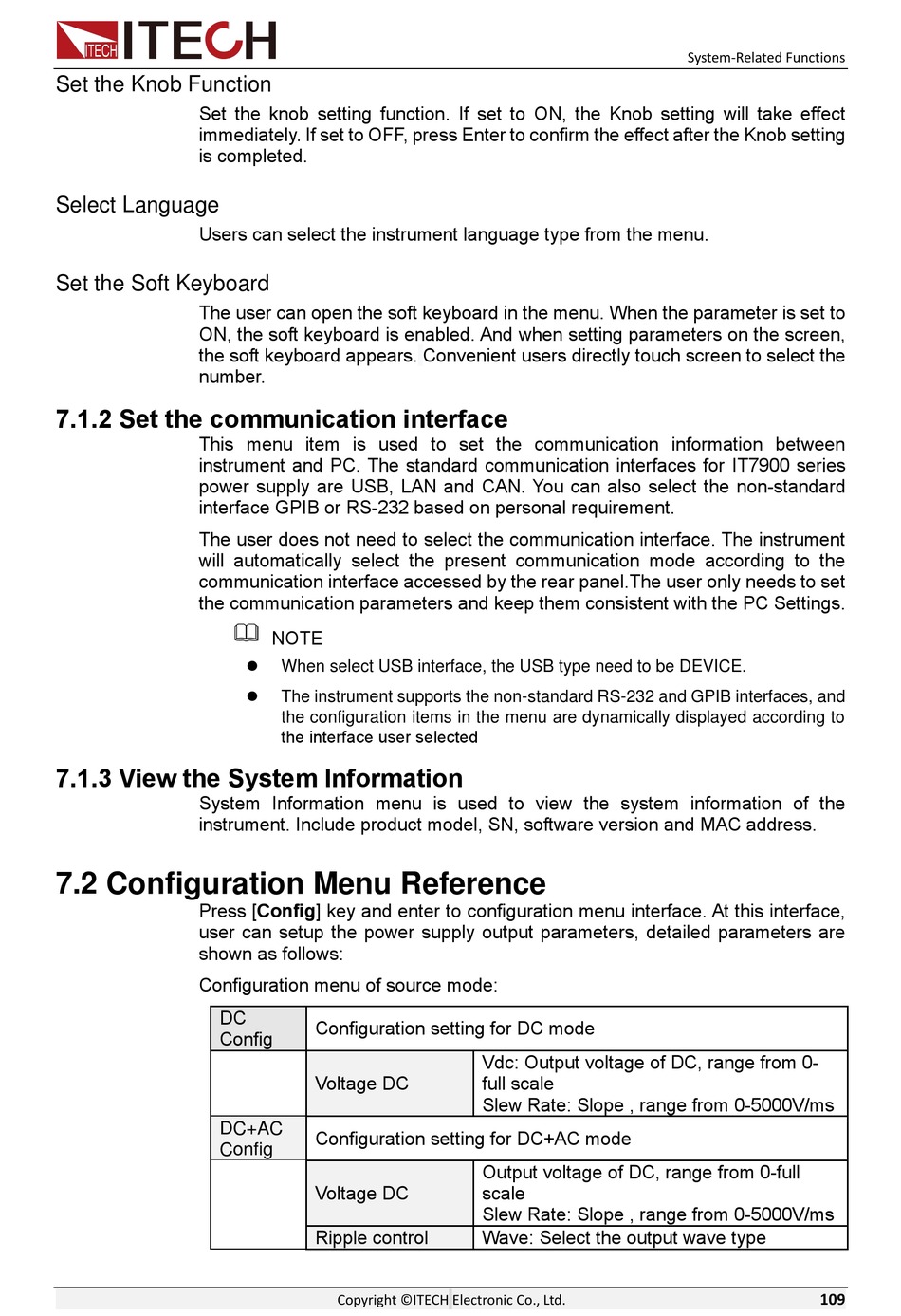

Set the Knob Function
Set the knob setting function. If set to ON, the Knob setting will take effect
immediately. If set to OFF, press Enter to confirm the effect after the Knob setting
is completed.
Select Language
Users can select the instrument language type from the menu.
Set the Soft Keyboard
The user can open the soft keyboard in the menu. When the parameter is set to
ON, the soft keyboard is enabled. And when setting parameters on the screen,
the soft keyboard appears. Convenient users directly touch screen to select the
number.

7.1.2 Set the communication interface

This menu item is used to set the communication information between
instrument and PC. The standard communication interfaces for IT7900 series
power supply are USB, LAN and CAN. You can also select the non-standard
interface GPIB or RS-232 based on personal requirement.
The user does not need to select the communication interface. The instrument
will automatically select the present communication mode according to the
communication interface accessed by the rear panel.The user only needs to set
the communication parameters and keep them consistent with the PC Settings.

7.1.3 View the System Information

System Information menu is used to view the system information of the
instrument. Include product model, SN, software version and MAC address.

7.2 Configuration Menu Reference

Press [Config] key and enter to configuration menu interface. At this interface,
user can setup the power supply output parameters, detailed parameters are
shown as follows:
Configuration menu of source mode:
DC
Config
DC+AC
Config
NOTE
⚫
When select USB interface, the USB type need to be DEVICE.
⚫
The instrument supports the non-standard RS-232 and GPIB interfaces, and
the configuration items in the menu are dynamically displayed according to
the interface user selected
Configuration setting for DC mode
Voltage DC
Configuration setting for DC+AC mode
Voltage DC
Ripple control
Copyright ©ITECH Electronic Co., Ltd.
Vdc: Output voltage of DC, range from 0-
full scale
Slew Rate: Slope , range from 0-5000V/ms
Output voltage of DC, range from 0-full
scale
Slew Rate: Slope , range from 0-5000V/ms
Wave: Select the output wave type
