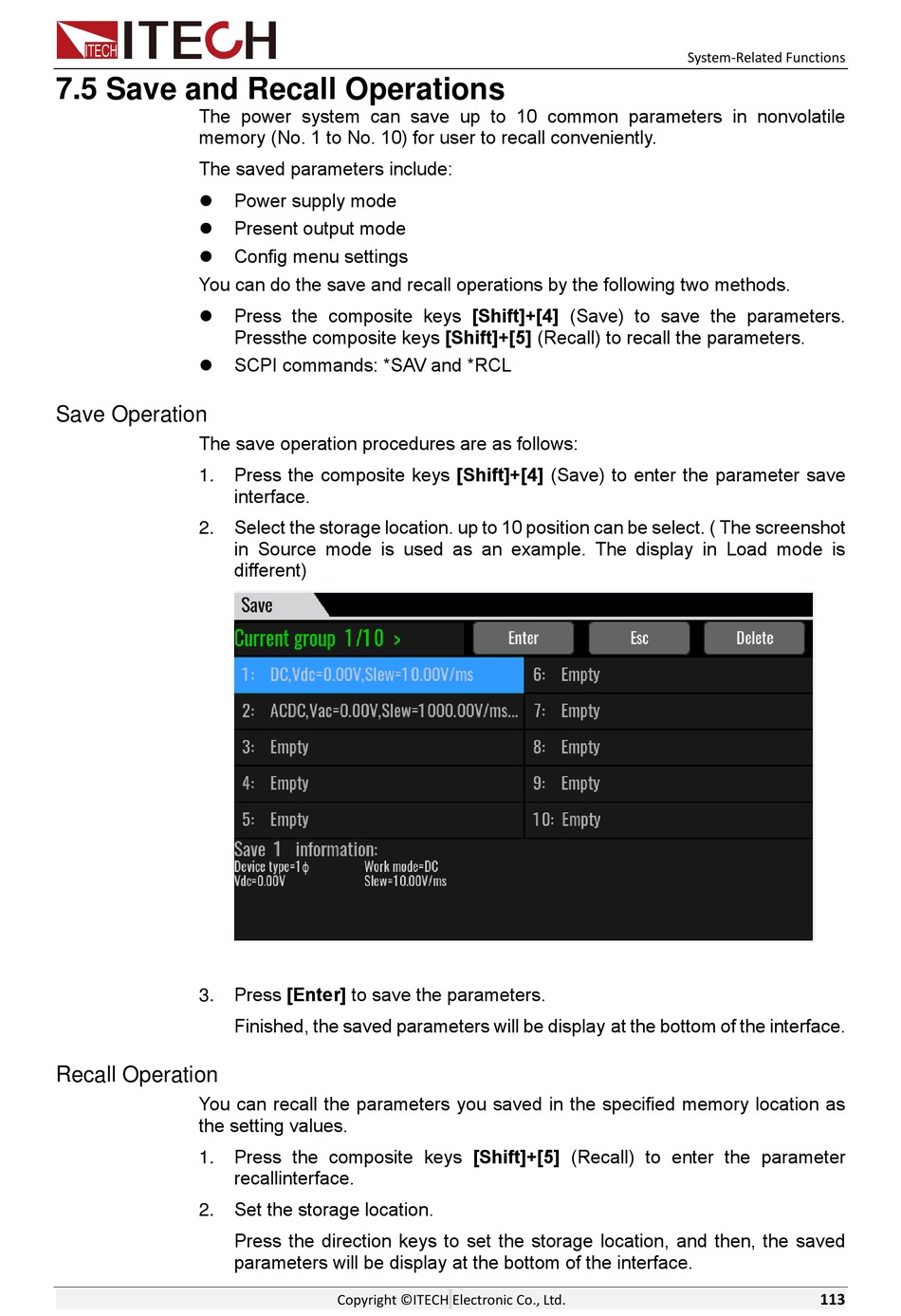

7.5 Save and Recall Operations

The power system can save up to 10 common parameters in nonvolatile
memory (No. 1 to No. 10) for user to recall conveniently.
The saved parameters include:
⚫
⚫
⚫
You can do the save and recall operations by the following two methods.
⚫
⚫
Save Operation
The save operation procedures are as follows:
1.
2.
3.
Recall Operation
You can recall the parameters you saved in the specified memory location as
the setting values.
1.
2.
Power supply mode
Present output mode
Config menu settings
Press the composite keys [Shift]+[4] (Save) to save the parameters.
Pressthe composite keys [Shift]+[5] (Recall) to recall the parameters.
SCPI commands: *SAV and *RCL
Press the composite keys [Shift]+[4] (Save) to enter the parameter save
interface.
Select the storage location. up to 10 position can be select. ( The screenshot
in Source mode is used as an example. The display in Load mode is
different)
Press [Enter] to save the parameters.
Finished, the saved parameters will be display at the bottom of the interface.
Press the composite keys [Shift]+[5] (Recall) to enter the parameter
recallinterface.
Set the storage location.
Press the direction keys to set the storage location, and then, the saved
parameters will be display at the bottom of the interface.
