ICP-CC408 | Installation Guide | 3.0
When programming in Installer's Programming
Mode or using a Master Code function, the MAINS
indicator lights to indicate a location value from 10 to
15. The MAINS indicator represents the 10 digit,
which is added to the value of the lit zone indicator
(for example, if the value programmed in a location
is 12, the MAINS and Zone 2 indicators light).
Zone Isolating Mode
This indicator (the person) flashes once
every 3 sec when you attempt to isolate
zones or program zones to be
automatically isolated for STAY
Flashing
Mode 2.
For more information, refer to:
•
Section 4.11 on page 23 to manually isolate zones.
•
Section 6.1.4 on page 31 to use the Installer Code
to set zones to be automatically isolated in STAY
Mode 2.
•
Section 6.2.6 on page 37 to use the Master Code
to set zones to be automatically isolated in STAY
Mode 2.
Fault Indicator
The fault indicator lights when the
system detects a system fault (refer to
Table 12). Refer to Section 4.12 Fault
Analysis Mode on page 23 for more
information on system faults.
Each time a new system fault is detected (the fault
indicator flashes), the codepad beeps once per min.
Press [AWAY] to stop the beeping and acknowledge
the fault.
Programming Mode
These two indicators flash when you
enter Installer's Programming Mode or
use any Master Code function.
Flashing
OFF Indicator/Zone Sealed
The OFF indicator lights when the
system is disarmed and flashes when a
zone becomes unsealed when disarmed.
The indicator stops flashing when all
zones are sealed.
ON Indicator/Zone in Alarm
The ON indicator lights when the
system is armed and flashes when an
alarm occurs. The indicator is reset after
a valid User Code is entered.
Audible Indicators
The codepad provides a number of audible
indications. Refer to Table 13 on page 17.
Bosch Security Systems, Inc. | 12/08 | F01U089463-02
Codepad Indicators
3.3

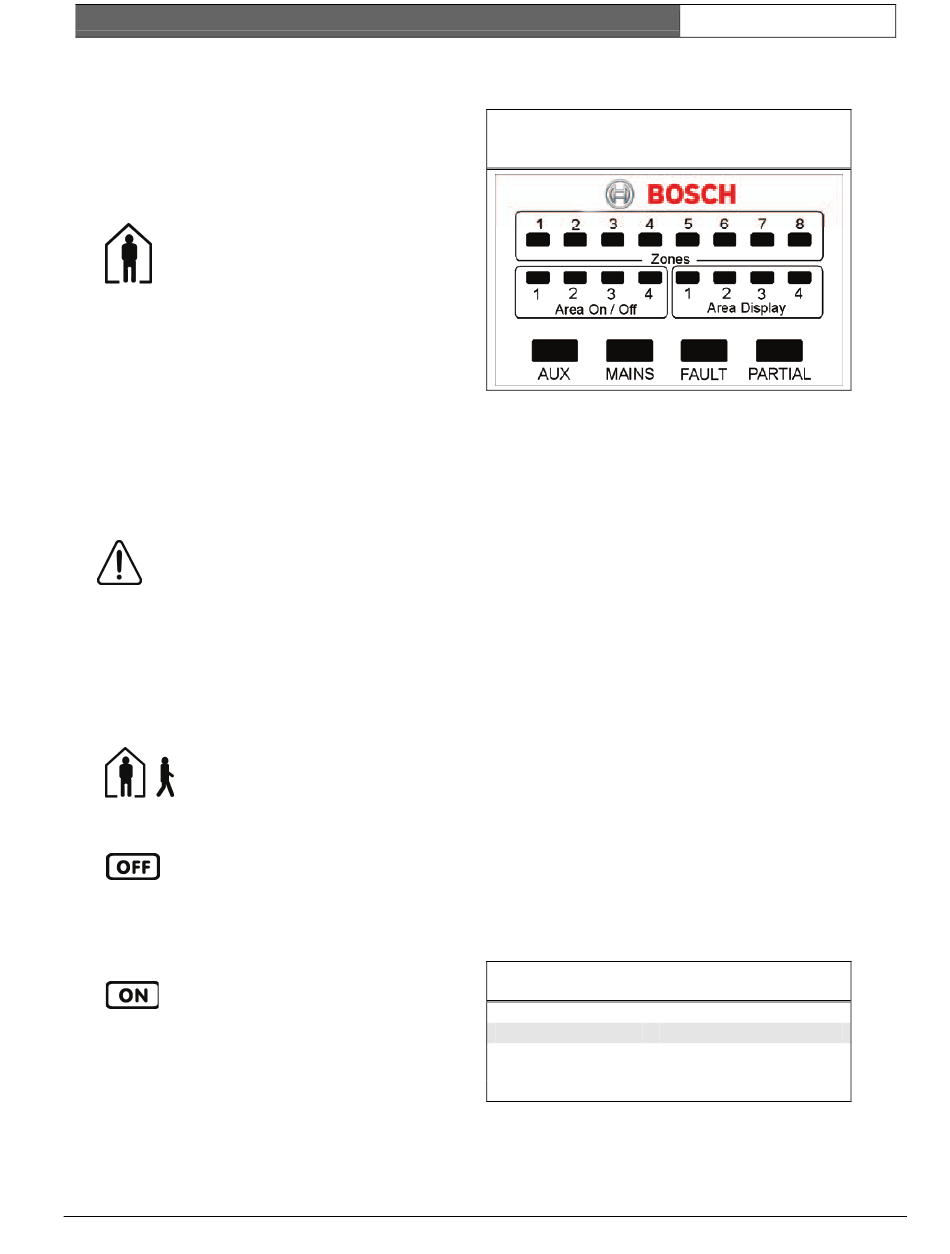

ICP-CP500PW Master Partitioned
LED Codepad
Figure 3:
This codepad is used only on a partitioned
ICP-CC408 Control Panel. The Master Partitioned
LED Codepad allows a user to operate both areas
individually from the same codepad, without the
need to operate individual areas from separate
codepads.
The codepad is the communications interface
between you and the alarm system. The codepad
allows you to issue commands and offers visual and
audible indications to guide you through general
operation.
The codepad incorporates a number of indicators:
eight zone indicators show the condition of each
zone, eight area indicators show the area status, and
four other indicators show general status. These
indicators are described in the tables throughout this
section.
Refer to Section 19.0 Partitioning on page 82 for more
information.
ZONES Indicators
The zone indicators (1 to 8) display the status of each
zone as defined in Table 8 on page 16. The zones
belong to the area with the lit AREA DISPLAY
indicator.
AREA ON/OFF Indicators
The group of four AREA ON/OFF indicators shows
the status of each area as defined in Table 14.
Table 14: AREA ON/OFF Indicators
Indicator
On
Off
If an area is armed in STAY Mode 1, the
corresponding AREA ON/OFF indicator is lit in
conjunction with the PARTIAL indicator. If the area
is armed in AWAY Mode, only the ON/OFF
indicator is lit.
ICP-CP500PW Master Partitioned
Codepad
Definition
The area is armed in AWAY
Mode or STAY Mode 1.
The area is disarmed.
EN | 18
