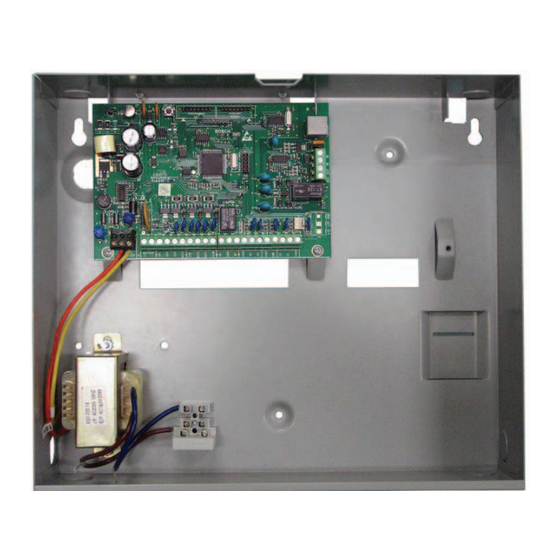

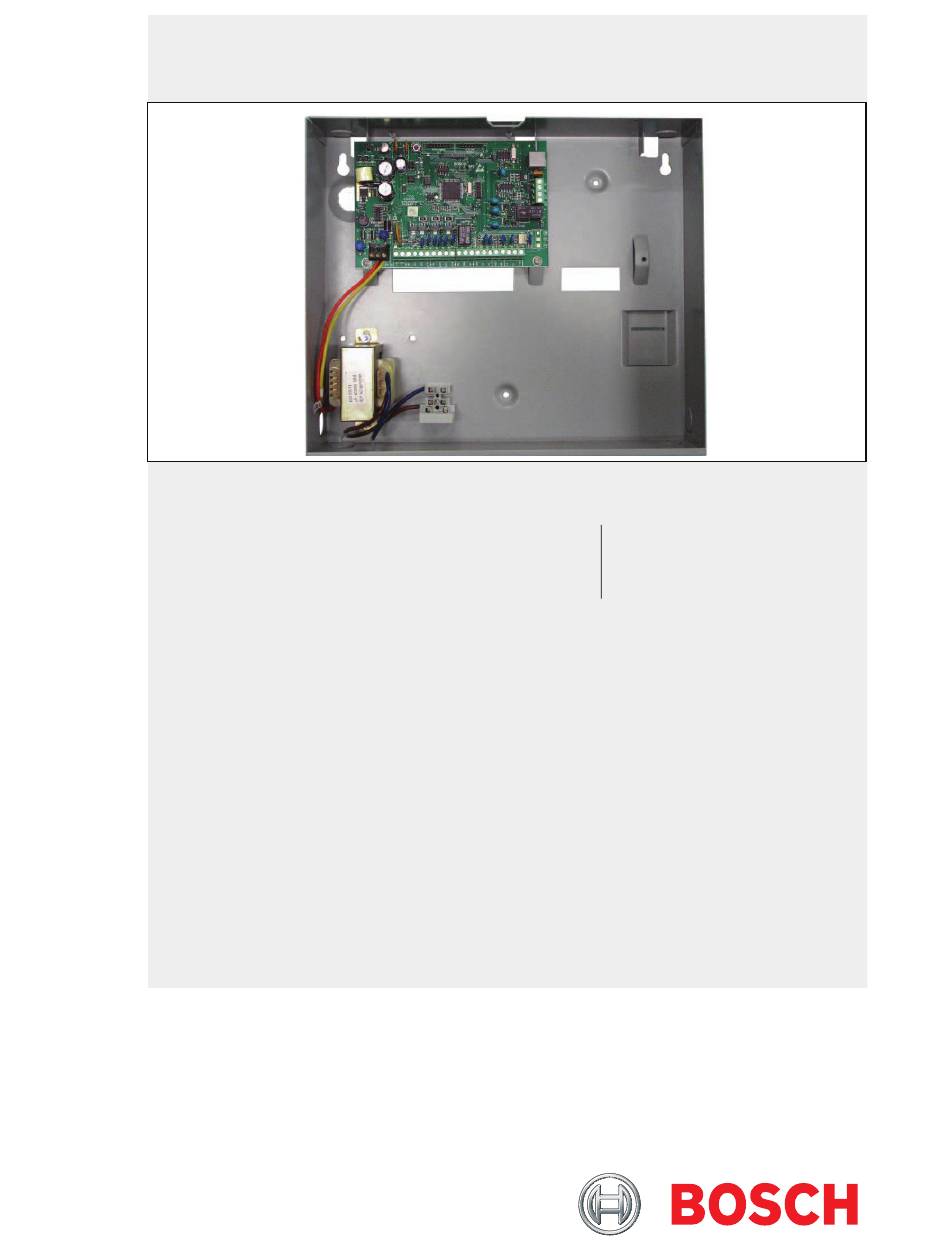

  • Page 1 ICP-CC404 User’s Guide ICP-CC404 Control Panel...
  • Page 2 ICP-CC404 | User's Guide | Copyright Notice Copyright Notice New Zealand Telepermit Notes Unless otherwise indicated, this publication is the The grant of a telepermit for a device in no way indicates Telecom acceptance of responsibility for the copyright of Bosch Security Systems, Inc. (“Bosch”).

  • Page 3: Table Of Contents

    Turning Outputs On/Off ......12 14.0 Reset Latching Outputs ........12 15.0 Codepad ID/Buzzer Tone Change ....12 16.0 Testing..............13 16.1 Horn Speaker Test ...........13 16.2 Bell Test.............13 16.3 Strobe Test ............13 16.4 Walk Test Mode..........13 Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 4: Introduction

    1.0 Introduction 2.0 Features Congratulations on selecting the ICP-CC404 Control The ICP-CC404 Control Panel uses the latest in Panel to protect you and your property. To get the microprocessor technology to provide you with more most from your unit, read through this manual and...

  • Page 5: Codepad Indicators

    Zone is unsealed. Zone is sealed. Flashing fast Zone is in alarm. (0.25 sec on/ 0.25 sec off) Flashing slow Zone is manually isolated or (1 sec on/1 sec off) selected to be isolated. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 6: Mains Indicator

    Table 6 defines the audible indicators generated by STAY Mode 2 Arms all zones except those the codepad buzzer. programmed by the Master Code holder to be automatically isolated. Refer to Section 4.3 Arming in STAY Mode 2. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 7: Arming In Away Mode

    Mode 1 or STAY Mode 2. installer can program this option. To arm in STAY Mode 2: Hold down [0] until two beeps sound. The STAY indicator lights and Exit Time starts. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 8: Programming Stay Mode 2 Zones

    3. Press the [*] key to delete the selected user code. To add a user code: Two beeps sound and the STAY and AWAY indicators turn off. To delete other user codes, repeat this procedure as many times as required. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 9: Radio Transmitter Operations

    An audible alarm activates when you press [1] and [3] or [*] and [#] simultaneously. Contact your installer to disable the ability to activate the codepad panic alarm or to silence the codepad panic alarm. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 10: Fire Alarm

    If you selected an incorrect zone to isolate, enter the incorrect zone number again and press [*]. Repeat Step 2 if you are isolating more than one zone, until all zones you want to isolate are selected. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 11: Fault Analysis Mode

    The examples given in this feature are automatic arming time. Refer to Section 10.0 Setting only applicable to Australia. the Date and Time to program the date and time. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 12: Telco Disarm Sequence

    [3 #] (for example, [2 5 8 0 3 #]). 5000 Hz. If multiple codepads are installed, each Three beeps sound and the STAY and AWAY codepad can sound a different tone. indicators flash. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 13: Testing

    STAY Mode 1 or telephone, two beeps sound. The system is STAY Mode 2. armed in AWAY Mode. 3. Hang up the telephone. To enter Event Memory: The system remains armed. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 14: Domestic Dialing

    [2 #] (for example, [2 5 8 0 2 #]). Two beeps sound and the STAY and AWAY indicators flash. 2. Press [* 4 #]. The STAY and AWAY indicators turn off. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 15: Basic Pager Reporting

    Figure 6 on page 16 shows a transmission from a control panel with an ID number of 678, and Zone 2 in alarm. Figure 6 on page 16 also shows Zone 3 is manually isolated and the system is armed. Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 16: Basic Pager Display

    4 – 0: Zone Normal 7 – 0: AC Normal 1: Alarm 1: AC Failure 2: Manually Isolated 8 – 0: System Normal 5 – 8: Disarmed 1: System Fault 9: Armed Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 17: Glossary Of Terms

    The ability of the control panel to recognize that detection devices might have stopped working or that the view to a PIR detector is blocked (it is unable to detect any movement during the time programmed by your installer). Bosch Security Systems, Inc. | 10/08 | F01U089400-01...
  • Page 18 ICP-CC404 | User's Guide | 22.0 Glossary of Terms Table 14: continued Term Description Silent Alarm Your installer can program zones for silent operation. When the zone programmed for silent operation is violated during the armed period, your alarm system communicates with the monitoring station without sounding the sirens.

  • Page 19: Installation Notes

    ICP-CC404 | User's Guide | 23.0 Installation Notes 23.0 Installation Notes Company Name Technician’s Name Technician’s Telephone Number Installation Date Warranty Expires Panel Software Version Service Notes Bosch Security Systems, Inc. | 10/08 | F01U089400-01...
  • Page 20 ICP-CC404 | User's Guide | 23.0 Installation Notes Zone Description Describe each zone and mark the zones that are programmed to be automatically isolated in STAY Mode 1 or are programmed for day alarm operation. Isolated In Day Alarm STAY Mode 1...
  • Page 21 Domestic Reporting Domestic Reporting – Number Of Beeps Other System Information Siren Run Time Minutes Sensor Watch Time Increments in Days Can Your System Be Serviced By Another Technician If Yes, Installer’s Code Bosch Security Systems, Inc. | 10/08 | F01U089400-01...

  • Page 22: Specifications

    ICP-CC404 | User's Guide | 24.0 Specifications 24.0 Specifications Table 15: Specifications Temperature Range C to +45 (+14 F to +113 Humidity 10% to 95% TF008 Plug Pack – Power Source 240 VAC/18 VAC @ 1.3 A Standby Current 65 mA...
  • Page 23 ICP-CC404 | User's Guide | Notes Notes Bosch Security Systems, Inc. | 10/08 | F01U089400-01...
  • Page 24 ICP-CC404 | User's Guide | Notes Notes...
  • Page 25 ICP-CC404 | User's Guide | Notes Notes Bosch Security Systems, Inc. | 10/08 | F01U089400-01...
  • Page 26 ICP-CC404 | User's Guide | Index Index 24-Hour Zones AUX Power Supply Fail AC Mains Fail Battery Fail Adding Radio User Codes Date and Time Adding User Codes EEPROM Fault Alarm Condition Horn Speaker Fail Alarms Sensor Watch Fail Duress...
  • Page 27 ICP-CC404 | User's Guide | Index Zone Indicators Zones Bosch Security Systems, Inc. | 10/08 | F01U089400-01...
  • Page 28 © 2008 Bosch Security Systems, Inc. F01U089400-01...
