Press [AWAY] to stop the beeping and to
acknowledge the fault.
Table 12: FAULT Indicator
Indicator Definition
On A system fault must be corrected.
Off The system is normal (no faults).
Flashing A system fault must be acknowledged.

Audible Indicators

The codepad provides these audible indications:
Table 13: Audible Indicators
Audible Indicator Definition
One short beep A button was pressed on the
codepad, or Exit Time ended when
arming in STAY Mode 1 or STAY
Mode 2.
Two short beeps The system accepted your code.
Three short beeps The system executed the requested
function.
One long beep Exit Time ended when arming in
AWAY Mode, or the requested
operation was denied or aborted.
One short beep Walk Test Mode is currently active,
every sec or warning before automatic arming
takes place.
One short beep Telephone Monitor Mode is active.
every 2 sec
One short beep There is a system fault to be
every min acknowledged.
3.2 ICP-CP508LW Eight Zone LCD

Codepad

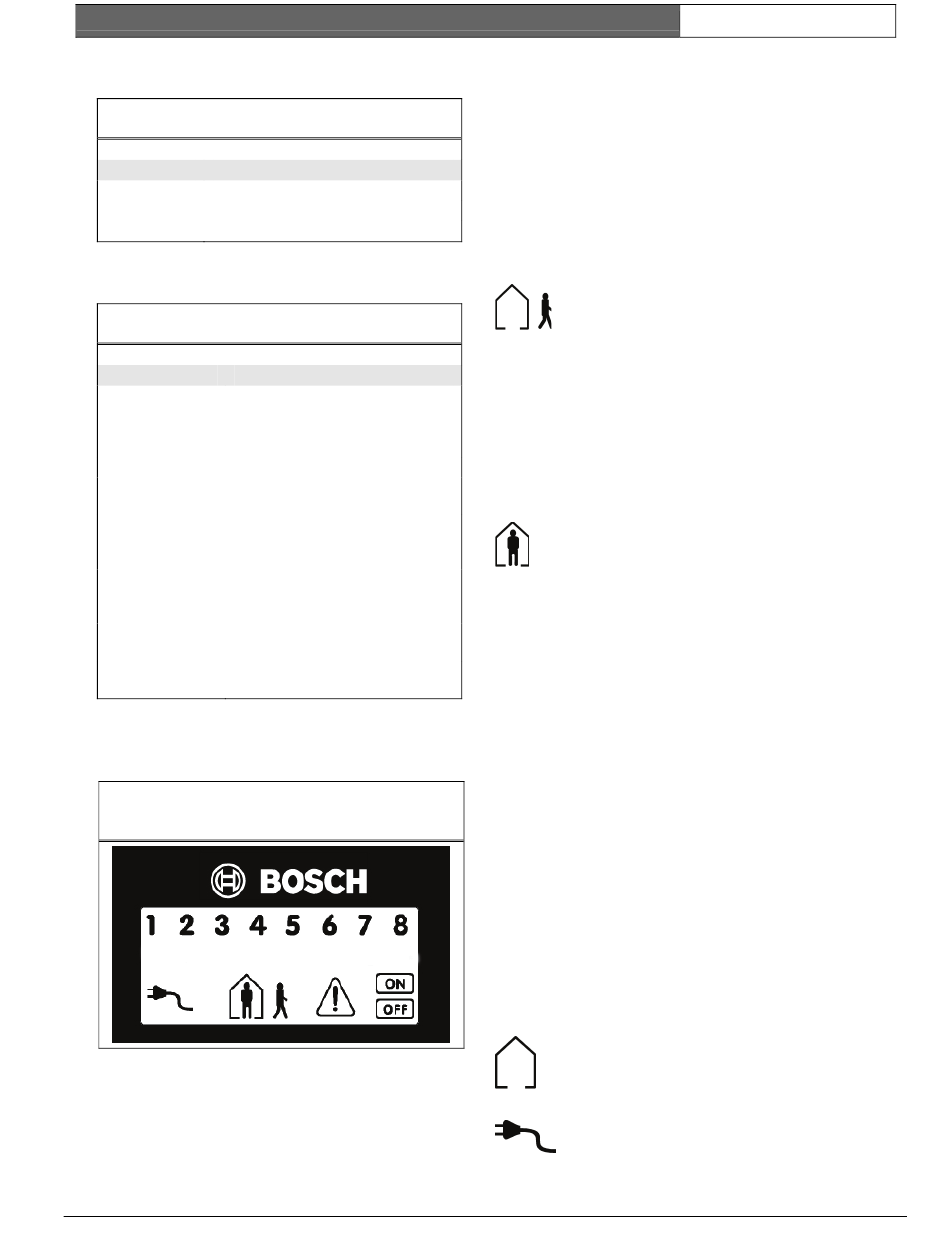

Figure 2: ICP-CP508LW Eight Zone LCD
Codepad
The codepad is the communications interface
between you and the alarm system. The codepad
allows you to issue commands and offers visual and
audible indications to guide you through general
operation.
Bosch Security Systems, Inc. | 12/08 | F01U089463-02
Codepad Indicators
The codepad incorporates a number of indicators:
eight zone indicators show the condition of each zone
and seven other indicators show general status. These
indicators are described in the tables throughout this
section.
Zone Indicators
1 2 3 ...
AWAY Indicator
The AWAY indicator flashes with the STAY
indicator when you are in Installer's Programming
Mode or you are using a Master Code function.
Refer to Section 4.1 Arming the System in AWAY Mode
on page 19 for more information.
STAY Indicator
The STAY indicator lights when the
system is armed in STAY Mode 1 or
STAY Mode 2 (refer to Table 9 on page
16).
The STAY indicator also flashes with the AWAY
indicator when you are in Installer's Programming
Mode or you are using a Master Code function.
The ON indicator also lights when the system is
armed in STAY Mode 1 or STAY Mode 2.
For more information, refer to:
•
Section 4.3 on page 20 to arm the system in
STAY Mode 1.
•
Section 14.3.5 on page 60 to set zones to be
automatically isolated in STAY Mode 1.
•
Section 4.5 on page 21 to arm the system in
STAY Mode 2.
•
Section 6.1.4 on page 31 to use the Installer Code
to set zones to be automatically isolated in STAY
Mode 2.
•
Section 6.2.6 on page 37 to use the Master Code
to set zones to be automatically isolated in STAY
Mode 2.
System Disarmed
This indicator lights with the OFF
indicator when the system is disarmed.
MAINS Indicator
The MAINS indicator shows when the
systems AC MAINS supply is normal
or failed (refer to Table 11 on page 16).
The zone indicators (1 to 8) show the
status of the zones as listed in Table 8
on page 16.
The AWAY indicator lights when the
system is armed in AWAY Mode. The
ON indicator also lights when the
system is armed in AWAY Mode
(refer to Table 10 on page 16).
EN | 17
