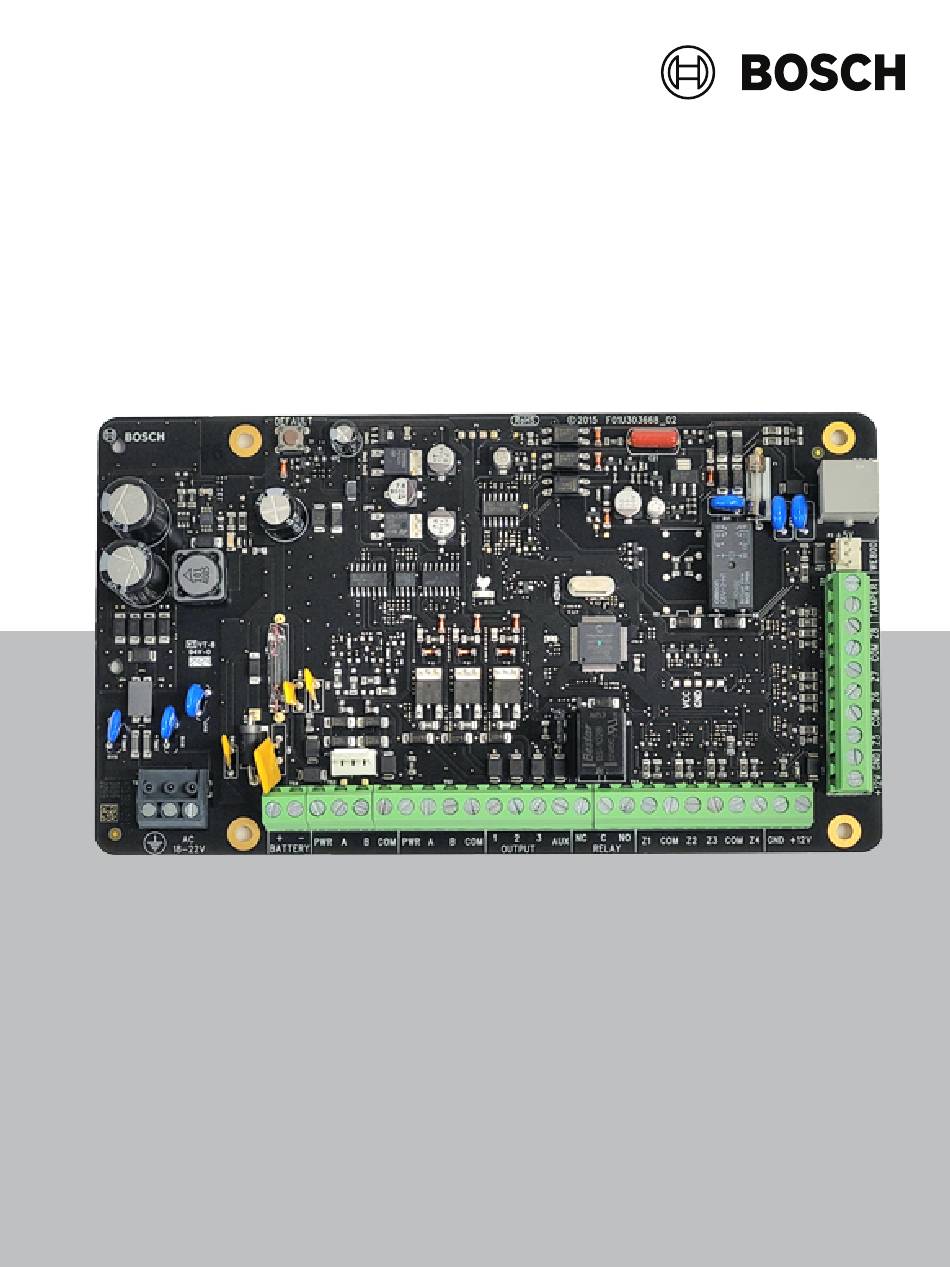

- Page 1 Solution 4000 control panel ICP‑SOL4‑P | ICP‑SOL4‑PE Installation manual...
-
Page 3: Table Of Contents
Command 966 - Enable/Disable the Automatic Stepping of Locations 7.1.9 Command 999 - Display the Control Panel Firmware Version Number Disable Factory Defaults Service mode System operations Arming the system in AWAY Mode Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 4 9.2.15 Reset network modules 9.2.16 Cycle door 9.2.17 Door operations User code functions 9.3.1 Arm or Disarm both Areas at the Same Time 9.3.2 Arm or Disarm Single Area 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 5: Solution 4000 Control Panel Table Of Contents | En
DTMF Timing Compensation 13.12 Country Codes 13.13 Telco Arming Sequence 13.14 Telco Disarming Sequence 13.15 Call Back Telephone Number 13.16 Ring Count 13.17 Telephone Line Fail Options 13.18 Communication Options 1 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 6 RF Keyfob RFID 16.5.2 RF Device RFID 16.5.3 RF Repeater RFID System Reporting Information 17.1 Door Reporting Options 17.2 Arm/Disarm Reporting Options 17.3 Codepad Reporting Options 17.4 Access Denied 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 7: Solution 4000 Control Panel Table Of Contents | En
Entry Time 2 19.4 Exit Time 19.5 Entry Guard Time for STAY Mode 19.6 Delay Alarm Reporting Time 19.7 Sensor Watch Time 19.8 Codepad Lockout Time 19.9 Siren Run Time Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 8 REX shunt only 24.1.13 RTE shunt only 24.1.14 Door Zone Debounce 24.1.15 Entry Area 24.1.16 Strike Time 24.1.17 Buzz Time 24.1.18 Shunt Time 24.1.19 Extend Time 24.1.20 Failure Mode 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 9: Solution 4000 Control Panel Table Of Contents | En
Sunday through Saturday 25.1.4 On date 25.1.5 Time 25.1.6 Date 25.1.7 Schedule Holiday option 25.2 User group Holiday setting 25.2.1 User group 25.2.2 Holidays 25.3 Enable Schedule Text Information Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 10: Safety
Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 11: Introduction
Product manufacturing dates Use the serial number located on the product label and refer to the Bosch Security Systems website at http://www.boschsecurity.com/datecodes/. The following image shows an example of a product label and highlights where to find the manufacturing date within the serial number. - Page 12 | Introduction Solution 4000 control panel 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 13: System Overview
If you ordered your control panel in a kit, you might already have these parts. – Programming software - A-Link Plus Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 14 Solution 4000 control panel – Transformer - TF008-B – Control panel enclosure - ICP-SOL-ENC Steel enclosure – – Keyswitches – Battery – Siren – Strobe – RJ11 PSTN terminal 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 15: Installation Workflow
Before installing and operating the control panel, read these instructions. Failure to follow these procedures may cause the device not to function properly. Bosch Security Systems B.V. is not responsible for any devices that are improperly installed, tested, or maintained. -
Page 16: Installation
Solution 4000 control panel Installation Enclosure overview Use ICP-SOL-ENC Steel enclosure for below Solution 4000 control panel: – ICP-SOL4-P Control panel, 32-zone – ICP-SOL4-PE PCB and enclosure, 32 zone, which PCBA is pre-installed in the enclosure Figure 5.1: ICP-SOL-ENC Steel enclosure Callout ᅳ Description 1 ᅳ... -
Page 17: Install The Enclosure
Mount the enclosure. Use all enclosure mounting holes Pull the wires into the enclosure through the knockouts. Install the lock. Notice! Enclosure lock Always secure the enclosure with the lock when installation is complete. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 18: Install The Tamper Switch
Mount the tamper switch rail to the inner right side of the enclosure. Secure the tamper switch rail with two supplied screws. Slide the tamper switch holder into the rail. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 19: Accessories
Codepad Tamper Trouble and a report will be sent if configured to do Set the address The IUI-SOL-TEXT and IUI-SOL-ICON have 6 DIP switches that set the SDI2 Bus address for codepads 1 to 4 on the system. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 20 (2286 m) of 22 AWG (0.8 mm) wire for all devices connected to the SDI2 bus combined. PWR A B COM PWR A B COM BATTERY R Y G B PWR A B COM Callout - Description 1 - Control panel 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 21: Installer Menu
To program Exit Time using the IUI-SOL-ICON Enter the Installer Code, followed by [#] key (for example, [1234#]), Press [470 #] to enter Exit Time address to program the exit time. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 22 Digit 3 for codepad duress alarm [498.2] Siren and strobe output in STAY [498.3] Speaker beep volume [491] Country code [112] Domestic Dail Fail To Report [110.1] System option 2 Installer Arm/Disarm Function [110.2] 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 23: We800Ev2 Receiver
Swing shutdown Report swing shutdown count [380] Silent zone tamper alarm [498.4] Zone option Unseal RF zone that failed monitor [396.3] Bosch Smart Lockout enable [492.1] Zone pulse count handover enable [494.3] Handover delay in order [494.4] Codepad area [518]... -
Page 24: Hct-4 Keyfob
RADION receiver B810 The B810 is a wireless receiver that connects RADION wireless peripherals such as the motion detectors, keyfobs, panic buttons, repeaters, and more, to supported Bosch control panels using the SDI2 Bus connection. For more information, refer to the installation and operation manuals for this product. -
Page 25: Radion Keyfobs
The module reads the address switch setting only during power up. If you change the switches after you apply power to the module, you must cycle the power to the module in order for the new setting to be enabled. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 26: B426-M Conettix Ethernet Communication Modules
For Fire Monitoring applications, the module meets UL864 and NFPA72 standards for Single Communication Technology with approved Bosch control panels. LEDs RX/TX LEDs operate in Connettix or CSVIP event reporting. -
Page 27: B450-M Conettix Plug-In Communicator Interfaces
Use the 3-hole mounting pattern. Use the supplied mounting screws. Wiring considerations The module connects to a control panel using a data bus connection via the module’s terminal strip, or the module’s interconnect wiring connectors. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 28: A-Link Plus Software
1 or AWAY Mode as configured. A keyswitch zone can only arm/disarm the area it belongs to. Its zone number is reported as a user code number. 6.14 TF008 Plug Pack (TF008-B) The TF008 plug pack is used with control panels. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 29: Install The Transformer
Up to 3 modules can be used with the control panel. Each module has its distinct address 01, or 02, or 03. To set the address 01, set the TENS switch to 0, and the ONES switch to 1, or 2, or 3. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 30: B901 Door Controller
TENS address = 0 Doors 1 through 4 ONES address = 1 to 4 Door commands Through the codepad or A-Link plus to operate door commands: – Cycle – Lock – Unlock 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 31: B520 Auxiliary Power Supply Module
To enable the B520 module 1 to 4, in the Location 0412 - 0415, set the value to 1 = Module enable. Refer to the module's installation documentation for more information. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 32: Configuration
Programming Mode. Two beeps sound and the STAY and AWAY indicators flash on the codepad to indicate you entered Installer’s Programming Mode. The codepad displays the data stored in Location 000. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 33: Command 960 - Save And Exit From Installer's Programming Mode
Solution 4000 control panel Configuration | en Connect the direct link adapter to the Bosch SDI2 Bus pins at the bottom of the control panel printed circuit board. Enter [9 5 9 #]. Two beeps sound after a successful test of the direct link adapter. A long beep indicates that the direct link adapter data is corrupt and must be erased to clear the corrupt data. -
Page 34: Command 963 - Copy Iui-Sol-Adapter Data To The Control Panel
Installer’s Programming Mode. The codepad displays the data stored in Location 000. Connect the direct link adapter to the Bosch SDI2 Bus pins at the bottom of the control panel printed circuit board. Enter [9 6 3 #]. Two beeps sound after the direct link adapter’s data is successfully copied to the control panel. -
Page 35: Command 966 - Enable/Disable The Automatic Stepping Of Locations
When working with a text codepad, go to Menu 82 [Adapter auto step] to switch automatic stepping enable/disable. 7.1.9 Command 999 - Display the Control Panel Firmware Version Number When using the codepad, this command displays the firmware version of the control panel. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 36: Disable Factory Defaults
Enter 15 for Location 900 to restrict the ability to restore the control panel to its default settings and to require the Installer Code for future control panel programming. If the Installer Code is unknown, you must restore the control panel to your Bosch distributor for exchange. A nominal fee applies for this service. -
Page 37: Service Mode
2. Enter the service mode expiration time in minutes. Default: 090. 3. Enable or disable the service mode report. 4. Enable or disable the service mode output. 5. Enable or disable the service mode codepad buzzer. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 38 The service mode only has to be disabled if it has been enabled before. 1. Enter the installer code + [73] and press [#]. 2. The system is in normal mode and the triangle LED is off. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 39: System Operations
When you enter the premises after the system is armed in AWAY Mode, you must disarm the system from AWAY Mode to disable detection devices that activate the sirens, strobe, and bell outputs. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 40: Arming The System In Stay Mode
The indicators for any zones that are programmed to be automatically isolated in STAY Mode 1 flash until Exit Time expires. At the end of Exit Time, the zone indicators are extinguished and the codepad sounds one short beep. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 41: Disarming The System From Stay Mode 1
24-Hour zones, when the system is armed in STAY Mode 1 or STAY Mode 2. For more information, refer to Entry Guard Time for STAY Mode, page 161. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606... -
Page 42: Disarming The System From Stay Mode 2
When two beeps sound, release the button. The STAY indicator is extinguished and the system is disarmed. Notice! Single button disarming from STAY Mode 2 reports as User Code 00. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 43: Codepad Duress Alarm
User Code. The ability to isolate zones is determined by the priority level assigned to each User Code holder. Some User Code holders cannot isolate zones. Refer to User Code Priority for more information. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 44: Standard Isolating
24-Hour zones are automatically isolated as soon you press [STAY]. All other Burglary zones are automatically isolated only after the system is armed. Repeat Step3 for each zone you want to isolate. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 45: Fault Analysis Mode
1 to 16 Zones 1 to 16 Sensor Watch Fail RF Sensor Missing 1 to 16 Zones 1 to 16 RF Sensor Missing Communication Fail 6 Receiver 1 Fail Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 46: Fault Descriptions
Time. The fault clears once the RF device in question successfully transmits to the RF radio receiver. While in Fault Analysis Mode, press the [5] key. This displays the RF detection device reporting the RF sensor watch fault. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 47 Telephone line fault This fault registers when the system detects the telephone line is disconnected from the control panel. This feature is enabled by selecting Option 1 in Location 176. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 48: Inquire Cloud Status
Cloud status displays on codepad indicator LED1 or LED2 corresponding to communicator 1 or 2. – Steady on - cloud online – Flash - cloud offline Press the [#] key to exit. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 49: System Functions
RF sensors: – RFDW-SM – RFDW-RM – RFUN – RFPR-12 – RFPR-C12 – RFDL-11 – RFGB – RFBT – RFSM You can allocate only one wireless device to each zone. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 50: Add/Delete Rf Repeater
[#] key. Repeater number (1 to 8) displays on the ICON codepad. Use manual mode or auto mode to configure Repeater RFID. – In manual mode, enter the 9-digit RF Repeater ID number, followed by the [#] key. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 51: Add/Delete Rf Keyfob
(1 to 16) displays through zone indicators on the ICON codepad. Use manual mode or auto mode to configure keyfob RFID. – In manual mode, enter the 9-digit RF device ID number, followed by the [#] key. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 52: Set The Number Of Days Until The First Test Report
Enter the digits for the phone number, for example, [96721777].Each digit is displayed as you enter it. Press the [AWAY] to save and exit from this mode. Repeat steps 1 - 4 to program another phone number. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 53: Change Telco Arm/Disarm Sequence
Call Forward – No Answer If your telephone is not answered within 20 sec, this feature redirects the incoming call to another number anywhere in Australia. You can still make outgoing calls. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 54 [1 6 1 9 6 7 2 1 7 7 7][STAY][2][AWAY] You can suspend the telco arming sequence at any time. To disable the telco arming sequence: Enter your passcode and press [3][AWAY][1] [AWAY][STAY][5][AWAY]. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 55: Setting Stay Mode 2 Bypass Zones
Report Monitor Mode allows you to use the codepad for visual representation of data transmissions between the control panel and the base station receiver. The transmission sequence is also shown in this mode. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 56: Walk Test Mode
Press [AWAY] to exit from this function. Two beeps sound and the STAY and AWAY indicators are extinguished. The system returns to the disarmed state. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 57: Event Memory Recall Mode
And you can also page up or page down manually to review the events. You can stop the replay at any time by pressing [AWAY]. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 58: Away/Stay 1 Arm/Disarm
Add, change and delete user codes / remote radio user codes (RF keyfobs) Add and delete user credentials Change domestic phone numbers Change Telco arm/disarm sequence Set bypass zones for STAY Mode 2 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 59: Arm Or Disarm Both Areas At The Same Time
Area 1; or enter your user code followed by [0][2] and the [#] button ( for example, [258002#]) to disarm Area 2. Two beeps sound and the AWAY indicator extinguishes. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606... -
Page 60: Changing And Deleting User Codes
To delete User Code number 3, enter: [2 5 8 0 1][AWAY][3][AWAY][STAY] 9.2.4 Adding Remote Radio User Codes This function allows a Master Code holder to add a remote radio User Code ( RF keyfob). 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 61: Deleting User/Radio Codes
Adding or Deleting User Credentials Only the Master Code holder can add or delete user credentials. Up to 64 user credentials can be added for door control functions: cycle, (un)lock, and (un)secure. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 62: Change Domestic Phone Numbers
To use this Master Code function, you must program one or more of the outputs with these Output Event Types, refer to Output Event Types, page 148. Remote control output 1 = Output Event Type 2,8 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 63: Setting The Date And Time
Use 24:00 hour format when programming the hour of the day. Two beeps sound and the STAY and AWAY indicators are extinguished. If a long beep sounds, an error occurred when you entered the date and time. Example Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 64: Walk Test Mode
Two beeps sound indicates that the door 2 is cycled remotely from the codepad 2 or codepad 3. Users with Arm/Disarm priority level also can operate the cycle door command. Refer to – User Code Priority, page 107 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 65: Door Operations
If there was no alarm during the armed cycle, holding down [*] a sec time disarms the system from STAY Mode 1. To enable single button disarming from STAY Mode 1 using this hold-down function, select Option 4 in Location 497. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 66: Horn Speaker Test
3 sec when Day Alarm is active. To turn Day Alarm on: Press and hold [4] until three beeps sound. To turn Day Alarm off: Press and hold [4] until two beeps sound. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 67: Fault Analysis Mode
To determine the area to which the codepad belongs: Press and hold [8] until two beeps sound. A zone indicator lights to show the area to which the codepad belongs. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 68: Send Test Report
Send Test Report Holding down [9] until two beeps sound transmits a Test Report (Contact ID Event Code 602) to test the reporting capabilities of the system without activating the sirens. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 69: Rf Keyfob Operations
Refer to User Code Priority for more information. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 70 | RF Keyfob Operations Solution 4000 control panel Before a keyfob can operate the control panel, you must teach the keyfob’s radio code to the control panel. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 71: Remote Arming By Telephone
Ring Count, page 88. Notice! Using this method with a partitioned control panel arms both areas in AWAY Mode. Arming individual areas is not available with this method. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 72: A-Link Plus Application
Program the Call Back Telephone Number in Locations 159 to 174. Select Option 1 and disable Option 2 in Location 180. Program Ring Count in Location 175 as 1 – 13. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 73: Remote Connection With Callback Verification
Program Location 81 or 82 as Option 1,or 2, or 3 (enable Cloud Connection with the alphanumeric codepad when Option 3 is selected). It is not necessary to program Location 180. The IP connect feature ignores this option. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 74: Direct Connection
Option 3 is selected). From the A-Link Plus Customer Information tab, instead of full control panel IP address for the B426-M, enter the domain name, for example: Test123.BOSCH.com, and enter the full control panel port number for the module. -
Page 75: Options
Continue to press [-] until you return to Confirm to Save Parameter Changes. Press [#] to save changes. Step 2: Connect module to the control panel. Power off the control panel. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 76 Sent Items (example) Mail server password ****** Password of Sent Items Security options Encrypted Network module Enhanced Security Enable Enable programming -> Module 1 # -> Encryption and Security Settings 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 77: Configure Through
Add a new customer. From Customer Information tab, enter the cloud module UID in the Cloud ID field when the cloud module is connected and Cloud Connection is enabled. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 78: Special Functions
Zone Information – Refresh Status, this is for diagnosing zone1 - 32 and door zone 129 - 132 – Bypass zone (unbypass zone) – B5xx Aux Power Supply Information 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 79 B308 1 - 3 – Remote Output ON, and Remote Output OFF – B228 1 - 3 – Remote Output ON, and Remote Output OFF, only for valid B228 addresses Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 80: Communication Information
How to program the numbers, keys, and functions for a telephone number, refer to below table. Digit Required Number to Program Digit Required Number to Program 4-sec Pause Terminator Table 13.11: Dialing Digits 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 81: Primary Telephone Number For Receivers
Transmission Format – Receiver 3 1450 5 = Conettix IP 6 = SIA Fast Transmission Format – Receiver 4 1490 7 = SIA Slow 8 = CSVIP 9 = Email Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 82: Subscriber Id Number For Receivers
CSVIP User Name and Password are valid only when CSVIP is select as transmission format. For IP + Port / Email, enter IP address and port number when CSVIP is select; enter email address when Email is select as transmission format. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 83: Conettix Items For Receivers
Conettix Items for Receivers Item Location Option Default New Anti-replay 1400 1 = Anti-replay for Receiver 1 Enable 2 = Anti-replay for Receiver 2 Enable 4 = Reserved 8 = Reserved Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 84: External Network Modules
2 = Use and configure External Network 0082 3 = Used, B4xx-M Module 2 Location 81 enables/disables the external network module 1. Location 82 enables/disables the external network module 2. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 85: Basic Network Settings
0, 0, 0, 0, 0, 0, 0, 0 Notice! Program IP address with hex numbers. For example, for IP address 192.168.1.1 (Hex: C0.A8.01.01), program Location 4022 - 4029 4022 = 12 4023 = 0 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 86: Network Module Cloud Connection
Enable this function by selecting value from 1 to 9 when it is really necessary. 9 is for highest compensation, but not higher is better. Select the optimal value by bidirectional testing from 4. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 87: Country Codes
AWAY Mode, program: [11 6 1 9 6 7 2 1 0 5 5 12 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15] Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606... -
Page 88: Telco Disarming Sequence
Answering Machine Bypass allows a connection with the control panel for Remote Arming or Upload/Download when an answering machine or facsimile machine is on the same telephone line. Answering Machine Bypass has two different methods. Program a 14 to use 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 89: Telephone Line Fail Options
1 - Display FAULT indicator when the Telephone Line Fails When this options is selected, the FAULT indicator flashes and the codepad buzzer beeps once per min if the control panel detects that the telephone line is disconnected. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 90: Communication Options 1
If this option is selected, the control panel uses the BELL 103 transmission frequency at 300 baud. If this option is not selected, the control panel uses the CCITT V21 transmission frequency at 300 baud. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 91: Communication Options 2
Location Option Default New Communication Options 0179 1 = Set DTMF dialing pluses to 1 digit/ 2 = Lockout telephone line fail alarm 4 = Reserved 8 = Reserved Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 92: A-Link Plus Options
If an alarm occurs that does not have to be reported to the base station receiver, the session is not terminated. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 93: Domestic Dialing
To set up the control panel for domestic dialing: Enter the Installer Code and press [AWAY] to enter Installer’s Programming Mode. Two beeps sound and the STAY and AWAY indicators flash. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 94: Reporting Formats
Program the transmission format for Receiver 1 in Location 033 and the transmission format for Receiver 2 in Location 073 (refer to Transmission Format for Receivers , page 81). 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 95: Contact Id Format
SIA format is # AAAAAA N GGGGGG EE CCCCCC. Format Description Begin of Subscriber ID Number AAAAAA Subscriber ID Number Begin of event GGGGGG Group / Area Number , User Number or Codepad Number Event Code Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 96: System Reporting List
24HrHoldUpZoneAlarm 1122 Zone 1 - 32 24Hr Hold-Up Z$$ Alarm Zone 129 - 132 24HrHoldUpZoneAlarmRestor 3122 Zone 1 - 32 24Hr Hold-Up Z$$ Alarm Restore Zone 129 - 132 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 97 Zone 129 - 132 24HrMedicalZoneUnBypass 3572 Zone 1 - 32 24Hr Medical Z$$ UnBypass Zone 129 - 132 24HrTamperZoneBypass 1572 Zone 1 - 32 24Hr Tamper Z$$ Bypass Zone 129 - 132 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 98 Zone 129 - 132 KeyfobLowBattery 1384 301 - 364 Keyfob $$ Low Battery KeyfobLowBatteryRestore 3384 301 - 364 Keyfob $$ Battery Restore Disarm 1401 User 1 - 64 User$$$/Installer/QuickArea$ Disarm 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 99 RF Receiver Missing RFReceiverMissingRestore 3333 RF Receiver Missing Restore RFReceiverJamming 1344 RF Receiver Jamming RFReceiverJammingRestore 3344 RF Receiver Jamming Restore RFReceiverTamper 1341 RF Receiver Tamper RFReceiverTamperRestore 3341 RF Receiver Tamper Restore Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 100 Phone Line Fail PhoneLineFailRestore 3351 Phone Line Restore OutputFail 1320 Warning Device Fail OutputFailRestore 3320 Warning Device Restore CommFail 1354 Comm Fail CommRestore 3354 Comm Restore CommManualTest 1601 Comm Manual Test 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 101 Power M $$ Batt2 Missing 3338 501 - 504 Power M $$ Batt2 Missing Restore Restore Power M $$ Batt2 Volt Low 1338 501 - 504 Power M $$ Batt2 Volt Low Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 102 User 1 - 64; Area $ User $$ Unlock Door 601 (Schedule) 998（A-Link） Door $$ locked by User $$$ User 1 - 64; Area $ User $$ Lock Door 601 (Schedule) 998（A-Link） 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 103 1 - 64 DoorDeniedtoUserSecured 1421 601 - 604; User Area $ User $$ Access Denied, 1 - 64 Secured Note: "$" in the string will be replaced by matched number. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 104: Access
User #07 0215 - 0218 0219 User #08 0220 - 0223 0224 User #09 0225 - 0228 0229 User #10 0230 - 0233 0234 User #11 0235 - 0238 0239 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 105 User #37 10174 - 10177 10178 User #38 10179 - 10182 10183 User #39 10184 - 10187 10188 User #40 10189 - 10192 10193 User #41 10194 - 10197 10198 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 106 Arm Only and Arm Reports Arm/Disarm and Code Required to Isolate Arm/Disarm and Arm/Disarm Reports and Code Required to Isolate Master Code and Arm/Disarm Master Code and Arm/Disarm and Arm/Disarm Reports 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 107: User Code Priority
The user can arm the system but cannot disarm the system. An Arming Report is sent only after a previous code with the ability to send a Disarming Report disarms the system. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606... - Page 108 Codes To access a Master Code function, enter the Master Code and press the corresponding function digit and the [AWAY] button. Refer to – Master code functions, page 58 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 109: Zone Information
If a zone is programmed for Day Alarm, the zone can be isolated in the normal way so that it does not register as a Day Alarm Zone when the system is disarmed. You can use only Zones 1 to 4 as Day Alarm Zones. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 110: Eol Resistor Value
For No EOL, it is short as normal status and it is unsealed when the system activates an alarm. Connections for EOL Resistors 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 111: B228 Eol Resistor Value
[#] for the Onboard EOL selection, please continue to select option for Ex EOL resistor as for the B228 EOL. With the default No EOL option, it is short as normal status and it is unsealed with an alarm is activated. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 112: Zone Programming
Zone 9 - 16 can only be used when the EOL resistor value is set as 14 or 15. Item Location Default Item Location Default Zone #01 Zone #02 Zone Type 0267 Zone Type 0274 Zone Pulse Count 0268 Zone Pulse Count 0275 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 113 0312 Zone Options 1 0319 Zone Options 2 0313 Zone Options 2 0320 Reserved 0314 Reserved 0321 Zone Report Options 0315 Zone Report Options 0322 Zone #09 Zone #10 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 114 Zone Pulse Count 0367 Zone Pulse Count 0374 Time Time Zone Options 1 0368 Zone Options 1 0375 Zone Options 2 0369 Zone Options 2 0376 Reserved 0370 Reserved 0377 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 115 9967 Reserved 9974 Zone Report Options 9968 Zone Report Options 9975 Zone #23 Zone #24 Zone Type 9976 Zone Type 9983 Zone Pulse Count 9977 Zone Pulse Count 9984 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 116 10021 Zone Options 1 10028 Zone Options 2 10022 Zone Options 2 10029 Reserved 10023 Reserved 10030 Zone Report Options 10024 Zone Report Options 10031 Zone #31 Zone #32 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 117: Zone Types
Reserved 13271 Reserved 13278 Zone Report Options 13272 Zone Report Options 13279 15.4.2 Zone Types The zone types are listed in the table below. Zone Type Description Instant Handover Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 118 A Delay-2 Zone (Contact ID Event Code 130) has a delay time determined by the value in Locations 468 and 469 (refer to Entry Time 2, page 160). After Entry Time expires, the system activates an alarm. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 119 If a zone is not used, program the zone type location to 15. An EOL resistor is not required if this zone type is used. This zone type never sounds the sirens or transmits the reports. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606...
-
Page 120: Zone Pulse Count
Inertia sensors should use options 0 to 7 and PIR detectors should use options 8 to 15. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 121: Zone Options 1
Sensor watch allows the control panel to recognize when detection devices might have stopped working. This feature monitors the operation of a zone over the time period programmed in Locations 476 and 477 (refer to Sensor Watch Time, page 161). Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 122 User Code holder to arm the system until the zone is sealed or manually isolated. Refer to Isolating zones, page 43 for more information. 8 – Zone Restore Report 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 123: Zone Report Options
Momentary arm and disarm in STAY Mode 1 Momentary arm in STAY Mode 1 Momentary disarm from STAY Mode 1 or STAY Mode 2 0 – Latching Arm and Disarm in AWAY Mode Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 124 AWAY Mode is not permitted from the Keyswitch Zone. Wiring Diagram for Keyswitch Zone Wiring Diagram for Keyswitch Zone Using Split EOL with Tamper 1 – EOL 1 – EOL 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 125: Zone Source
Defaulted zone source for zone 1 - 16 is Onboard; for zone 17 - 32 is B228; Zone 129 - 132 is fixed to the door as the source. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 126: Swinger Shutdown Count For Siren
If an alarm is ongoing, events are reported as configured. Notice! If Lockout Report is enabled for any zone, the last restore signal is not transmitted until the system is disarmed. Example 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 127: Stay Mode 2 Automatically Bypass Zones
0 = No Zone status reports allowed Options 1 = Report to Receiver 1 2 = Report to Receiver 2 3 = Report to Receiver 3 4 = Report to Receiver 4 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 128 6 = Report to Receiver 1 (2,3,4 backup) 7 = Report to Receiver 1 (2 backup) and Receiver 3 (4 backup) This location is set by default to report only to Receiver 1. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 129: Rf Information
1 = Use RADION receiver B810 2 = Use WE800EV2 The control panel supports both RADION and WE800EV2 receivers, but only one receiver can be used in one system. 16.4 RF Options Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 130: Rfid
Keyfob #21 1700 - 1707 Keyfob #22 1710 - 1717 Keyfob #23 1720 - 1727 Keyfob #24 1730 - 1737 Keyfob #25 1740 - 1747 Keyfob #26 1750 - 1757 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 131 Keyfob #59 10574 - Keyfob #60 10584 - 10581 10591 Keyfob #61 10594 - Keyfob #62 10604 - 10601 10611 Keyfob #63 10614 - Keyfob #64 10624 - 10621 10631 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 132: Rf Device Rfid
Item Option RF Zone Option 0 = All Used 1 = Input 1 4 = Input 3 2 = Input 2 8 = Input 4 Table 16.20: RF Zone Options 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 133: Rf Repeater Rfid
Locations 1980 to 2057 are for RF repeater IDs. Item Location Default Item Location Default Repeater #01 1980 - 1987 Repeater #02 1990 - 1997 Repeater #03 2000 - 2007 Repeater #04 2010 - 2017 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 134 Solution 4000 control panel Item Location Default Item Location Default Repeater #05 2020 - 2027 Repeater #06 2030 - 2037 Repeater #07 2040 - 2047 Repeater #08 2050 - 2057 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 135: System Reporting Information
Location 411 is set by default to report only to Receiver 1. 17.4 Access Denied Item Location Option Default New Code retry limit 0424 0 = Unlimited 1 – 15 = Error code attempts Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 136: System Status Reporting Options
Item Location Option Default New Hour of day (tens digit) 0428 Hour of day (units digit) 0429 Minute of day (tens digit) 0430 Minute of day (units digit) 0431 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 137: Test Reporting Options
17.8.2 Walk Test Report A Walk Test Report (Contact ID Event Code 607) is sent when either the Installer or Master Code holder activates Walk Test Mode. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 138: Bypass Report
An RF Receiver Trouble Restore Report is sent to the base station receiver when the RF receiver no longer registers RF Signal Jamming, RF Receiver Tamper Switch, or RF Receiver Missing. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 139: Rf Low Battery Report
A Panic Alarm is audible, but you can program the alarm as silent by selecting Option 1 in Location 493 (refer to System Options 2, page 166). Notice! Restore Reports are not sent for this event. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 140: Codepad Fire Report
RF Repeater Tamper Switch (Contact ID Event Code 341, Point ID Code 822 to 829) RF Repeater Missing (Contact ID Event Code 333, Point ID Code 822 to 829) 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 141: Rf Repeater Trouble Restore Report
Door open Alarm or Trouble, or door restoral (Contact ID Event Code 426, Point ID Code 601 to 604) Refer to – Access Denied (No Entry) Event, page 182 – Access Granted Event, page 182 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 142: Programmable Outputs
0451 Time Base 0457 Time Base Multiplier 0452 Time Base Multiplier 0458 Time Base Multiplier 0453 Time Base Multiplier 0459 Codepad Buzzer (Default = Entry/Exit Warning and Day Alarm) 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 143 0681 B308 Output 7 B308 Output 8 Event Code 0682 Event Code 0688 Event Code 0683 Event Code 0689 Polarity 0684 Polarity 0690 Time Base 0685 Time Base 0691 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 144 0739 Time Base Multiplier 0734 Time Base Multiplier 0740 Time Base Multiplier 0735 Time Base Multiplier 0741 Item Location Default Item Location Default B308 Output 17 B308 Output 18 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 145 1 3 = AUX Power Supply fail 0 4 = Armed in AWAY mode 1 4 = AC fail 0 5 = Pre-arming alert 1 5 = Low battery 1 6 = Output 1 fail Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 146 5 12 = Reserved 4 13 = Reserved 5 13 = Reserved 4 14 = Reserved 5 14 = Any areas armed 4 15 = Reserved 5 15 = Any areas disarmed 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 147: Pulsing Polarities
200 ms to 19.8 sec 200 ms ±200 ms 1 sec 1 to 99 sec 1 sec ±1 sec 1 min 1 to 99 min 1 min ±1 min Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 148: One-Shot Polarities
This output operates when the system is armed in AWAY Mode. The output is reset when the system is disarmed. If the system is partitioned, this output operates when either area is armed in AWAY Mode. 0,5 Auto Arm Pre-Arming Alert Time 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 149 You can turn Day Alarm on and off by holding down [4] or selected from the menu on KP. 0,14 Day Alarm Resetting Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 150 The output is reset when the horn speaker is reconnected. 1,7 Sensor Watch Alarm This output operates when the Sensor Watch fault occurs. The output is reset when this fault clears. 1,8 Codepad Medical Alarm 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 151 AWAY Mode. The output is reset when the system is disarmed. Silent alarm will not trigger this event. 2,4 Mimic System Fault This output operates when any system fault occurs. The output is reset when all system faults are restored. 2,5 Fire Alarm Resetting Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 152 3 off or automatically turn remote output 3 off when the ON time expires if output polarity is from 3 to 6 or from 10 to 13. 2,11 Radio Control Output 1 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 153 3,5 Mimic Zone 1 3,6 Mimic Zone 2 3,7 Mimic Zone 3 3,8 Mimic Zone 4 3,9 Mimic Zone 5 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 154 Zone 1 is allocated to Area 1. If Zone 1 registers an alarm, Output Event Type 5,2 operates. The output is reset when a valid User Code assigned to Area 1 is entered. 5,6 Area 1 Is Armed 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 155: Output Polarity
Output Polarity There are fifteen different polarities. Each polarity is designated by a number that you program into the appropriate location for the output. 0 – Output Not Used Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 156 The output switches back to 0 V when the time parameter expires. This one-shot time setting always runs its full duration and cannot be manually reset. 11 – Normally Low, One-Shot Open with Reactivate 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 157: Output Timing
1 sec ±1 sec 1 min 1 to 99 min 1 min ±1 min 1 hour 1 to 99 hr 1 hr ± 1 hr Table 18.25: Pulsing Time Settings Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 158: One-Shot Polarities
Time Base Multiplier 10131 Time Base Multiplier 10138 OC 1 Mode 10132 OC2 Mode 10139 B228 Module 3 Output 1 B228 Module 3 Output 2 Event Code 10140 Event Code 10147 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 159 When Option 2 or Option 3 is selected, the B228 output operates as onboard output. When the B228 output is programmed for Remote Control Output, you can turn the remote output on or off using the Master Code command [2580][5][AWAY]. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 160: System Event Timers
When arming in STAY Mode 1 or STAY Mode 2, the codepad sounds no beeps during Exit Time but one short beep at the end of Exit Time. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 161: Entry Guard Time For Stay Mode
(Contact ID Event Code 391) if it is not activated while disarmed within 3 days. This feature is useful, for example, when someone places objects in the view of a motion detector, which prevents the detector from picking up movement. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 162: Codepad Lockout Time
Locations 482 to 485 is extended by 1 hour. If you want a programmable output to operate during the Auto Arming Pre-Alert Time, use Output Event Type 0,5 Auto Arm Pre-Arming Alert Time. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 163: Auto Arming Time
Increments of 500 ms (500 ms to 8 0490 sec.) This location sets the time the control panel waits for acknowledgment before resending a report. This timer applies only to Contact ID and SIA Format. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 164: Speaker Beep Volume
Location Option Default New Speaker Beep Volume 0491 0 = No Beeps 15 = Loudest Beeps This location allows you to adjust the speaker volume for remote radio operation. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 165: System And Consumer Options
Location Option Default New System Options 1 0492 1 = Bosch Security Systems smart lockout allowed 2 = Warning device fault monitor 4 = Strobe indication for radio arm/disarm 8 = Assign button 4 on keyfob to operate STAY Mode 1... -
Page 166: System Options 2
Codepad PIN Error Alarm occurs. Selecting this option does not affect the operation of the communication report. If you want to disable the reporting of Access Denied reports, program Locations 424 as 0. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 167 Program zone 1 as Delay Zone and zone 2 and 3 as Handover Zone. When the Handover Delay to Be Sequential is selected and the zone 1 is activated: Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 168 1 (0 1) = Silent: tamper is handled as a silent alarm – 2 (1 0) = Audible: tamper is handled as an audible alarm – 3 (1 1) = Trouble: tamper is handled as a system trouble 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 169: Consumer Options
601) after the siren is reset. This can be used to indicate to the monitoring station that the control panel itself was not tampered with during the alarm period. 4 – Auto Arm in STAY Mode 1 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 170: Consumer Options 3
– Arm the System in STAY Mode 2, page 66 20.8 Consumer Options 3 Item Location Option Default New Consumer Options 3 0498 1 = Codepad fault beeps allowed 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 171 This option allows Tamper Alarms, when Option 15 is programmed in Location 266 (refer to EOL Resistor Value), or Tamper Alarms on RF wireless devices to be silent when activated. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 172: Partitioning
Default New Partitioning Options 2 0501 1 = Reserved 2 = User codes allowed to arm/disarm both areas at same time (Code [0][#]) 4 = Reserved 8 = Reserved 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 173: Partition Allocations
Location Default Item Location Default Zone 1 Area 0502 Zone 2 Area 0503 Zone 3 Area 0504 Zone 4 Area 0505 Zone 5 Area 0506 Zone 6 Area 0507 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 174: Zone Area Assignments (Zone 17-32)
3 = Zone assigned to both Area 1 and Area 2 21.2.3 Codepad assignment Item Location Default New Item Location Default Codepad 1 Area 0518 Codepad 2 Area 0519 Codepad 3 Area 0520 Codepad 4 Area 0521 Option 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 175: User Code Area Assignments
User code area assignments (User code 33-64) Item Location Default New Item Location Default User Code 33 12970 User Code 34 12971 User Code 35 12972 User Code 36 12973 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 176 0 = User code not assigned 2 = User code assigned to Area 2 1 = User code assigned to Area 1 3 = User code assigned to both Area 1 and Area 2 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
-
Page 177: B520 Programming
Battery 2 enable By default one battery is connected to the B520. When battery 2 is enabled, two batteries can be connected to the module as the standby power source. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 178: Daylight Saving Time Programming
Daylight saving time starts and ends according to the daylight saving time settings of a certain region. Individually configured daylight saving time starts and ends at 2 a.m. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... - Page 179 2am on the last Sunday in September when the codepad time is set forward one hour. Daylight Saving Time ends as 2am (3am Daylight Saving Time) on the first Sunday in April when the codepad time is set back one hour. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
-
Page 180: Door Programming
SIA format is supported. Contact ID is not supported. If Yes is selected, RTE or REX events with contact ID is not reported. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 181: Exit Request
You cannot manually override the unlocked state. Use Secure Door to override this setting. 24.1.8 Fire Unlock Default: No Selections: Yes: Fire in any area unlocks the door. No: Door remains in its current mode upon a Fire or Gas alarm. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 182: Deactivate On Open
An ACCESS GRANTED event can be initiated by: – a valid read of a crendential (card or token) – a valid door state changed at the keypad 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 183: Rex Shunt Only
Selections: 1, 2 Assign an area to the door controller. This is the area a user exit when initiating a request to exit (REX). 24.1.16 Strike Time Default: 10 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 184: Buzz Time
0-240 0-240 seconds 5 minutes 10 minutes 20 minutes 30 minutes 40 minutes 50 minutes 60 minutes 2 hours 3 hours 4 hours 5 hours 6 hours 7 hours 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 185: Extend Time
This parameter sets the length of time the access control module scans the REX input before initiating a request to exit (REX) event. Default: 600 ms Selections: Debounce 300 ms 1800 ms 3300 ms Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 186: Global Access Settings
26 bit card type: 0 to 65534, blank – 37 bit no site code card type: 0 to 34359738366, blank – 37 bit with site code card type: 0 to 524286, blank 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 187: Codepad Assigned Door
1 = Door 2 Codepad 2 door 0523 2 = Door 3 Codepad 3 door 0524 3 = Door 4 15 = No door is assigned Codepad 4 door 0525 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 188: Schedules
Selections: Yes, No These seven day of the week parameters select the days of the week that the Sked is active. 25.1.4 On date Enable or Disable the Schedule Date entry. 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 189: Time
In the Schedules -> Schedule settings -> Function, Select Active user (group) for Output settings. The user credentials (passcode, access card, and RF keyfob) for the users assigned to the user group are enabled for the Output settings. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... -
Page 190: Holidays
0 1 = Schedule 5 enable 0 2 = Schedule 6 enable 0 4 = Schedule 7 enable 0 8 = Schedule 8 enable 15 15 = All schedules enabled 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual... -
Page 191: Text Information
2535 as home message. And you can edit up to 12 alphanumeric for per zone name and user name from location 2536 to 3687. Notice! Instead of TEXT codepad, edit text via A-Link Plus is more convenient. Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual... - Page 192 192 | Text Information Solution 4000 control panel 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 193 Solution 4000 control panel Text Information | 193 Bosch Security Systems B.V. 2024-07 | V01 | F.01U.418.606 Installation manual...
- Page 194 194 | Text Information Solution 4000 control panel 2024-07 | V01 | F.01U.418.606 Bosch Security Systems B.V. Installation manual...
- Page 196 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202409271101...
Need help?
Do you have a question about the ICP-SOL4-P and is the answer not in the manual?
Questions and answers
