Set IP Address
192.168.000.002
st
4.
The 1 digit of the address is highlighted.
5. Press [Back] and [Menu/Store] to select which digit to alter.
6.
Press [▵] [▿] to change the value.
7. Press [Menu/Store] after the last digit to save the setting.
When the action has completed, the screen briefly shows a confirmation message, then returns to the previous menu level.
The network address can also be set by using parameters 12-8 to 12-19.
To configure the soft starter for use with other communication protocols, use parameters 12-1 to 12-7.

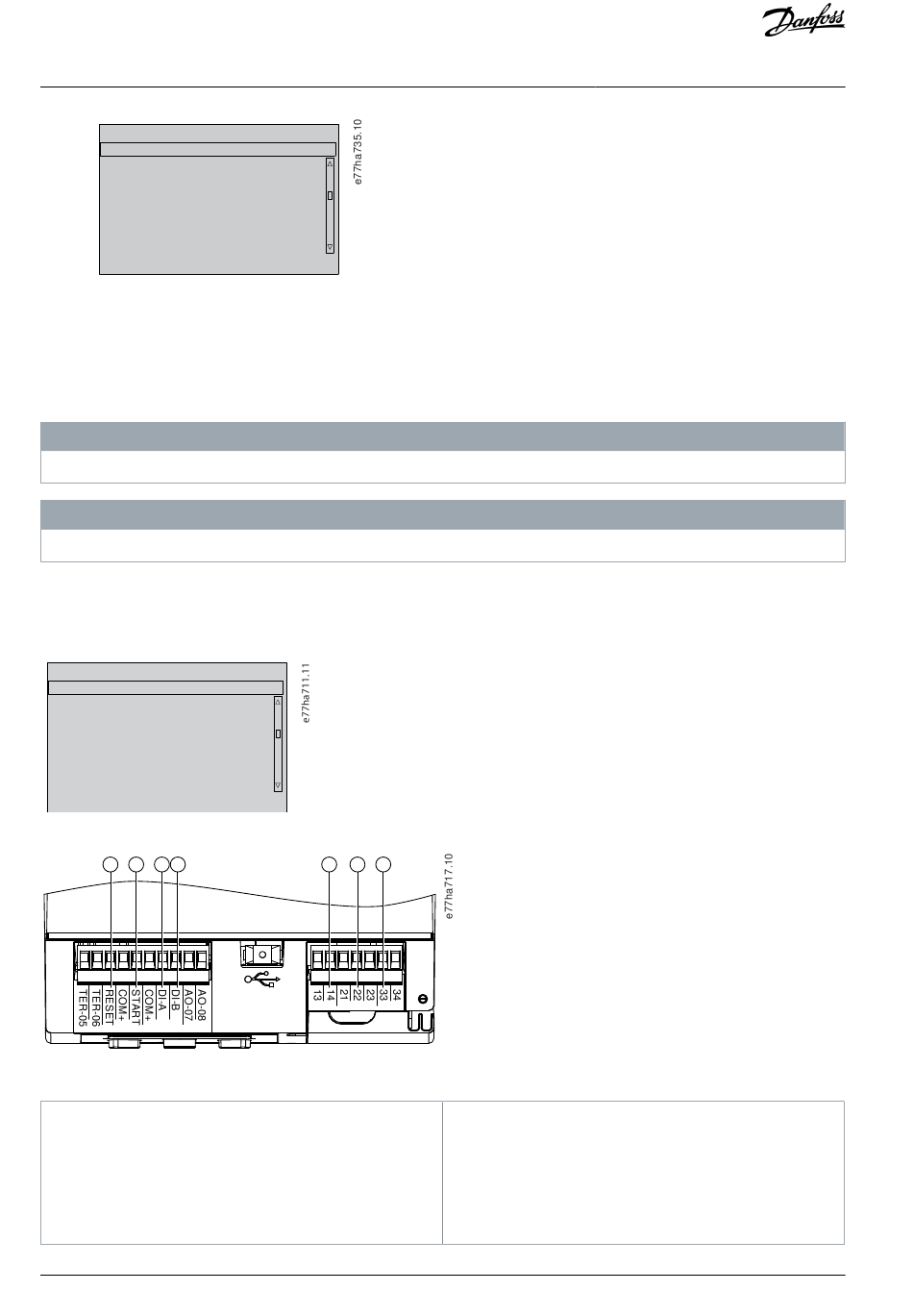

6.10 Digital I/O State

The topline of the screen shows the start/stop, reset, and programmable inputs. The bottom line of the screen shows the fixed main
contactor output, then programmable outputs A and B.
Digital I/O State
Inputs: 00000000
Outputs: 00000000
Illustration 20: Digital I/O Status Screen
1 2 3 4
Illustration 21: Location of Digital I/Os
1 RESET, COM+: Reset input
2 START, COM+: Start/stop input
3 DI-A, COM+: Programmable input A
4 DI-B, COM+: Programmable input B
52 | Danfoss A/S © 2020.12
N O T I C E
N O T I C E
5 6 7
5
6
7
13, 14: Main contactor output
21, 22, 23: Relay output A
33, 34: Relay output B
