F1 K1
1/L1
3/L2
5/L3

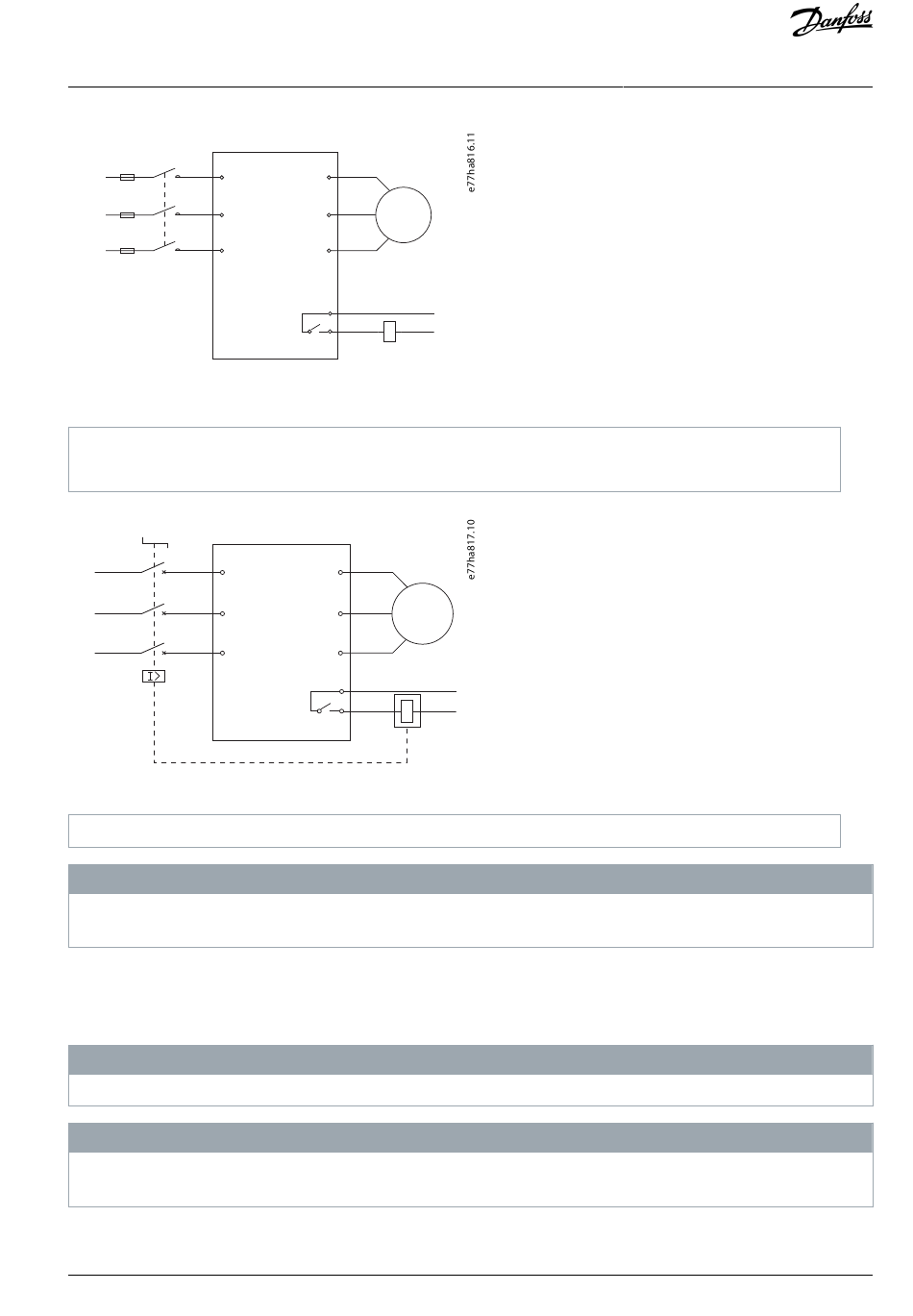

Illustration 10: Soft Starter Installed with Main Contactor
F1 Fuses
K1 Main contactor
Q1
1/L1
3/L2
5/L3
Illustration 11: Soft Starter Installed with a Shunt Relay and Circuit Breaker
Q1 Circuit breaker
Some electronic contactor coils are not suitable for direct switching with PCB mount relays. Consult the contactor manufacturer/
supplier to confirm suitability.

5.5.4 Bypass Contactor Output

The bypass contactor output (03, 04) closes when the soft start is complete (when the starting current drops below 120% of the
programmed motor full load current) and remains closed until the beginning of a stop (either soft stop or coast to stop).
This output is only available on models MCD6-0590C~MCD6-1134C.
If a non-bypassed soft starter is installed with an external bypass contactor, the soft starter current rating changes. Enable param-
eter 20-7 External Bypass to increase the maximum current rating and adjust the soft starter thermal model.
Danfoss A/S © 2020.12
2/T1
4/T2
M
6/T3
13
14
K1
2/T1
4/T2
M
6/T3
13
14
