The soft starter simulates its prestart checks and closes the main contactor relay. The Run LED flashes.
If mains voltage is connected, an error message is shown.
4.
Press [Menu/Store].

The soft starter simulates starting.
5.
Press Menu/Store.

The soft starter simulates running.
6. Apply a stop command from the selected command source.

The soft starter simulates stopping. The Run LED flashes.
7. Press [Menu/Store].

The Ready LED flashes and the main contactor relay opens.
8. Press [Menu/Store].

The soft starter activates then deactivates each programmable output.
9. Press [Menu/Store].

The soft starter returns to the Setup Tools.

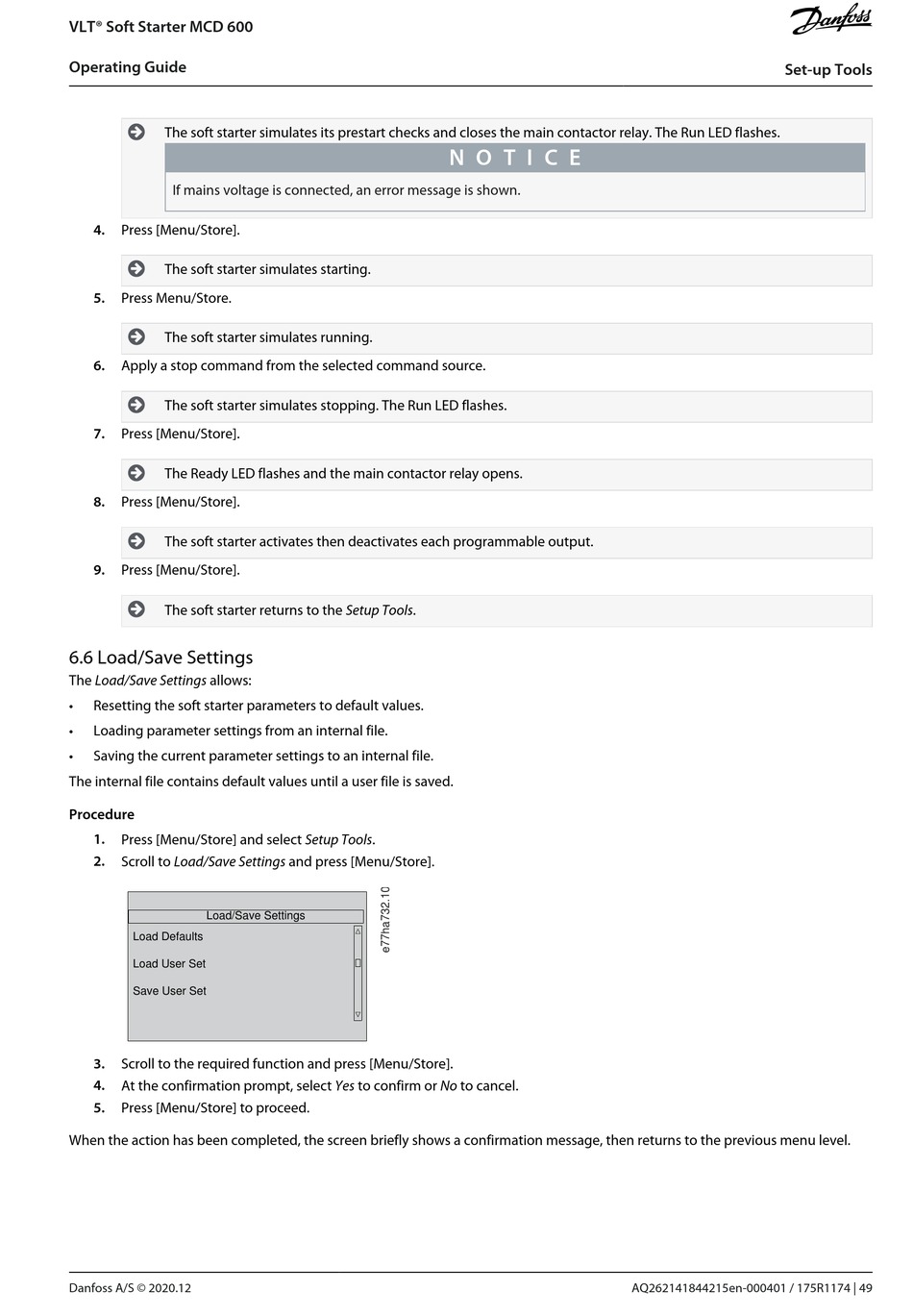

6.6 Load/Save Settings

The Load/Save Settings allows:
• Resetting the soft starter parameters to default values.
• Loading parameter settings from an internal file.
• Saving the current parameter settings to an internal file.
The internal file contains default values until a user file is saved.
Procedure
1.
Press [Menu/Store] and select Setup Tools.
2.
Scroll to Load/Save Settings and press [Menu/Store].
Load/Save Settings
Load Defaults
Load User Set
Save User Set
3.
Scroll to the required function and press [Menu/Store].
4.
At the confirmation prompt, select Yes to confirm or No to cancel.
5. Press [Menu/Store] to proceed.
When the action has been completed, the screen briefly shows a confirmation message, then returns to the previous menu level.
