VLT® Soft Starter MCD 600
Operating Guide
%
4
700
600
500
2
400
300
200
1
100
10 20 30

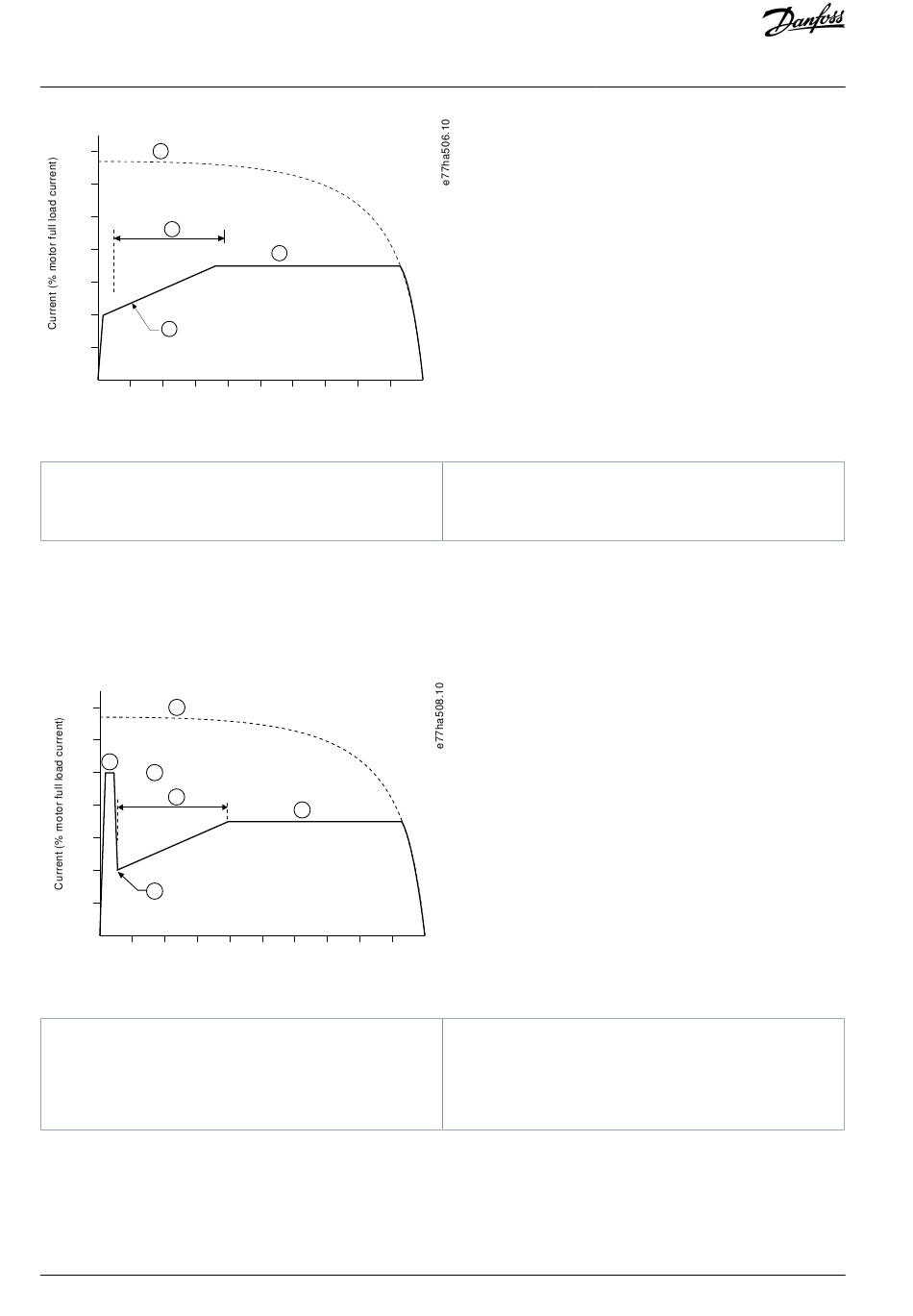

Illustration 30: Example of Current Ramp Soft Starting
1 Parameter 2-3 Initial Current
2 Parameter 2-2 Start Ramp Time

9.8.3 Constant Current with Kickstart

Kickstart provides a short boost of extra torque at the beginning of a start, and can be used with current ramp or constant current
starting.
Kickstart can be useful to help start loads that require high breakaway torque but then accelerate easily (for example helical rotor
pumps).
%
6
700
600
2
1
500
4
400
300
200
3
100
10 20 30
Rotor speed (% full speed)
Illustration 31: Example of Kickstart used with Constant Current
1 Parameter 2-7 Kickstart Level
2
Parameter 2-6 Kickstart Time
3
Parameter 2-3 Initial Current

9.8.4 Timed Voltage Ramp

Timed voltage ramp (TVR) soft starting ramps the application of voltage to the motor over a defined time period. The voltage ramp
reduces the initial starting torque and slows the motor's rate of acceleration.
TVR starting can be useful for applications where multiple motors of different sizes are connected in parallel, and/or the loads are
not mechanically linked.
64 | Danfoss A/S © 2020.12
3
40 50 60 70 80 90
Time
5
40 50 60 70 80 90
%
100
3 Parameter 2-4 Current Limit
4 Full voltage current
%
100
4 Parameter 2-2 Start Ramp Time
5
Parameter 2-4 Current Limit
6 Full voltage current
Operation
AQ262141844215en-000401 / 175R1174
