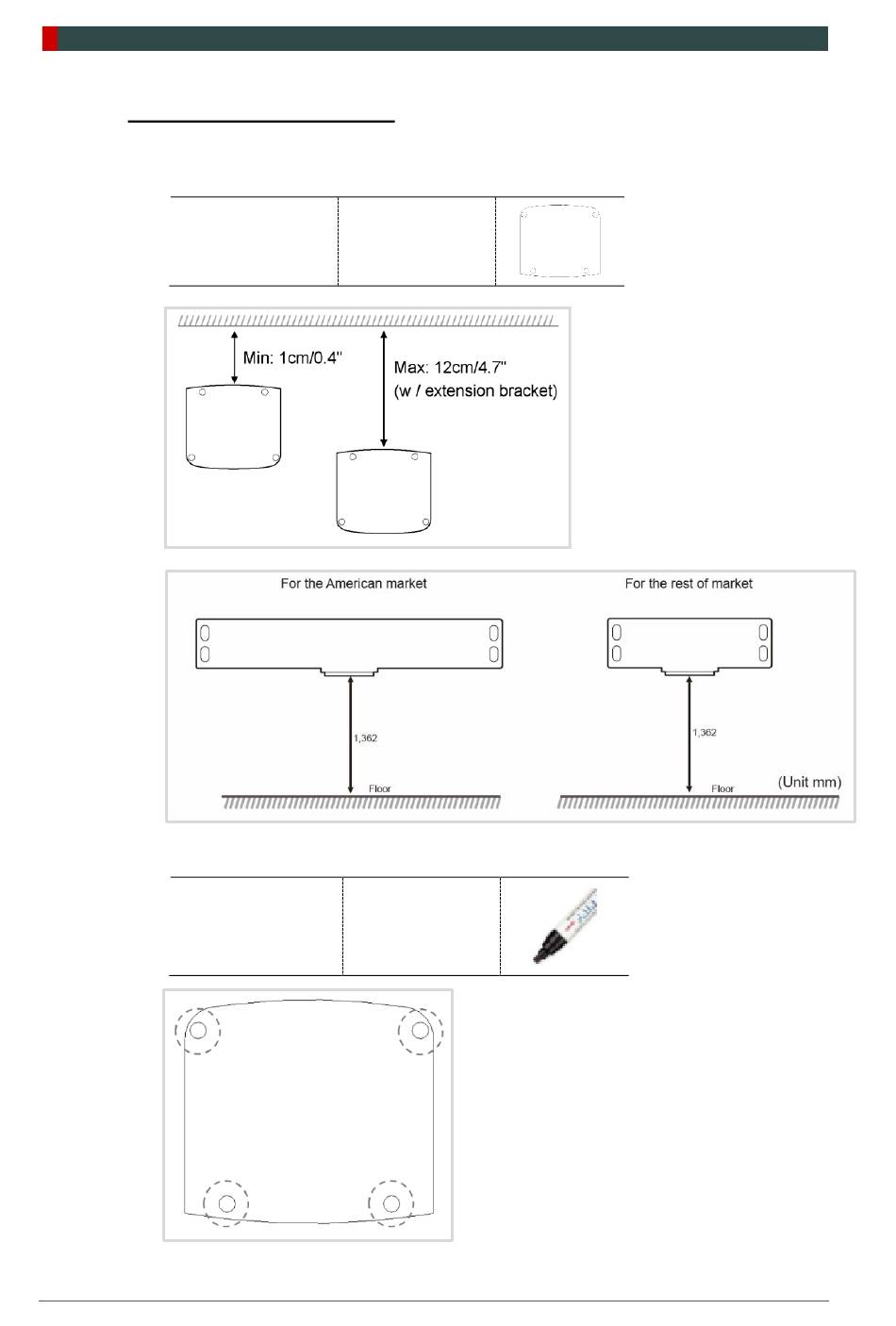

5. Installing the Equipment: Wall Mount
Marking Points on the Floor
Put the aligning plate on the floor near the wall where the equipment should be
1.
installed as shown in the figure.
Alignment Plate
Mark 6 anchor bolts holes on the floor.
2.
66
(Part No. 4)
Marker
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
