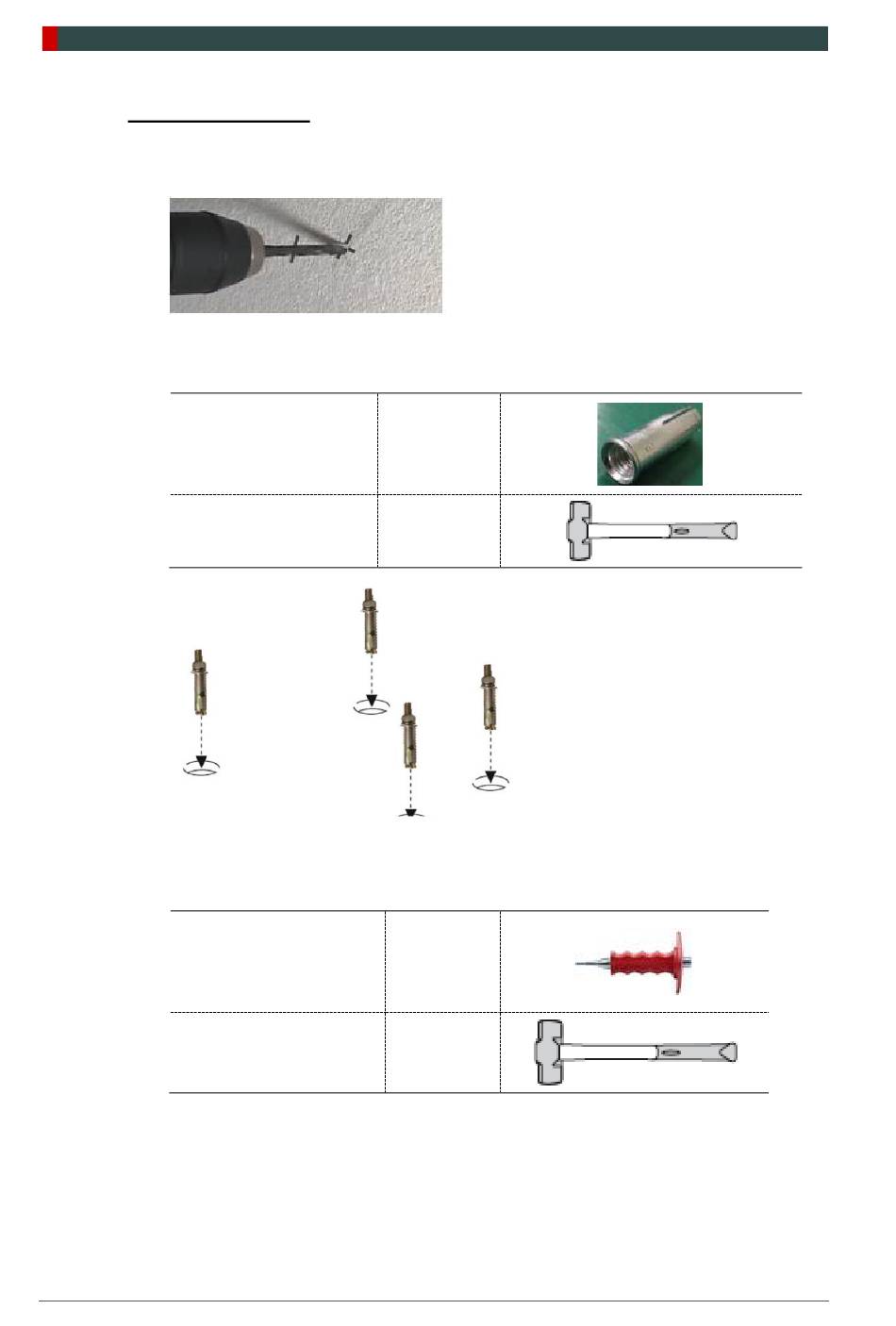

4. Installing the Equipment: Base Stand (Optional)
Drilling on the Wall
Drill the wall holes of size 10.5 mm x 30 mm (depth) using the concrete hammer
1.
drill.
Remove the debris and clean the holes using the dust pump.
2.
Using the hammer, insert a Ficher strong anchor into the hole.
3.
Ficher Strong Anchor
Using the hammer, insert an EHS tool into the inner bolt.
4.
46
M8 x 30
Hammer
EHS Tool
Hammer
