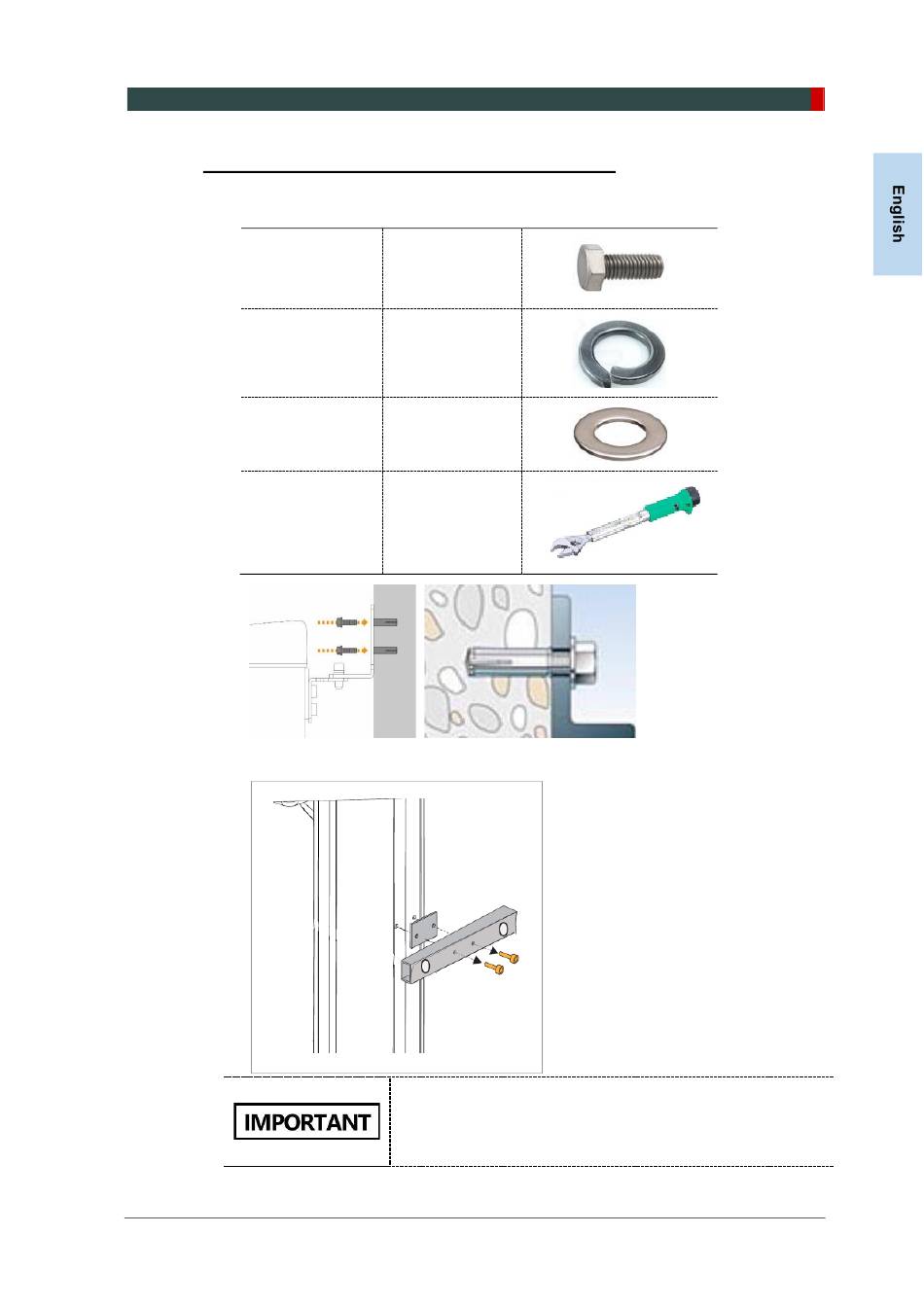

Combining the Equipment with the Anchor Bolts
Place the equipment on the alignment plate, while observing 4 Hex bolts are
1.
being inserted properly through each hole.
Hex Bolt
Spring Washer
Flat Washer
Torque Wrench
Remove the middle carrying handle.
2.
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
4. Installing the Equipment: Base Stand (Optional)
M8 x 15
M8
M8
Spanner type
If the CEPH unit is to be installed, this is used as the
carrying handle. Do not detach it until indicated later after
the equipment is moved to the installation site
47
