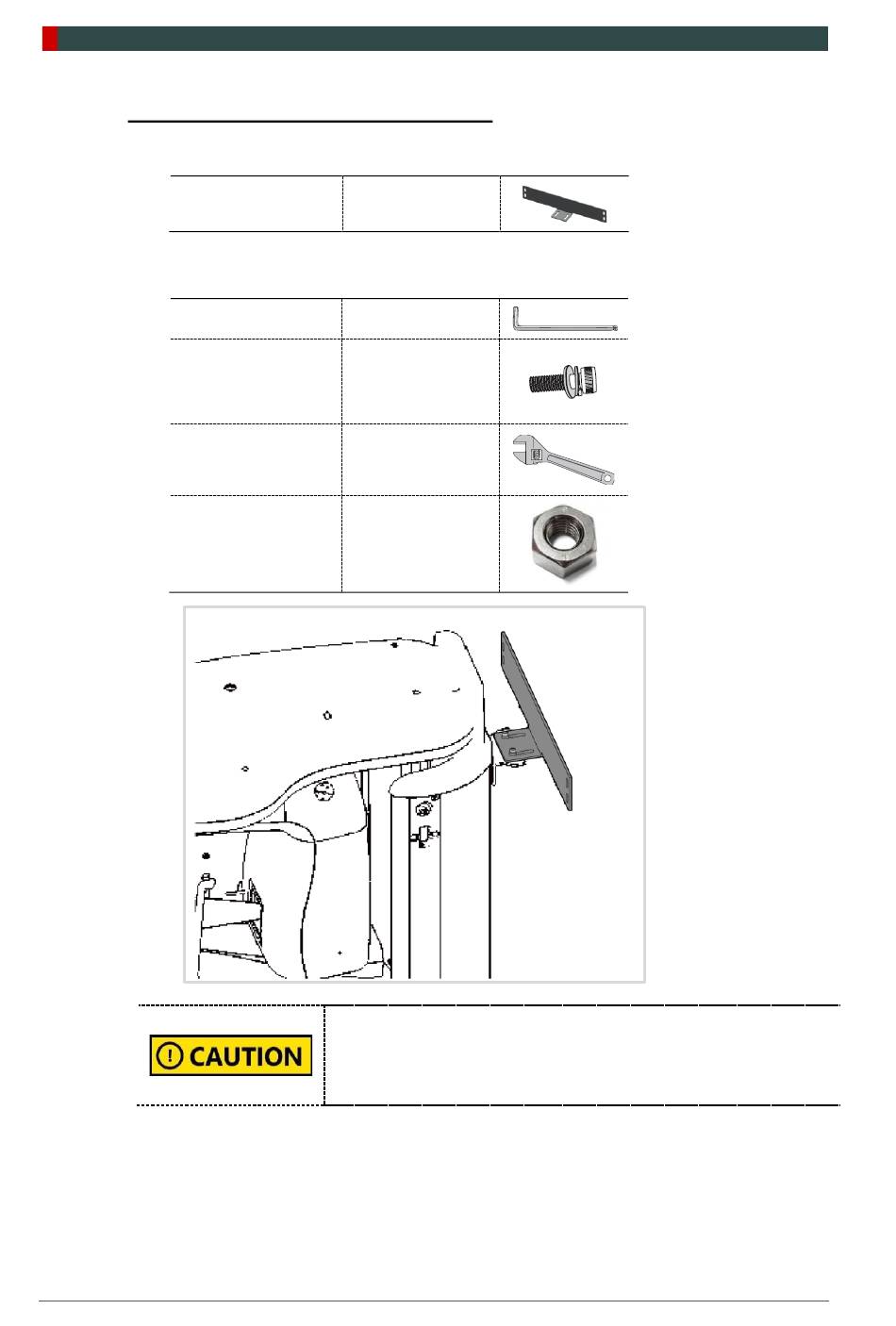

4. Installing the Equipment: Base Stand (Optional)
Combining Column and Wall Brackets
Prepare the wall bracket.
1.
Wall Bracket
Combine the column and wall brackets in the following manner with the 2 Wrench
2.
Bolts.
Allen Wrench
Wrench Bolt
Monkey Wrench
44
(Part No. 35)
6 mm / 0.24"
M8 x 25 w/
Spring and Flat
Washers
(Part No. 34)
n/a
M8
Nut
(Part. No. 34)
Do not tighten the bolts fully yet.
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
