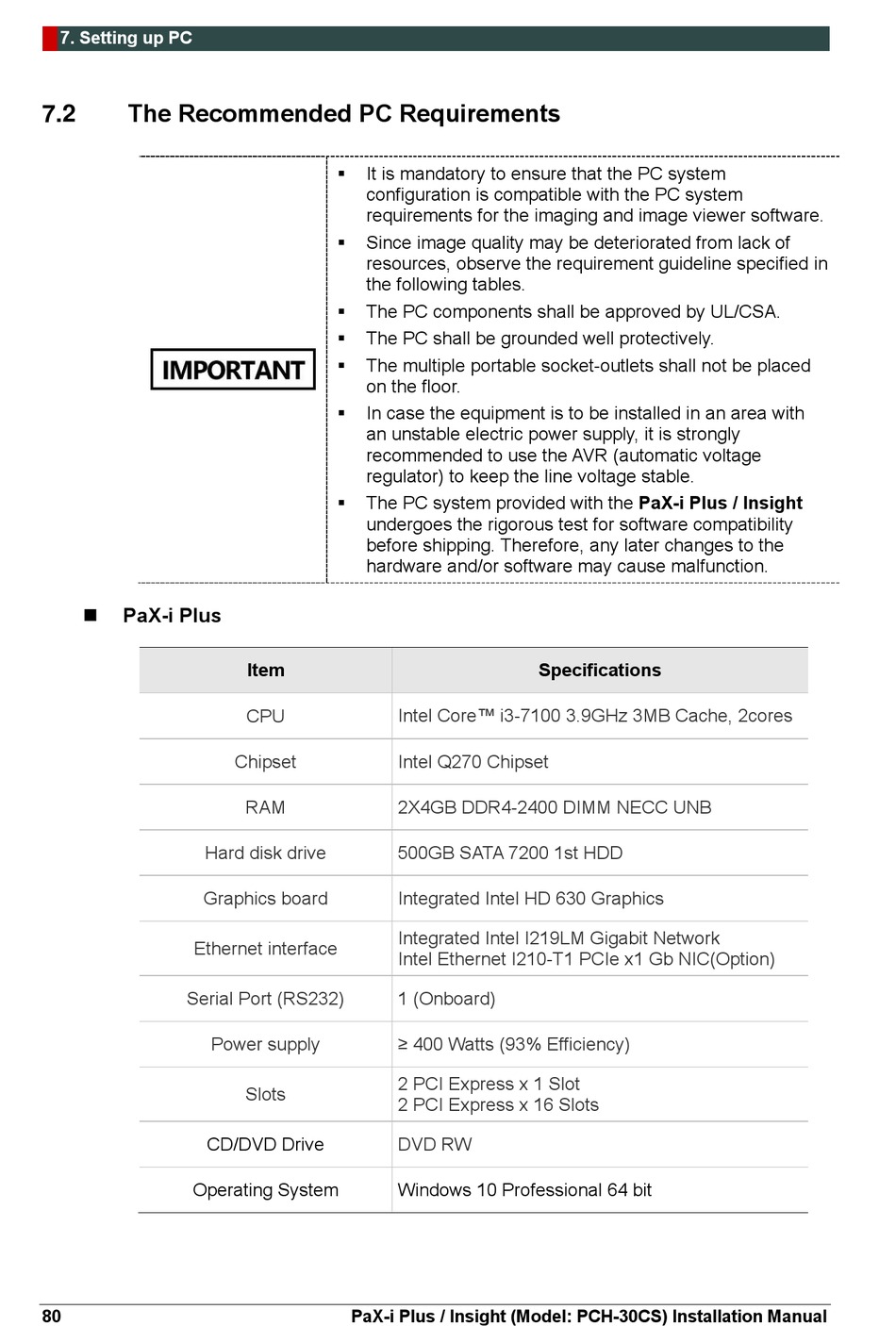

7. Setting up PC
The Recommended PC Requirements
7.2
◼
PaX-i Plus
Hard disk drive
Graphics board
Ethernet interface
Serial Port (RS232)
Power supply
CD/DVD Drive
Operating System
80
▪
It is mandatory to ensure that the PC system
configuration is compatible with the PC system
requirements for the imaging and image viewer software.
▪
Since image quality may be deteriorated from lack of
resources, observe the requirement guideline specified in
the following tables.
▪
The PC components shall be approved by UL/CSA.
▪
The PC shall be grounded well protectively.
▪
The multiple portable socket-outlets shall not be placed
on the floor.
▪
In case the equipment is to be installed in an area with
an unstable electric power supply, it is strongly
recommended to use the AVR (automatic voltage
regulator) to keep the line voltage stable.
▪
The PC system provided with the PaX-i Plus / Insight
undergoes the rigorous test for software compatibility
before shipping. Therefore, any later changes to the
hardware and/or software may cause malfunction.
Item
CPU
Intel Core™ i3-7100 3.9GHz 3MB Cache, 2cores
Chipset
Intel Q270 Chipset
2X4GB DDR4-2400 DIMM NECC UNB
RAM
500GB SATA 7200 1st HDD
Integrated Intel HD 630 Graphics
Integrated Intel I219LM Gigabit Network
Intel Ethernet I210-T1 PCIe x1 Gb NIC(Option)
1 (Onboard)
≥ 400 Watts (93% Efficiency)
2 PCI Express x 1 Slot
Slots
2 PCI Express x 16 Slots
DVD RW
Windows 10 Professional 64 bit
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
Specifications
