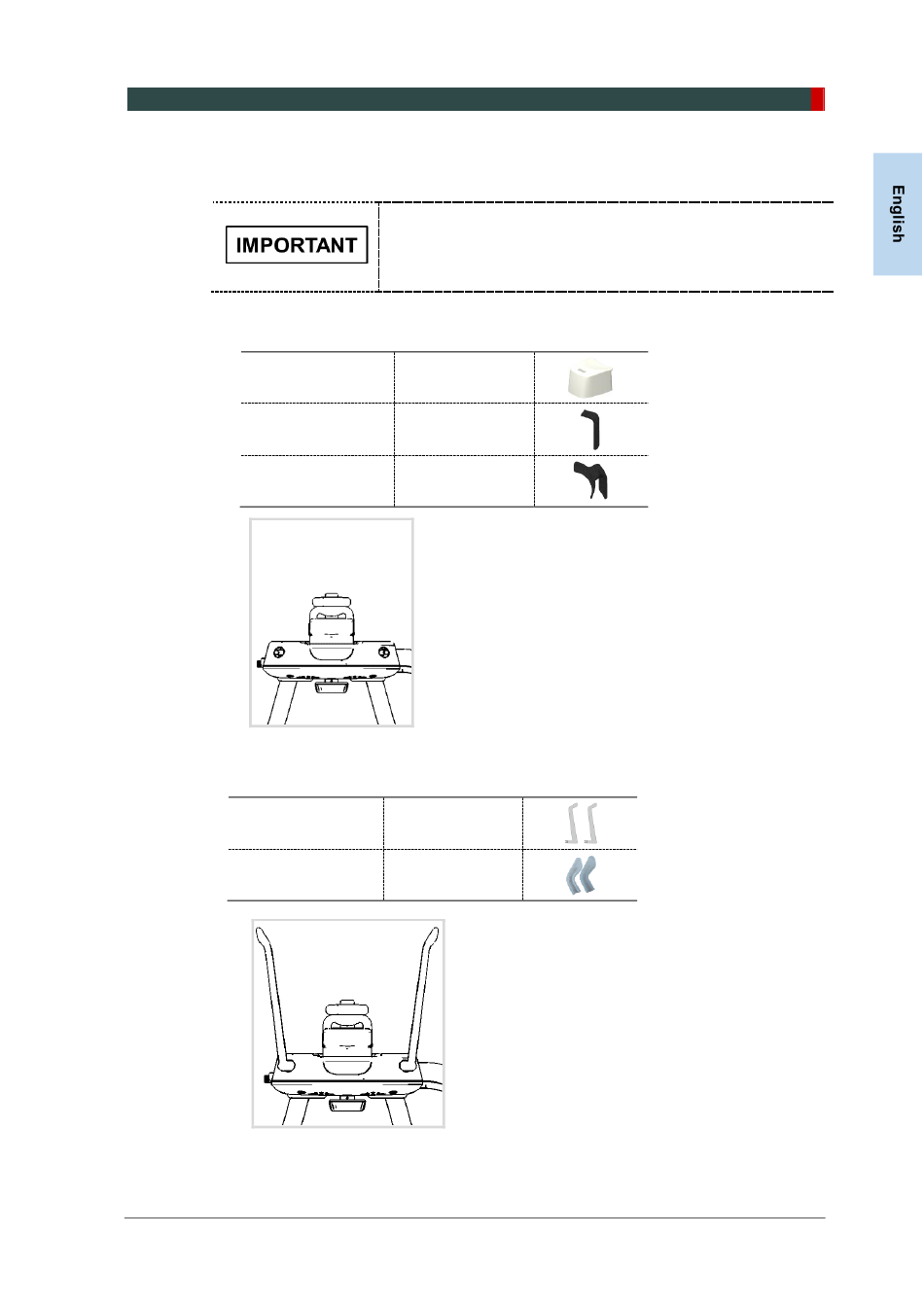

Assembling the Temple Supports and the Chinrest

6.2
Insert the normal Chinrest and the normal Bite Block into the unit.
1.
Chin Block-High
Chin Bite
Chin Bite 2
Insert the Temple Supports.
2.
Temple Supports
Cap Ear Rods
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
6. Completing Miscellaneous Works
Assembling the Temple Supports and the Bite Block should
be done after Acquiring a test image is completed
(Part No.7)
(Part No. 12)
(Part No. 12)
1 set
(Part No. 5)
1 set
(Part No. 5)
