7. Setting up PC
Installing the Fiber Optic Frame Grabber Board
Unplug the power cable from the back of t h e PC and wait for a while.
1.
Open the PC cover.
2.

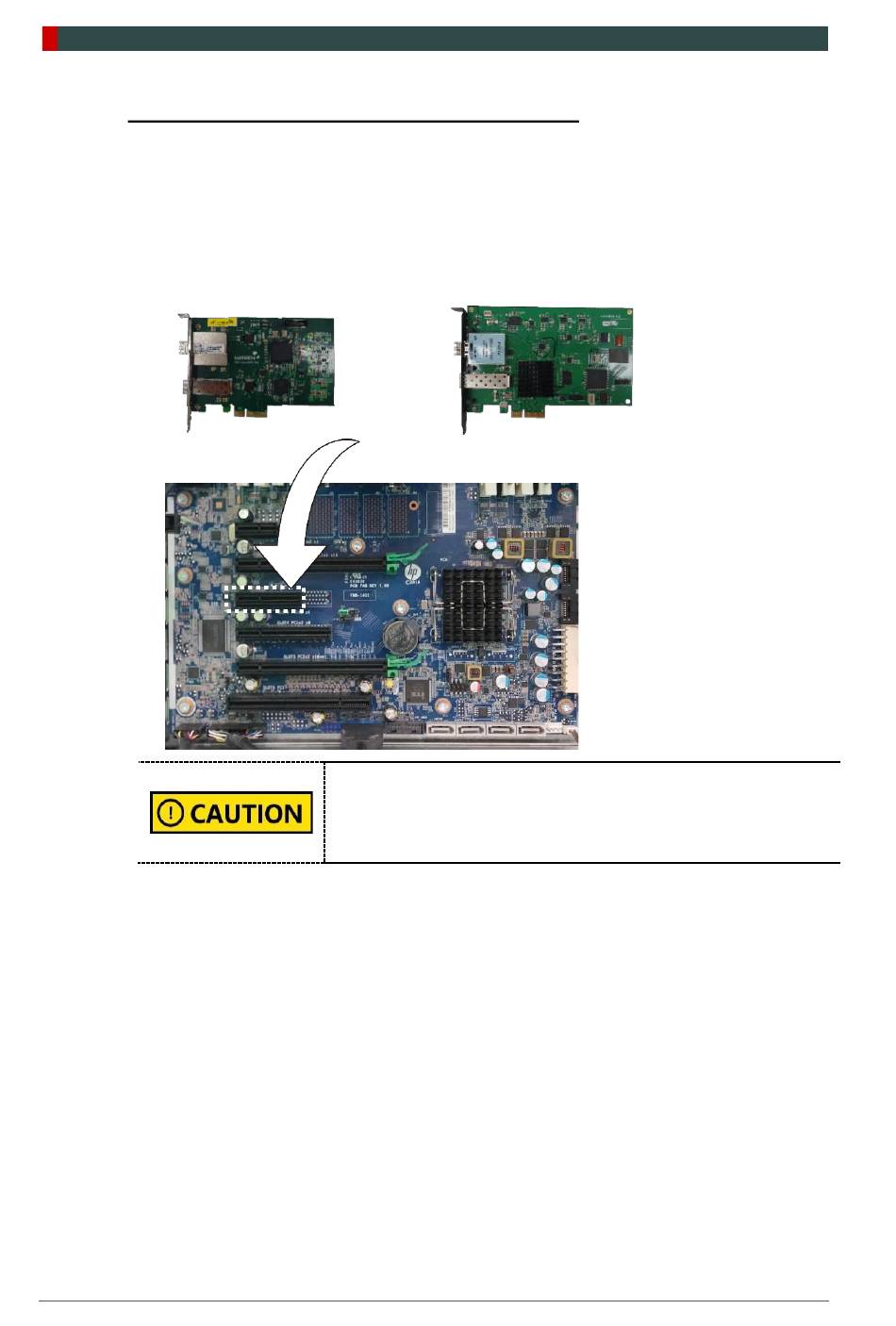

Insert the fiber grabber board (Part No. 21) carefully into that PCIe2 x 4 slot
3.
and lock it.
Put the slot holder back to its initial position.
4.
84
or
Double-check the locking status between the board and its
holder after the board installed. A bad insertion of the board
into the PC slot could cause failure for Dark calibration data
acquisition or noisy image acquisition.
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
