Appendix
C. Limiting the Column Height
This section explains how to limit the column height within the permissible range.
Measure the ceiling height in the X-ray shield room: H
1.
< Removing the column covers >

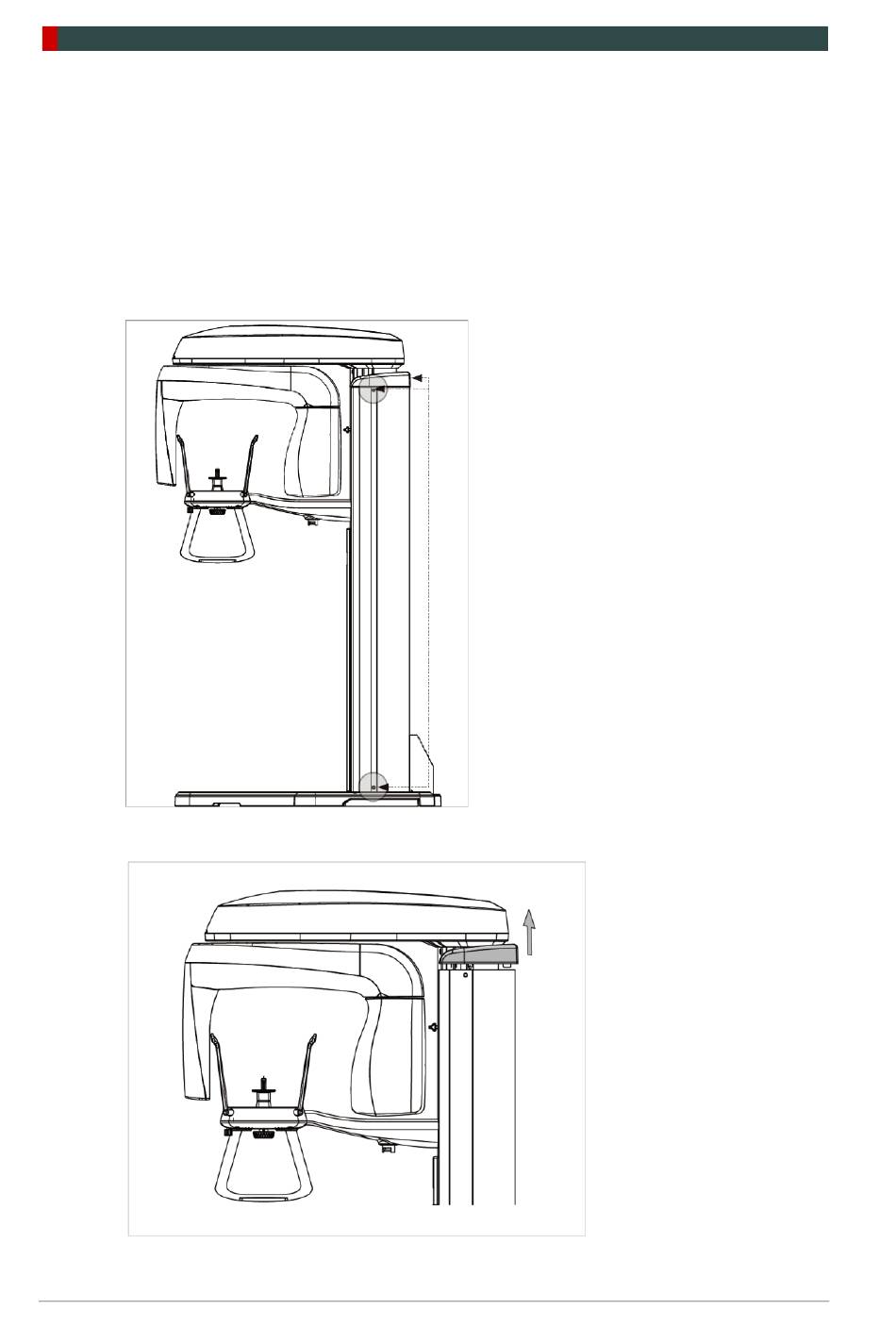

Remove three Fixing Bolts as shown in the figure.
2.
Remove the Column Rear-Top Cover as shown in the figure.
1.
128
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
ceiling
