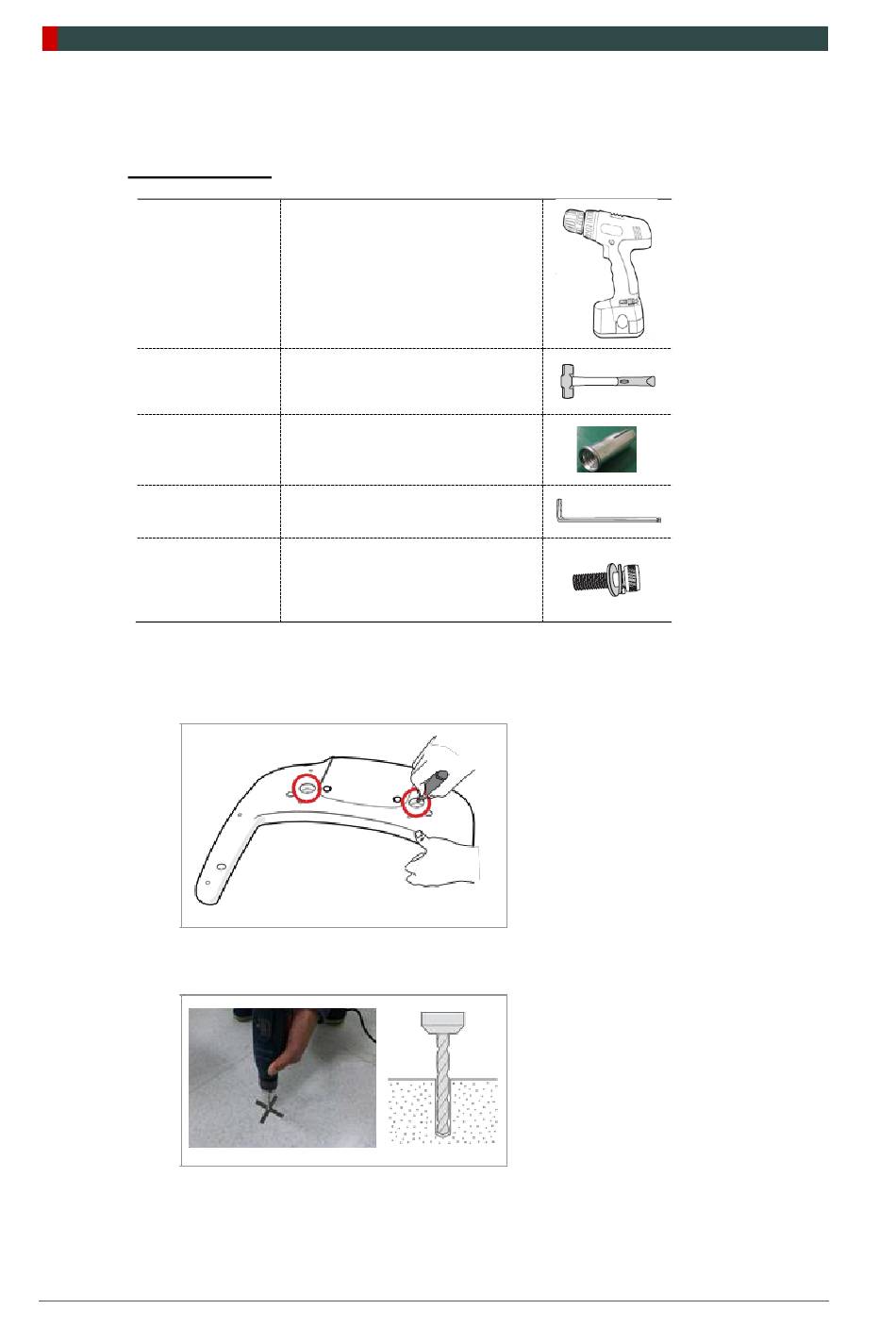

4. Installing the Equipment: Base Stand (Optional)

Fixing the Base (Optional)

4.7
Concrete Floor
Hammer Drill
Hammer
Ficher Strong
Anchor
Allen Wrench
Wrench Bolt
Put the base unit on the installation site and mark 2 locations on the floor
1.
before installing the equipment.
Drill the floor holes of size 12mm x 30mm (depth) using the concrete hammer
2.
drill.
Remove the debris and clean the holes using the dust pump.
3.
52
L = 200 mm (7.9")
n/a
M10 x 40
(Part No. 34)
8 mm / 0.3"
M10 x 25
w/ Spring and Flat Washers
(Part No. 24)
