Vatech PaX-i Insight Installation Manual page 135

Hide thumbs Also See for PaX-i Insight:
Table of Contents

Advertisement

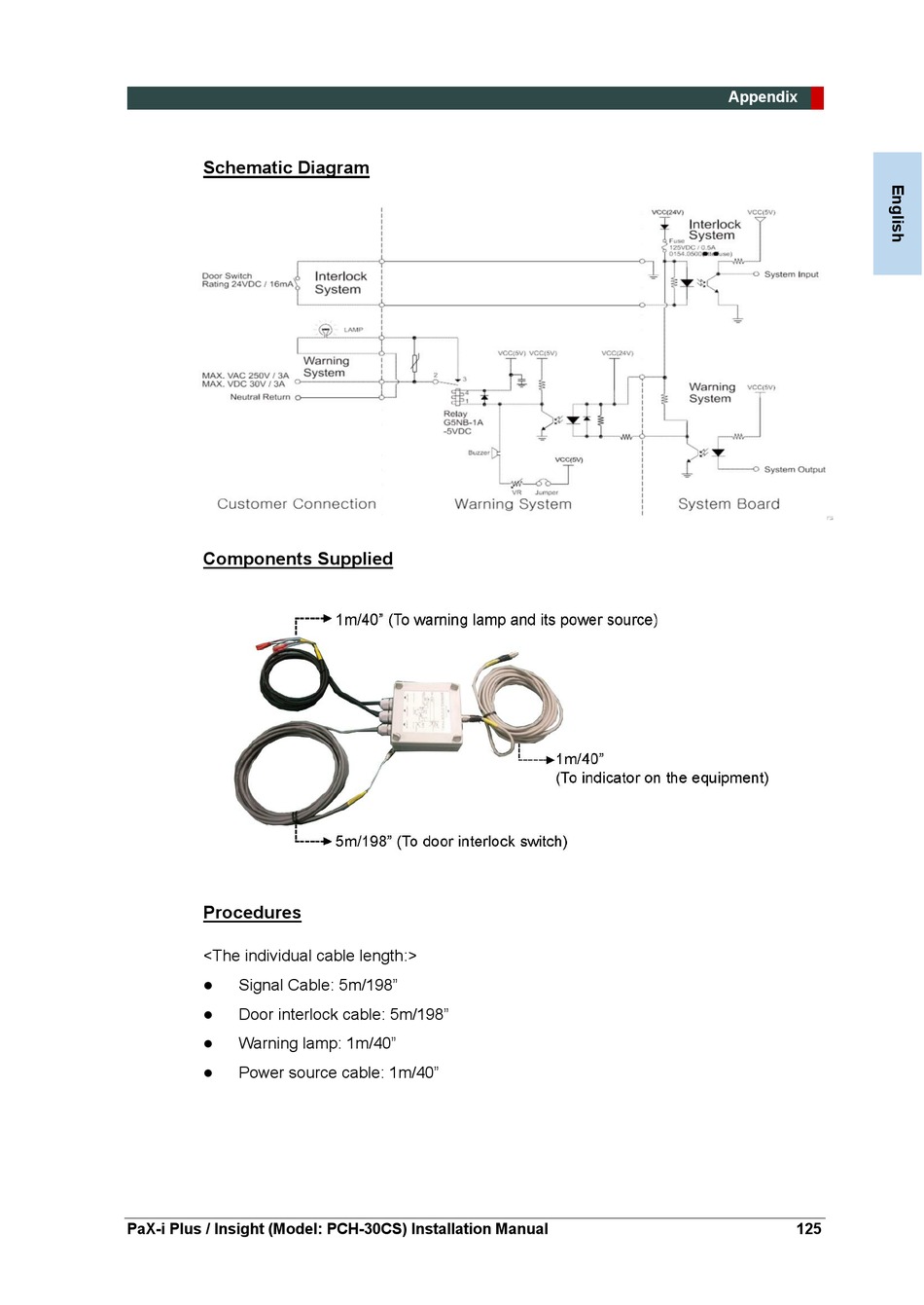

Schematic Diagram
Components Supplied
Procedures
<The individual cable length:>
Signal Cable: 5m/198"
⚫
Door interlock cable: 5m/198"
⚫
Warning lamp: 1m/40"
⚫
Power source cable: 1m/40"
⚫
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
