4. Installing the Equipment: Base Stand (Optional)

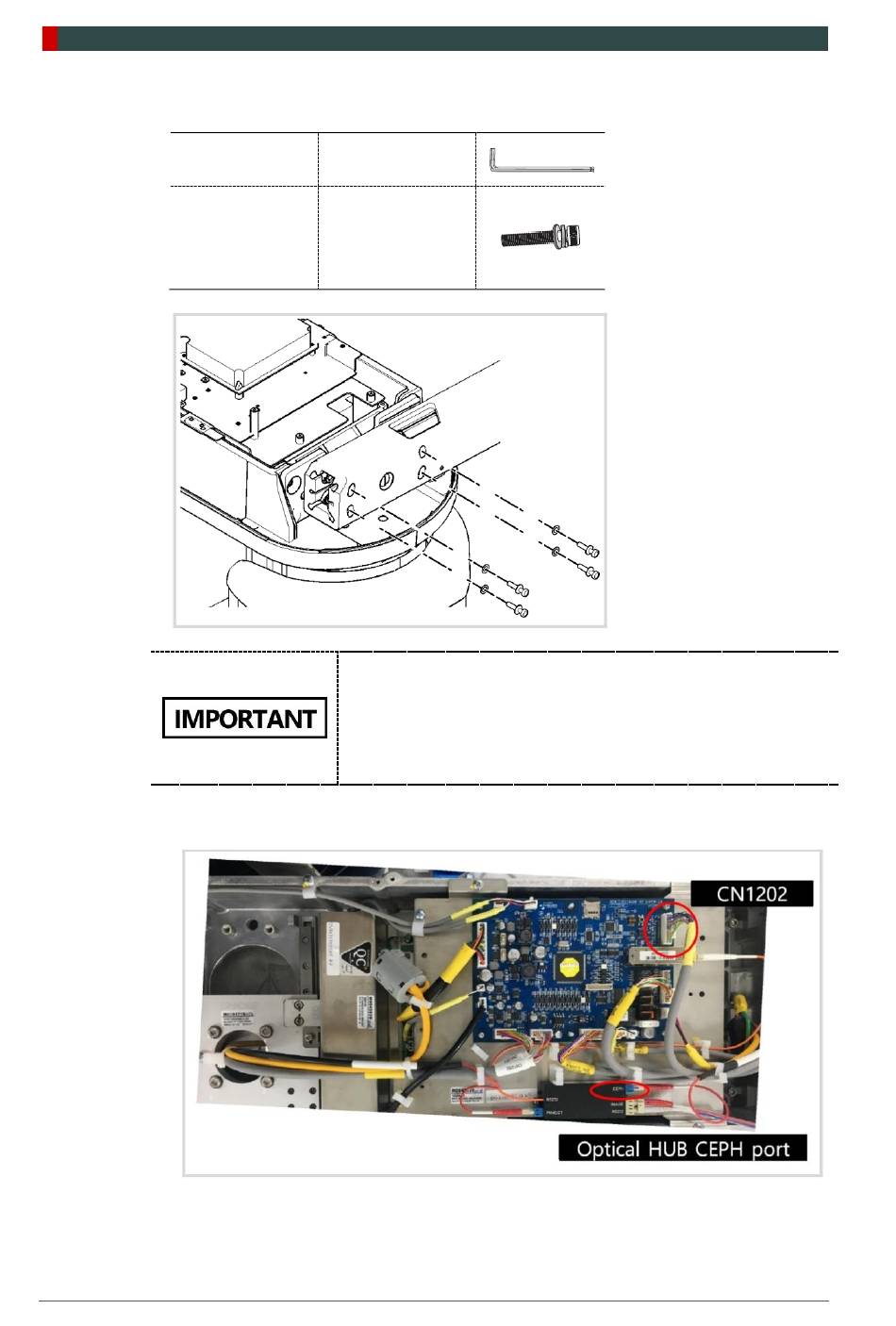

Tighten the four wrench bolts to attach the base unit.
4.
Allen Wrench
Wrench Bolt
Connect the cable to the CEPH unit and main unit.
5.
50
6 mm / 0.24"
M8 x 45
w/ Spring and
Flat Washers
(Part No. 25)
▪
When fastening a bolt, make sure that the cable is not
stuck on the surface.
▪
When removing the semi-transparent tape, be careful
not to scratch the surface of the equipment.
