How To Backup Your Configuration - SEH myUTN utnserver Pro User Manual

USB Deviceserver User Manual macOS
7.1

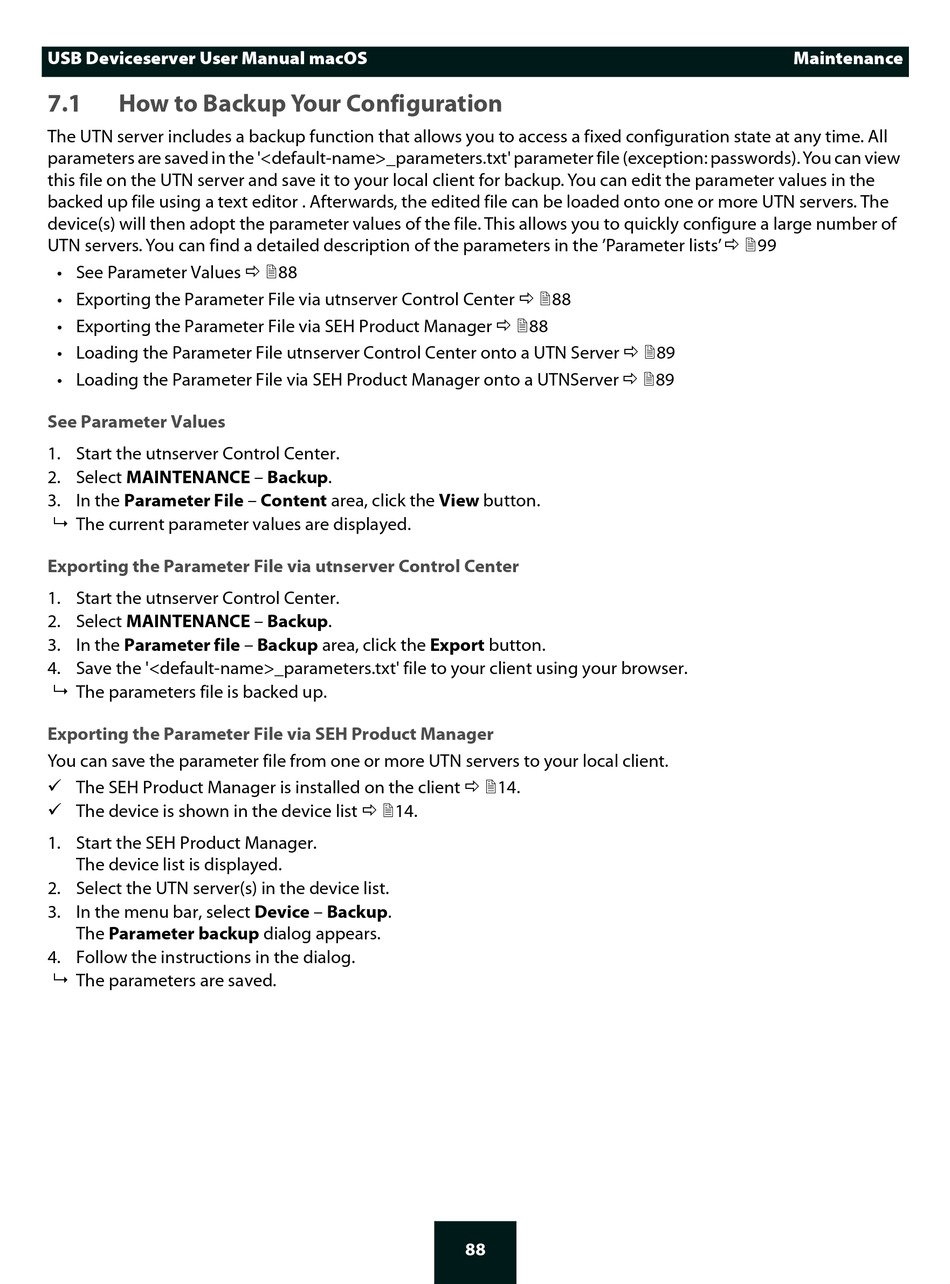

How to Backup Your Configuration

The UTN server includes a backup function that allows you to access a fixed configuration state at any time. All
parameters are saved in the '<default-name>_parameters.txt' parameter file (exception: passwords). You can view
this file on the UTN server and save it to your local client for backup. You can edit the parameter values in the
backed up file using a text editor . Afterwards, the edited file can be loaded onto one or more UTN servers. The
device(s) will then adopt the parameter values of the file. This allows you to quickly configure a large number of
UTN servers. You can find a detailed description of the parameters in the 'Parameter lists'  99
• See Parameter Values  88
• Exporting the Parameter File via utnserver Control Center  88
• Exporting the Parameter File via SEH Product Manager  88
• Loading the Parameter File utnserver Control Center onto a UTN Server  89
• Loading the Parameter File via SEH Product Manager onto a UTNServer  89
See Parameter Values
1. Start the utnserver Control Center.
2. Select MAINTENANCE – Backup.
3. In the Parameter File – Content area, click the View button.
 The current parameter values are displayed.
Exporting the Parameter File via utnserver Control Center
1. Start the utnserver Control Center.
2. Select MAINTENANCE – Backup.
3. In the Parameter file – Backup area, click the Export button.
4. Save the '<default-name>_parameters.txt' file to your client using your browser.
 The parameters file is backed up.
Exporting the Parameter File via SEH Product Manager
You can save the parameter file from one or more UTN servers to your local client.
 The SEH Product Manager is installed on the client  14.
 The device is shown in the device list  14.
1. Start the SEH Product Manager.
The device list is displayed.
2. Select the UTN server(s) in the device list.
3. In the menu bar, select Device – Backup.
The Parameter backup dialog appears.
4. Follow the instructions in the dialog.
 The parameters are saved.
88
Maintenance
