USB Deviceserver User Manual macOS
3.6

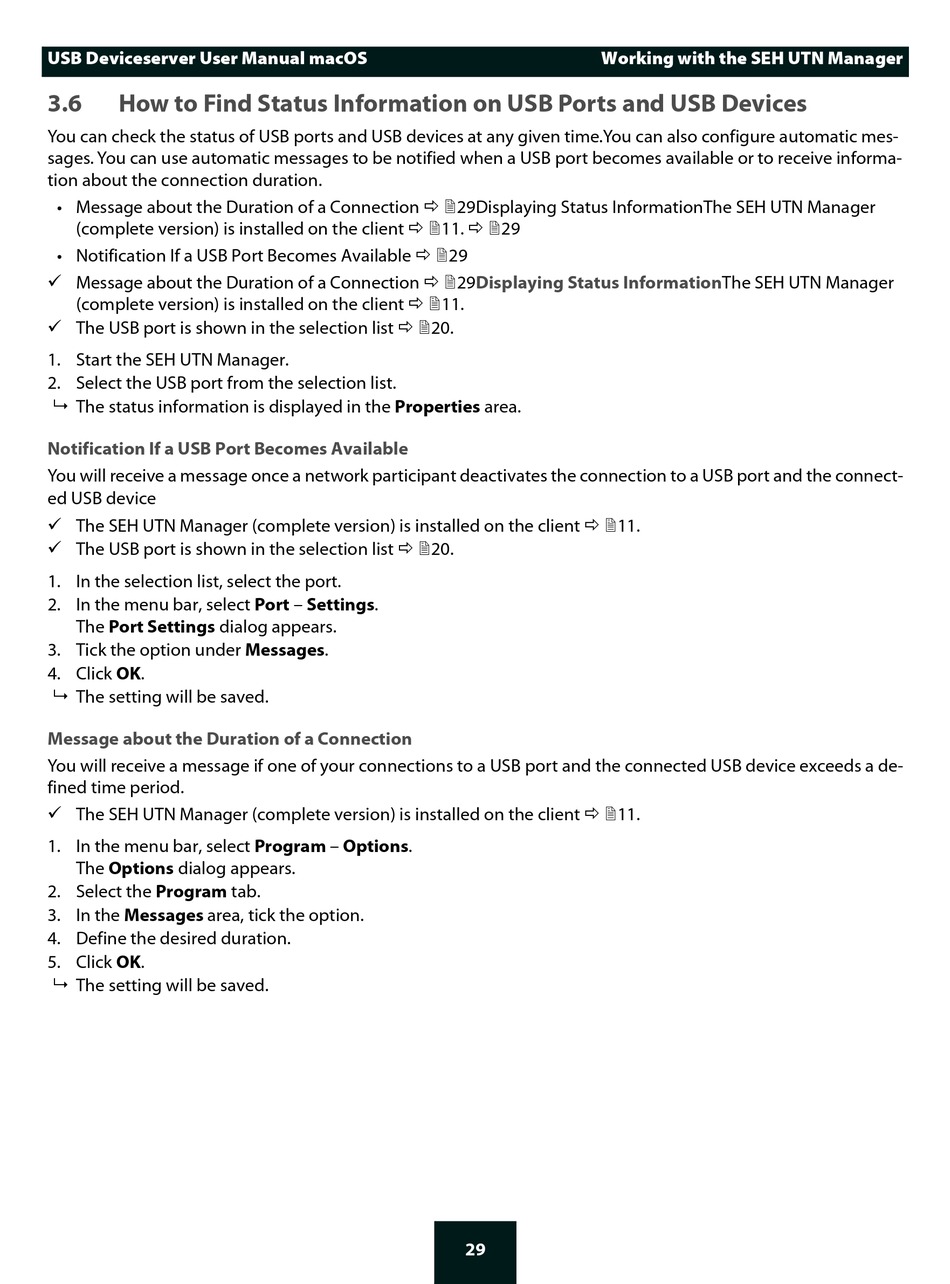

How to Find Status Information on USB Ports and USB Devices

You can check the status of USB ports and USB devices at any given time.You can also configure automatic mes-
sages. You can use automatic messages to be notified when a USB port becomes available or to receive informa-
tion about the connection duration.
• Message about the Duration of a Connection  29Displaying Status InformationThe SEH UTN Manager
(complete version) is installed on the client  11.  29
• Notification If a USB Port Becomes Available  29
 Message about the Duration of a Connection 
(complete version) is installed on the client  11.
 The USB port is shown in the selection list  20.
1. Start the SEH UTN Manager.
2. Select the USB port from the selection list.
 The status information is displayed in the Properties area.
Notification If a USB Port Becomes Available
You will receive a message once a network participant deactivates the connection to a USB port and the connect-
ed USB device
 The SEH UTN Manager (complete version) is installed on the client  11.
 The USB port is shown in the selection list  20.
1. In the selection list, select the port.
2. In the menu bar, select Port – Settings.
The Port Settings dialog appears.
3. Tick the option under Messages.
4. Click OK.
 The setting will be saved.
Message about the Duration of a Connection
You will receive a message if one of your connections to a USB port and the connected USB device exceeds a de-
fined time period.
 The SEH UTN Manager (complete version) is installed on the client  11.
1. In the menu bar, select Program – Options.
The Options dialog appears.
2. Select the Program tab.
3. In the Messages area, tick the option.
4. Define the desired duration.
5. Click OK.
 The setting will be saved.
