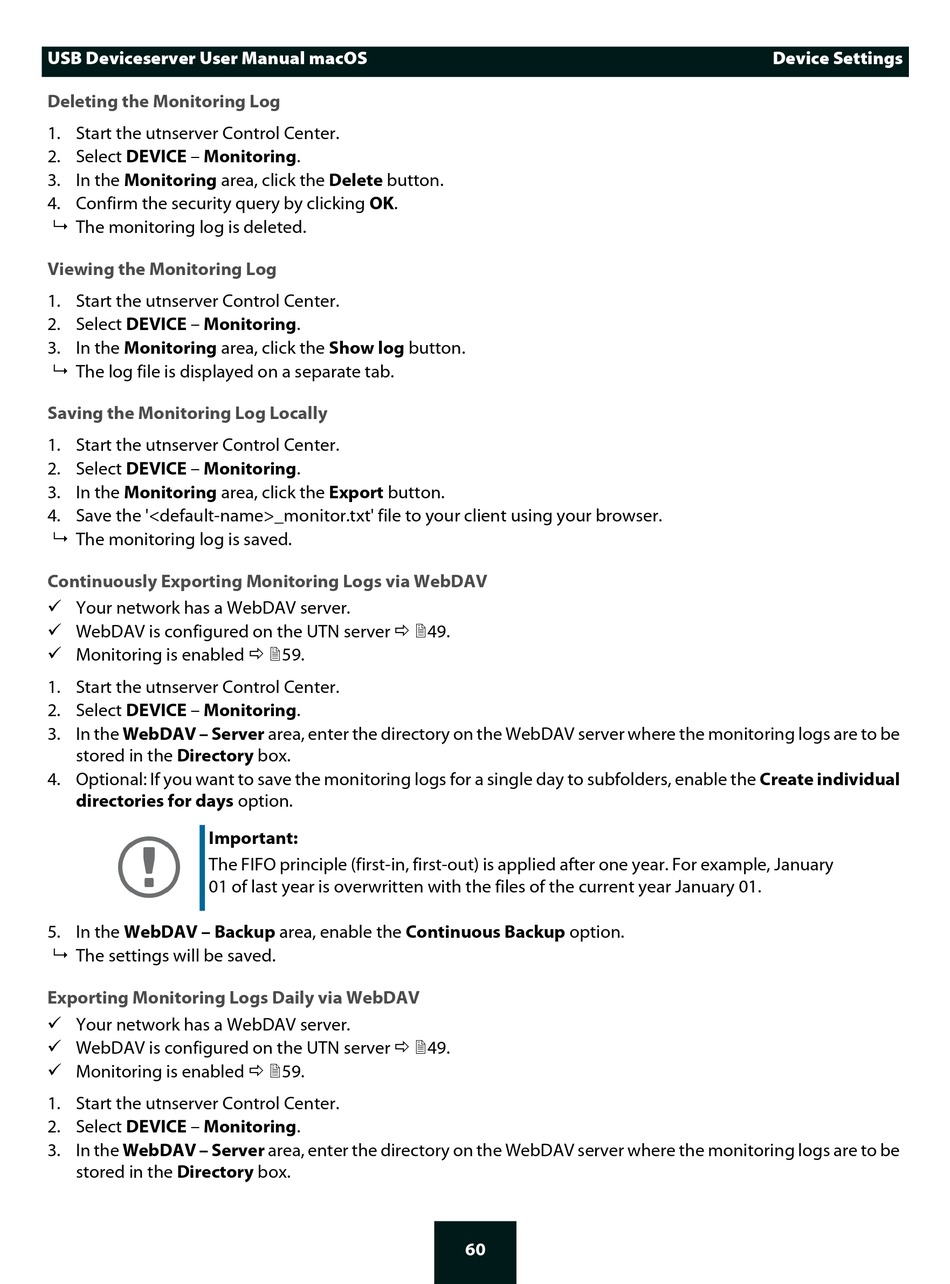

SEH myUTN utnserver Pro User Manual page 64

USB Deviceserver User Manual macOS
Deleting the Monitoring Log
1. Start the utnserver Control Center.
2. Select DEVICE – Monitoring.
3. In the Monitoring area, click the Delete button.
4. Confirm the security query by clicking OK.
 The monitoring log is deleted.
Viewing the Monitoring Log
1. Start the utnserver Control Center.
2. Select DEVICE – Monitoring.
3. In the Monitoring area, click the Show log button.
 The log file is displayed on a separate tab.
Saving the Monitoring Log Locally
1. Start the utnserver Control Center.
2. Select DEVICE – Monitoring.
3. In the Monitoring area, click the Export button.
4. Save the '<default-name>_monitor.txt' file to your client using your browser.
 The monitoring log is saved.
Continuously Exporting Monitoring Logs via WebDAV
 Your network has a WebDAV server.
 WebDAV is configured on the UTN server  49.
 Monitoring is enabled  59.
1. Start the utnserver Control Center.
2. Select DEVICE – Monitoring.
3. In the WebDAV – Server area, enter the directory on the WebDAV server where the monitoring logs are to be
stored in the Directory box.
4. Optional: If you want to save the monitoring logs for a single day to subfolders, enable the Create individual
directories for days option.
Important:
The FIFO principle (first-in, first-out) is applied after one year. For example, January
01 of last year is overwritten with the files of the current year January 01.
5. In the WebDAV – Backup area, enable the Continuous Backup option.
 The settings will be saved.
Exporting Monitoring Logs Daily via WebDAV
 Your network has a WebDAV server.
 WebDAV is configured on the UTN server  49.
 Monitoring is enabled  59.
1. Start the utnserver Control Center.
2. Select DEVICE – Monitoring.
3. In the WebDAV – Server area, enter the directory on the WebDAV server where the monitoring logs are to be
stored in the Directory box.
60
Device Settings
