Overview
This Hardware Installation Guide provides a brief description of the hardware
installation of the print server. It contains the following information:
Scope of Supply
Safety Regulations
Print Server Controls and Technical Data
Mounting the Print Server
Installation in a Wireless LAN
Notification
Information and Hotline
To obtain additional information about your print server, please refer to the
documentation on the product CD. Should you have any further questions, please
contact our support hotline.
Monday - Thursday
Friday
℡
+49 (0)521 94226-44
@
support@seh.de

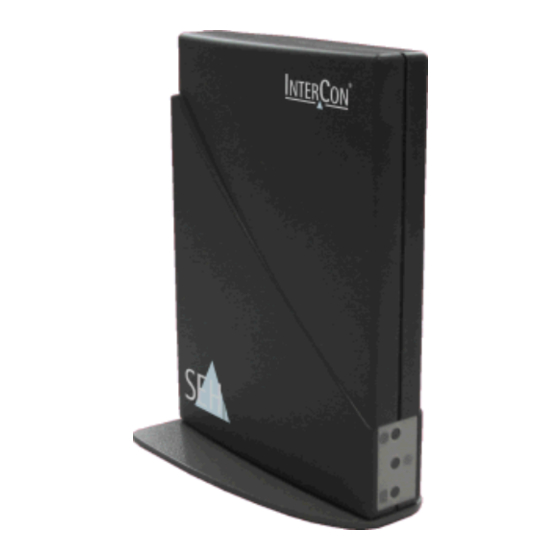

Hardware Installation Guide
Print Server
PS54a-G
Hardware Installation Guide
8:00 a.m. to 5:45 p.m. and
8:00 a.m. to 4:15 p.m. (CET)
1
Advertisement
Table of Contents
Related Manuals for SEH SEH InterCon PS54a-G
Summary of Contents for SEH SEH InterCon PS54a-G
-

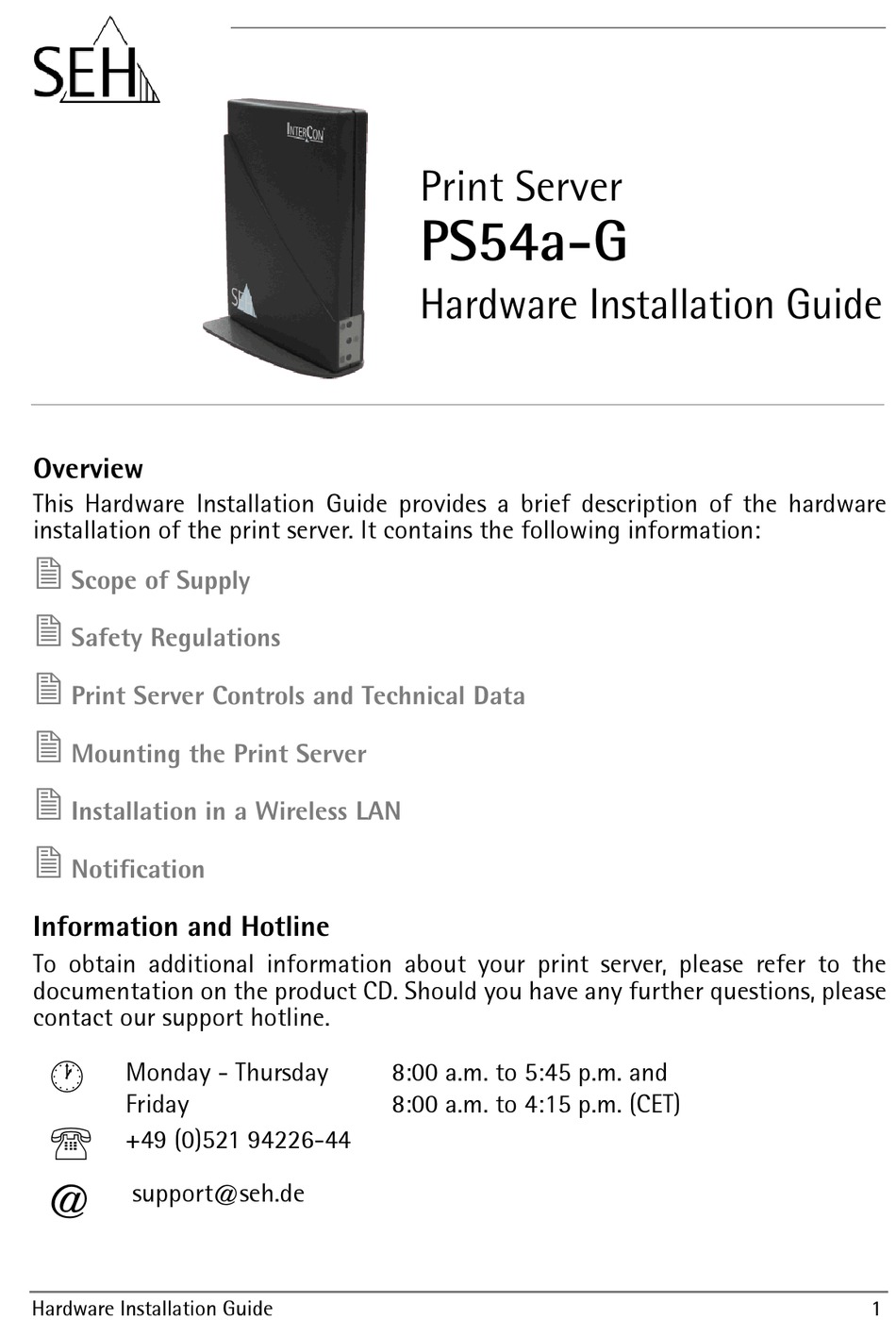

Page 1: Print Server
Overview This Hardware Installation Guide provides a brief description of the hardware installation of the print server. It contains the following information: Scope of Supply Safety Regulations Print Server Controls and Technical Data Mounting the Print Server Installation in a Wireless LAN Notification Information and Hotline To obtain additional information about your print server, please refer to the... -
Page 2: Scope Of Supply
Scope of Supply Please check the package content before getting started: Print Server Hardware Installation Guide Software Quick Installation Product CD Power Supply PS54a-G Provides a brief description of the hardware installation of the print server. (This document) Provides a brief description of the software installation of the print server under each of the supported operating systems. -
Page 3: Safety Regulations
Safety Regulations English (en) Print servers are network interfaces for printers in office environments and are designed for the direct integration of printers into networks. Before starting the initial operation procedure of your device, please note the following safety regulations: •... -
Page 4: Français (Fr)
Les serveurs d'impression sont des interfaces réseaux pour les imprimantes dans des bureaux et servent à l'intégration directe des imprimantes dans les réseaux. Avant de mettre en service votre périphérique, veuillez suivre ces quelques conseils de sécurité: • Lisez attentivement la documentation et assurez-vous que votre système satisfait bien toutes les exigences mentionnées. -
Page 5: Italiano (It)
I server di stampa sono interfacce della rete per le stampanti negli ambienti dell'ufficio e servono all'integrazione diretta delle stampanti nelle reti. Prima di mettere in esercizio il dispositivo, osservare le istruzioni di sicurezza descritte qui di seguito: • Leggere la documentazione ed assicurarsi che il proprio sistema sia conforme ai requisiti riportati. - Page 6 En printserver är ett nätverksinterface för skrivare i kontor och används för den direkta integreringen av skrivare i nätverk. Beakta följande säkerhetsanvisningar före idrifttagandet av apparaten: • Läs dokumentation och säkerställ att ditt system motsvarar de uppförda kraven. • Apparaten får ej utsättas för fukt eller vätskor. •...
-
Page 7: Nederlands (Nl)
Tulostinpalvelimet ovat tulostimille tarkoitettuja, toimistoympäristössä käytettäviä verkkoliittymiä, ja niiden käyttötarkoitus on liittää tulostimet tietoverkkoihin. Ennen laitteen käyttöönottoa tulee ottaa huomioon seuraavat turvamääräykset: • Lue dokumentaatio ja varmista, että järjestelmäsi täyttää siinä esitetyt vaatimukset. • Laitteeseen ei saa joutua kosteutta tai nesteitä. •... -
Page 8: Slovenčina (Sk)
την απευθείας σύνδεση εκτυπωτών σε δίκτυα. Πριν τη θέση σε λειτουργία της συσκευής σας λάβετε υπόψη σας τις ακόλουθες οδηγίες ασφαλείας: Διαβάστε το εγχειρίδιο και βεβαιωθείτε ότι το σύστημά σας ανταποκρίνεται στις • απαιτήσεις που αναφέρονται στο εγχειρίδιο λειτουργίας. • Η... -
Page 9: Lietuvių Kalba (Lt)
• Dodržujte národné obmedzenia pri prevádzke tlačového servera WLAN. Opýtajte sa na to Vášho odborného predajcu. • Pre spojenie s tlačiarnou používajte certifikovaný USB-Hi-Speed-kábel. Zoznam certifikovaných káblov nájdete na stránke www.usb.org ! Eesti (ee) Printserverid on võrguliidesed bürooprinterite jaoks ning nende ülesandeks on printerite otsene ühendamine võrku. -
Page 10: Latviešu Valoda (Lv)
• Prietaisą galima eksploatuoti tik su kartu pristatytu maitinimo bloku. • PCMCIA arba CompactFlash kortos išimti ar pakeisti negalima. • Eksploatuodami savo WLAN prietaisą, laikykitės nacionalinių apribojimų. Informa- cijai gauti kreipkitės į pardavėją. • Panaudóti už kontãktas pas printer sertificas USB-Hi-Speed-kãbelis. Sąrašas sertificas USB –... - Page 11 • Opozorilo! To je naprava razreda A. Ta naprava lahko v stanovanju povzroči radijske motnje; v tem primeru bo uporabnik moral izvesti ustrezne ukrepe. • Naprava se sme poganjati le s priloženim omrežnim delom. • PCMCIA ali CompactFlash kartice se ne sme odstranjevati ali zamenjati. •...
- Page 12 • Jako datový kabel používejte pouze kabel shodný s IEEE 1284. Stínění kabelu a zásuvky musí být spojeno plošně. • Výstraha! Jedná se o zařízení třídy A. Toto zařízení může v obytném prostoru způsobovat rádiové rušení; pokud se tak děje, lze požádat výrobce, aby provedl přiměřená...
- Page 13 • elenkati fiha. • Evita kuntatt ma' l-umditŕ jew ma' likwidi. • L-apparat ghandu jigi mqabbad u mhaddem biss jekk ikun f'kundizzjoni perfetta. Aghmel ćert li hadd ma jirfes jew jaqa' fuq il-kejbils. • • Uża biss kejbils li huma konformi ma' IEEE bhala kejbils tad-data. Il-kisi ghandu jidhol flaxx mal-konnettur.Twissija! Dan hu prodott tal-Klassi A.
-
Page 14: Print Server Controls And Technical Data
Print Server Controls and Technical Data 1) Status button 2) USB port 3) Centronics connector 4) Connector for SEH power pack Characteristics Printer Connector Network Connection logical: physical: Operating Environment Dimensions Values - 1 x Centronics - 1 x USB 2.0 highspeed (expandable to 4 ports) - IEEE 802.11g - WLAN Module - Ambient temperature: 5 - 40 °C... -
Page 15: Mounting The Print Server
Mounting the Print Server The print server can be used for printers with parallel or USB interface. You can connect up to two printers. It is also possible to connect a hub to the USB interface of the print server and use it with up to four additional printers. Proceed as follows: 1. -
Page 16: General Setup Information
Installation in a Wireless LAN General Setup Information Communication mode By selecting the communication mode you define the type of network structure the print server is to be installed in. Two modes are available: - In the 'Ad-Hoc' mode, the print server communicates directly with another WLAN Client (peer-to-peer). -
Page 17: Security Information
Security Information Make sure that no unauthorized user logs on to the Wireless LAN and that no one has access to the Internet or network resources. Your print server offers several security mechanisms. The following table gives an overview of different encryption and authentication methods. Mechanism Standard WEP+EAP... - Page 18 WPA / WPA2 (Wi-Fi Protected Access) In contrast to WEP, WPA offers enhanced mechanisms for exchanging keys. The exchange key is only used at the beginning of a session. Afterwards a session key is used. The key is regenerated periodically. The WPA mechanism requires an authentication at the beginning of a connection.
-
Page 19: Installation
Installation The description for installing a print server in a WLAN given in the ’Software Quick Installation’ guide does not apply to the PS54-G. Please follow the instructions below to install a PS54-G. This Guide describes the installation via the 'WLAN-Wizard' that is included in the 'InterCon-NetTool'. - Page 20 Example: - PC IP = 192.168.100.001 / Subnetmask = 255.255.255.000 - Print server IP = 192.168.100.002 / Subnetmask = 255.255.255.000 • Select the WLAN communication mode. - Select 'Ad-Hoc', if you want to operate the print server 'Peer to Peer'. - Select 'Infrastructure' if you want to operate the print server within a network with an access point.
- Page 21 Notification Hardware Installation Guide...
- Page 22 Hardware Installation Guide...
- Page 23 Hardware Installation Guide...
- Page 24 Support Contacts and Information: Sales Contacts and Information: © 2006 SEH Computertechnik GmbH All trademarks, registered trademarks, logos and product names are property of their respective owners. This product uses ’Open Source Software’ . For further information, please contact http://www.seh.de.
