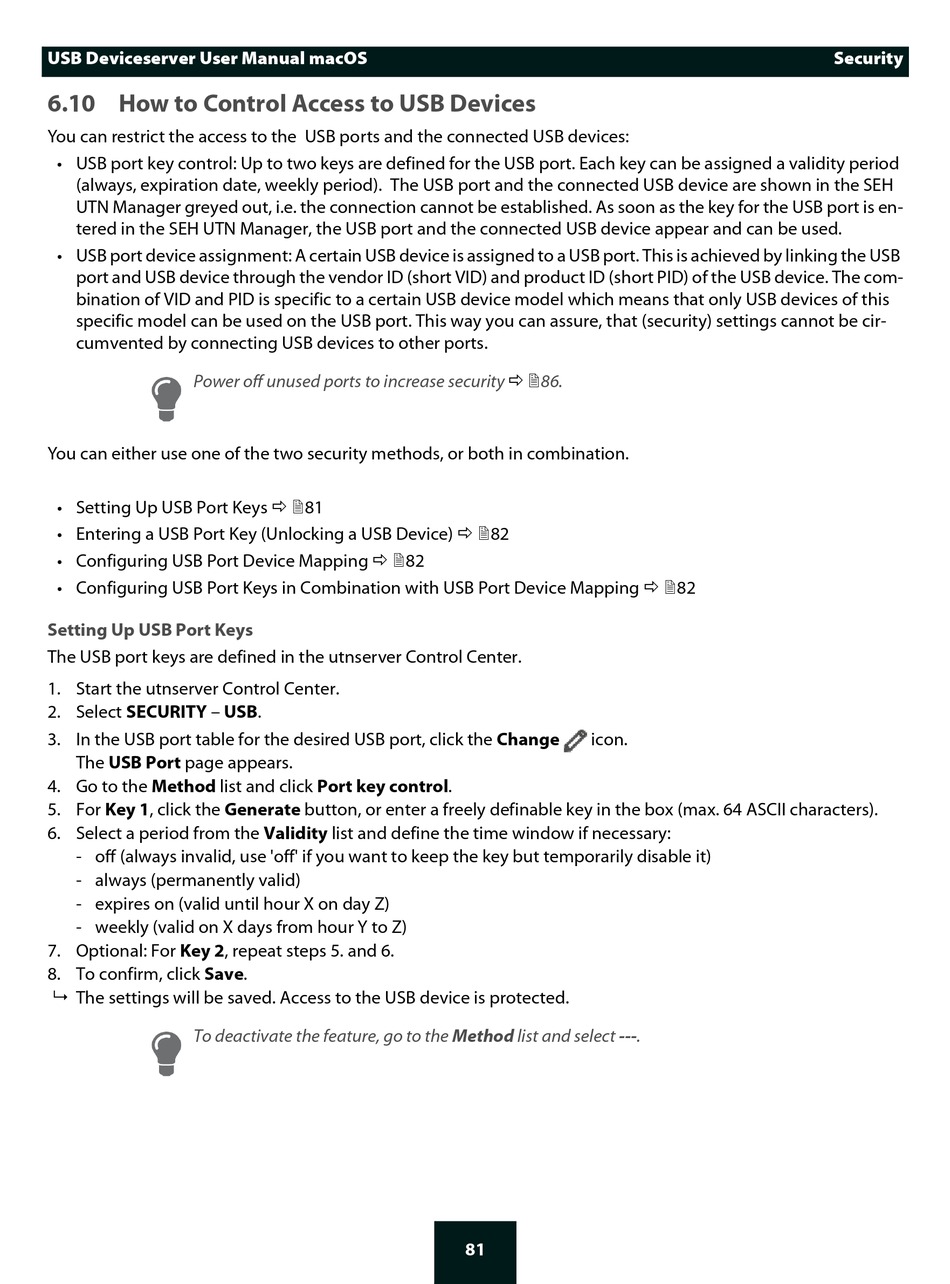

6.10 How to Control Access to USB Devices

You can restrict the access to the USB ports and the connected USB devices:
• USB port key control: Up to two keys are defined for the USB port. Each key can be assigned a validity period
(always, expiration date, weekly period). The USB port and the connected USB device are shown in the SEH
UTN Manager greyed out, i.e. the connection cannot be established. As soon as the key for the USB port is en-
tered in the SEH UTN Manager, the USB port and the connected USB device appear and can be used.
• USB port device assignment: A certain USB device is assigned to a USB port. This is achieved by linking the USB
port and USB device through the vendor ID (short VID) and product ID (short PID) of the USB device. The com-
bination of VID and PID is specific to a certain USB device model which means that only USB devices of this
specific model can be used on the USB port. This way you can assure, that (security) settings cannot be cir-
cumvented by connecting USB devices to other ports.
Power off unused ports to increase security
You can either use one of the two security methods, or both in combination.
• Setting Up USB Port Keys  81
• Entering a USB Port Key (Unlocking a USB Device)  82
• Configuring USB Port Device Mapping  82
• Configuring USB Port Keys in Combination with USB Port Device Mapping  82
Setting Up USB Port Keys
The USB port keys are defined in the utnserver Control Center.
1. Start the utnserver Control Center.
2. Select SECURITY – USB.
3. In the USB port table for the desired USB port, click the Change
The USB Port page appears.
4. Go to the Method list and click Port key control.
5. For Key 1, click the Generate button, or enter a freely definable key in the box (max. 64 ASCII characters).
6. Select a period from the Validity list and define the time window if necessary:
- off (always invalid, use 'off' if you want to keep the key but temporarily disable it)
- always (permanently valid)
- expires on (valid until hour X on day Z)
- weekly (valid on X days from hour Y to Z)
7. Optional: For Key 2, repeat steps 5. and 6.
8. To confirm, click Save.
 The settings will be saved. Access to the USB device is protected.
To deactivate the feature, go to the Method list and select ---.
 86.
icon.
81
Security
