USB Deviceserver User Manual macOS
4.3

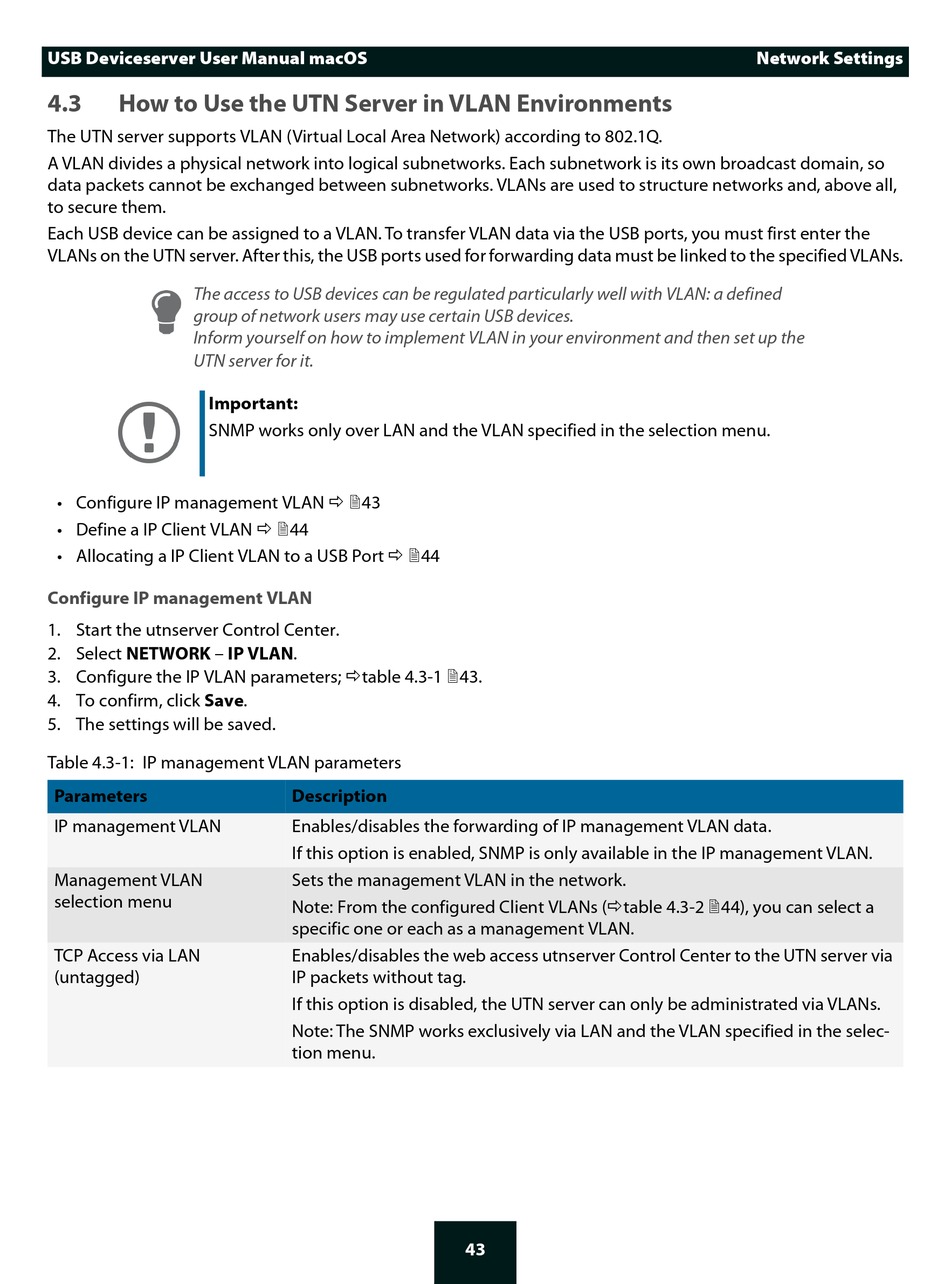

How to Use the UTN Server in VLAN Environments

The UTN server supports VLAN (Virtual Local Area Network) according to 802.1Q.
A VLAN divides a physical network into logical subnetworks. Each subnetwork is its own broadcast domain, so
data packets cannot be exchanged between subnetworks. VLANs are used to structure networks and, above all,
to secure them.
Each USB device can be assigned to a VLAN. To transfer VLAN data via the USB ports, you must first enter the
VLANs on the UTN server. After this, the USB ports used for forwarding data must be linked to the specified VLANs.
The access to USB devices can be regulated particularly well with VLAN: a defined
group of network users may use certain USB devices.
Inform yourself on how to implement VLAN in your environment and then set up the
UTN server for it.
Important:
SNMP works only over LAN and the VLAN specified in the selection menu.
• Configure IP management VLAN  43
• Define a IP Client VLAN  44
• Allocating a IP Client VLAN to a USB Port  44
Configure IP management VLAN
1. Start the utnserver Control Center.
2. Select NETWORK – IP VLAN.
3. Configure the IP VLAN parameters; table 4.3-1 43.
4. To confirm, click Save.
5. The settings will be saved.
Table 4.3-1: IP management VLAN parameters
Parameters
IP management VLAN
Management VLAN
selection menu
TCP Access via LAN
(untagged)
Description
Enables/disables the forwarding of IP management VLAN data.
If this option is enabled, SNMP is only available in the IP management VLAN.
Sets the management VLAN in the network.
Note: From the configured Client VLANs (table 4.3-2 44), you can select a
specific one or each as a management VLAN.
Enables/disables the web access utnserver Control Center to the UTN server via
IP packets without tag.
If this option is disabled, the UTN server can only be administrated via VLANs.
Note: The SNMP works exclusively via LAN and the VLAN specified in the selec-
tion menu.
43
Network Settings
