SECTION 6 Field Replaceable Parts
6.4 Replacement
6–12
1. Install the wire leads into the appropriate terminals and tighten.
Note Pin #1 (1, FIgure 6-9). Use Table 6-1 for guidance.
1

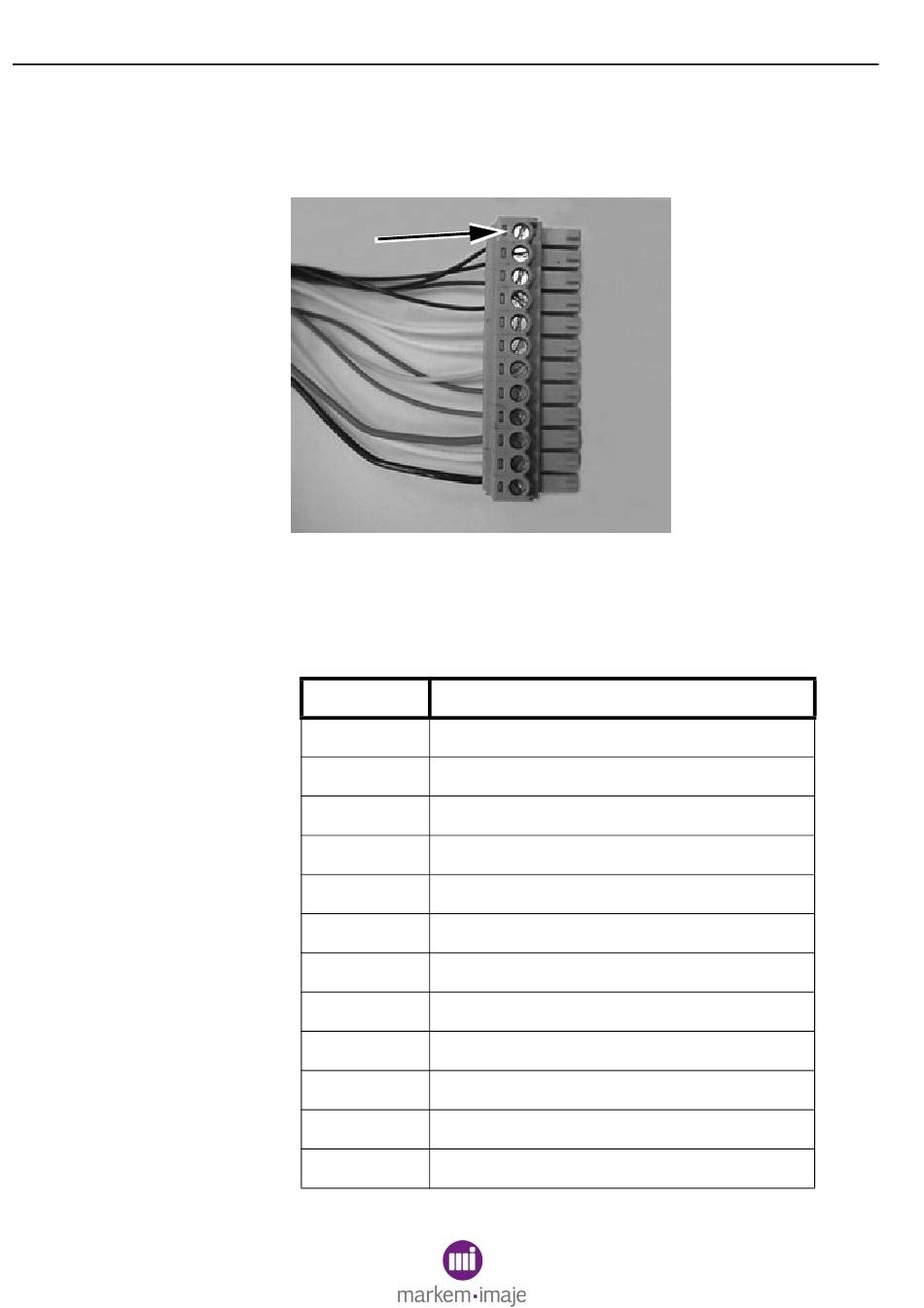

Figure 6–9
Table 6–1 IDM Connector Pins
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
Function
RED MELT THERMISTOR (1, Figure 6-9)
RED MELT THERMISTOR
RED HOLDING THERMISTOR
RED HOLDING THERMISTOR
WHITE PUMP SWITCH MIDDLE [NO]
WHITE PUMP SWITCH [COM]
WHITE PHOTO SENSOR
BROWN PHOTO SENSOR
BLUE PHOTO SENSOR
RED INK LEVEL SENSOR
WHITE INK LEVEL SENSOR
BLACK INK LEVEL SENSOR
