Replacing The Transformer(S); What You Will Need; Preparation; Removal - Dover markem-imaje 5200 Service Manual

13

Replacing the Transformer(s)

13.1

What You Will Need

13.2

Preparation

13.3

Removal

0855855eng 6/08
SECTION 6 Field Replaceable Parts
• Large flathead screwdriver
• 13mm closed-end offset wrench
1. Power off the Model 5200/5400 and disconnect the power cable.
2. Remove the front cover by loosening the five large captive
screws.
NOTE: The cover ground wire may need to be disconnected from
the print station.
3. It may be necessary to remove the control board if there are two
voltage supply boards. See Section 6.0, Replacing the Control
Board, Removal.
1. Disconnect the three transformer plugs from the soft start board
(1, Figure 6-25), the voltage supply board (2, Figure 6-25) and
the backplane board (3, Figure 6-25).
2. Loosen the two hex cap screws (4, Figure 6-25).
3. Lift the transformer up and out of the keyholes.
4. Swap the hardware from the old to the new transformer.
1
3
2

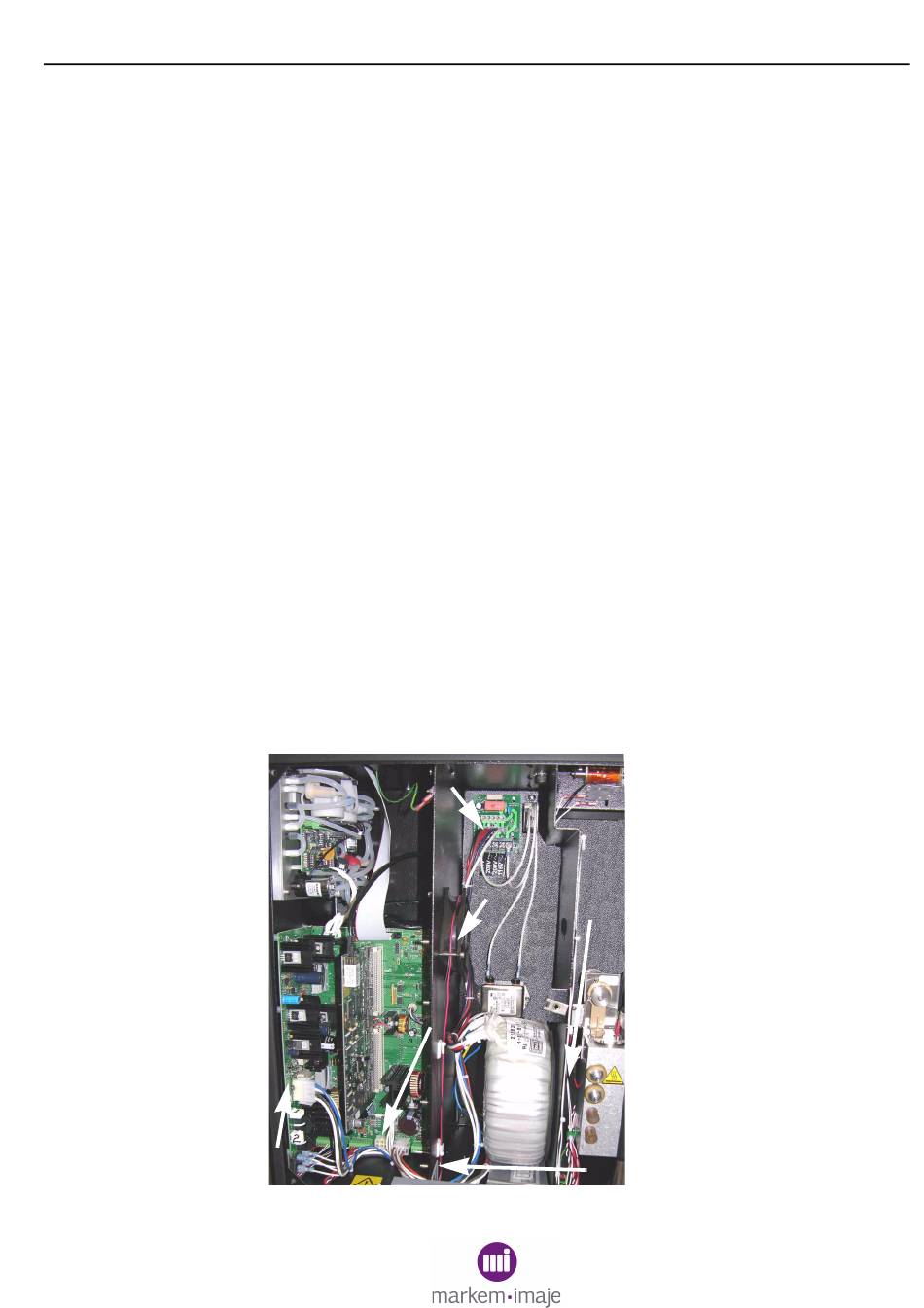

Figure 6–25
5
4
6
6–31
