5.4 Replacement
5.5 Final Steps
0855855eng 6/08
SECTION 6 Field Replaceable Parts
1. Loosen the four bottom screws on the new IDM before setting
the new IDM in the enclosure.
2. To install the IDM, reverse the steps in Removal, paragraph 4.3.
3. For details, see Section 6, Replacing the Ink Line.
NOTE: Be careful when plugging the two IDM connectors into the
backplane board. They can be incorrectly inserted and be one or
more pitches off.
NOTE: When sliding the ink bottle guide up into place, be sure the
necked down area of the guide is completely inserted in its mating
hole until its shoulder is in contact with the ceiling (8 Figure 6-5).
When paragraphs 4.2 through 4.4 are complete:
1. Install the front cover.
NOTE: The ground wire may need to be connected to the print
station first.
2. Connect the power cable and power on the Model 5200/5400.

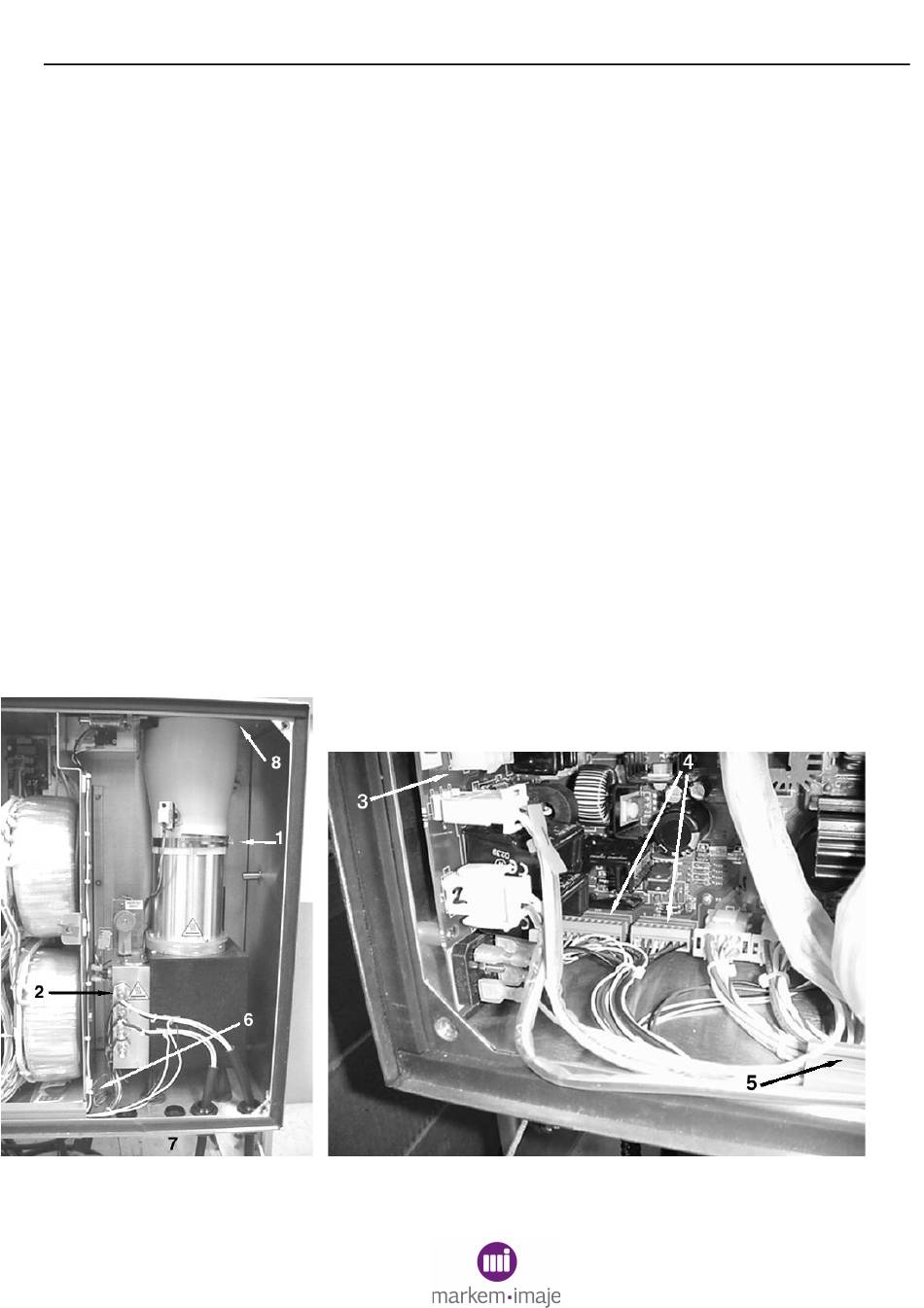

Figure 6–5
6–9
