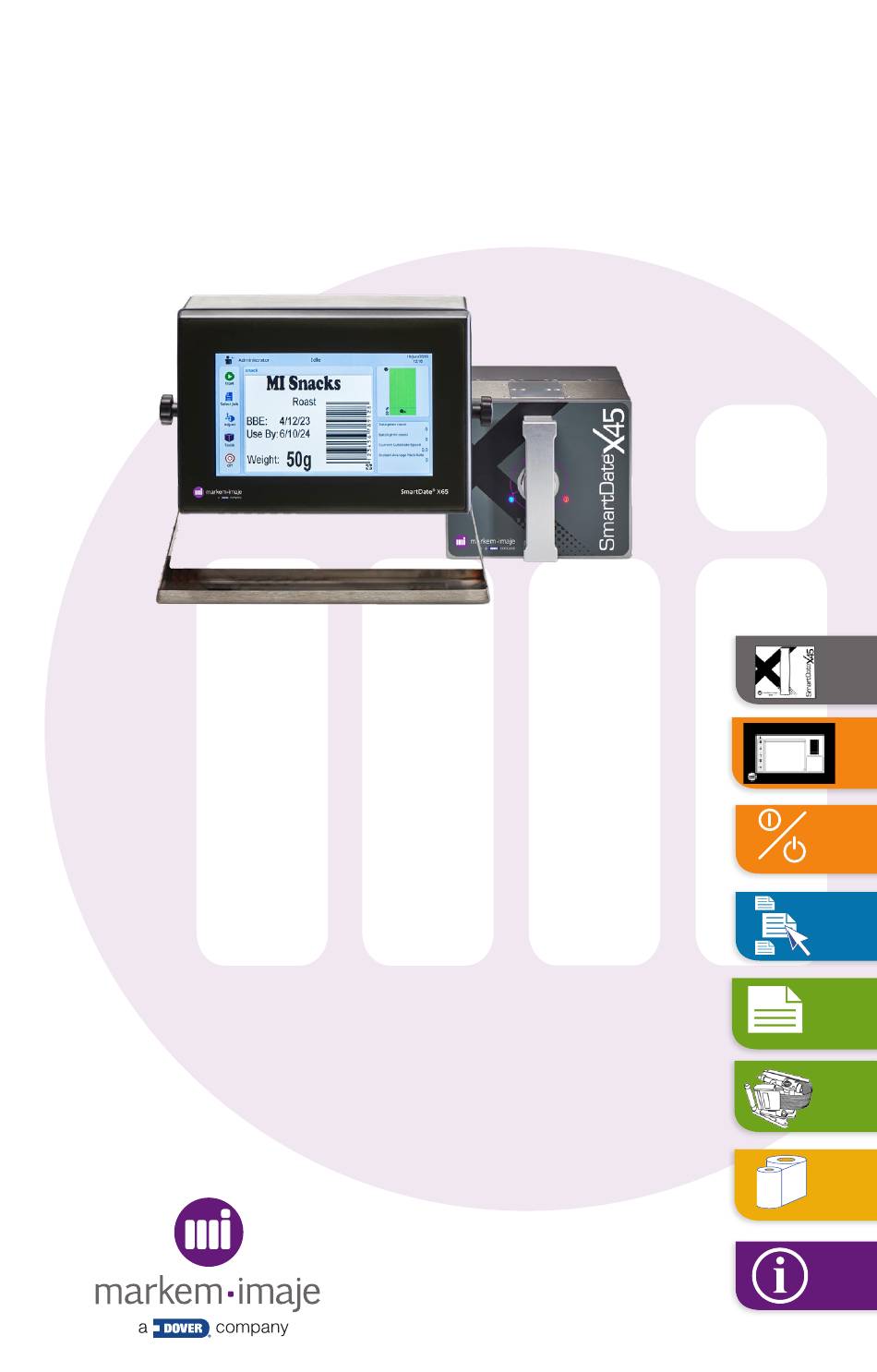

- Page 1 Instruction manual SmartDate X45 Printer Overview User Interface Start/Stop the Printer Select a Job Menu Tree Clean the Printhead Change the Ribbon Information...
-
Page 2: Printer Overview
Printer overview ■ System Components Controller User Interface Printer and Ribbon Cassette Interconnecting Cable Instruction manual... - Page 3 Printer overview ■ Printer Type SmartDate X45 Continuous SmartDate X45 Intermittent Instruction manual...
- Page 4 Printer Overview ■ Connecting the Power ■ Power On/Off Instruction manual...
- Page 5 Printer Overview Producing Not Producing Fault Busy Instruction manual...
-
Page 6: User Interface
User Interface System Date/Time Selected job Printer Status User Profile Consumables Panel 15/10/2020 Idle Operator 11:56 default job Start Use By Select Job 19th May 2022 Adjust Packed in UK Total print count 5904 Batch print count Tools Current Substrate Speed Instant Average Pack Rate Job Preview Zoom... - Page 7 Start/Stop the Printer ■ Starting the Printer 15/10/2020 Operator Idle 11:56 default job Start Use By Select Job 19th May 2022 Packed in UK Total print count Adjust 5904 Batch print count Tools Current Substrate Speed Instant Average Pack Rate ■ Stopping the Printer 15/10/2020 Operator...
- Page 8 Safety Select a Job 15/10/2020 Idle Operator 11:56 default job Start Use By Select Job 19th May 2022 Adjust Packed in UK Total print count 5904 Batch print count Tools Current Substrate Speed Instant Average Pack Rate Job 1 BEST BEFORE Field1 21 JUL 2021 BEST BEFORE...
- Page 9 Select a Job Safety Job 1 BEST BEFORE Field1 21 JUL 2021 BEST BEFORE Field2 21 JUL 2021 Produced in Portugal Field3 Produced in Field4 Portugal Modify Send to Print Accept Information Job selection in progress... Instruction manual...
- Page 10 Safety Menu Tree Test print Registration Select job Offset Adjust Home Print Darkness Tools Rotation Select Profile Administrator Information Operator Supervisor System Counts Maintenance Diagnostic Statistics Events Log Printhead MI Sigma Speed Profile Graph Select Printhead Test Pattern Help Guide About License www.markem-imaje.com Instruction manual...
- Page 11 Clean the Printhead Safety Clean the printhead regularly using Markem-Imaje printhead wipes. Remove the cassette and allow the printhead to cool Use a Markem-Imaje printhead cleaning wipe to remove any residue from the printhead Do not use abrasive materials or tools such as screwdrivers or knives to clean the printhead.
- Page 12 Safety Changing the ribbon Remove the cassette Remove the used ribbon and waste cores Instruction manual...
- Page 13 Changing the ribbon Safety Load the new ribbon following the ribbon load diagram on the cassette Instruction manual...
- Page 14 Information ■ Faults A fault will stop the printer. The fault causing the condition must be fixed before printing can continue. 1300 Cassette Open Exit ■ Warnings A warning will not stop the printer, but will highlight information or a condition that may require attention.
-
Page 15: Calibration Failed
Information Safety ■ Common Faults and Warnings LOW RIBBON The ribbon will soon run out; prepare a new ribbon. CASSETTE OPEN The cassette latch is open; close it. CALIBRATION FAILED The ribbon has broken during calibration; reload the ribbon and try again. - Page 16 Information S/N: Serial number: Ribbon type: For Marking & Coding Equipment. Photographs and drawings are not binding in detail. This document was originally written in English. The English text of this document shall alone be authentic and shall prevail in the event of a dispute. Markem-Imaje reserves the right to modify the specifications of its products without prior notice.
- Page 17 Information Safety Instruction manual...
- Page 18 Markem-Imaje Limited Nottingham Science Park University Boulevard Nottingham NG7 2QN 10099182-AB 08/2019 www.markem-imaje.com...
