SECTION 2 Basic Operation
3.1

LED Indicators

2–6

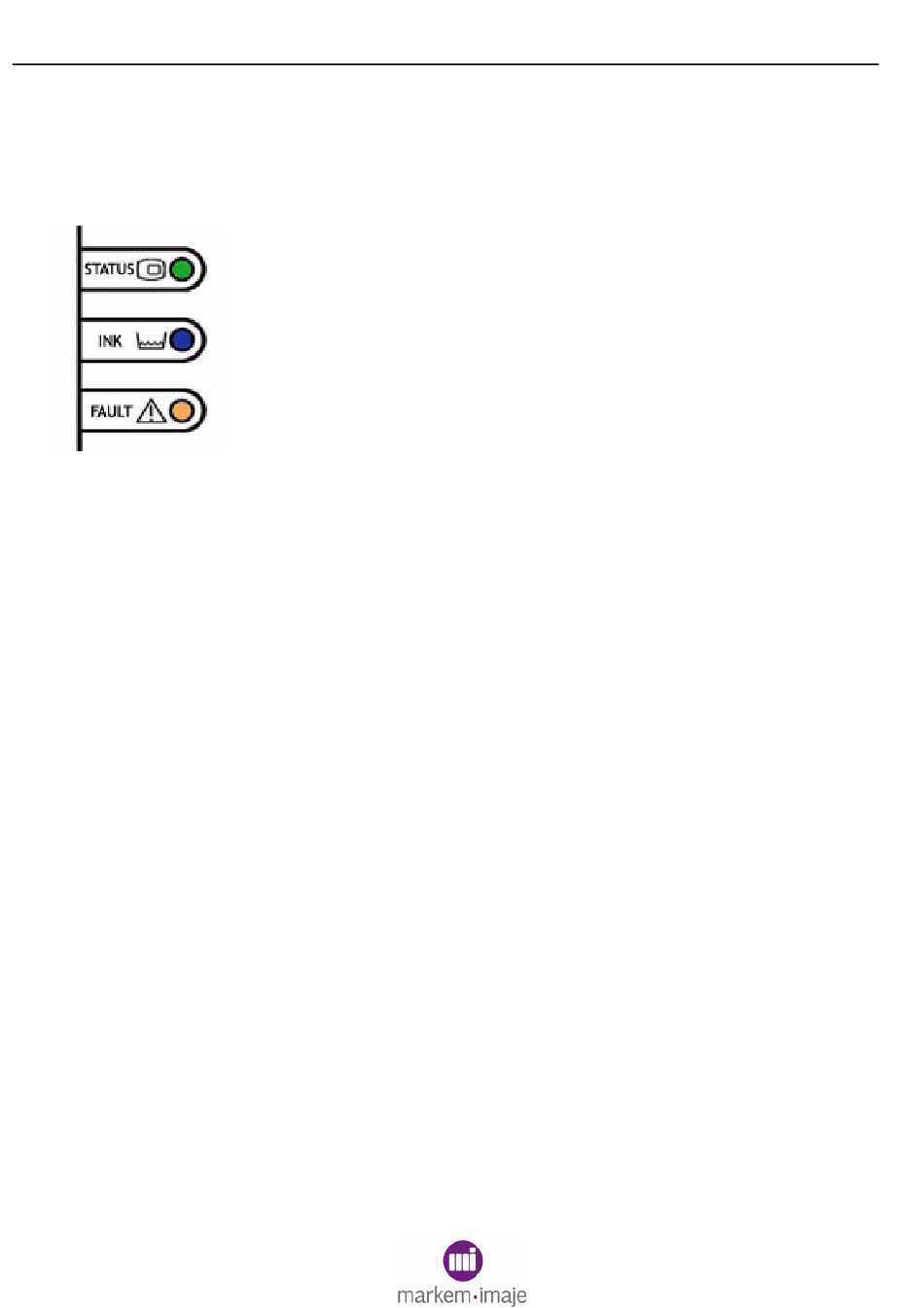

LED indicators on the user interface module are used to monitor the
coder. The Top Level Menu provides messages to indicate the
nature of the printing status, ink supply, and fault condition.
The green STATUS LED indicates whether conditions are met for
printing.
Off Power is off
On Online
Blinking Warming up/cooling down (fast blinking) or
Ready (slow blinking)
The blue INK LED indicates when the coder needs ink
Off Bottle of ink is present
On Add ink bottle
Blinking Add ink bottle immediately
The amber FAULT LED indicates when the coder needs attention.
Off No error or warning
On Warning
Blinking Error (printing will stop)
