3.2.4
3.2.5
3.2.6
0855855eng 6/08
START and STOP Keys
The green START key (3) is used to start printing. When printing,
the coder is online.
The red STOP key (4) is used to stop printing. When not printing,
the coder is offline.
Directional Arrow Keys
The directional arrow keys (5) are used to move the arrow on the
display or the insertion point within a field. Arrow keys can also be
used to navigate from one field to the next.

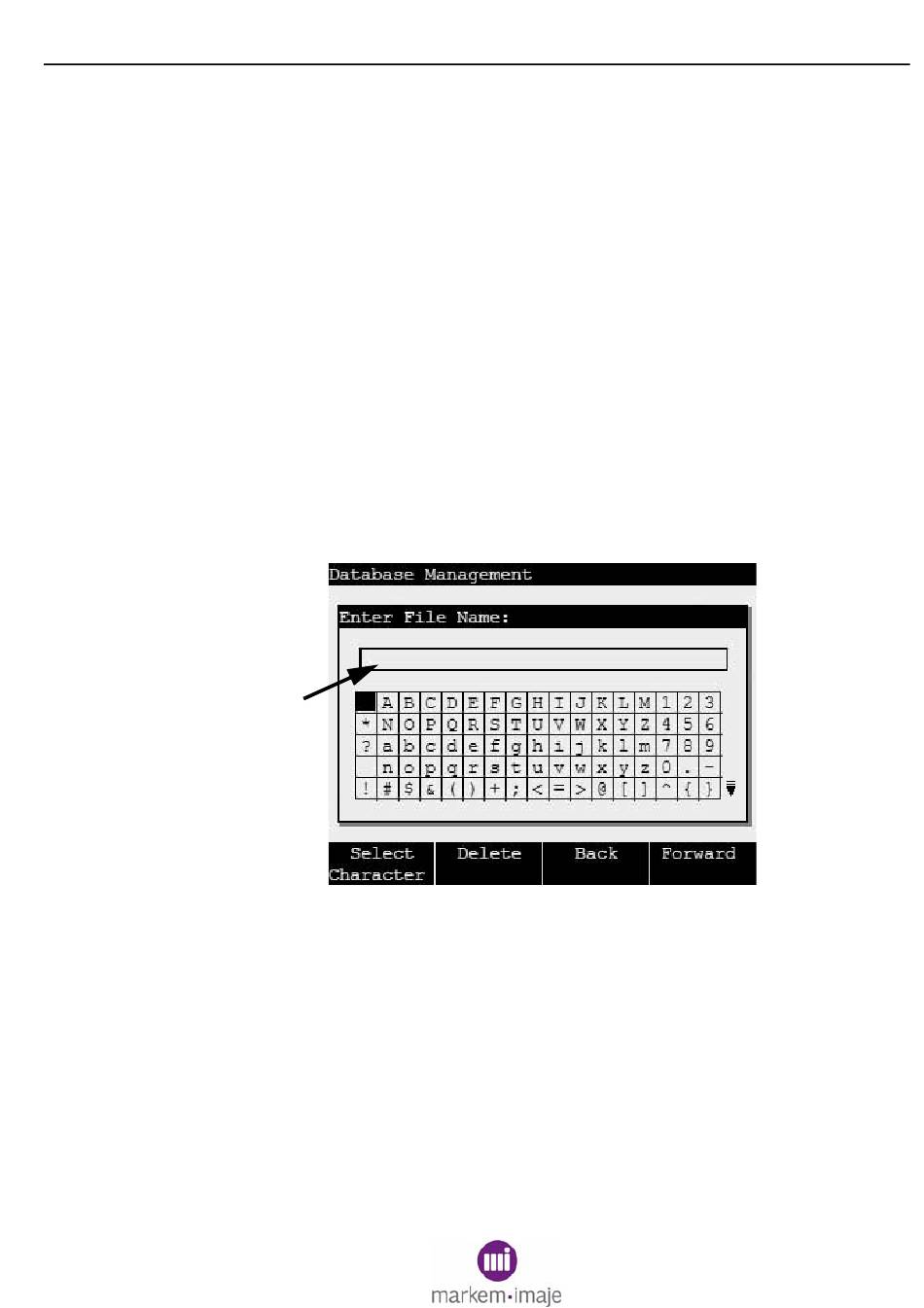

Select Characters Dialog Box

When asked to enter text, a Select Character dialog box will
appear. The keypad is used to select one character at a time. Each
character selected will be inserted at the insertion point (1).
* l
1
• Use the arrow keys or F3 (Back) and F4 (Forward) to highlight a
character.
• When the desired character is highlighted, press F1 (Select
Character). The selected character will appear at the insertion
point.
• Use F2 (Delete) to delete the character to the left of the insertion
point.
• When the desired characters are displayed, press ENTER.
NOTE: If the optional keyboard is installed, the keyboard may be
used instead to enter text.
SECTION 2 Basic Operation
2–9
