Dover markem-imaje 5200 Service Manual page 108

SECTION 6 Field Replaceable Parts
3.4 Replacement
6–4
1
5
3
2
1. Reverse the steps taken in Removal, paragraph 2.3.
NOTE: Do not pinch the cables below the user interface module.
2. Align the edges of the user interface to the edges of the control
box.
3. Only engage the front captive screw about one turn to allow for
the back one to start easier. One still may have to push down to
compress the gasket to get the thread engagement to start.
Tighten both screws.
4

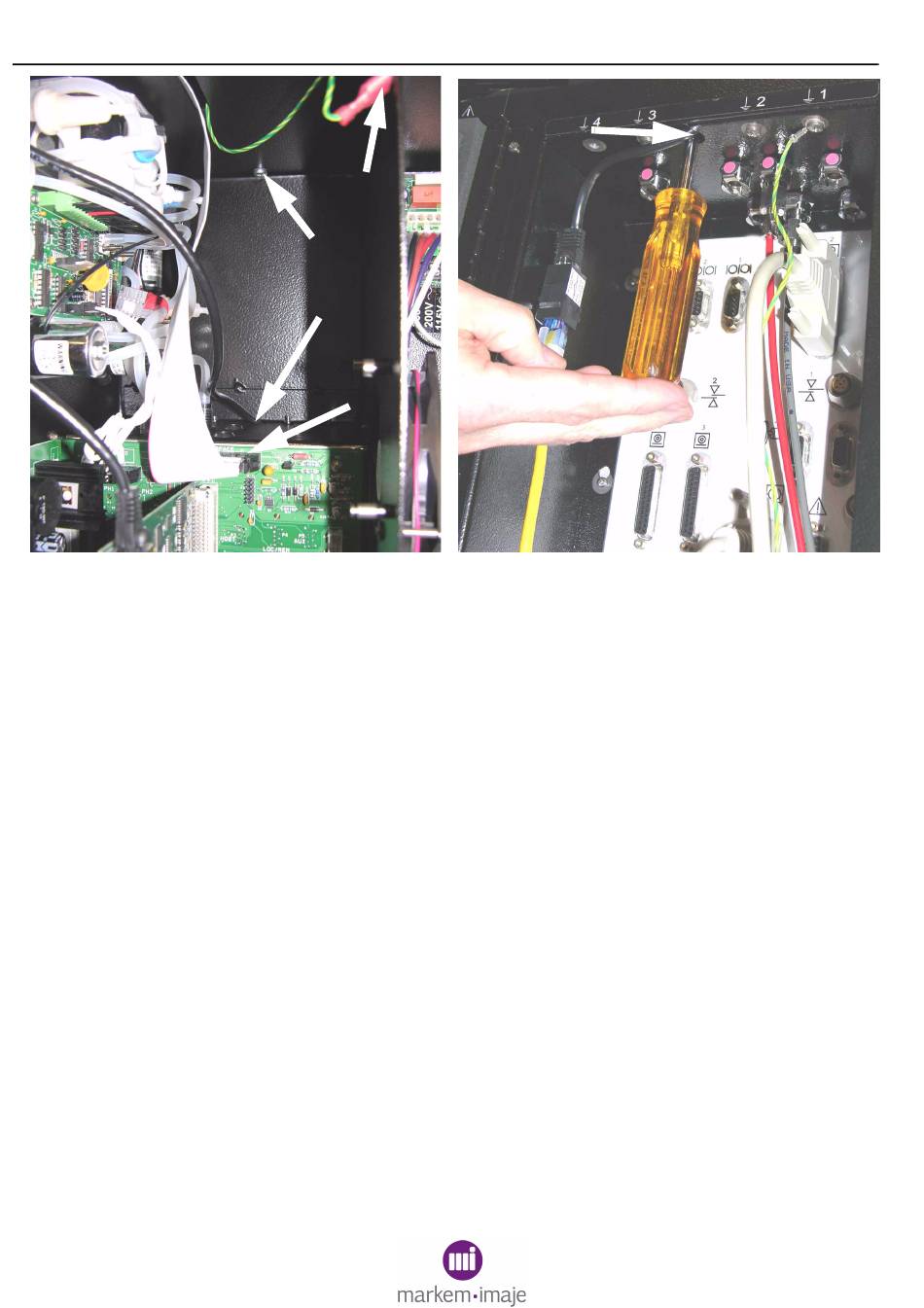

Figure 6–2
0855855eng 6/08
