SECTION 6 Field Replaceable Parts
6–16
4. Remove the wire harness from the wire duct under the
transformer (1, Figure 6-14).
1

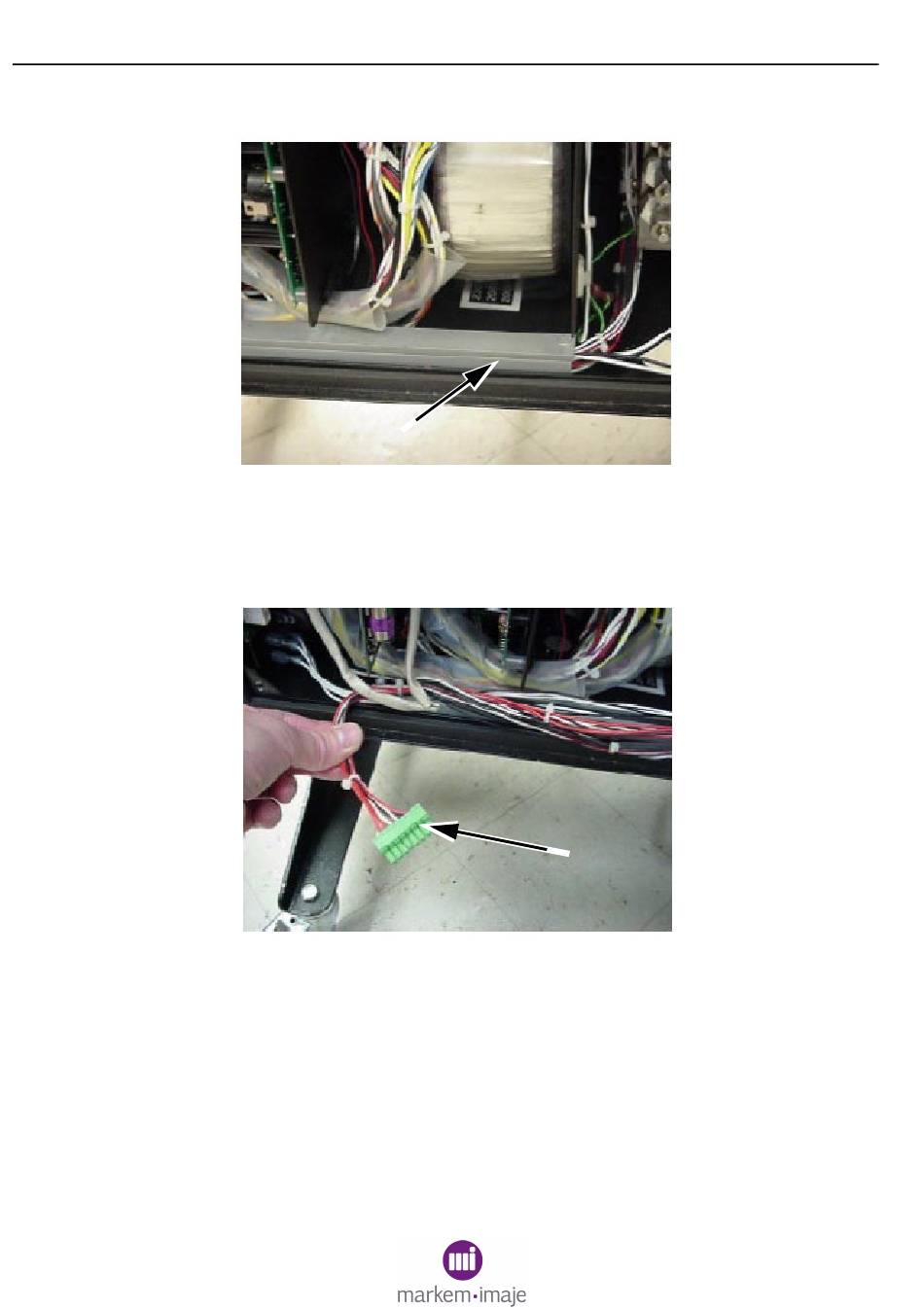

Figure 6–14
5. Disconnect the green connector (J) from the back panel circuit
board (1, Figure 6-15).
Figure 6–15
6. Remove the two ink pump motor wire leads from the connector,
noting which wire color goes to which terminal.
1
