Summary of Contents for Dover Markem Imaje SmartDate X30
- Page 1 Instruction manual Printer overview Local user interface Start/Stop the printer Selecting a job Menu Printhead maintenance Consumables Troubleshooting - Information...
-
Page 2: Printer Overview

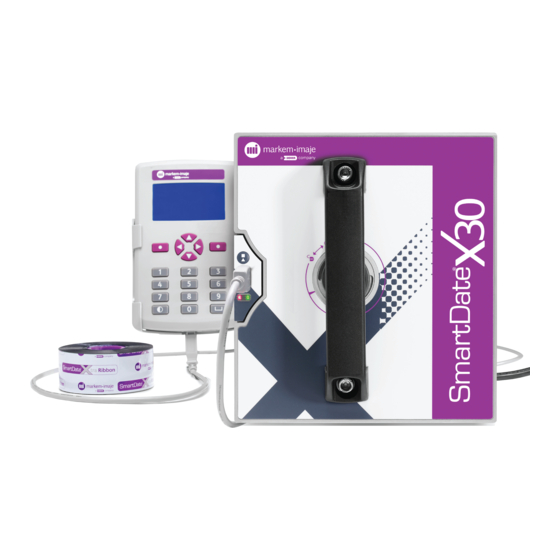

Printer overview ■ Printer Components Printer Ribbon Cassette Detachable Hand-held terminal (HHT) Hand-held terminal USB connecting cable Instruction manual... - Page 3 Printer overview ■ Printer Type SmartDate X30 Continuous SmartDate X30 Intermittent Instruction manual...
-
Page 4: Power Connection
Power connection ■ Connecting the Power Power On Power Off Instruction manual... -
Page 5: Printer Status
Printer status Producing Not Producing/Fault Warning Busy Instruction manual... -
Page 6: Local User Interface
Local user interface LCD Display Producing Job: 20 Navigation Buttons Stop Menu Numeric Keypad Screen Contrast Insert Space Top Quad Left Button Right Button Left Quad Right Quad Bottom Quad Instruction manual... - Page 7 Printer Start/Stop ■ Starting the Printer Ready Job: 20 Menu Start ■ Stopping the Printer Producing Job: 20 Menu Stop Instruction manual...
- Page 8 Safety Selecting a job ■ Using the Smartdate X30 Database Producing 01 Select Job Job: 20 02 Print Adjust 03 Engineering Menu Stop Back Select 01 Job 1 User Text 02 Job 2 Field 1 03 Job 3 xxxx Back Select Back Select...
- Page 9 Selecting a job Safety User Text Job 1 Field 1 Confirm Job Select? xxxx Back Select Confirm Cancel ■ Using a USB Memory Stick Database Note: The SmartDate X30 must be configured to use the USB memory stick database. Insert the USB memory stick into the hand-held terminal and select a job following the same procedure as above.
- Page 10 Safety Selecting a job ■ Using CoLOS Job Database Note: The SmartDate X30 must be configured to use the CoLOS job database. Producing 01 Select Job Job: 20 02 Print Adjust 03 Engineering Menu Stop Back Select Input Job Name User Text Field 1 Job 1...
- Page 11 Selecting a job Safety Job 1 Confirm Job Select? Cancel Confirm Instruction manual...
- Page 12 Safety Printer menus Darkness Registration Select job Offset Print Adjust Menu Rotation Engineering Test Print Settings Machine Date Diagnostics Time Values Language Test Image Communications Manual Control Flex IO Record Profile MTBF Count Statistics HHT Insertions P/H Count File Management Ribbon Count Solenoid On Hours Copy to Printer Service...
- Page 13 Cleaning the Printhead Safety Clean the printhead regularly using Markem-Imaje printhead wipes. Remove the cassette and allow the printhead to cool to normal room temperature. Use a Markem-Imaje printhead cleaning wipe to remove any residue from the printhead as shown. Do not use abrasive materials or tools such as screwdrivers or knifes to clean the printhead.
- Page 14 Safety Changing the ribbon Opening the cassette Do not use force or tools if the latch does not turn. Remove the used ribbon. Instruction manual...
- Page 15 Changing the ribbon Safety Markem-Imaje ribbon only Ribbon Path Right Hand Cassette Left Hand Cassette Instruction manual...
- Page 16 Safety Changing the ribbon Loading the new ribbon (LH cassette shown) Instruction manual...
- Page 17 Faults and Warnings Safety ■ Faults Fault 1109 Calibration Failure Please open and close the cassette Hide A fault will stop the printer. The fault causing the condition must be fixed before printing can continue. ■ Warnings Warning 2103 Cropped print Contents of image does not fit within the image area Hide...
-
Page 18: Faults And Warnings
Faults and Warnings ■ Common Faults and Warnings LOW RIBBON The ribbon will soon run out, prepare a new ribbon. CASSETTE OPEN The cassette latch is open, close it. CALIBRATION FAILED The ribbon has broken during calibration, reload the ribbon and try again. - Page 19 Information Safety S/N: Serial number: Ribbon type: For Marking & Coding Equipment. Photographs and drawings are not binding in detail. This document was originally written in English. The English text of this document shall alone be authentic and shall prevail in the event of a dispute. Markem-Imaje reserves the right to modify the specifications of its products without prior notice.
- Page 20 Markem-Imaje Limited Nottingham Science Park University Boulevard Nottingham NG7 2QN 10082287-AB 01/2019 www.markem-imaje.com...
