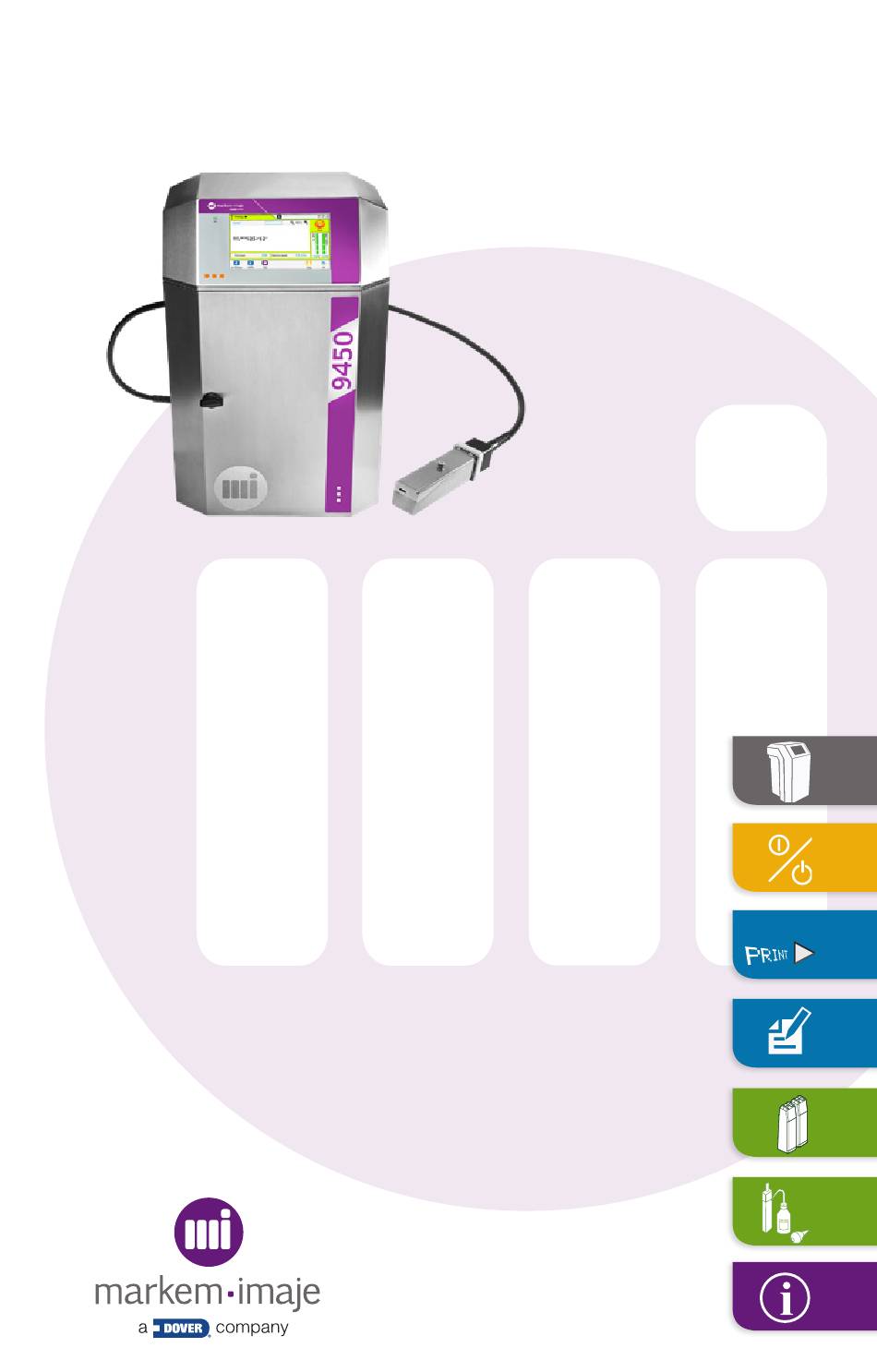

- Page 1 Instruction manual 9410 9450 9450 S Printer and interface overview Starting / shutting down the printer Sending a job for printing Modifying a job Information on consumables Replacing the consumables Head cleaning Troubleshooting - Information...

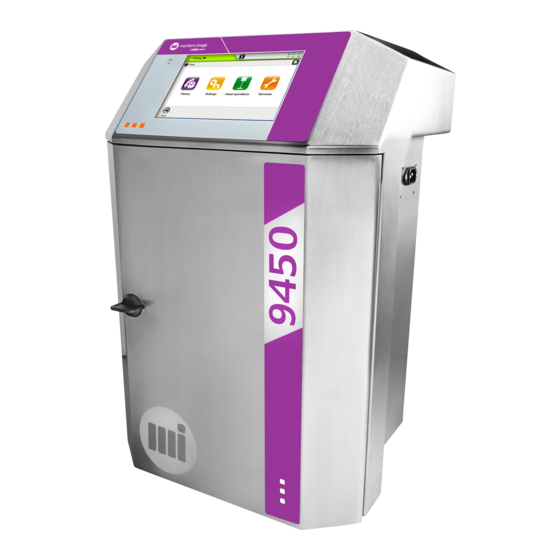

- Page 2 Printer overview Manufacturer’s plate Power supply inlet Access to the electrical compartment Cable glands: other connections (Serial/Parallel Link) Cable glands: Ethernet Connection interface: Warning (yellow) Connection interface: Encoder (blue) Connection interface: Detection cell (black) Power-On LED 10 Operator interface 11 Umbilical 12 Print head 13 Identification label (serial no.) 14 Hydraulics compartment...
- Page 3 Printer overview 16 Air filter (model IP56) 17 Ink cartridge 18 Additive cartridge 19 Pressure pump Instruction manual...
- Page 4 Interface overview Name of the job being Time remaining indicator printed Colored background. Start/Stop printer Printing status External equipment Production information connection indicator Colored bar. Printer Preview of the job being information printed Start/Pause printing Icon bar Consult operating Printer reports information Navigation window Current date and time...
- Page 5 Presentation of the menus Instruction manual...
- Page 6 Presentation of the menus Instruction manual...
- Page 7 Presentation of the menus Instruction manual...
- Page 8 Starting up the printer Printer stopped 00:00:40 Confirm printer start instruction. Start-up in progress Jet start-up in progress 00:02:00 Ready Ready to print the 'Tomatoes' job displayed. Instruction manual...
- Page 9 Shutting down the printer Confirm printer stop instruction. Jet stopped Stopping 00:02:00 Printer stopped (if necessary) Instruction manual...
- Page 10 Safety Sending a job for printing Ready Ready Instruction manual...
- Page 11 Sending a job for printing Safety Suspend printing: Printing paused Resume printing: Confirm resume printing instruction Printing Instruction manual...
- Page 12 Safety Modifying a job Modify message in production Modifiable fields Text modified Instruction manual...
- Page 13 Modifying a job Safety Confirm the modification. Instruction manual...
- Page 14 Safety Information on consumables Ink cartridge information area Additive cartridge information area Ink/additive Détails Consommables references detected - Black text: OK Encre Additif - Red text: bad cartridge MB175 Réf. détectée : J188 Réf. détectée : - Other text: the MB175 Réf.
- Page 15 Replacing the consumables Safety Only if: Replace ink cartridge Replace additive cartridge Replace ink cartridge Replace additive cartridge Additive Repeat operations in reverse WARNING order. Risk of puncture After the new ink cartridge is inserted, When replacing the it empties either completely or cartridges, do not partially into the printer’s internal tank, touch the nozzle.
- Page 16 Safety G Head cleaning Ready ► Jet stopped Only use Markem-Imaje cleaning fluid. Instruction manual...
- Page 17 G Head cleaning Safety Jet stopped Ready 00:00:45 When using certain inks or operating the printer in harsh environments (hot and/or dusty environments), you will need to clean the head thoroughly. See user manual or Sheet A47081. Instruction manual...
- Page 18 Safety M Head cleaning Ready ► Jet stopped Only use Markem-Imaje cleaning fluid. Instruction manual...
- Page 19 M Head cleaning Safety Jet stopped Ready 00:00:45 When using certain inks or operating the printer in harsh environments (hot and/or dusty environments), you will need to clean the head thoroughly. See user manual or Sheet A47081. Instruction manual...
- Page 20 Troubleshooting Alarm Fault: printing not possible Consult the troubleshooting screens (if available) Acknowledge the fault or alarm Acknowledge all faults and alarms Instruction manual...
- Page 21 Information Safety Information for machines equipped with a light beacon (blue, yellow, green): • The green light indicates normal conditions. • The blue light indicates a condition that requires operator action. • The yellow light indicates an abnormal condition, the emergence of a critical condition.
- Page 22 Markem-Imaje Industries 9, rue Gaspard Monge 26500 BOURG-LES-VALENCE France tel 33 (0)4 75 75 55 00 A48552-BB 11/2019 www.markem-imaje.com...
