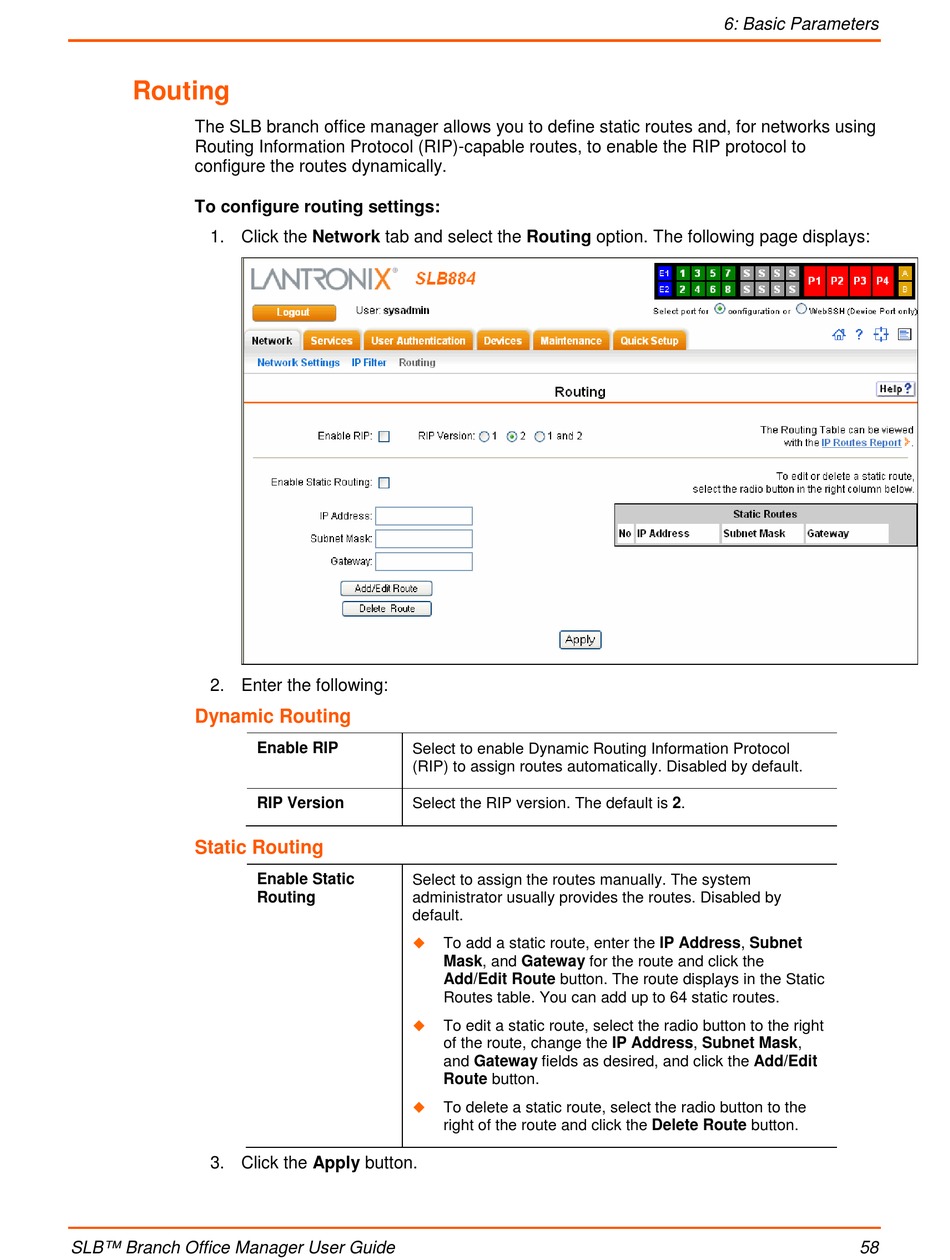

Routing

The SLB branch office manager allows you to define static routes and, for networks using
Routing Information Protocol (RIP)-capable routes, to enable the RIP protocol to
configure the routes dynamically.
To configure routing settings:
1. Click the Network tab and select the Routing option. The following page displays:
2. Enter the following:
Dynamic Routing
Static Routing
3. Click the Apply button.
SLB™ Branch Office Manager User Guide
Enable RIP Select to enable Dynamic Routing Information Protocol
(RIP) to assign routes automatically. Disabled by default.
RIP Version Select the RIP version. The default is 2.
Enable Static Select to assign the routes manually. The system
Routing administrator usually provides the routes. Disabled by
default.



To add a static route, enter the IP Address, Subnet
Mask, and Gateway for the route and click the
Add/Edit Route button. The route displays in the Static
Routes table. You can add up to 64 static routes.
To edit a static route, select the radio button to the right
of the route, change the IP Address, Subnet Mask,
and Gateway fields as desired, and click the Add/Edit
Route button.
To delete a static route, select the radio button to the
right of the route and click the Delete Route button.
