Two-Line
LCD Display

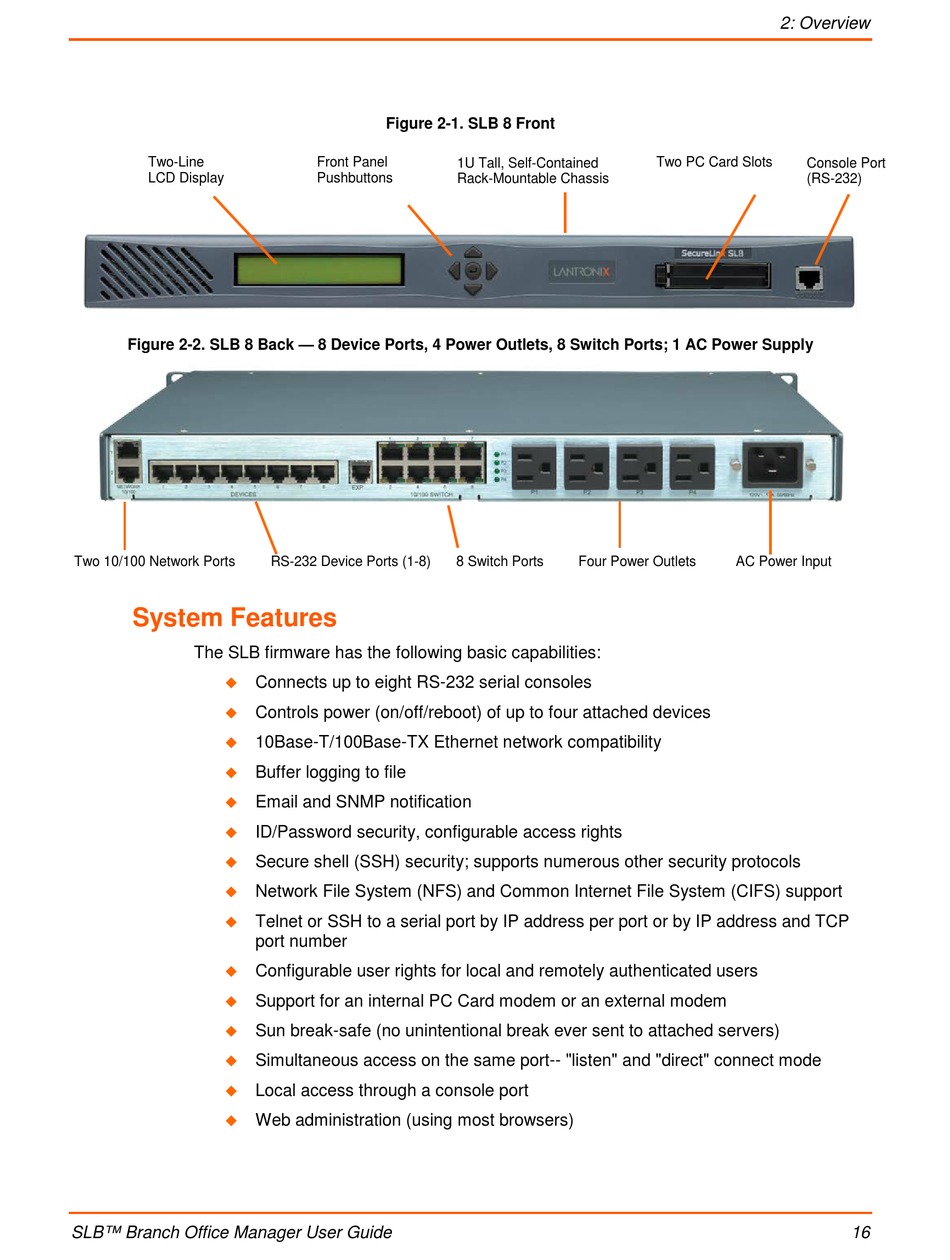

Figure 2-2. SLB 8 Back — 8 Device Ports, 4 Power Outlets, 8 Switch Ports; 1 AC Power Supply
Two 10/100 Network Ports

System Features

The SLB firmware has the following basic capabilities:















SLB™ Branch Office Manager User Guide

Figure 2-1. SLB 8 Front

Front Panel
Pushbuttons
RS-232 Device Ports (1-8)
Connects up to eight RS-232 serial consoles
Controls power (on/off/reboot) of up to four attached devices
10Base-T/100Base-TX Ethernet network compatibility
Buffer logging to file
Email and SNMP notification
ID/Password security, configurable access rights
Secure shell (SSH) security; supports numerous other security protocols
Network File System (NFS) and Common Internet File System (CIFS) support
Telnet or SSH to a serial port by IP address per port or by IP address and TCP
port number
Configurable user rights for local and remotely authenticated users
Support for an internal PC Card modem or an external modem
Sun break-safe (no unintentional break ever sent to attached servers)
Simultaneous access on the same port-- "listen" and "direct" connect mode
Local access through a console port
Web administration (using most browsers)
1U Tall, Self-Contained
Rack-Mountable Chassis
8 Switch Ports Four Power Outlets
2: Overview
Two PC Card Slots Console Port
(RS-232)
AC Power Input
16
