Lantronix SISPM1040-582-LRT Manual

Managed hardened poe++ switch (8) 10/100/1000base-t poe++ ports + (2) 100/1000base-x sfp slot
Hide thumbs Also See for SISPM1040-582-LRT:
Table of Contents

Advertisement

Quick Links

Download this manual

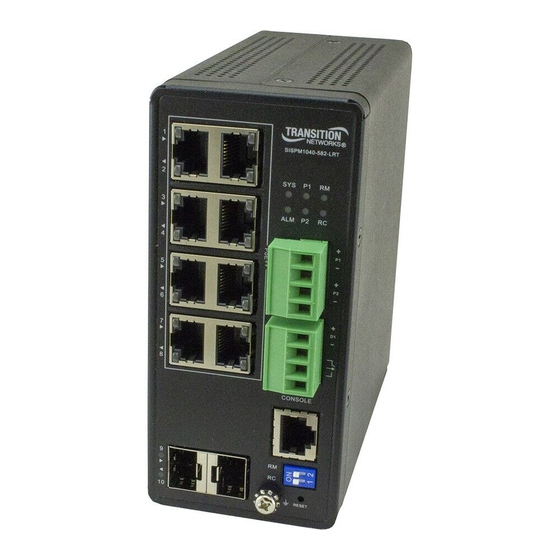

SISPM1040-582-LRT
Managed Hardened PoE++ Switch (8) 10/100/1000Base-T PoE++ Ports + (2)
100/1000Base-X SFP Slot
CLI Reference
Part Number 33757
Revision J November 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SISPM1040-582-LRT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lantronix SISPM1040-582-LRT

Summary of Contents for Lantronix SISPM1040-582-LRT

  • Page 1 SISPM1040-582-LRT Managed Hardened PoE++ Switch (8) 10/100/1000Base-T PoE++ Ports + (2) 100/1000Base-X SFP Slot CLI Reference Part Number 33757 Revision J November 2023...
  • Page 2 Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.

  • Page 3: Table Of Contents

    Lantronix SISPM1040-582-LRT CLI Reference Contents 1 Introduction ............................... 5 1.1 Key Features ..............................5 1.2 Manual Overview ............................5 1.3 Related Manuals ............................5 CLI Management ............................. 6 2.1 Login ................................6 2.2 Navigating the Command Line ........................6 2.3 CLI Command Modes ............................ 7 2.4 Changing Between Command Modes ......................
  • Page 4 Lantronix SISPM1040-582-LRT CLI Reference Interface Config Mode Commands ......................209 26.1 Configure and Show Port Events for an Interface..................242 26.2 Configure QoS Commands for an Interface ..................... 244 MRP Pre-Requisites and Application Examples ..................246 27.1 MRP Description ............................246 27.2 MRP Operation ............................

  • Page 5: Introduction

    Go to the Lantronix Resource Center for Lantronix Firmware, Manuals, Tech Support, Knowledge Base, FAQs, etc. Note that this manual provides links to third part web sites for which Lantronix is not responsible. For SFP or SFP+ information see Lantronix webpage.

  • Page 6: Cli Management

    Lantronix SISPM1040-582-LRT CLI Reference CLI Management Follow the steps below to make a network connection for CLI command management. 1. Locate the correct DB-9 (RS-232) cable with a female DB-9 connector. RS-232 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RJ45 port to access the command line interface.

  • Page 7: Cli Command Modes

    Lantronix SISPM1040-582-LRT CLI Reference 2.3 CLI Command Modes The CLI is divided into several modes. If a user has enough privilege to run a particular command, the user has to run the command in the correct mode. To see the commands of the mode, enter a “?” after the system prompt, then all commands will be listed in the screen.

  • Page 8: Privilege Levels

    Lantronix SISPM1040-582-LRT CLI Reference 2.6 Privilege Levels Every command has a privilege level (0-15). Users can run a command if the session’s privilege level is greater than or equal to the command’s privilege level. The session’s privilege level initially comes from the login account’s privilege level, though it is possible to change the session’s privilege level after logging in.
  • Page 9 Lantronix SISPM1040-582-LRT CLI Reference Command: ? or ?? or Tab Description: Enter one question mark (?) with no space in the command line to display a command description. Enter one question mark (?) with space in the command line to display the parameters available.
  • Page 10 Parameters: interface Interface keyword GigabitEthernet 1 Gigabit Ethernet Port <port_type_id> Port ID in 1/1-8 Example: SISPM1040-582-LRT# CableDiag interface GigabitEthernet 1/3 Starting Cable Diagnostic - Please wait Interface Link Status Test Result Length ---------------------- ------------- ------------- ------------- GigabitEthernet 1/3 Link Down...
  • Page 11 Interface All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list in 1/1-10 Example: SISPM1040-582-LRT# dot1x initialize interface * 1/5 GigabitEthernet 1/5 SISPM1040-582-LRT# dot1x initialize SISPM1040-582-LRT# Command: Exit Description: Exit from EXEC mode. Syntax : exit...
  • Page 12 Lantronix SISPM1040-582-LRT CLI Reference Command: Help Description: Description of the interactive help system. help Syntax : Parameters: None Example: SISPM1040-582-LRT# help Help may be requested at any point in a command by entering a question mark '?'. If nothing matches, the help list will be empty and you must backup until entering a '?' shows the available options.
  • Page 13 Lantronix SISPM1040-582-LRT CLI Reference more Command: Description: Display file. Syntax : more <path> Parameters: <url_file> File in FLASH or on TFTP server. Syntax: <flash:filename | tftp://server/path-and-filename>. A valid file name is a text string drawn from alphabet (A-Za-z), digits (0-9), dot (.), hyphen (-), under score (_).

  • Page 14: Clear Commands

    Clear statistics for one or more given interfaces Command: access Description: Clear Access management. access Syntax : Parameters: None Example: SISPM1040-582-LRT# clear access management statistics ? <cr> SISPM1040-582-LRT# clear access management statistics SISPM1040-582-LRT# Command: access list Description: Clear Access list. Syntax : clear access-list ace statistics...
  • Page 15 <cr> SISPM1040-582-LRT# clear dot1x statistics SISPM1040-582-LRT# clear dot1x statistics interface ? All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040-582-LRT# clear dot1x statistics interface GigabitEthernet 1/2-4 SISPM1040-582-LRT# Command: Description: Clear Ethernet Protection Switching. Syntax : clear eps <inst> wtr Parameters: <uint>...
  • Page 16 SISPM1040-582-LRT# clear evc statistics ? interface Interface <cr> SISPM1040-582-LRT# clear evc statistics SISPM1040-582-LRT# clear evc statistics interface ? All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040-582-LRT# clear evc statistics interface GigabitEthernet 1/3-7 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 16 of 272...
  • Page 17 SISPM1040-582-LRT# clear ip dhcp detailed statistics all SISPM1040-582-LRT# clear ip dhcp server binding 192.168.1.11 SISPM1040-582-LRT# $ing statistics interface GigabitEthernet 1/1-10 SISPM1040-582-LRT# clear ip statistics system interface vlan 10 % Failed to clear IPv4 VLAN 10 statistics. SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/...
  • Page 18 Search by VLAN <vlan_list> IPv6 interface VLAN list Example: SISPM1040-582-LRT# clear ipv6 mld snooping vlan 3 statistics SISPM1040-582-LRT# clear ipv6 neighbors SISPM1040-582-LRT# Clear ipv6 statistics system icmp icmp-msg 2 SISPM1040-582-LRT# clear ipv6 dhcp-client statistics interface vlan 100 % Invalid DHCPv6 client interface Vlan100...
  • Page 19 SISPM1040-582-LRT# clear link-oam statistics ? interface Clear Link OAM statistic on a specific interface or all interfaces. <cr> SISPM1040-582-LRT# clear link-oam statistics SISPM1040-582-LRT# clear link-oam statistics interface GigabitEthernet 1/10 SISPM1040-582-LRT# Command: lldp Description: Clear LLDP statistics for one or more given interfaces.
  • Page 20 The MEP instance. Clear G.8113.2 BFD CC/CV statistics counters. Clear DM measuring information. Clear LM measuring information. Clear TST measuring information. Example: SISPM1040-582-LRT# clear mep 1 dm Error: MEP instance is not enabled SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 20 of 272...
  • Page 21 Choose port SISPM1040-582-LRT# clear port-security sticky interface ? All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port SISPM1040-582-LRT# $lear port-security sticky interface GigabitEthernet 1/5-8 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 21 of 272...
  • Page 22 <0-3> SISPM1040-582-LRT# clear ptp? clear ptp <clockinst> servo SISPM1040-582-LRT# clear ptp 0 ? servo SISPM1040-582-LRT# clear ptp 0 servo ? <cr> SISPM1040-582-LRT# clear ptp 0 servo Clock instance 0 : does not exist %% Failed to set network-clock configuration. SISPM1040-582-LRT#...
  • Page 23 All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port interface Interface <port_type_list> Port list for all port types Example: SISPM1040-582-LRT# clear statistics GigabitEthernet 1/1-10 SISPM1040-582-LRT# clear statistics * 1/3 * SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 23 of 272...

  • Page 24: Configure Mode Commands

    Lantronix SISPM1040-582-LRT CLI Reference Configure Mode Commands Enter the configure terminal command to got fro Exec mode to Config mode. Command Function Authentication, Authorization and Accounting access Access management access-list Access list aggregation Aggregation mode always-on-poe Enable Always-on PoE banner...
  • Page 25 Lantronix SISPM1040-582-LRT CLI Reference Power Over Ethernet. port-security Enable/disable port security globally. privilege Command privilege parameters Precision time Protocol (1588) Quality of Service radius-server Configure RADIUS rapid-ring Set Rapid Ring's configurations ring-to-ring Set Ring to Ring's configurations rmon Remote Monitoring sflow Statistics flow.
  • Page 26 Configure authorization fallback mode config-commands Include configuration commands Example: SISPM1040-582-LRT(config)# aaa accounting console tacacs commands 14 exec SISPM1040-582-LRT(config)# aaa authentication login http radius SISPM1040-582-LRT(config)# aaa authorization ssh tacacs ommands 15 config-commands fallback 33757 Rev. J https://www.lantronix.com/ Page 26 of 272...
  • Page 27 All services snmp SNMP service telnet TELNET/SSH service End address of the range Web service Example: SISPM1040-582-LRT(config)# access management 1 100 192.168.1.30 all SISPM1040-582-LRT(config)# access management 1 100 10.0.4.90 snmp telnet web SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 27 of 272...
  • Page 28 Lantronix SISPM1040-582-LRT CLI Reference Table : configure – access-list Commands Command Function Access list entry rate-limiter Rate limiter Command: Description: Access list entry Syntax : access-list ace [ update ] <ace_id> [ next { <ace_id_next> | last } ] [ ingress { switch <ingress_switch_id> | switchport { <ingress_switch_port_id>...
  • Page 29 Lantronix SISPM1040-582-LRT CLI Reference access-list rate-limiter [ <rate_limiter_list> ] { pps <pps_rate> | 10pps <pps10_rate> | 100pps <pps100_rate> | 25kbps <kpbs25_rate> | 100kbps <kpbs100_rate> } Parameters: <1-256> ACE ID update Update an existing ACE Access list entry action Access list action...
  • Page 30 SISPM1040-582-LRT(config)# access-list ace 10 action deny SISPM1040-582-LRT(config)# access-list ace 1 dmac-type broadcast frame-type ipv4-tcp SISPM1040-582-LRT(config)# access-list ace 2 action deny dmac-type broadcast rate-limiter 1 redirect interface GigabitEthernet 1/4 tag untagged % The specific DMAC type(unicast, multicast or broadcast) is not supported when ACE any frame type.
  • Page 31 IP address affects the distribution port IP port affects the distribution smac Source MAC affects the distribution Example: SISPM1040-582-LRT(config)# aggregation mode ip port dmac smac SISPM1040-582-LRT(config)# Command: always-on-poe Description: Enable Always-on PoE. When enabled, during a switch warm restart, the switch will continue supplying PoE power to the PDs (FW VB7.10.2658 and...
  • Page 32 <end_month_var> <end_date_var> <end_year_var> <end_hour_var> [ <offset_var> ] ] clock summer-time <word16> recurring [ <start_week_var> <start_day_var> <start_month_var> <start_hour_var> <end_week_var> <end_day_var> <end_month_var> <end_hour_var> [ <offset_var> ] ] clock timezone <word_var> <hour_var> [ <minute_var> [ <subtype_var> ] ] Parameters: Example: SISPM1040-582-LRT(config)# clock set 2022/02/21 17:35:31 2022-02-21T17:35:31+00:00 SISPM1040-582-LRT(config)# Command: command-history-log Description: Enable to Save Command History to Flash.
  • Page 33 Some debug commands when enabled they stay on, consuming CPU and memory and ultimately slowing the system down. Note: 'debug' command syntax, semantics and behavior are subject to change without notice. Note: Debug commands are only for use by, or at the direction of Lantronix Technical Support. Command: default Description: Set a command to its defaults.
  • Page 34 SISPM1040-582-LRT CLI Reference Command: Description: Run Exec commands in Config mode. Syntax : <line> Exec Command Parameters: do <command> Example: SISPM1040-582-LRT(config)# do show vlan VLAN Name Interfaces ---- -------------------------------- ---------- default Gi 1/1-10 VLAN0100 Gi 1/2-3 VLAN0200 Gi 1/2-3 SISPM1040-582-LRT(config)#...
  • Page 35 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Ethernet Protection Switching. Syntax : eps <inst> 1plus1 { bidirectional | { unidirectional [ aps ] } } eps <inst> command { lockout | forced | manualp | manualw | exercise | freeze |lockoutlocal } eps <inst>...
  • Page 36 SISPM1040-582-LRT(config)# eps 1 1plus1 bidirectional SISPM1040-582-LRT(config)# eps 1 command manualw SISPM1040-582-LRT(config)# eps 1 revertive 10m SISPM1040-582-LRT(config)# eps 1 domain port architecture 1for1 work-flow GigabitEthernet 1/4 protect- flow GigabitEthernet 1/6 SISPM1040-582-LRT(config)# eps 1 holdoff 50 SISPM1040-582-LRT(config)# eps 1 mep 2 mep-protect 3 mep-aps 4...
  • Page 37 Lantronix SISPM1040-582-LRT CLI Reference Command: erps Description: Configure Ethernet Ring Protection Switching. Syntax : erps <group> guard <guard_time_ms> erps <group> holdoff <holdoff_time_ms> erps <group> major port0 interface <port_type> <port0> port1 interface <port_type> <port1> [ interconnect ] erps <group> mep port0 sf <p0_sf> aps <p0_aps> port1 sf <p1_sf> aps <p1_aps>...
  • Page 38 SISPM1040-582-LRT(config)# erps 1 guard 10 SISPM1040-582-LRT(config)# erps 1 holdoff 0 SISPM1040-582-LRT(config)# $erface GigabitEthernet 1/2 interconnect SISPM1040-582-LRT(config)# erps 1 mep port0 sf 1 aps 1 port1 sf 1 aps 1 SISPM1040-582-LRT(config)# erps 1 revertive 1 SISPM1040-582-LRT(config)# erps 1 rpl owner port1...
  • Page 39 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Ethernet Virtual Connections. Syntax : evc [ update ] <evc_id> { [ vid <evc_vid> ] } [ ivid <ivid> ] [ interface ( <port_type> [ <port_list> ] ) ] { [ leaf { [ vid <leaf_vid>...
  • Page 40 <cr> Example: SISPM1040-582-LRT(config)# evc 1 outer-tag add vid 3 SISPM1040-582-LRT(config)# evc ece 1 cos 3 direction nni-to-uni frame-type any SISPM1040-582-LRT(config)# evc policer 1 type mef cbs 5000 cir 6500 mode aware rate-type line SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 40 of 272...
  • Page 41 Lantronix SISPM1040-582-LRT CLI Reference Command: event Description: Set Trap event severity level. Syntax : event group { AC-Power | ACL | ACL-Log | Access-Mgmt | Auth-Failed | AUTO-SAVING | Cold-Start | Config-Info | DI-1-Normal | Digital-Out | Firmware-Upgrade | Import-Export | LACP | Link-Status | Login | Logout | Mgmt-IP-...
  • Page 42 Voltage Group ID Voltage Warm-Start Group ID Warm Start Example: SISPM1040-582-LRT(config)# event group Mgmt-IP-Change trap enable SISPM1040-582-LRT(config)# event group Auth-Failed level ? <0-7> <0> Emergency ,<1> Alert ,<2> Critical ,<3> Error ,<4> Warning ,<5> Notice ,<6> Informationl ,<7> Debug SISPM1040-582-LRT(config)# event group Auth-Failed level 2...
  • Page 43 5 min 50 min 60 min Example: SISPM1040-582-LRT(config)# exec-timeout autologout 30 SISPM1040-582-LRT(config)# exec-timeout autologout 0 SISPM1040-582-LRT(config)# Auto-Logout Timeout: After you change the Auto-Logout timeout and then log out and log back in, the Auto- Logout timeout setting will be the setting saved to the start-up config file. When the Auto-Logout timeout setting is changed, it directly writes to running-config.
  • Page 44 Range is 1000-5000. Default is 1000. <60-300> leave-time in units of centi seconds. Range is 60-300. Default is 60. <cr> Example: SISPM1040-582-LRT(config)# gvrp max-vlans 333 SISPM1040-582-LRT(config)# gvrp time join-time 8 leave-all-time 2500 leave-time 90 SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 44 of 272...
  • Page 45 <port_type_list> Port list in 1/1-10 <vlan_list> List of VLAN interface numbers, 1~4095 Example: SISPM1040-582-LRT(config)# interface GigabitEthernet 1/1-8 SISPM1040-582-LRT(config-if)# poe weekday Fri hour 22 SISPM1040-582-LRT(config-if)# interface vlan 3 SISPM1040-582-LRT(config-if-vlan)# ip address dhcp SISPM1040-582-LRT(config-if-vlan)# 33757 Rev. J https://www.lantronix.com/ Page 45 of 272...
  • Page 46 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Internet Protocol. Syntax : ip arp inspection ip arp inspection entry interface <port_type> <in_port_type_id> <vlan_var> <mac_var> <ipv4_var> ip arp inspection translate [ interface <port_type> <in_port_type_id> <vlan_var> <mac_var> <ipv4_var> ] ip arp inspection vlan <in_vlan_list>...
  • Page 47 Lantronix SISPM1040-582-LRT CLI Reference helper-address DHCP relay server http Hypertext Transfer Protocol igmp Internet Group Management Protocol link-local Link-Local address binding interface name-server Domain Name System route Add IP route routing Enable routing for IPv4 and IPv6 Secure copy function...
  • Page 48 SISPM1040-582-LRT(config)# ip dhcp server per-port SISPM1040-582-LRT(config)# ip scp server enable SISPM1040-582-LRT(config)# ip http secure-server port 443 SISPM1040-582-LRT(config)# ip http secure-certificate generate SISPM1040-582-LRT(config)# ip dhcp relay information policy drop SISPM1040-582-LRT(config)# ip dhcp relay information policy keep SISPM1040-582-LRT(config)# ip dhcp excluded-address 2.3.4.5 3.4.5.6 SISPM1040-582-LRT(config)# 33757 Rev.
  • Page 49 Lantronix SISPM1040-582-LRT CLI Reference Example 2: SISPM1040-582-LRT(config)# ip gateway interface 1 SISPM1040-582-LRT(config)# ip dhcp server per-port vlan 10 SISPM1040-582-LRT(config)# Messages: % Ip gateway interface 10 binding error! % No such interface type: v Example 3 : DHCP option 3 in FW v7.20.0034: a default gateway can be received on a VLAN other than VLAN 1.
  • Page 50 Lantronix SISPM1040-582-LRT CLI Reference Command: ip dhcp pool Description: Configure an IP DHCP Pool. Syntax : bootfile <bootFile> broadcast <ip> client-identifier { fqdn <identifier> | mac-address <mac> } client-name <host_name> default-router <ip> [ <ip1> [ <ip2> [ <ip3> ] ] ] dns-server <ip>...
  • Page 51 Lantronix SISPM1040-582-LRT CLI Reference Parameters: <word32> Pool name in 32 characters bootfile Boot file name broadcast Broadcast address in use on the client's subnet client-identifier Client identifier client-name Client host name default-router Default routers dns-server DNS servers To run exec commands in config mode...
  • Page 52 SISPM1040-582-LRT(config-dhcp-pool)# bootfile CartC SISPM1040-582-LRT(config-dhcp-pool)# broadcast 188.222.22.23 SISPM1040-582-LRT(config-dhcp-pool)# client-identifier fqdn BobBDomain1 SISPM1040-582-LRT(config-dhcp-pool)# $ntifier mac-address 11-22-33-44-55-66 SISPM1040-582-LRT(config-dhcp-pool)# client-name BobB SISPM1040-582-LRT(config-dhcp-pool)# default-router 2.3.4.5 SISPM1040-582-LRT(config-dhcp-pool)# dns-server 3.5.7.9 SISPM1040-582-LRT(config-dhcp-pool)# do show ip interface brief Vlan Address Method Status ---- -------------------- -------- ------ 1 192.168.1.77/24 Manual 2 192.168.2.7/24...
  • Page 53 Lantronix SISPM1040-582-LRT CLI Reference SISPM1040-582-LRT(config)# ip dhcp pool ? <word32> Pool name in 32 characters SISPM1040-582-LRT(config)# ip dhcp pool BobB SISPM1040-582-LRT(config-dhcp-pool)# hardware-address 22-44-66-88-99-11 SISPM1040-582-LRT(config-dhcp-pool)# lease 300 12 30 SISPM1040-582-LRT(config-dhcp-pool)# netbios-name-server 2.3.5.5 SISPM1040-582-LRT(config-dhcp-pool)# netbios-node-type p-node SISPM1040-582-LRT(config-dhcp-pool)# netbios-scope ScoID4 SISPM1040-582-LRT(config-dhcp-pool)# nis-domain-name TomM SISPM1040-582-LRT(config-dhcp-pool)# nis-server 132.32.33.3...
  • Page 54 Lantronix SISPM1040-582-LRT CLI Reference Client name is - Pool Name: pool1 ---------------------------------------------- Type is - IP is - Subnet mask is - Subnet broadcast address is - Lease time is 1 days 0 hours 0 minutes Default router is -...
  • Page 55 Set mode to scp Disabled enable Set mode to scp Enabled Example: SISPM1040-582-LRT(config)# ip scp server enable SISPM1040-58-LRT(config)# Firmware version v7.10.1863 added the Secure Copy (SCP) feature on the switch to provide a secure and authenticated method for these features requirements: 1.
  • Page 56 Specify next entry used in profile. Default: Add entry last. Example: SISPM1040-582-LRT(config)# ipmc? ipmc IPv4/IPv6 multicast configuration SISPM1040-582-LRT(config)# ipmc profile test SISPM1040-582-LRT(config-ipmc-profile)# ? default Set a command to its defaults description Additional description about the profile in 64 characters...
  • Page 57 <8-128> Prefix length ranges from 8 to 128 Example: SISPM1040-582-LRT(config)# ipv6 mld host-proxy leave-proxy SISPM1040-582-LRT(config)# ipv6 mld snooping vlan 1 SISPM1040-582-LRT(config)# ipv6 route?? ipv6 route <v_ipv6_subnet> { <v_ipv6_ucast> | interface vlan <v_vlan_id> <v_ipv6_addr> } SISPM1040-582-LRT(config)# ipv6 mld unknown-flooding SISPM1040-582-LRT(config)# ipv6 mld ssm-range ff02::1 12...
  • Page 58 SISPM1040-582-LRT(config)# $r index 1 couple-ip 192.168.1.30 192.168.1.40 SISPM1040-582-LRT(config)# lacp on-air index 1 port ? GigabitEthernet 1 Gigabit Ethernet Port SISPM1040-582-LRT(config)# lacp on-air index 1 port GigabitEthernet 1/2 SISPM1040-582-LRT(config)# $r index 1 couple-ip 192.168.1.77 192.168.1.78 SISPM1040-582-LRT(config)# do show lacp on-air LACP On Air configuration...
  • Page 59 Console Line number <0~15> List of VTY numbers <0-1440> Timeout in minutes Example: SISPM1040-582-LRT(config)# line console 0 SISPM1040-582-LRT(config-line)# do show version brief Version : SISPM1040-582-LRT (standalone) VB7.20.0190 Build Date : 2023-09-04T09:39:13+08:00 SISPM1040-582-LRT(config-line)# exec-timeout 1440 SISPM1040-582-LRT(config-line)# history size 16 SISPM1040-582-LRT(config-line)# no ?
  • Page 60 Lantronix SISPM1040-582-LRT CLI Reference Command: lldp Description: LLDP and LLDP-MED configuration commands. Syntax : lldp holdtime <val> lldp med datum { wgs84 | nad83-navd88 | nad83-mllw } lldp med fast <v_1_to_10> lldp med location-tlv altitude { meters | floors } <v_word11>...
  • Page 61 Create a voice signaling policy. Example: SISPM1040-582-LRT(config)# lldp holdtime 5 SISPM1040-582-LRT(config)# lldp med fast 5 SISPM1040-582-LRT(config)# lldp reinit 3 SISPM1040-582-LRT(config)# lldp timer 555 SISPM1040-582-LRT(config)# lldp transmission-delay 333 Note: According to IEEE 802.1AB-clause 10.5.4.2 the transmission-delay must not be larger than LLDP timer * 0.25.
  • Page 62 A complete domain name consists of one or more subdomain names separated by dots. <ipv4_ucast> The IPv4 address of the log server. <ipv6_ucast> The IPv6 address of the log server. <1-65535> Port number Example: SISPM1040-582-LRT(config)# logging host 192.168.1.40 SISPM1040-582-LRT(config)# logging port 654 SISPM1040-582-LRT(config)# Command: loop-protect Description: Loop protection configuration. Syntax : loop-protect loop-protect shutdown-time <t>...
  • Page 63 <0,10-1000000> Aging time in seconds, 0 disables aging Example: SISPM1040-582-LRT(config)# mac address-table aging-time 3333 SISPM1040-582-LRT(config)# mac address-table learning vlan 100-400 SISPM1040-582-LRT(config)# mac address-table static 11:22:33:44:55:66 vlan 456 interface GigabitEthernet SISPM1040-582-LRT(config)# Command: map-api-key Description: Set Google Map key string. This command lets you set up the Google Map API Key so you can use the DMS Map View for enterprise applications.
  • Page 64 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Maintenance Entity Point. Syntax : mep <inst> [ mip ] { up | down } domain { port | evc | vlan | tp-link | tunnel-tp | pw | lsp } [ vid <vid> ] [ flow <flow>...
  • Page 65 Lantronix SISPM1040-582-LRT CLI Reference Parameters: <1-100> The MEP instance number. os-tlv Organization-Specific TLV Alarm Indication Signal Automatic Protection Switching protocol. Continuity Check. ccm-tlv The CCM TLV enable/disable client Delay Measurement. down This MEP is a Down-MEP. Loop Back. Locked Signal.
  • Page 66 SISPM1040-582-LRT(config)# mep 1 cc 3 fr1m Error: Invalid number of peer's for this configuration SISPM1040-582-LRT(config)# mep 1 cc 1 fr1m SISPM1040-582-LRT(config)# mep 1 ccm-tlv SISPM1040-582-LRT(config)# mep os-tlv oui 02 sub-type 0 value 1 SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 66 of 272...
  • Page 67 MIRROR source VLAN reflector-port Remote MIRROR reflector interface <port_type_id> Remote MIRROR reflector interface number Example: SISPM1040-582-LRT(config)# monitor session 1 destination remote vlan 200 ? reflector-port Remote MIRROR reflector interface SISPM1040-582-LRT(config)# $ destination remote vlan 200 reflector-port ? GigabitEthernet 1 Gigabit Ethernet Port...
  • Page 68 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Create 1-2 new Media Redundancy Protocol instances, set parameters, and delete instances. MRP is a data network protocol standardized by the International Electrotechnical Commission as IEC 62439-2. MRP allows Ethernet switch rings to overcome any single failure with recovery time much faster than achievable with Spanning Tree Protocol.
  • Page 69 Set role in Domain to manager disable Disable Domain enable Enable Domain Example: SISPM1040-582-LRT(config)# mrp domain new 1 SISPM1040-582-LRT(config)# mrp 1 diag-clear SISPM1040-582-LRT(config)# mrp 1 name ccc SISPM1040-582-LRT(config)# mrp 1 role client SISPM1040-582-LRT(config)# Messages: W mrp 146/mrp_icli_client_blocked_state#501: Warning: MRP Client Blocked State:...
  • Page 70 Example: SISPM1040-582-LRT(config)# mvr name MCVID10 mode compatible SISPM1040-582-LRT(config)# mvr vlan 10 SISPM1040-582-LRT(config)# mvr vlan 10 last-member-query-interval 3500 SISPM1040-582-LRT(config)# mvr name MCVID10 frame priority 4 SISPM1040-582-LRT(config)# mvr name MCVID10 igmp-address 192.168.1.99 SISPM1040-582-LRT(config)# mvr name MCVID10 last-member-query-interval 900 SISPM1040-582-LRT(config)# do show mvr MVR is now enabled to start group registration.
  • Page 71 Lantronix SISPM1040-582-LRT CLI Reference Switch-1 MVR-IGMP Interface Status IGMP MVR VLAN 10 (Name is MCVID10) interface is enabled. Querier status is IDLE RX IGMP Query:0 V1Join:0 V2Join:0 V3Join:0 V2Leave:0 TX IGMP Query:0 / (Source) Specific Query:0 Interface Channel Profile: <No Associated Profile>...
  • Page 72 Lantronix SISPM1040-582-LRT CLI Reference Command: no Negate a command or set its defaults. Table : no Commands (Config mode). Command Function Authentication, Authorization and Accounting access Access management access-list Access list aggregation Aggregation mode always-on-poe Disable Always On PoE banner...
  • Page 73 Lantronix SISPM1040-582-LRT CLI Reference voice Voice appliance attributes <cword> Valid words are: Aggregation DHCP DHCPv6_Client DMS_client DMS_server Debug Diagnostics ERPS ETH_LINK_OAM Green_Ethernet IP IPMC_Snooping Install_Wizard LACP LLDP Loop_Protect MAC_Table Maintenance Ports Private_VLANs RMirror R_RING SMTP Security Spanning_Tree System TS_client TS_server...
  • Page 74 Control the command history function length Set number of lines on a screen width Set width of the display terminal size Set history buffer size Example: SISPM1040-582-LRT# no port-security shutdown interface GigabitEthernet 1/10 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 74 of 272...
  • Page 75 Shutdown of the interface. spanning-tree Enable/disable STP on this interface speed Configure speed to default. switchport Switching mode characteristics udld Disable UDLD Example: SISPM1040-582-LRT(config)# no switchport vlan mapping 10 200 SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 75 of 272...
  • Page 76 <ipv4_ucast> ipv4 address <ipv6_ucast> ipv6 address Example: SISPM1040-582-LRT(config)# ntp server 1 ip-address 192.168.1.70 SISPM1040-582-LRT(config)# ntp server 1 ip-address domain1 SISPM1040-582-LRT(config)# ntp server 1 ip-address 1.2.3.4 SISPM1040-582-LRT(config)# ntp interval 10 SISPM1040-582-LRT(config)# ntp automatic SISPM1040-582-LRT(config)# exit SISPM1040-582-LRT# show ntp status...
  • Page 77 Example: SISPM1040-582-LRT(config)# poe ping-check enable SISPM1040-582-LRT(config)# poe management mode alloc allocation-consumption allocation-reserved-power SISPM1040-582-LRT(config)# poe management mode allocation- allocation-consumption allocation-reserved-power SISPM1040-582-LRT(config)# $e management mode allocation-reserved-power ? <cr> SISPM1040-582-LRT(config)# $e management mode allocation-reserved-power SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 77 of 272...
  • Page 78 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Power Over Ethernet (FW VB7.10.2658 and after). Syntax : poe ping-check { enable | disable } poe profile id <id> name <entry_name> poe profile id <id> { [ Sun <hour_v00_0_to_23> <min_v00_0_to_55> <hour_v01_0_to_23> <min_v01_0_to_55> ] [ Mon <hour_v10_0_to_23>...
  • Page 79 Configure PoE Reboot scheduling on Tuesday Configure PoE Reboot scheduling on Wednesday <cr> Example: SISPM1040-582-LRT(config)# poe ping-check enable SISPM1040-582-LRT(config)# poe profile id 1 Sun 9 30 4 55 SISPM1040-582-LRT(config)# poe reboot-chip fri 4 20 Wed 0 15 SISPM1040-582-LRT(config)# Command: port-security Description: Enable/disable port security globally and set aging time.
  • Page 80 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Precision Time Protocol (1588). Syntax : ptp <clockinst> clk sync <threshold> ap <ap> ptp <clockinst> domain <domain> ptp <clockinst> filter [ delay <delay> ] [ filter-type { basic | ms-pdv } ] [ period <period> ] [ dist <dist> ] ptp <clockinst>...
  • Page 81 UTC offset is valid <0-4> Index in the slave table [0..4] Example: SISPM1040-582-LRT(config)# ptp 1 clk sync 1 ap 1 SISPM1040-582-LRT(config)# ptp 1 ho adj-threshold 1 filter 19 SISPM1040-582-LRT(config)# ptp 1 log 2 SISPM1040-582-LRT(config)# ptp system-time get System clock synch mode (Get PTP time from System time) SISPM1040-582-LRT(config)# 33757 Rev.
  • Page 82 Map for DSCP to COS dscp-ingress-translation Map for DSCP ingress translation Example: SISPM1040-582-LRT(config)# qos map cos-dscp 5 dpl 1 dscp 20 SISPM1040-582-LRT(config)# qos map dscp-cos be cos 5 dpl 1 SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 82 of 272...
  • Page 83 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure QoS Control Entry. Syntax : qos qce refresh qos qce { [ update ] } <qce_id> [ { next <qce_id_next> } | last ] [ interface (<port_type> [ <port_list> ] ) ] [ smac { <smac>...
  • Page 84 SISPM1040-582-LRT(config)# qos qce 100 action cos default dmac any tag dei ? <0-1> Matched DEI Match any DEI SISPM1040-582-LRT(config)# qos qce 100 action cos default dmac any tag dei 1 ? SISPM1040-582-LRT(config)# qos qce 100 action cos default dmac any tag dei 1 SISPM1040-582-LRT(config)# Command:...
  • Page 85 Example: SISPM1040-582-LRT(config)# radius-server attribute 32 NasId1 SISPM1040-582-LRT(config)# radius-server host RadHst1 acct-port 1813 SISPM1040-582-LRT(config)# radius-server host RadHst1 auth-port 1812 SISPM1040-582-LRT(config)# radius-server host mmmmm acct-port 1813 auth-port 1812 key admin2- Engineering retransmit 300 timeout 500 33757 Rev. J https://www.lantronix.com/ Page 85 of 272...
  • Page 86 Port ID in 1/1-10 port2 Set port2 Example 1: Configure and show Rapid Ring configuration: SISPM1040-582-LRT(config)# rapid-ring entry 1 role master port1 GigabitEthernet 1/5 port2 GigabitEthernet 1/6 SISPM1040-582-LRT(config)# rapid-ring entry 1 GigabitEthernet 1/8 port2 GigabitEthernet 1/10 SISPM1040-582-LRT(config)# end SISPM1040-582-LRT# show rapid-ring...
  • Page 87 GigabitEthernet 1 Gigabit Ethernet Port <port_type_id> Port ID in 1/1-10 Example: Configure and show Ring-to- Ring configuration: SISPM1040-582-LRT(config)# ring-to-ring role active port GigabitEthernet 1/8 SISPM1040-582-LRT(config)# ring-to-ring role backup port GigabitEthernet 1/8 SISPM1040-582-LRT(config)# end SISPM1040-582-LRT# show rapid-ring Entry Index Rapid Ring Role...
  • Page 88 Lantronix SISPM1040-582-LRT CLI Reference Ring-to-Ring Port Ring-to-Ring Port State : Discarding SISPM1040-582-LRT# Message: R_TO_R_ICLI_system_set error in port 4, same with rapid ring port Meaning: You configured a port as both a ring-to-ring port and as a rapid-ring port. Recovery: Change either the ring-to-ring port or the rapid-ring port.
  • Page 89 Generate SNMP trap when the event fires <word127> SNMP community string Example: SISPM1040-582-LRT(config)# $ng-threshold 1 falling-threshold 0 both SISPM1040-582-LRT(config)# rmon event 1 log trap 11111 SISPM1040-582-LRT(config)# Message: % Invalid: rising threshold must be larger than falling threshold Command: sflow Description: Configure Statistics flow.
  • Page 90 Up to 47 characters describing email server <word31> Up to 47 characters describing user name <word31> Configure email password Example: SISPM1040-582-LRT(config)# smtp mailaddress 1 jeffs@transition.com SISPM1040-582-LRT(config)# smtp returnpath abcd4321 SISPM1040-582-LRT(config)# smtp username jeffs admin123 SISPM1040-582-LRT(config)# do show smtp Mail Server User Name...
  • Page 91 <word32> read view name <word32> write view name Example: SISPM1040-582-LRT(config)# snmp-server access Acc-1 model v3 level auth read readView1 write writeView1 SISPM1040-582-LRT(config)# Messages: The group name 'Acc-1' is not exist 33757 Rev. J https://www.lantronix.com/...
  • Page 92 Parameters: <line255> contact string Example: SISPM1040-582-LRT(config)# snmp-server contact text SISPM1040-582-LRT(config)# snmp-server contact JSinEngineering Red Circle Drive Minnetonka MN SISPM1040-582-LRT(config)# Command: engine-id Description: Set SNMP server local engine ID. The format of 'Engine ID' may not be all zeros or all 'ff'H and is restricted to 5 - 32 octet string.
  • Page 93 Enable UDP Trap mode SNMP trap version 1 SNMP trap version 2 SNMP trap version 3 <word255> SNMP trap community Example: SISPM1040-582-LRT(config)# snmp-server host SnmpHost-1 SISPM1040-582-LRT(config-snmps-host)# ? To run exec commands in config mode 33757 Rev. J https://www.lantronix.com/ Page 93 of 272...
  • Page 94 <v_line255> Parameters: location Set the SNMP server's location string <line255> location string Example: SISPM1040-582-LRT(config)# snmp-server location Engineering Red Circle Drive Minnetonka MN SISPM1040-582-LRT(config)# Command: security-to-group Description: Set SNMP security-to-group configuration. Syntax : snmp-server security-to-group model { v1 | v2c | v3 } name <security_name> group <group_name>...
  • Page 95 Privacy unencrypted password encrypted Specifies an ENCRYPTED password will follow. Example: SISPM1040-582-LRT(config)# snmp-server user text engine-id 1234567891 md5 12345678 priv aes 12345678 SISPM1040-582-LRT(config)# snmp-server user BobB engine-id 1234567891 sha 1a2s3d4f5g priv aes TomT123JJJ&&%#$ SISPM1040-582-LRT(config)# snmp-server user admin1 engine-id 1234567891 md5 BobBnnnnnnnnnnnnnn priv...
  • Page 96 MIB view OID exclude Excluded type from the view include Included type from the view Example: SISPM1040-582-LRT(config)# snmp-server view MV1 .0.1 include SISPM1040-582-LRT(config)# snmp-server view MV1 .0.1 exclude SISPM1040-582-LRT(config)# snmp-server view MV1 .0.1.1 exclude SISPM1040-582-LRT(config)# snmp-server view MV1 .0.1.1 include SISPM1040-582-LRT(config)# Messages: first character must be '.'...
  • Page 97 Lantronix SISPM1040-582-LRT CLI Reference spanning-tree Spanning Tree protocol. Table : configure –spanning-tree Commands: Command Function aggregation Aggregation mode edge Edge ports mode STP protocol mode STP bridge instance recovery The error recovery timeout transmit BPDUs to transmit Command: aggregation Description:...
  • Page 98 SISPM1040-582-LRT(config-stp-aggr)# spanning-tree link-type auto SISPM1040-582-LRT(config-stp-aggr)# spanning-tree link-type point-to-point SISPM1040-582-LRT(config-stp-aggr)# spanning-tree link-type shared SISPM1040-582-LRT(config-stp-aggr)# spanning-tree mst ? <0-7> instance 0-7 (CIST=0, MST2=1...) SISPM1040-582-LRT(config-stp-aggr)# spanning-tree mst 0 ? cost STP Cost of this port port-priority STP priority of this port <1-200000000> Cost range...
  • Page 99 MSTP bridge hello time max-age Max bridge age before timeout max-hops MSTP bridge max hop count name Name keyword Example: SISPM1040-582-LRT(config)# spanning-tree mst 7 vlan 10 SISPM1040-582-LRT(config)# Command: recovery Description: Configure Spanning tree recovery interval Syntax : spanning-tree recovery interval <interval>...
  • Page 100 Group id <vlan_list> Original vlan-list <vlan_id> <cr> Example: SISPM1040-582-LRT(config)# switchport vlan mapping 1 100-300 10 SISPM1040-582-LRT(config)# switchport? switchport vlan mapping <gid> <vlan_list> <tvid> SISPM1040-582-LRT(config)# switchport vlan mapping 1 10 100 Messages: %% Failed to add VLAN Translation mapping. 33757 Rev. J https://www.lantronix.com/...
  • Page 101 Lantronix SISPM1040-582-LRT CLI Reference Command: system Description: Set system configuration. Syntax : system contact <v_line128> system description <sys_desc> system di reboot { enable | disable } system di { high | low } system di { normal | abnormal } <desc>...
  • Page 102 SISPM1040-582-LRT(config)# system do relay close SISPM1040-582-LRT(config)# system do relay open SISPM1040-582-LRT(config)# system reboot mode enable SISPM1040-582-LRT(config)# system do autorecovery enable SISPM1040-582-LRT(config)# system reboot Sun 1 10 SISPM1040-582-LRT(config)# system contact jeffs@transition.com SISPM1040-582-LRT(config)# system description Desktopw-25104 SISPM1040-582-LRT(config)# system location Eng-2nd Floor BlueCircleDrive...
  • Page 103 <1-1000> Wait time in seconds Example: SISPM1040-582-LRT(config)# tacacs-server deadtime 555 SISPM1040-582-LRT(config)# tacacs-server host 192.168.80.90 SISPM1040-582-LRT(config)# tacacs-server key unencrypted admin SISPM1040-582-LRT(config)# tacacs-server timeout 400 SISPM1040-582-LRT(config)# do show tacacs Global TACACS+ Server Timeout : 400 seconds Global TACACS+ Server Deadtime...
  • Page 104 Example: SISPM1040-582-LRT(config)# tzidx 5 SISPM1040-582-LRT(config)# tzidx 50 SISPM1040-582-LRT(config)# tzidx 500 SISPM1040-582-LRT(config)# tzidx 500 SISPM1040-582-LRT(config)# do show clock detail System Time : 2011-01-01T04:02:07-08:00 Timezone : Timezone Offset : -4800 ( -480 minutes) Timezone Acronym : Pacific - Canada Daylight Saving Time Mode : Disabled.
  • Page 105 Set Time To Live value <66-86400> advertising duration <1-255> TTL value <cr> Example: SISPM1040-582-LRT(config)# upnp SISPM1040-582-LRT(config)# upnp ttl 100 SISPM1040-582-LRT(config)# upnp advertising-duration 9000 SISPM1040-582-LRT(config)# do show upnp UPnP Mode : enabled UPnP TTL : 100 UPnP Advertising Duration : 9000 SISPM1040-582-LRT(config)# 33757 Rev.
  • Page 106 The system will always display the ENCRYPTED password. Example: SISPM1040-582-LRT(config)# do show user-priv username admin privilege 15 password encrypted 995ef36292ed12e247d98dbad724e0ed5a37d3e849f6a223aaefac071fb6a7e1680ee94a8d61a99819b3f02659dc2b12759910 63e2720099c6d43df6efb2cb32 SISPM1040-582-LRT(config)# username jeffs privilege 14 password unencrypted admin123!@# SISPM1040-582-LRT(config)# do show user-priv username admin privilege 15 password encrypted 995ef36292ed12e247d98dbad724e0ed5a37d3e849f6a223aaefac071fb6a7e1680ee94a8d61a99819b3f02659dc2b12759910 63e2720099c6d43df6efb2cb32 username jeffs privilege 14 password encrypted...
  • Page 107 <0x0-0xffff> PID (Range: 0x0 - 0xFFFF) <word31> The ASCII name for the VLAN Example 1 : In Config mode: SISPM1040-582-LRT(config)# vlan protocol eth2 arp group 123 SISPM1040-582-LRT(config)# vlan ethertype s-custom-port 0x1111 SISPM1040-582-LRT(config)# vlan 100 SISPM1040-582-LRT(config)# vlan 1,2,10-20,100-300 SISPM1040-582-LRT(config)# Example 2 : In VLAN Config mode:...
  • Page 108 SISPM1040-582-LRT# show voice vlan oui A4-BA-DB Telephony OUI Description ------------- ----------- A4-BA-DB myphone SISPM1040-582-LRT# SISPM1040-582-LRT(config)# voice vlan oui 00-01-E3 description siemens1 in the lab SISPM1040-582-LRT(config)# exit SISPM1040-582-LRT# show voice vlan oui 00-01-E3 Telephony OUI Description ------------- ----------- 00-01-E3 siemens1 in the lab SISPM1040-582-LRT# 33757 Rev.
  • Page 109 Status/Statistics Read-write level <0-15> Example: SISPM1040-582-LRT(config)# web privilege group ptp level sro 15 crw ? <0-15> SISPM1040-582-LRT(config)# web privilege group ptp level sro 15 crw 15 % The privilege level of 'Status/Statistics Read-only' should be less than or equal to...

  • Page 110: Copy Commands

    SSH servers. ftp-active FTP active <cr> Example: SISPM1040-582-LRT# copy running-config startup-config replace syntax-check Building configuration... % Saving 2804 bytes to flash:startup-config SISPM1040-582-LRT# copy startup-config running-config merge syntax-check SISPM1040-582-LRT# Message: % startup-config: Load failed: Cannot read file status.

  • Page 111: Delete Commands

    Lantronix SISPM1040-582-LRT CLI Reference Delete Commands Command: delete Description: Delete one file in flash: file system. Syntax : delete <path> Parameters: <url_file> File in FLASH. Syntax: <flash:filename>. A valid file name is a text string drawn from alphabet (A-Za-z), digits (0-9), dot (.), hyphen (-), under score (_). The maximum length is 57 characters and hyphen must not be first character.

  • Page 112: Disable Commands

    Directory of flash: r- 2010-12-31 23:59:59 716 default-config rw 2011-01-01 00:02:53 1189 startup-config 2 files, 1905 bytes total. SISPM1040-582-LRT(config-if-vlan)# SISPM1040-582-LRT(config-if)# do show logging 3 Switch : 1 Level : Warning Time : 2011-01-01T00:00:11+00:00 Message: Link up on port 10 SISPM1040-582-LRT(config-if)#...

  • Page 113: Dot1X Commands

    Lantronix SISPM1040-582-LRT CLI Reference 10 Dot1x Commands Command: dot1x Description: IEEE Standard for port-based Network Access Control in Config mode. dot1x authentication timer inactivity <v_10_to_100000> Syntax : dot1x authentication timer re-authenticate <v_1_to_3600> dot1x feature { [ guest-vlan ] [ radius-qos ] [ radius-vlan ] }*1 dot1x guest-vlan <value>...
  • Page 114 Lantronix SISPM1040-582-LRT CLI Reference Example: SISPM1040-582-LRT(config)# dot1x guest-vlan 100 SISPM1040-582-LRT(config)# dot1x authentication timer inactivity 5000 SISPM1040-582-LRT(config)# dot1x re-authentication SISPM1040-582-LRT(config)# dot1x timeout tx-period 9000 SISPM1040-582-LRT(config)# dot1x feature guest-vlan radius-qos radius-vlan SISPM1040-582-LRT(config)# dot1x authentication timer inactivity 1000 SISPM1040-582-LRT(config)# dot1x feature guest-vlan radius-qos radius-vlan...

  • Page 115: Enable Commands

    Specifies an UNENCRYPTED password will follow Specifies an ENCRYPTED secret will follow SISPM1040-582-LRT(config)# enable secret 0 JSPword32 SISPM1040-582-LRT(config)# enable secret 5 administrator&^%765 SISPM1040-582-LRT(config)# enable password level 15 999 SISPM1040-582-LRT(config)# enable secret 0 level 15 admin SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/ Page 115 of 272...

  • Page 116: Erps Commands

    Example: SISPM1040-582-LRT# erps 1 command clear port0 SISPM1040-582-LRT# erps 1 command force port0 SISPM1040-582-LRT# erps 1 command manual port0 % ERPS group 1: Generic error occurred SISPM1040-582-LRT# erps 1 command manual port0 ? <cr> SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 116 of 272...

  • Page 117: Erps Config Mode Commands

    Lantronix SISPM1040-582-LRT CLI Reference 12.2 ERPS Config Mode Commands Command: erps Description: Configure Ethernet Ring Protection Switching. Syntax : erps <group> guard <guard_time_ms> erps <group> holdoff <holdoff_time_ms> erps <group> major port0 interface <port_type> <port0> port1 interface <port_type> <port1> [ interconnect ] erps <group>...
  • Page 118 Example: SISPM1040-582-LRT(config)# erps 7 major port0 interface GigabitEthernet 1/7 interconnect SISPM1040-582-LRT(config)# SISPM1040-582-LRT(config)# erps 1 mep port0 sf 1 aps 1 port1 sf 20 aps 25 SISPM1040-582-LRT(config)# erps 1 revertive 3 SISPM1040-582-LRT(config)# erps 1 rpl neighbor port0 SISPM1040-582-LRT(config)# erps 3 sub port0 interface GigabitEthernet 1/6 interconnect 1 virtual-...

  • Page 119: Firmware Commands

    ECDSA algorithms. Public host keys are stored on and/or distributed to SSH clients, and private keys are stored on SSH servers. Example: SISPM1040-582-LRT# firmware swap ? <cr> SISPM1040-582-LRT# firmware upgrade tftp://192.168.1.1/path ? <cr> SISPM1040-582-LRT# firmware upgrade tftp://192.168.1.1/path SISPM1040-582-LRT# firmware swap Alternate image activated, now rebooting.

  • Page 120: Ipv4 Commands

    Restart the DHCP query process interface Interface vlan VLAN interface <vlan_id> VLAN ID Example: SISPM1040-582-LRT# ip dhcp retry interface vlan 100 % Failed to restart DHCP client on VLAN = 100. SISPM1040-582-LRT# 15 IPv6 Commands IPv6 configuration commands. Command: ipv6 Description: IPv6 configuration command;...

  • Page 121: Link Oam Commands

    GigabitEthernet 1 Gigabit Ethernet Port. <port_type_list> Port list in 1/1-10 <cr> Example: SISPM1040-582-LRT# $oam remote-loopback start interface GigabitEthernet 1/5 % Requested configuration is not supported with the current OAM mode for Gigabit Ethernet 1/5 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 121 of 272...

  • Page 122: No Commands

    Parameters: debug Debugging functions port-security Port security (MAC limit) Misc non persistent 1588 settings. terminal Set terminal line parameters Example: SISPM1040-582-LRT# no terminal exec-timeout SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 122 of 272...
  • Page 123 Lantronix SISPM1040-582-LRT CLI Reference no Commands (Config Mode) Authentication, Authorization and Accounting access Access management access-list Access list aggregation Aggregation mode always-on-poe Disable Always On PoE banner Define a login banner clock Configure time-of-day clock command-history-log Disable to Save Command Histry to Flash...
  • Page 124 SISPM1040-582-LRT(config)# no debug mep 1 ? Delay Measurement. test Test Generation. volatile The MEP instance is change to volatile. SISPM1040-582-LRT(config)# no debug mep 1 volatile ? <cr> SISPM1040-582-LRT(config)# no debug mep 1 volatile Error: VTSS_RC_OK SISPM1040-582-LRT(config)# SISPM1040-582-LRT(config)# 33757 Rev. J https://www.lantronix.com/...
  • Page 125 Select phy for debugging (Note only local PHYs, NOT stack-aware) SISPM1040-582-LRT(config-if)# no debug phy ? loopback Enable/Disable loopback in the PHY SISPM1040-582-LRT(config-if)# no debug phy loopback ? Far end loopback (Cu port) 33757 Rev. J https://www.lantronix.com/ Page 125 of 272...
  • Page 126 Lantronix SISPM1040-582-LRT CLI Reference near Near end loopback (MAC side) <cr> SISPM1040-582-LRT(config-if)# no debug phy loopback ? no debug phy loopback [ near | far ] SISPM1040-582-LRT(config-if)# no link-oam ? link-monitor Configure link monitoring mib-retrieval Set MIB retrieval support mode...

  • Page 127: Ping Commands

    2-1452; Default is 56 (excluding MAC, IP and ICMP headers) <cr> Example: SISPM1040-582-LRT# ping ip 192.168.1.100 interval 5 size 5 repeat 5 PING server 192.168.1.100, 5 bytes of data. 13 bytes from 192.168.1.100: icmp_seq=0, time<10ms 13 bytes from 192.168.1.100: icmp_seq=1, time=10ms 13 bytes from 192.168.1.100: icmp_seq=2, time<10ms...

  • Page 128: Platform Commands

    Allow debug commands <cr> Example: SISPM1040-582-LRT# platform debug allow WARNING: The use of 'debug' commands may negatively impact system behavior. Do not enable unless instructed to. (Use 'platform debug deny' to disable debug commands.) NOTE: 'debug' command syntax, semantics and behavior are subject to change without notice.

  • Page 129: Ptp Commands

    Port list in 1/1-10 Example: SISPM1040-582-LRT# ptp 0 local-clock ratio 1 SISPM1040-582-LRT# ptp 0 wireless delay 5000 75000 interface GigabitEthernet 1/8 Wireless mode not available for ptp instance 0, port 8 SISPM1040-582-LRT# ptp 0 local-clock update SISPM1040-582-LRT# show ptp 0 local-clock...

  • Page 130: Reload Commands

    All tty lines <0~16> Send a message to multiple lines console Primary terminal line Virtual terminal Example: SISPM1040-582-LRT# send * yes,i do Enter TEXT message. End with the character 'y'. ----------------------------------------- *** Message from line 1: es,i do ----------------------------------------- SISPM1040-582-LRT# 33757 Rev.

  • Page 131: Show Commands

    Lantronix SISPM1040-582-LRT CLI Reference 23 Show Commands Command Function Authentication, Authorization and Accounting methods access Access management access-list Access list aggregation Aggregation port configuration always-on-poe Show Always-on PoE Status clock show time-of-day clock command-history-log Command Histry List Device Management System (not displayed by the ? command)
  • Page 132 Lantronix SISPM1040-582-LRT CLI Reference sflow Statistics flow. smtp Show email information snmp Display SNMP configurations spanning-tree STP Bridge switchport Display switching mode characteristics system system tacacs-server TACACS+ configuration terminal Display terminal configuration parameters udld Unidirectional Link Detection (UDLD) configurations, statistics and status...
  • Page 133 W: WEB/HTTPS S: SNMP T: TELNET/SSH Idx VID Start IP Address End IP Address W S T --- --- ------------------------------- ------------------------------ - - - SISPM1040-582-LRT# SISPM1040-582-LRT# show access management statistics Access Management Statistics: ----------------------------- HTTP Receive: Allow: Discard: HTTPS Receive:...
  • Page 134 Port list in 1/1-10 <1~16> Rate limiter ID Output modifiers statistics Traffic statistics Example 1: SISPM1040-582-LRT# show access-list ace statistics Type Ing. Port Policy Frame Type Action Rate L. Port Redir. Mirror Counter ---- -------- ---------- -------- ------------------------------ ------ -------- ----------- -------- -------...
  • Page 135 LACP: LACP On Air MRP: MRP Switch 1 access-list ace number: 0 SISPM1040-582-LRT# Example 3: SISPM1040-582-LRT# show access-list interface rate-limiter 1 ace statistics Switch access-list ace number: 0 Switch access-list rate limiter ID 1 is 1 pps GigabitEthernet 1/1 : ---------------------...
  • Page 136 --------------------- GigabitEthernet 1/2 access-list action is permit GigabitEthernet 1/2 access-list policy ID is 0 SISPM1040-582-LRT# show access-list interface rate-limiter 1 ace statistics 1 Switch access-list ace number: 0 Switch access-list rate limiter ID 1 is 1 pps GigabitEthernet 1/1 :...
  • Page 137 LLAG2 Static 100M GigabitEthernet 1/3-4 none none LLAG3 Static 1G GigabitEthernet 1/5-6 none none SISPM1040-582-LRT# show aggregation mode Aggregation Mode: SMAC : Enabled DMAC : Enabled : Enabled Port : Enabled SISPM1040-582-LRT# Command: always-on-poe Description: Show Always-on PoE Status. FW VB7.20.0039 changed the "Always On PoE" behavior; the feature is enabled and shown on Web UI after upgrading to FW VB7.20.0039 or above.
  • Page 138 Display detailed information <cr> Example: SISPM1040-582-LRT# show clock System Time : 2022-02-22T10:02:57+00:00 SISPM1040-582-LRT# show clock detail System Time : 2022-02-22T10:03:02+00:00 Timezone : Timezone Offset : 0 ( 0 minutes) Timezone Acronym : Daylight Saving Time Mode : Disabled. Daylight Saving Time Start Time Settings :...
  • Page 139 Begin with the line that matches exclude Exclude lines that match include Include lines that match Example: SISPM1040-582-LRT# show command-history-log status The status of termal for Command History Feature : Enable SISPM1040-582-LRT# show history show ver b show ver term exec 1440...
  • Page 140 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Show Device Management System configuration. show dms <cr> Syntax : Parameters: None. Example: SISPM1040-582-LRT# show dms DMS Controller Capability : On Discovery : Arp->On, UPNP->On, NBNS->On, LLDP->On, Onvif->On, Bonjour->On DMS total device: 3 ======= DMS Entry Information Start ============================= (001),MAC(00-c0-f2-49-39-30),PA_MAC(00-00-00-00-00-00),port(0),p_port(0),C_IP(19 2.168.1.77),C_sub(255.255.255.0),C_gw(192.168.1.254),http_port(80),IP1(192.168.1...
  • Page 141 Force Authorized Globally Disabled Current Radius QOS Current Radius VLAN Current Guest VLAN -------------------- -------------------- -------------------- ;;;;;;; SISPM1040-582-LRT# show dot1x statistics ? Show all dot1x statistics eapol Show EAPoL statistics radius Show Backend Server statistics SISPM1040-582-LRT# show dot1x statistics all...
  • Page 142 Lantronix SISPM1040-582-LRT CLI Reference Rx Invalid Length: GigabitEthernet 1/1 Backend Server Statistics: Rx Access Challenges: Tx Responses: Rx Other Requests: Rx Auth. Successes: Rx Auth. Failures: SISPM1040-582-LRT# Command: Description: Show Ethernet Protection Switching. Syntax : show eps [ <inst> ] [ detail ]...
  • Page 143 <port_type_list> Port list for all port types All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port Example: SISPM1040-582-LRT# show evc all EVC ID Status ------ ------ Active SISPM1040-582-LRT# show evc ece SISPM1040-582-LRT# show evc statistics Interface GigabitEthernet 1/1, Class 0 Statistics:...
  • Page 144 Lantronix SISPM1040-582-LRT CLI Reference SISPM1040-582-LRT# show evc statistics cos 1 discard interface GigabitEthernet 1 Interface Class Rx Green Discard Rx Yellow Discard ----------------------- ----- -------------------- -------------------- GigabitEthernet 1/5 SISPM1040-582-LRT# show evc statistics green cos 7 Interface Class Rx Green Tx Green...
  • Page 145 -- more --, next page: Space, continue: g, quit: ^C SISPM1040-582-LRT# show event port Port Active LinkOn LinkOff Overload RxThreshold TrafficDuration Syslog Trap SMTP DigitalOut Severity ---- ------- ------- ------- -------- ----------- --------------- ------- ------ enable enable enable disable 0...
  • Page 146 GigabitEthernet 1/4 GigabitEthernet 1/5 GigabitEthernet 1/6 GigabitEthernet 1/7 GigabitEthernet 1/8 GigabitEthernet 1/9 -- more --, next page: Space, continue: g, quit: ^C SISPM1040-582-LRT# show green-ethernet short-reach interface GigabitEthernet 1/3 Interface Lnk Short-Reach ---------------------- --- ------------ GigabitEthernet 1/3 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/...
  • Page 147 Lantronix SISPM1040-582-LRT CLI Reference Command: history Description: Display the session command history. Syntax : show history Parameters: Output modifiers <cr> Example: SISPM1040-582-LRT# show history show aaa show access management show aggregation mode show clock detail show dot1x status show dot1x statistics all...
  • Page 148 Show filtered statistics. packets Show packet statistics. priority Queue number Show ports which are up <0~7> Queue number Example: 1 SISPM1040-582-LRT# show interface GigabitEthernet 1/5 capabilities GigabitEthernet 1/5 Capabilities: Tx Central Mon1 Mon2 Mon3 Port Wavelength Bit Rate Temperature (Bias)
  • Page 149 Lantronix SISPM1040-582-LRT CLI Reference RMirror: PortSecure: Dot1x: SISPM1040-582-LRT# SISPM1040-582-LRT# show interface GigabitEthernet 1/10 capabilities detail GigabitEthernet 1/10 Capabilities: Connector Type : SFP or SFP Plus - LC Fiber Type : Reserved TX Central Wavelength: 850 Bit Rate : 10 Gbps...
  • Page 150 Trunk Native Mode VLAN: 1 Administrative Native VLAN tagging: disabled Allowed VLANs: 1-4095 Hybrid port configuration -- more --, next page: Space, continue: g, quit: ^C Example 3: SISPM1040-582-LRT# show interface * CableDiag Interface Link Status Test Result Length ---------------------- ------------- ------------- -------------...
  • Page 151 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Show Internet Protocol config. Syntax : show ip arp show ip arp inspection [ interface ( <port_type> [ <in_port_type_list> ] ) | vlan <in_vlan_list> ] show ip arp inspection entry [ dhcp-snooping | static ] [ interface ( <port_type> [ <in_port_type_list> ] ) ] show ip dhcp detailed statistics { server | client | snooping | relay | normal-forward | combined } [ interface ( <port_type>...
  • Page 152 IPv4 system traffic interface ip verify source interface configuration All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port Example 1: SISPM1040-582-LRT# show ip interface brief Vlan Address Method Status ---- -------------------- -------- ------ 1 192.168.1.77/24 Manual 33757 Rev. J https://www.lantronix.com/...
  • Page 153 { server | client | snooping | relay | normal-forward | combined } [ interface ( <port_type> [ <in_port_list> ] ) ] SISPM1040-582-LRT# show ip http server secure status Switch secure HTTP web server is disabled...
  • Page 154 IGMP snooping VLAN 10 interface is enabled. Querier status is ACTIVE (Administrative Control: Join Querier-Election) -- more --, next page: Space, continue: g, quit: ^C SISPM1040-582-LRT# show ip igmp snooping vlan 10-100 IGMP Snooping is enabled to start snooping IGMP control plane. Switch-1 IGMP Interface Status IGMP snooping VLAN 10 interface is enabled.
  • Page 155 Lantronix SISPM1040-582-LRT CLI Reference Example 6: SISPM1040-582-LRT# show ip gateway interface Gateway Address binding interface: 1 SISPM1040-582-LRT# show ip ssh Switch SSH is enabled Switch SSH port is 22 Switch scp is disabled SISPM1040-582-LRT# show ip ssh key ECDSA: Public key portion is:...
  • Page 156 Description: firstProfile in IPMC Profile Table SISPM1040-582-LRT# show ipmc range SISPM1040-582-LRT# SISPM1040-582-LRT(config)# ipmc profile iName1 SISPM1040-582-LRT(config-ipmc-profile)# range iName1 deny log next iName1 SISPM1040-582-LRT(config-ipmc-profile)# do show ipmc profile IPMC Profile is now enabled to start filtering. Profile: iName1 (In IGMP Mode) Description: MMMMMM HEAD->...
  • Page 157 Lantronix SISPM1040-582-LRT CLI Reference Example 2: SISPM1040-582-LRT# show ipmc profile detail IPMC Profile is now enabled to start filtering. Profile: Prof1 (In VER-INI Mode) Description: firstProfile in IPMC Profile Table IGMP will deny matched address between [224.0.0.0 <-> 239.255.255.255] MLD will deny matched address between [ff00:: <-> ffff:ffff:ffff:ffff:ffff:ffff:...
  • Page 158 Example: SISPM1040-582-LRT# show ipv6 neighbor fe80::2c0:f2ff:fe4f:73d0 via VLAN1: 00-c0-f2-4f-73-d0 Permanent/REACHABLE SISPM1040-582-LRT# show ipv6 mld snooping detail group-database sfm-information vlan 100 MLD Snooping is disabled to stop snooping MLD control plane. Multicast streams destined to unregistered MLD groups will be flooding.
  • Page 159 TX MLD Query:0 / (Source) Specific Query:0 Compatibility:Forced MLDv1 / Querier Version:Version 1 / Host Version:Version 1 SISPM1040-582-LRT# show ipv6 mld snooping mrouter detail MLD Snooping is enabled to start snooping MLD control plane. (MLD proxy for JOIN/LEAVE mechanism is active) Multicast streams destined to unregistered MLD groups will be flooding.
  • Page 160 Neighbor LACP status on-air LACP On Air configuration statistics Internal LACP statistics system-id LACP system id Example: SISPM1040-582-LRT# show lacp system-id System Priority: 32768 SISPM1040-582-LRT# show lacp internal Port Mode Role Timeout Priority -------------------- -------- ---- ------ ------- -------- Gi 1/1...
  • Page 161 Parameters: Output modifiers alive Display information about alive lines <cr> Example: SISPM1040-582-LRT# show line alive Line is vty 0. * You are at this line now. Alive from Telnet. Default privileged level is 2. Command line editing is enabled Display EXEC banner is enabled.
  • Page 162 Display local and remote node status parameters All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list for all port types <cr> Example: SISPM1040-582-LRT# show link-oam status GigabitEthernet 1/1 ----------------------------------------- Admin state: Disabled PDU permission: Receive only Discovery state:...
  • Page 163 Lantronix SISPM1040-582-LRT CLI Reference Discovery state: Fault state Remote MAC Address: Local client Remote Client ------------- -------------- port status: non operational ------- Mode: passive ------- Unidirectional operation support: disabled ------- Remote loopback support: disabled ------- Link monitoring support: enabled -------...
  • Page 164 SISPM1040-582-LRT# show lldp LLDP Configuration ------------------ TX Interval : 30 TX Hold : 4 TX Delay : 2 TX Reinit : 2 SISPM1040-582-LRT# show lldp neighbors Local Interface : GigabitEthernet 1/8 Chassis ID : 00-C0-F2-4F-7F-CD Port ID : 10 Port Description...
  • Page 165 : Primary Power Source PoE Power : 4.0 [W] PoE Priority : Low Priority SISPM1040-582-LRT# Example 2: SISPM1040-582-LRT# show lldp med remote-device No LLDP-MED entries found SISPM1040-582-LRT# show lldp med media-vlan-policy Policy Id Application Type Vlan ID L2 Priority DSCP Voice Tagged...
  • Page 166 Application category debug Debug category system System category <switch_list> Switch ID list in 1 Example 1: SISPM1040-582-LRT# show logging 5 Switch : 1 Level : Warning Time : 2011-01-01T00:00:10+00:00 Message: DI 1 change to abnormal SISPM1040-582-LRT# show logging crit Switch logging host mode is disabled...
  • Page 167 Switch : 1 Level : Warning Time : 2011-01-01T00:00:13+00:00 Message: Link up on port 8 SISPM1040-582-LRT# show logging flash level error category application No entries found SISPM1040-582-LRT# show logging flash level error category debug Category | Level | Time | Message...
  • Page 168 Parameters: All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list in 1/1-10 Example: SISPM1040-582-LRT# show loop-protect interface GigabitEthernet 1/10 Loop Protection Configuration ====================================== Loop Protection : Disable Transmission Time : 5 sec Shutdown Time : 180 sec...
  • Page 169 All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list for all port types <vlan_id> VLAN IDs 1-4095 Example: SISPM1040-582-LRT# show mac address-table static Type VID MAC Address Ports Static 1 00:c0:f2:49:38:ff Static 1 33:33:00:00:00:01 GigabitEthernet 1/1-10 CPU...
  • Page 170 Lantronix SISPM1040-582-LRT CLI Reference Command: map-api-key Description: Show Google Maps key configuration. show map-api-key Syntax : Parameters: <cr> Example: SISPM1040-582-LRT# show map-api-key SISPM1040-582-LRT# Command: Description: Show Maintenance Entity Point configuration. Syntax : show mep [ <inst> ] [ peer | cc | lm | dm | lt | lb | tst | aps | client | ais | lck | pm | syslog | tlv |...
  • Page 171 False False False False False False False False False False False False False False False False False False False False False False False False SISPM1040-582-LRT# SISPM1040-582-LRT# show mep dm MEP DM state is: RxTime : Rx Timeout RxErr : Rx Error...
  • Page 172 Parameters: session MIRROR session <1> MIRROR session number Show all MIRROR sessions remote Show only Remote MIRROR sessions <cr> SISPM1040-582-LRT# show monitor session remote Session 1 --------- Mode : Enabled Type : Remote Source Session Dest RMIRROR VLAN : 200...
  • Page 173 Ringport status for MRP Domain primary Show status for primary Ringport secondary Show status for secondary Ringport <cr> Example: SISPM1040-582-LRT# show mrp 1 ringport Primary Ring Port ID: Status: Not connected Secondary Ring Port ID: Status: Forwarding SISPM1040-582-LRT# show mrp 1...
  • Page 174 Lantronix SISPM1040-582-LRT CLI Reference Ring Open Count Lost frames by sequence id Mixed frames by sequence id Received with different UUID Loop detected SISPM1040-582-LRT# Messages: Error: Domain not found W mrp 150/mrp_icli_show_ringport#166: Warning: Show MRP Ringport: no valid configuration found for domain...
  • Page 175 SISPM1040-582-LRT(config)# Command: Description: Show NTP status. show ntp status Syntax : Parameters: Example: SISPM1040-582-LRT# show ntp status NTP Mode : enabled Server IP host address (a.b.c.d) or a host name string ------------------------------------------------------ 192.168.1.30 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 175 of 272...
  • Page 176 [ interface ( <port_type> [ <v_port_type_list> ] ) ] show platform phy instance Parameters: debug Debug command setting PHYs' information Example: SISPM1040-582-LRT# show platform debug Platform debug command function is denied. SISPM1040-582-LRT# show platform phy Port API Inst WAN/LAN/1G Mode Duplex...
  • Page 177 <port_type_list> Port list in 1/1-10 poe scheduling profile id <1-16> profile id from 1 to 16 <cr> Example 1: At FW VB7.10.2658 and above. SISPM1040-582-LRT# show poe config Primary Power Supply [W] : 480 Port Mode Schedule Priority LLDP Legacy...
  • Page 178 Lantronix SISPM1040-582-LRT CLI Reference Enabled Disable 60.0 GigabitEthernet 1/9 does not have PoE support GigabitEthernet 1/10 does not have PoE support SISPM1040-582-LRT# show poe status Interface PD Class Port Status Req Pwr Alloc Power Current Priority Used [W] Used[W] Used[W] Used[mA]...
  • Page 179 Enabled Disabled GigabitEthernet 1/9 does not have PoE support GigabitEthernet 1/10 does not have PoE support SISPM1040-582-LRT# conf terminal SISPM1040-582-LRT(config)# interface GigabitEthernet 1/1 SISPM1040-582-LRT(config-if)# poe mode ? 2-pair Set mode to PoE 2-pair (Maximum power 30.0 W) 4-pair Set mode to PoE 4-pair (Maximum power 60.0 W)
  • Page 180 Lantronix SISPM1040-582-LRT CLI Reference Example 4 : With default PoE config at FW v7.20.0039: SISPM1040-582-LRT# show poe config Primary Power Supply [W] : 480 Port Mode Schedule Priority LLDP Legacy ---- -------- ------------------------------- -------- -------- -------- 8023bt Disable Enabled Disabled...
  • Page 181 Show Port Security status. Output modifiers interface All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list in 1/1-10 Example: SISPM1040-582-LRT# show port-security port GigabitEthernet 1/1 ------------------- MAC Address State Added Age/Hold Time ----------------- ---- ---------- ------------------------- ------------- <none>...
  • Page 182 8 Configuration N/A 0x814018f8 8192 1076 9 Sleep 7 ICFG Loader N/A 0x82efa2cc 65536 8676 SISPM1040-582-LRT# show process list detail Version : SISPM1040-582-LRT (standalone) VB7.20.0191 Build Date : 2023-10-16T18:36:32+08:00 Warning: Return addresses are highly unreliable (code seems to be compiled with -O2)
  • Page 183 Show PTP time properties data set (IEEE1588 paragraph 8.2.4). Show PTP slave unicast configuration parameters. wireless Show PTP port wireless parameters. Example: SISPM1040-582-LRT# show ptp 1 default ClockInst DeviceType 2StepFlag Ports vtss_appl_clock_identity --------- ---------- --------- ----- --------------------------- --- Inactive SISPM1040-582-LRT# show ptp ext...
  • Page 184 Lantronix SISPM1040-582-LRT CLI Reference SISPM1040-582-LRT# show ptp 0 parent ParentPortIdentity port Pstat Var ChangeRate ---------------------- ---- ----- --- ---------- 00:c0:f2:ff:fe:4f:73:d0 0 False 0 GrandmasterIdentity GrandmasterClockQuality Pri1 Pri2 ----------------------- ------------------------- ---- ---- 00:c0:f2:ff:fe:4f:73:d0 Cl:251 Ac:Unknwn Va:65535 128 SISPM1040-582-LRT# Command: pvlan Description: Show PVLAN configuration.
  • Page 185 7 dei 0 cos 7 dpl 0 qos map tag-cos pcp 7 dei 1 cos 7 dpl 1 -- more --, next page: Space, continue: g, quit: ^C SISPM1040-582-LRT# show qos storm qos storm: ========== Unicast : disabled...
  • Page 186 : 60 seconds Retransmit : 350 times : d271d8fbc8ac370e64f8149c02f80a0506dd4ff28cf329c6abfe986e61479f981 d017fdbb60d629c6b5b59f1e6a671f63cfc8e16c39b3261f3e46d473eb74d33db003450669c3231f748eee117103362 SISPM1040-582-LRT# Example 2: Display current RADIUS server statistics: SISPM1040-582-LRT# show radius-server statistics Global RADIUS Server Timeout : 5 seconds Global RADIUS Server Retransmit : 3 times Global RADIUS Server Deadtime...
  • Page 187 Lantronix SISPM1040-582-LRT CLI Reference : d271d8fbc8ac370e64f8149c02f80a0506dd4ff28cf329c6abfe986e61479f981 d017fdbb60d629c6b5b59f1e6a671f63cfc8e16c39b3261f3e46d473eb74d33db003450669c3231f 748eee117103362 RADIUS Server #1 (0.0.0.0:1812) Authentication Statistics: Rx Access Accepts: Tx Access Requests: Rx Access Rejects: Tx Access Retransmissions: Rx Access Challenges: Tx Pending Requests: Rx Malformed Acc. Responses: Tx Timeouts: Rx Bad Authenticators:...
  • Page 188 Display the RMON event table history Display the RMON history table statistics Display the RMON statistics table <1~65535> Alarm entry list Output modifiers <cr> Example: SISPM1040-582-LRT# show rmon event Event ID : ---------------- Description : 11111 Type : logandtrap Community : public LastSent...
  • Page 189 Lantronix SISPM1040-582-LRT CLI Reference Command: running-config Description: Show running system information. Syntax : show running-config [ all-defaults ] show running-config feature <feature_name> [ all-defaults ] show running-config interface ( <port_type> [ <list> ] ) [ all-defaults ] show running-config interface vlan <list> [ all-defaults ] show running-config line { console | vty } <list>...
  • Page 190 192.168.1.77 255.255.255.0 spanning-tree aggregation spanning-tree link-type point-to-point SISPM1040-582-LRT# show running-config feature web-privilege-group-level all-defaults Building configuration... web privilege group Aggregation level cro 5 crw 10 sro 5 srw 10 web privilege group Debug level cro 15 crw 15 sro 15 srw 15...
  • Page 191 Max. Datagram: 1400 bytes Time left : 0 seconds No enabled collectors (receivers). Skipping displaying per-port info. SISPM1040-582-LRT# SISPM1040-582-LRT# show sflow statistics samplers interface GigabitEthernet 1/5 Per-Port Statistics: ==================== Interface Rx Flow Samples Tx Flow Samples Counter Samples ---------------------- --------------- --------------- ----------------...
  • Page 192 Lantronix SISPM1040-582-LRT CLI Reference Command: smtp Description: Show email information. Syntax : show smtp <cr> Parameters: <cr> Example: SISPM1040-582-LRT# show smtp Mail Server : 192.168.1.77 User Name : admin Password : ******** Sender : sispm1040-582-lrt Return Path : svt@transition.com Email Adress 1 : engineering@transition.com Email Adress 2 : toms@comcast.net...
  • Page 193 SISPM1040-582-LRT# show snmp info SNMP Info: Conf VendorName:TN, VENDOR_TN, PRODUCT:SISPM1040-582-LRT EngineID: 800007e5017f000001 Using oid :1.3.6.1.4.1.868.2.80.8, length:10 SISPM1040-582-LRT# show snmp host aaa interface switch system Trap Global Mode: enabled Trap trap1 (ID:0) is enabled Community : public Destination Host: 192.168.1.30 UDP Port...
  • Page 194 BPDU Filtering : Disabled BPDU Guard : Disabled Error Recovery : Disabled CIST Bridge is active SISPM1040-582-LRT# show spanning-tree mst configuration MSTI1 No VLANs mapped MSTI2 No VLANs mapped MSTI3 No VLANs mapped MSTI4 No VLANs mapped MSTI5 No VLANs mapped...
  • Page 195 0d 07:00:02 Gi 1/10 BackupPort Discarding 128 20000 No 0d 07:00:02 SISPM1040-582-LRT# SISPM1040-582-LRT# show spanning-tree mst configuration MSTI1 No VLANs mapped MSTI2 No VLANs mapped MSTI3 No VLANs mapped MSTI4 No VLANs mapped MSTI5 No VLANs mapped MSTI6 No VLANs mapped...
  • Page 196 VLAN IDs 1-4095 <cr> Example: SISPM1040-582-LRT# show switchport forbidden % No forbidden VLANs found SISPM1040-582-LRT# SISPM1040-582-LRT# show switchport forbidden name BobB % VLAN name does not exist SISPM1040-582-LRT# show switchport forbidden vlan 1-20 VLAN Name Interfaces ---- -------------------------------- ---------- default...
  • Page 197 Temperature status : Normal Temperature 1 : 42(C) ; 107(F) Temperature 2 : 42(C) ; 107(F) SISPM1040-582-LRT# show system di-do Switch DI Mode: High Switch DO Mode: open SISPM1040-582-LRT# show system reboot Switch Reboot Mode: Disable Switch Reboot Entry: Reboot Time...
  • Page 198 SISPM1040-582-LRT CLI Reference Monday Tuesday Wednesday Thursday Friday Saturday Sunday SISPM1040-582-LRT# show system cpu status Average load in 100 ms : 7% Average load in 1 sec : 13% Average load in 10 sec : 14% SISPM1040-582-LRT# Command: tacacs-server Description: Show TACACS+ server configuration.
  • Page 199 Lantronix SISPM1040-582-LRT CLI Reference Command: terminal Description: Display terminal configuration parameters. Syntax : show terminal <cr> Parameters: None. Example: SISPM1040-582-LRT# show terminal Line is vty 0. * You are at this line now. Alive from Telnet. Default privileged level is 2.
  • Page 200 Lantronix SISPM1040-582-LRT CLI Reference Command: upnp Description: Display UPnP configuration. Syntax : show upnp <cr> Parameters: None. Example: SISPM1040-582-LRT# show upnp UPnP Mode : disabled UPnP TTL UPnP Advertising Duration : 100 SISPM1040-582-LRT# SISPM1040-582-LRT# show upnp UPnP Mode : enabled...
  • Page 201 Show system hardware and software status. Syntax : show version [ brief ] Parameters: Output modifiers brief <cr> Example: SISPM1040-582-LRT# show version brief Version : SISPM1040-582-LRT (standalone) VB7.20.0191 Build Date : 2023-10-16T18:36:32+08:00 SISPM1040-582-LRT# show version MEMORY : Total=45152 KBytes, Free=25343 KBytes, Max=24545 KBytes...
  • Page 202 Lantronix SISPM1040-582-LRT CLI Reference Command: vlan Description: Show VLAN status. Syntax : show vlan [ id <vlan_list> | name <name> | brief ] [ all ] show vlan ip-subnet [ <ipv4> ] show vlan mac [ address <mac_addr> ] show vlan membership [ id <vlan_list> | name <name> ] [ admin | combined | erps | evc | gvrp | mep | mstp | mvr | nas | rmirror | vcl | voice-vlan | dms | mrp | forbidden ] show vlan protocol [ eth2 { <etype>...
  • Page 203 VLAN0011 Gi 1/2-3 VLAN0012 Gi 1/2-3 VLAN0013 Gi 1/2-3 VLAN0015 Gi 1/2-3 SISPM1040-582-LRT# show vlan status admin interface * 1/4 GigabitEthernet 1/4 : --------------------- VLAN User PortType PVID Frame Type Ing Filter Tx Tag UVID ---------- ------------- ---- ------------- ---------- ----------------- ----...
  • Page 204 GigabitEthernet 1/2 switchport voice security is disabled GigabitEthernet 1/2 switchport voice discovery protocol is oui -- more --, next page: Space, continue: g, quit: ^C SISPM1040-582-LRT(config)# voice vlan oui A4-BA-DB description myphone SISPM1040-582-LRT(config)# exit SISPM1040-582-LRT# show voice vlan oui A4-BA-DB...
  • Page 205 VTUN Voice_VLAN XXRP level percepxion sFlow level Web privilege group level. Example: SISPM1040-582-LRT# show web privilege group Trouble_Shooting level Group Name Privilege Level CRO CRW SRO SRW -------------------------------- --- --- --- --- Trouble_Shooting 5 10 5 10 SISPM1040-582-LRT# SISPM1040-582-LRT# show web privilege group system level...
  • Page 206 Lantronix SISPM1040-582-LRT CLI Reference ETH_LINK_OAM 5 10 5 10 5 10 5 10 Green_Ethernet 5 10 5 10 Install_Wizard 5 10 5 10 5 10 5 10 IPMC_Snooping 5 10 5 10 LACP 5 10 5 10 LLDP 5 10...

  • Page 207: Terminal Commands

    Number of characters on a screen line (0 for unlimited width) Example: SISPM1040-582-LRT# terminal exec-timeout ? <0-1440> Timeout in minutes SISPM1040-582-LRT# terminal exec-timeout 1440 SISPM1040-582-LRT# terminal exec-timeout 1440 3600 SISPM1040-582-LRT# terminal history size 30 SISPM1040-582-LRT# 33757 Rev. J https://www.lantronix.com/ Page 207 of 272...

  • Page 208: Traceroute Commands

    1 192.168.1.77 (192.168.1.77) 0 ms 0 ms 0 ms SISPM1040-582-LRT# SISPM1040-582-LRT# traceroute ip 2.2.2.2 nqueries 1 protocol tcp ttl 5 wait 1 traceroute to 2.2.2.2 (2.2.2.2), 5 hops max, 40 byte packets SISPM1040-582-LRT# traceroute ip 192.168.1.90 nqueries 1 protocol tcp ttl 5 wait 1 traceroute to 192.168.1.90 (192.168.1.90), 5 hops max, 40 byte packets...

  • Page 209: Interface Config Mode Commands

    Lantronix SISPM1040-582-LRT CLI Reference 26 Interface Config Mode Commands These Interface Config mode commands let you configure a specified interface: All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port vlan VLAN interface configurations Command Function access-list Access list aggregation...
  • Page 210 Select an interface to configure All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port <port_type_list> Port list for all port types Example: SISPM1040-582-LRT(config-if)# access-list action permit SISPM1040-582-LRT(config-if)# access-list rate-limiter 1 SISPM1040-582-LRT(config-if)# access-list evc-policer 1 SISPM1040-582-LRT(config-if)# access-list logging SISPM1040-582-LRT(config-if)# access-list mirror...
  • Page 211 Some debug commands when enabled they stay on, consuming CPU and memory and ultimately slowing the system down. Note: 'debug' command syntax, semantics and behavior are subject to change without notice. Warning: Debug commands are only for use by, or at the direction of Lantronix Technical Support. Syntax: debug clear change debug eee wakeup-time [ { rx | tx } { <v_uint16>...
  • Page 212 Description: Run Exec mode commands in Interface Config mode. Syntax : do <command> Parameters: <line> Exec Command Example: SISPM1040-582-LRT(config-if)# do show ip int brief Vlan Address Method Status ---- -------------------- -------- ------ 1 192.168.1.77/24 Manual SISPM1040-582-LRT(config-if)# do show vlan 33757 Rev. J https://www.lantronix.com/...
  • Page 213 Single Host 802.1X Authentication Example: SISPM1040-582-LRT(config-if)# dot1x guest-vlan SISPM1040-582-LRT(config-if)# dot1x port-control mac-based The 802.1X Admin State must be set to Authorized for ports that are enabled for static aggregation SISPM1040-582-LRT(config-if)# dot1 port-control force-authorized SISPM1040-582-LRT(config-if)# dot1x radius-qos SISPM1040-582-LRT(config-if)# dot1x radius-vlan...
  • Page 214 SISPM1040-582-LRT(config-if)# evc addr destination dei colored l2cp forward 10 SISPM1040-582-LRT(config-if)# evc update addr source dei fixed l2cp forward 3 peer 4 SISPM1040-582-LRT(config-if)# evc tag outer SISPM1040-582-LRT(config-if)# evc addr destination dei colored l2cp forward 1 peer 2 tag inner update SISPM1040-582-LRT(config-if)# evc dei fixed SISPM1040-582-LRT(config-if)# evc l2cp forward 1 SISPM1040-582-LRT(config-if)# 33757 Rev.
  • Page 215 SISPM1040-582-LRT(config-if)# event severity 2 SISPM1040-582-LRT(config-if)# event smtp enable SISPM1040-582-LRT(config-if)# event trap enable SISPM1040-582-LRT(config-if)# do show event port Port Active LinkOn LinkOff Overload RxThreshold TrafficDuration Syslog Trap SMTP DigitalOut Severity ---- ------- ------- ------- -------- ----------- --------------- ------- ------- ------- ---------- --------...
  • Page 216 Lantronix SISPM1040-582-LRT CLI Reference Command: exit Description: Exit from current mode. Syntax : exit <cr> Parameters: None. Example: SISPM1040-582-LRT(config-if)# exit SISPM1040-582-LRT(config)# Command: excessive-restart Description: Restart backoff algorithm after 16 collisions for an interface. No excessive-restart means discard frame after 16 collisions.
  • Page 217 Example: SISPM1040-582-LRT(config-if)# gvrp SISPM1040-582-LRT(config)# gvrp max-vlans 500 SISPM1040-582-LRT(config)# gvrp time join-time 10 SISPM1040-582-LRT(config)# gvrp time leave-all-time 3000 SISPM1040-582-LRT(config)# gvrp time leave-time 100 SISPM1040-582-LRT(config)# gvrp time join-time 10 leave-all-time 3000 leave-time 100 SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 217 of 272...
  • Page 218 Lantronix SISPM1040-582-LRT CLI Reference Command: help Description: Description of the interactive help system. Syntax : help <cr> Parameters: None. Example: SISPM1040-582-LRT(config-if)# help Help may be requested at any point in a command by entering a question mark '?'. If nothing matches, the help list will be empty and you must backup until entering a '?' shows the available options.
  • Page 219 DHCP Snooping trust configuration <cr> Example: SISPM1040-582-LRT(config-if)# ip arp inspection trust SISPM1040-582-LRT(config-if)# ip arp inspection check-vlan SISPM1040-582-LRT(config-if)# ip igmp snooping mrouter SISPM1040-582-LRT(config-if)# ip verify source limit 1 SISPM1040-582-LRT(config-if)# ip dhcp snooping trust SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 219 of 272...
  • Page 220 Multicast router port configuration <word16> Profile name in 16 char's <1-10> Maximum number of MLD group registration Example: SISPM1040-582-LRT(config-if)# ipv6 mld snooping max-groups 6 SISPM1040-582-LRT(config-if)# ipv6 mld snooping mrouter SISPM1040-582-LRT(config-if)# ipv6 mld snooping immediate-leave SISPM1040-582-LRT(config-if)# SISPM1040-582-LRT(config-if)# end SISPM1040-582-LRT# show ipv6 mld snooping mrouter MLD Snooping is disabled to stop snooping MLD control plane.
  • Page 221 Wait for neighbor LACP BPDUs before transmitting <1-65535> Priority value, lower means higher priority <cr> Example: SISPM1040-582-LRT(config-if)# lacp key 1 SISPM1040-582-LRT(config-if)# lacp role passive SISPM1040-582-LRT(config-if)# lacp role active SISPM1040-582-LRT(config-if)# lacp port-priority 1 SISPM1040-582-LRT(config-if)# lacp key auto SISPM1040-582-LRT(config-if)# lacp timeout fast...
  • Page 222 Set mib retrieve local info remote-info Set mib retrieve remote info <cr> Example: SISPM1040-582-LRT(config-if)# link-oam mode active SISPM1040-582-LRT(config-if)# link-oam remote-loopback supported SISPM1040-582-LRT(config-if)# link-oam variable-retrieve local-info % This feature is not supported yet. SISPM1040-582-LRT(config-if)# link-oam variable-retrieve remote-info % This feature is not supported yet.
  • Page 223 Enable/Disable transmission of the optional PoE TLV. Example: SISPM1040-582-LRT(config-if)# lldp cdp-aware SISPM1040-582-LRT(config-if)# lldp receive SISPM1040-582-LRT(config-if)# lldp tlv-select management-address SISPM1040-582-LRT(config-if)# lldp tlv-select system-capabilities SISPM1040-582-LRT(config-if)# lldp transmit SISPM1040-582-LRT(config-if)# lldp med transmit-tlv capabilities location network-policy poe SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 223 of 272...
  • Page 224 <max_length> Parameters: 1518-9600 Maximum frame size in bytes. Example: SISPM1040-582-LRT(config-if)# mtu 9600 SISPM1040-582-LRT(config-if)# do show interface * status Interface Mode Speed & Duplex Flow Control Max Frame Excessive Link ---------------------- ------- -------------- ------------ --------- --------- -------- GigabitEthernet 1/1 enabled Auto...
  • Page 225 MVR source port <vlan_list> MVR multicast VLAN list Example: SISPM1040-582-LRT(config-if)# mvr immediate-leave SISPM1040-582-LRT(config-if)# mvr name MvrVID-1 type receiver SISPM1040-582-LRT(config-if)# mvr vlan 10 type source SISPM1040-582-LRT(config-if)# Messages: % Invalid MVR VLAN MvrVID-1. % Failed to set MVR port role. Command: Description: Negate a command or set its defaults.
  • Page 226 Lantronix SISPM1040-582-LRT CLI Reference Command: Description: Configure Power Over Ethernet for an interface. Syntax : poe delay-mode poe delay-time <v_0_to_300> poe failure-action { nothing | reboot-Remote-PD } poe hour <v_hour> poe interval-time <interval> poe legacy poe lldp poe max-reboot-times <reboot>...
  • Page 227 Configure PoE Power scheduling per Hour. <0~23> Enter Hour such as 0,1,5-8. Example 1: SISPM1040-582-LRT(config-if)# poe delay-mode SISPM1040-582-LRT(config-if)# poe delay-time 60 SISPM1040-582-LRT(config-if)# poe hour 14 SISPM1040-582-LRT(config-if)# poe failure-action reboot-Remote-PD SISPM1040-582-LRT(config-if)# poe power limit 80 33757 Rev. J https://www.lantronix.com/ Page 227 of 272...
  • Page 228 SISPM1040-582-LRT(config-if)# poe priority critical SISPM1040-582-LRT(config-if)# poe reboot-time 20 SISPM1040-582-LRT(config-if)# poe startup-time 45 SISPM1040-582-LRT(config-if)# poe schedule-all SISPM1040-582-LRT(config-if)# poe schedule-mode SISPM1040-582-LRT(config-if)# poe weekday Sat hour 13 SISPM1040-582-LRT(config-if)# poe mode 4pair60w SISPM1040-582-LRT(config-if)# poe mode 8023bt SISPM1040-582-LRT(config-if)# Messages: GigabitEthernet 1/10 does not have PoE support Example 2: Added at FW vB7.10.2294.
  • Page 229 Disable 30.0 GigabitEthernet 1/9 does not have PoE support GigabitEthernet 1/10 does not have PoE support SISPM1040-582-LRT(config-if)# poe power limit ? <fword2.1> Maximum power for the interface (Class 4 PDs limited to 90W). SISPM1040-582-LRT(config-if)# poe power limit 90 SISPM1040-582-LRT(config-if)# do show poe config...
  • Page 230 Lantronix SISPM1040-582-LRT CLI Reference Example 3: FW VB7.10.2658 and above: SISPM1040-582-LRT(config-if)# do show poe config Port Mode Schedule Priority LLDP Legacy ---- -------- ------------------------------- -------- -------- -------- 4pair60w Disable Critical Enabled Disabled 4pair60w Profile 1 High Enabled Disabled 4pair60w Profile 1...
  • Page 231 Lantronix SISPM1040-582-LRT CLI Reference Message: SISPM1040-582-LRT# E poe 05:23:20 50/poe_mgmt_set_local_config#4125: Error: Maximum port power must not exceed 120W (For port 1 + port 2) W poe 05:23:20 50/poe_mgmt_set_local_config#4138: Warning: Configuration NOT updated due to above error(s) Meaning: You tried to enter an invalid PoE configuration.
  • Page 232 <cr> Example: SISPM1040-582-LRT(config-if)# ptp 0 internal Error getting port data instance 0 port 6 SISPM1040-582-LRT(config-if)# ptp 0 sync-interval -1 Error setting port data instance 0 port 6 SISPM1040-582-LRT(config-if)# ptp 0 internal SISPM1040-582-LRT(config-if)# ptp 0 delay-asymmetry 50000 SISPM1040-582-LRT(config-if)# ptp 0 egress-latency -6000...
  • Page 233 Lantronix SISPM1040-582-LRT CLI Reference Command: pvlan Description: Configure Private VLAN for an interface. Syntax : pvlan <pvlan_list> pvlan isolation Parameters: <range_list> list of PVLANs. Range is from 1 to number of switch ports. isolation Port isolation Example: SISPM1040-582-LRT(config-if)# pvlan 1-10...
  • Page 234 SISPM1040-582-LRT(config-if)# qos shaper 90 mbps SISPM1040-582-LRT(config-if)# qos tag-remark mapped SISPM1040-582-LRT(config-if)# qos tag-remark pcp 2 dei 0 SISPM1040-582-LRT(config-if)# qos trust dscp SISPM1040-582-LRT(config-if)# qos trust tag SISPM1040-582-LRT(config-if)# qos wrr 25 50 75 20 35 70 SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 234 of 272...
  • Page 235 Interval in seconds to sample data for each bucket <1-65535> Statistics entry ID <cr> Example: SISPM1040-582-LRT(config-if)# rmon collection history 1000 buckets 600 interval 500 SISPM1040-582-LRT(config-if)# rmon collection stats 4000 SISPM1040-582-LRT(config-if)# do show rmon history History ID : 1000 ------------------ Data Source : .1.3.6.1.2.1.2.2.1.1.5...
  • Page 236 <14-200> Max-sampling-size in bytes Sample All Sample Rx Sample Tx <1-4294967295> Sampling rate <cr> Example: SISPM1040-582-LRT(config-if)# sflow counter-poll-interval 500 SISPM1040-582-LRT(config-if)# sflow max-sampling-size 75 SISPM1040-582-LRT(config-if)# sflow sampler-type all SISPM1040-582-LRT(config-if)# sflow sampling-rate 50000 SISPM1040-582-LRT(config-if)# Command: shutdown Description: Shutdown the interface. Syntax : shutdown <cr>...
  • Page 237 Use auto cost <cr> Example: SISPM1040-582-LRT(config-if)# spanning-tree auto-edge SISPM1040-582-LRT(config-if)# spanning-tree bpdu-guard SISPM1040-582-LRT(config-if)# spanning-tree edge SISPM1040-582-LRT(config-if)# spanning-tree link-type shared SISPM1040-582-LRT(config-if)# spanning-tree mst 5 cost auto SISPM1040-582-LRT(config-if)# spanning-tree restricted-role SISPM1040-582-LRT(config-if)# spanning-tree restricted-tcn SISPM1040-582-LRT(config-if)# spanning-tree SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 237 of 272...
  • Page 238 { 10g | 2500 | 1000 | 100 | 10 | 100fx | 100fx-ams | 1000x | 1000x-ams | sfp-auto-ams | auto { [ 10 ] [ 100 ] [ 1000 ] } } SISPM1040-582-LRT(config-if)# speed auto ? 10Mbps...
  • Page 239 Lantronix SISPM1040-582-LRT CLI Reference Command: switchport Description: Configure Switching mode characteristics for an interface. Syntax : switchport access vlan <pvid> switchport forbidden vlan { add | remove } <vlan_list> switchport hybrid acceptable-frame-type { all | tagged | untagged } switchport hybrid allowed vlan { all | none | [ add | remove | except ] <vlan_list> }...
  • Page 240 SISPM1040-582-LRT(config-if)# switchport hybrid ingress SISPM1040-582-LRT(config-if)# switchport hybrid ingress SISPM1040-582-LRT(config-if)# switchport hybrid port-type s-custom-port SISPM1040-582-LRT(config-if)# switchport mode access SISPM1040-582-LRT(config-if)# switchport voice vlan security SISPM1040-582-LRT(config-if)# switchport forbidden vlan remove 100 SISPM1040-582-LRT(config-if)# switchport trunk allowed vlan all SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 240 of 272...
  • Page 241 The range is 7 - 90 seconds (currently default message time interval 7 sec is supported). <cr> Example: SISPM1040-582-LRT(config-if)# udld port aggressive SISPM1040-582-LRT(config-if)# udld port aggressive message time-interval 35 SISPM1040-582-LRT(config-if)# udld port SISPM1040-582-LRT(config-if)# udld port message time-interval 7 SISPM1040-582-LRT(config-if)# udld port message time-interval 7 aggressive SISPM1040-582-LRT(config-if)# 33757 Rev.

  • Page 242: Configure And Show Port Events For An Interface

    Smtp enable disable Trap disable enable Trap enable <1-300> Traffic duration 1-300 Example: SISPM1040-582-LRT(config-if)# event active enable SISPM1040-582-LRT(config-if)# event overload enable SISPM1040-582-LRT(config-if)# event severity 1 SISPM1040-582-LRT(config-if)# event smtp enable SISPM1040-582-LRT(config-if)# event trap enable SISPM1040-582-LRT(config-if)# 33757 Rev. J https://www.lantronix.com/ Page 242 of 272...
  • Page 243 Lantronix SISPM1040-582-LRT CLI Reference Show Port Events Example: SISPM1040-582-LRT# show event port Port Active LinkOn LinkOff Overload RxThreshold TrafficDuration Syslog Trap SMTP DigitalOut Severity ---- ------- ------- ------- -------- ------------------- ------------------ ------ ---- --------- ------ ------------- ---------- enable enable enable disable 0...

  • Page 244: Configure Qos Commands For An Interface

    Lantronix SISPM1040-582-LRT CLI Reference 26.2 Configure QoS Commands for an Interface Command: Description: Configure Quality of Service for a specific interface. Syntax : qos cos <cos> qos dei <dei> qos dpl <dpl> qos dscp-classify { zero | selected | any }...
  • Page 245 SISPM1040-582-LRT(config-if)# qos dei 0 SISPM1040-582-LRT(config-if)# qos dpl 1 SISPM1040-582-LRT(config-if)# qos trust dscp SISPM1040-582-LRT(config-if)# qos map cos-tag cos 1 dpl 1 pcp 2 dei 0 SISPM1040-582-LRT(config-if)# qos policer 3276 flowcontrol mbps SISPM1040-582-LRT(config-if)# qos queue-shaper queue 3 4444 excess SISPM1040-582-LRT(config-if)# qos shaper 9000 kbps...

  • Page 246: Mrp Pre-Requisites And Application Examples

    MRCs have both ring ports forwarding. The physical ring topology is also a logical stub topology in the Ring-Open status. 27.3 Related Devices MRP is supported on SISPM1040-582-LRT, SISPM1040-362-LRT, SISPM1040-384-LRT-C and SISGM1040-284-LRT, SISPM1040-3166-L, and SISPM1040-3248-L. 33757 Rev. J https://www.lantronix.com/...

  • Page 247: Mrp Sample Setup

    Lantronix SISPM1040-582-LRT CLI Reference 27.4 MRP Sample Setup The example below shows SISPM1040-582-LRT switches (one MRM and five MRCs). Figure: MRP Sample Setup 27.5 MRP Pre-Requisites (General) The following are required to perform MRP setups. 1. Spanning Tree must be disabled at Configuration > Spanning Tree > CIST Port.

  • Page 248: Mrp Config Mode Command Parameters

    Lantronix SISPM1040-582-LRT CLI Reference 27.6 MRP Config Mode Command Parameters <1-2> DomainID of Domain to modify domain Create/Delete MRP Domain client Operate on an MRP Client diag-clear Clear Diagnostic stats for MRP Domain manager Operate on an MRP Manager name...

  • Page 249: Mrp Setup (Cli Commands)

    Lantronix SISPM1040-582-LRT CLI Reference 27.8 MRP Setup (CLI Commands) Example 1: Create two new MRP domains on an SISPM1040-582-LRT: SISPM1040-582-LRT(config)# mrp domain new 1 SISPM1040-582-LRT(config)# mrp domain new 2 SISPM1040-582-LRT(config)# Example 2: Show default config for newly-created MRP domains 1 and 2:...
  • Page 250 Non-blocking MRC supported: Disabled React On Link Change: Disabled Check Media Redundancy Event: Enabled SISPM1040-582-LRT(config)# Example 5: Show newly-configured MRP 2 parameters: SISPM1040-582-LRT(config)# do show mrp 2 Operational: Role: Undefined Status: Disabled Primary Ring Port State: Unknown Secondary Ring Port State: Unknown...

  • Page 251: Service And Tech Support

    Tech Support Specialist. 1. Select the SISPM1040-582-LRT Monitor > System > Information menu path. From the CLI, use the show commands to gather the information below or as requested by the Support Specialist.

  • Page 252: Appendix Adhcp Per Port

    You can configure DHCP Per Port via the CLI and Web UI. The DHCP Per Port factory default mode is Disabled. See the SISPM1040-582-LRT Web User Guide for web UI mode operation. The switch’s DHCP server assigns IP addresses. Clients get IP addresses in sequence and the switch assigns IP addresses on a per-port basis starting from the configured IP range.
  • Page 253 DHCP server Per Port function is disabled or enabled. Example: Display the current DHCP Server and Per Port configuration, change the config, and display the results: SISPM1040-582-LRT(config)# do show ip dhcp server DHCP server is globally enabled. Enabled VLANs are 1. DHCP server per port is disabled.
  • Page 254 DHCP server per port is disabled. SISPM1040-582-LRT(config)# The SISPM1040-582-LRT supports the DHCP IP Per Port VLAN function. It lets you have an IP address from a DHCP pool on a switch be statically assigned to a switchport, such that whichever device plugs into the switchport it will always be assigned that specific IP address.

  • Page 255: Appendix Bsftp Copy Commands

    SISPM1040-582-LRT CLI Reference Appendix B SFTP copy Commands SFTP Client copy Commands - SSH/Telnet/Console - SolarWinds version 20.4.0.76 The SFTP commands were added at SISPM1040-582-LRT FW v7.20.0034 as described below. chapter 5 Copy Commands on page for valid copy commands before FW v7.20.0034.
  • Page 256 Description: Transfer running-config from switch to SolarWinds using SFTP protocol, where 192.xxx.xxx.104 is the SFTP Server IP address. Example: login as: tech15 tech15@192.xxx.xxx.110’s password: SISPM1040-582-LRT# copy running-config sftp://buck:buck1@192.xxx.xxx.104/running-config save-host-key Building configuration... % Saving 1417 bytes to server 192.xxx.xxx.104: /running-config_192.xxx.xxx.110_20110101 SISPM1040-582-LRT# Note: ‘buck’...
  • Page 257 Description: Transfer startup-config from SolarWinds to switch using SFTP protoco, where 192.xxx.xxx.104 is the SFTP Server IP address and 192.xxx.xxx.108 is the SISPM1040-582-LRT switch IP address. Note: ‘tech15’ is the username in RADIUS server and SFTP server, ‘15tech’ is the Password, and the IP (.108) is the IP of the switch.

  • Page 258: Solar Wind Settings

    PuTTY. Note that this manual provides links to third party web sites for which Lantronix is not responsible. Your organization should internally review and assess to what extent, if any, such third-party content will be incorporated into your environment. You elect to use third-party content at your own risk, and you will be solely responsible for the incorporation of same if used.
  • Page 259 Lantronix SISPM1040-582-LRT CLI Reference Users tab Windows Explorer Messages: File download failed Show messages % Error loading remote file: File upload failed, check permissions (27) % Error loading remote file: File download failed, check permissions Meaning: You typed the wrong filename to download file via SolarWinds SFTP server Recovery: 1.

  • Page 260: Sftp Client Copy Commands

    Lantronix SISPM1040-582-LRT CLI Reference SFTP Client Copy Commands The SFTP Client copy commands for SSH / Telnet / Console used with SolarWinds version 20.4.0.76 are described below. These commands let you copy from a source to a destination. See the SolarWinds Free Trial Downloads webpage.

  • Page 261: Copy (Upload) Config Commands

    Lantronix SISPM1040-582-LRT CLI Reference exclude Exclude lines that match include Include lines that match <line> String to match output lines Examples: (See below.) Copy (Upload) config Commands CLI command: copy startup-config sftp://root:transition@192.168.1.248/SISPM1040-582-LRT_startup save-host- Description: Upload startup-config via SolarWinds SFTP sever, using Local authentication.

  • Page 262: Firmware Upgrade Commands

    Lantronix SISPM1040-582-LRT CLI Reference LRT_running_192.168.1.202_20110101 running-config save-host-key Description: Download running-config via SolarWinds SFTP sever, using Local authentication. CLI command: copy sftp://root:transition@192.168.1.248/SISPM1040-582- LRT_running_192.168.1.202_20110101 running-config save-host-key Description: Download running-config via SolarWinds SFTP sever, using RADIUS authentication. CLI command: copy sftp://root:transition@192.168.1.248/SISPM1040-582- LRT_running_192.168.1.202_20110101 running-config save-host-key Description: Download running-config via SolarWinds SFTP sever, using TACACS+ authentication.

  • Page 263: Appendix C Percepxion And Lpm Commands

    SISPM1040-582-LRT CLI Reference Appendix C Percepxion and LPM Commands Percepxion is Lantronix on-premise and cloud-hosted management platform that provides a single pane of glass for centralized management and automated monitoring of all deployed Lantronix Remote Environment Management and IoT products, along with real-time notifications, managed APIs and data dashboards.
  • Page 264 Restores the default action on new firmware (do not apply) enable Automatically apply new firmware Mode: Configure Percepxion mode Example: SISPM1040-582-LRT(config-percepxion)# apply configuration updates disable SISPM1040-582-LRT(config-percepxion)# apply configuration updates enable SISPM1040-582-LRT(config-percepxion)# apply firmware updates disable SISPM1040-582-LRT(config-percepxion)# apply firmware updates enable SISPM1040-582-LRT(config-percepxion)# 33757 Rev. J https://www.lantronix.com/...
  • Page 265 SISPM1040-582-LRT(config-percepxion)# connection 1 secure port enable SISPM1040-582-LRT(config-percepxion)# connection 1 validate certificates enable SISPM1040-582-LRT(config-percepxion)# Example 2: SISPM1040-582-LRT(config-percepxion)# connection 1 connect to on premise SISPM1040-582-LRT(config-percepxion)# connection 1 connect to cloud SISPM1040-582-LRT(config-percepxion)# connection 2 connect to cloud SISPM1040-582-LRT(config-percepxion)# connection 2 connect to on premise SISPM1040-582-LRT(config-percepxion)# 33757 Rev.
  • Page 266 Sets the firmware and configuration check interval <1-56160> Sets the firmware and configuration check interval Mode: Configure Percepxion mode Example: SISPM1040-582-LRT(config-percepxion)# content check interval 9000 SISPM1040-582-LRT(config-percepxion)# Command: device Description: Sets the Device parameters for Percepxion. Syntax: device description <device_desp>...
  • Page 267 To run Exec commands in Config mode. Syntax: do <command> Parameters: <command> Command to be run Mode: Configure Percepxion mode Example: SISPM1040-582-LRT(config-percepxion)# do show ip interface brief Vlan Address Method Status ---- -------------------- -------- ------ 1 172.27.195.90/24 Manual SISPM1040-582-LRT(config-percepxion)# do enable SISPM1040-582-LRT(config-percepxion)# do dir...
  • Page 268 Removes the Device ID Removes the Device Key name Removes the Device Name description Removes the Device Description Mode: Configure Percepxion mode Example: SISPM1040-582-LRT(config-percepxion)# no device description SISPM1040-582-LRT(config-percepxion)# no device name SISPM1040-582-LRT(config-percepxion)# 33757 Rev. J https://www.lantronix.com/ Page 268 of 272...
  • Page 269 State : Enabled Device ID : Device Key : (Configured) Device Name : SISPM1040-582-LRT-3E8B Device Description : Lantronix SISPM1040-582-LRT Status Update Interval : 1 minutes Content Check Interval : 1 minutes Apply Firmware Updates : Enabled Apply Configuration Updates : Enabled Active Connection : Connection 1 Connection 1 Host : api.percepxion.ai...
  • Page 270 Sets the status update interval interval Sets the status update interval <1-1440> Sets the status update interval Mode: Configure Percepxion mode Example: SISPM1040-582-LRT(config-percepxion)# status update interval 1 SISPM1040-582-LRT(config-percepxion)# status update interval 1440 SISPM1040-582-LRT(config-percepxion)# 33757 Rev. J https://www.lantronix.com/ Page 270 of 272...

  • Page 271: Appendix D Service, Warranty & Tech Support

    Lantronix SISPM1040-582-LRT CLI Reference Appendix D Service, Warranty & Tech Support See the SISPM1040-582-LRT Install Guide for related information. Appendix E Compliance Information See the SISPM1040-582-LRT Install Guide for related information. 33757 Rev. J https://www.lantronix.com/ Page 271 of 272...
  • Page 272 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33757 Rev. J https://www.lantronix.com/ Page 272 of 272...
