Lantronix Spider Duo SLSLP400USB-02 Quick Start Manual

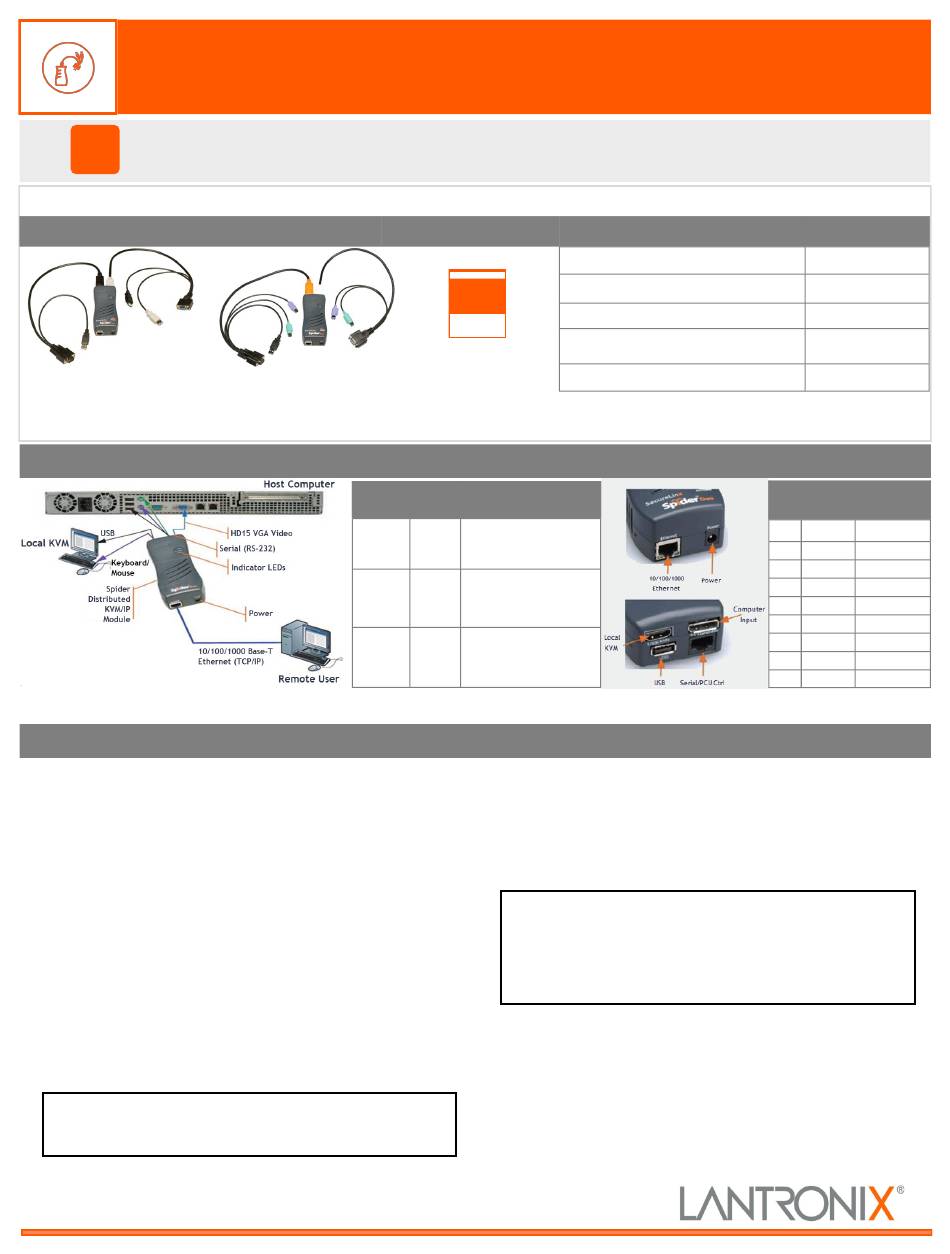

Spider Duo Quick Start Guide
!
Thank you for choosing Lantronix. Please register your product to receive notifications for firmware and
documentation updates at www.lantronix.com/product-registration.
WHAT'S IN THE BOX

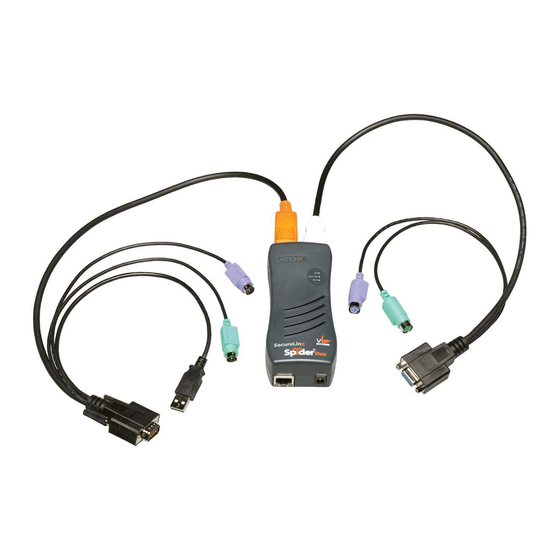

Spider Duo
or
Part # SLSLP400USB-02
There are two Spider Duo models: one with both PS/2 and USB keyboard/mouse interfaces (software selectable), and one for USB-only systems. The color-coded
plugs on the ends of the cable for the keyboard, mouse, USB port and video are designed to plug directly into the target system's corresponding connector.
An optional power control unit (PCU) is available (part number PCU100-01); see page 2 for details.
HARDWARE OVERVIEW
Typical Spider Duo Configuration
HARDWARE INSTALLATION AND NETWORK SETTINGS
1. Plug the RJ45 end of the included serial cable into the Spider Duo's
serial port. Plug the DB9F end into the serial (COM) port of a
PC/laptop running a terminal emulation (e.g. HyperTerminal). The
default serial port settings are 9600 bits per second, 8 data bits, no
parity, 1 stop bit, no flow control.
Plug the power adaptor into the Spider Duo's power connector.
Plug an Ethernet cable connected to your network into the Ethernet
port. The Link LED illuminates.
2. Insert color coded plugs into connectors with matching border on
the Spider Duo. Plug the video, USB, and PS/2 keyboard/mouse (if
applicable) cables into the target computer. For transparent local
access, connect cables to local keyboard, video, and mouse. The
blue Sys OK LED will illuminate and flashes to indicate that it is
booting up. Bootup is complete within approximately one minute.
The blue Sys OK LED stops flashing and remains illuminated.
3. Upon bootup, the terminal window displays the IP Configuration
screen.
Welcome!
Choose a command for the following features:
-Initial IP configuration: "config".
-Change default sysadmin password: "password".
-Exit quick setup: "quit".
[172.18.0.100 SL5a38bffdc]>
Part # SLSLP400PS2-02
LED
ID Amber
Sys OK Blue
PCU Green
Indicator LED Description
Quick Start Guide
Local KVM cable
Computer input cable
START
Mounting kit
Null modem DB9F to RJ95 serial cable
(30.48 mm; 120 in)
External AC/DC Power Supply
Color Description
Optionally lit to assist in
finding unit.
Blinks upon bootup. Steady
when up and healthy.
Steady on when power is
being supplied through
PCU.
4. At the command prompt type config and press Enter.
5. To change the default IP auto configuration from DHCP to a static IP
address, at the IP autoconfiguration prompt type none and press
Enter.
6. Enter the unit's IP address, subnet mask, default gateway, and LAN
interface information.
[172.18.0.100 SL5a38bffdc]> config
IP autoconfiguration (none/dhcp/bootp) [dhcp]: none
IP [172.18.0.100]:
NetMask [255.255.255.0]:
Gateway (0.0.0.0 for none) [172.18.0.100]:
LAN interface speed (auto/10/100/1000) [auto]:
LAN interface duplex mode (auto/half/full) [auto]:
Are the entered values correct? Enter y for Yes, n for No or c to Cancel y
Configuring device...
Done.
7. Type y and press Enter to accept the changes. The system takes
about 20 seconds to complete. Press Enter once again at the prompt
to display the updated IP address.
8. Plug an Ethernet cable connected to your network into the Ethernet
port. The Link LED illuminates.
1
Remote KVM-Over-IP
with Local Access
Accessories
Pin # RS-232
1 RTS
2 —
3 TX
4 Ground
5 Ground
6 RX
7 —
8 CTS
Port Description Serial/PCU Port Pinouts
Part Number
N/A
N/A
N/A
N/A
ACC-520-0184-00
Pinouts
PCU
—
+5V
—
Sense
Ground
—
Relay driver
—
