Network Connections

The SLB network interfaces are 10Base-T/100Base-TX connectors for use with a
conventional Ethernet network. Use standard RJ45-terminated Category 5 cables.
Network parameters must be configured before the SLB branch office manager can be
accessed over the network.
Note: One possible use for the two Ethernet ports is to have one port on a
private, secure network and the other on a public, unsecured network.

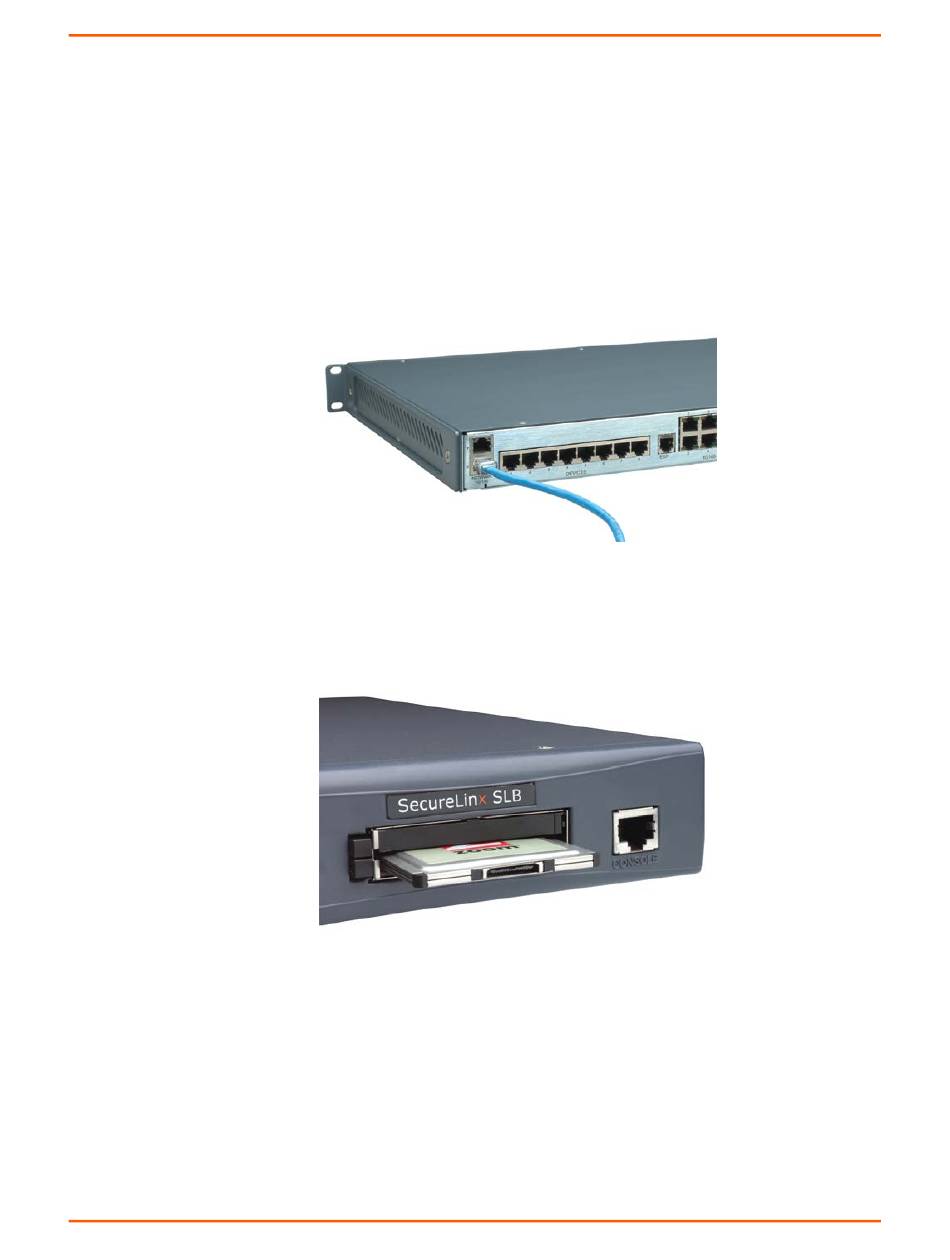

Figure 2-5. Network Connection

PC Card Interface

The SLB has two PC Card slots. Lantronix qualifies cards continuously and publishes a
list of qualified cards on the Lantronix web site.

Figure 2-6. PC Card Interface
